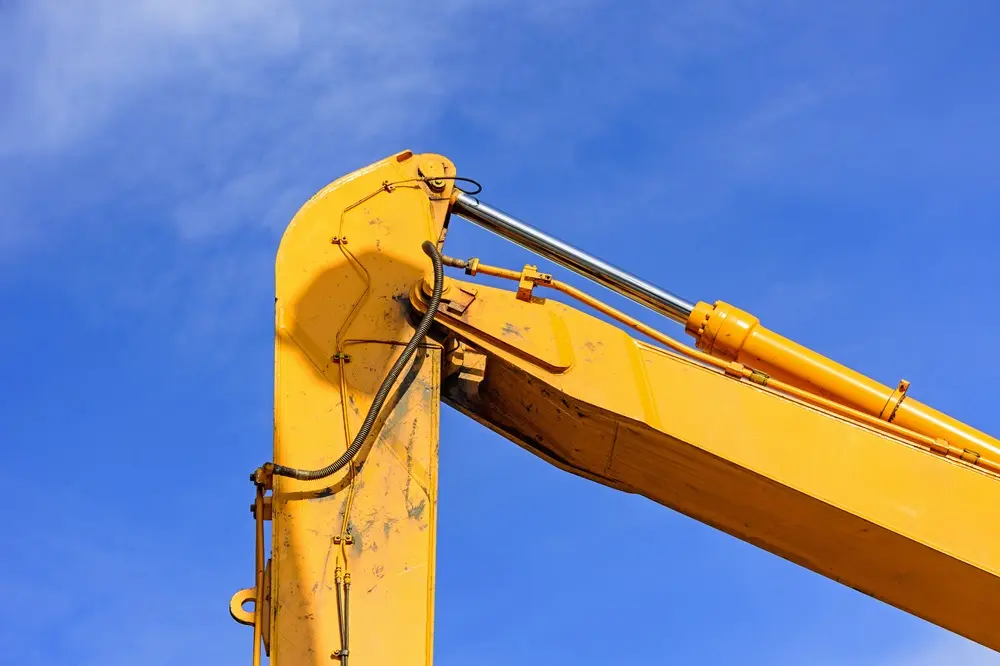

Have you ever marveled at how massive machines, from tunnel boring machines to excavators, move mountains and reclaim land from the sea? The secret lies in hydraulic components, especially hydraulic cylinders! These mechanical titans harness fluid pressure to generate immense force, enabling them to lift, push, and pull the heaviest loads with ease.

While hydraulic cylinders are incredibly robust components in industrial systems, even the toughest parts can sometimes fail. If your company or equipment is experiencing hydraulic cylinder issues, don't let it halt your operations. Contact us today for professional hydraulic cylinder repair services that will get your machinery back up and running quickly and efficiently.

Are Pushing and Pulling Forces Equal in a Hydraulic Cylinder?

It's a common question among those working with hydraulic cylinders: Is the pushing force always equal to the pulling force? Let's delve into this intriguing aspect of hydraulic cylinder mechanics for a comprehensive explanation.

Key Components of a Hydraulic Cylinder

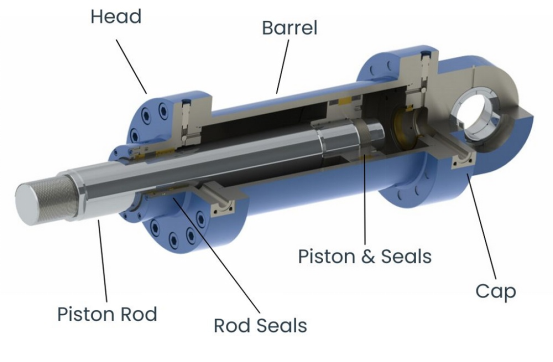

To truly understand how hydraulic cylinders function, it's essential to familiarize yourself with their critical components. Each part plays a vital role in the cylinder's overall efficiency and reliability:

• Cylinder Barrel: The main body that houses the piston and internal components, typically constructed from high-strength steel or alloy for superior pressure resistance.

• Piston: This crucial element moves within the barrel, generating linear force. It's often coated or treated to enhance wear and corrosion resistance.

• Piston Rod: Extending from the piston, the rod transfers the generated force to the external load. It's commonly made from chrome-plated steel for durability.

• Cylinder Base / End Cap: This serves as a mounting point for the cylinder, forms a sealed chamber for the hydraulic oil, and helps direct force.

• Cylinder Head: Seals the end of the cylinder and provides a guide for the piston rod.

• Seals: Essential for preventing fluid leakage and protecting internal components, these are made from durable rubber or synthetic compounds designed to withstand high pressure and temperature.

How Hydraulic Cylinders Work: The Working Principle

Hydraulic cylinders, also known as linear actuators, are marvels of engineering that convert pressurized hydraulic fluid (usually oil) into precise linear motion and force. The fundamental mechanism involves a piston moving inside a sealed barrel as fluid is directed into specific chambers, effectively pushing or pulling a load. This powerful and versatile mechanism is widely employed across various industries, including construction, manufacturing, and general industrial machinery.

Types of Hydraulic Cylinders: A Detailed Look

Hydraulic cylinders are broadly categorized based on their operation:

• Single-Acting Cylinders: These cylinders utilize hydraulic pressure for movement in one direction only. The return stroke is typically achieved by a spring mechanism or an external force.

• Pros: Simpler design, lower cost, compact for limited spaces, and fewer valves and hoses, reducing overall system complexity.

• Cons: Less force output due to internal spring resistance, performance can degrade as springs wear out, and limited to applications where force is only required in one direction.

• Double-Acting Cylinders: Featuring two ports and two distinct chambers, these cylinders enable controlled movement in both extension and retraction directions. They are widely preferred in applications where precision and repeatability are paramount.

• Pros: Precise control over both extension and retraction, higher force, speed, and efficiency, and support for bidirectional motion, making them ideal for automation.

• Cons: Higher initial cost and more complex assembly and maintenance due to their dual ports and seals.

Other Important Hydraulic Cylinder Types:

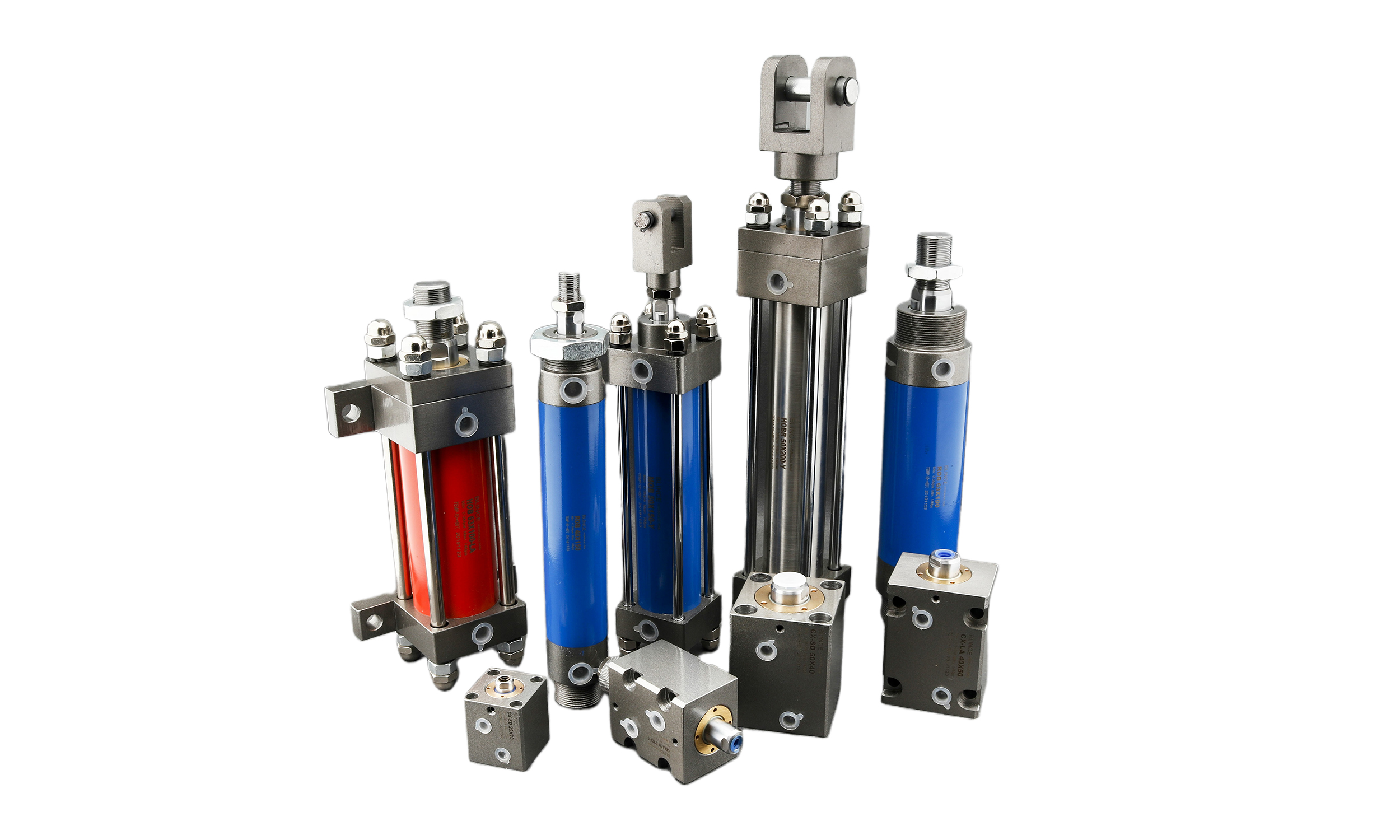

• Tie-Rod Cylinders: Designed for high-pressure hydraulic applications, these cylinders are known for their ease of disassembly and maintenance. They are commonly used in Europe and the Americas, often conforming to NFPA or ISO standards.

• Welded Body Cylinders: Renowned for their strength and compact design, welded body cylinders are ideal for rugged or mobile hydraulic applications. They are frequently found in heavy-duty industries.

• Telescopic Cylinders: These unique cylinders feature nested stages that allow them to achieve exceptionally long stroke lengths while maintaining a compact retracted form. They are commonly employed in dump trucks, cranes, and excavators.

Understanding Push and Pull Forces: Are They Different?

Now, let's address the initial question directly: In single-rod double-acting hydraulic cylinders, the pushing and pulling forces are not equal.

This disparity arises from the difference in the effective surface area on either side of the piston.

• Push Force: When pressure is applied, the fluid acts on the full piston area in the rodless chamber, maximizing the force.

• Pull Force: Conversely, when pressure is applied for retraction, the fluid acts on a reduced area in the rod-side chamber (the piston area minus the area occupied by the piston rod).

Formula for Force Calculation: Force=Pressure×Effective Area

Example: Consider a scenario where the piston diameter is 100 mm and the rod diameter is 40 mm.

Rodless area: 7,854 mm2

Rod-side area: 6,597 mm2

This calculation demonstrates that the push force can be up to 19% greater than the pull force under the same pressure. This imbalance can significantly impact performance in applications demanding symmetrical forces, such as synchronized lifting or gripping. In such cases, engineers often opt for double-rod cylinders or implement pressure compensation strategies to achieve balanced force output.

Why Understanding Force Differentials Matters

Recognizing that push and pull forces can differ is absolutely critical for proper hydraulic system design and ensuring equipment reliability. This understanding helps engineers design systems with balanced force output, prevents uneven loading on components, and ultimately improves overall system performance and longevity.

Choosing the Right Hydraulic Cylinder for Your Needs

Each type of hydraulic cylinder possesses unique strengths and is suited for specific applications. Selecting the ideal cylinder involves carefully considering several factors:

• Stroke length

• Bore size

• Mounting requirements

• Load capacity

• Pressure ratings

Whether you need hydraulic cylinders for industrial automation, construction machinery, or automotive applications, choosing the right configuration is paramount to ensuring safety, longevity, and optimal performance.
