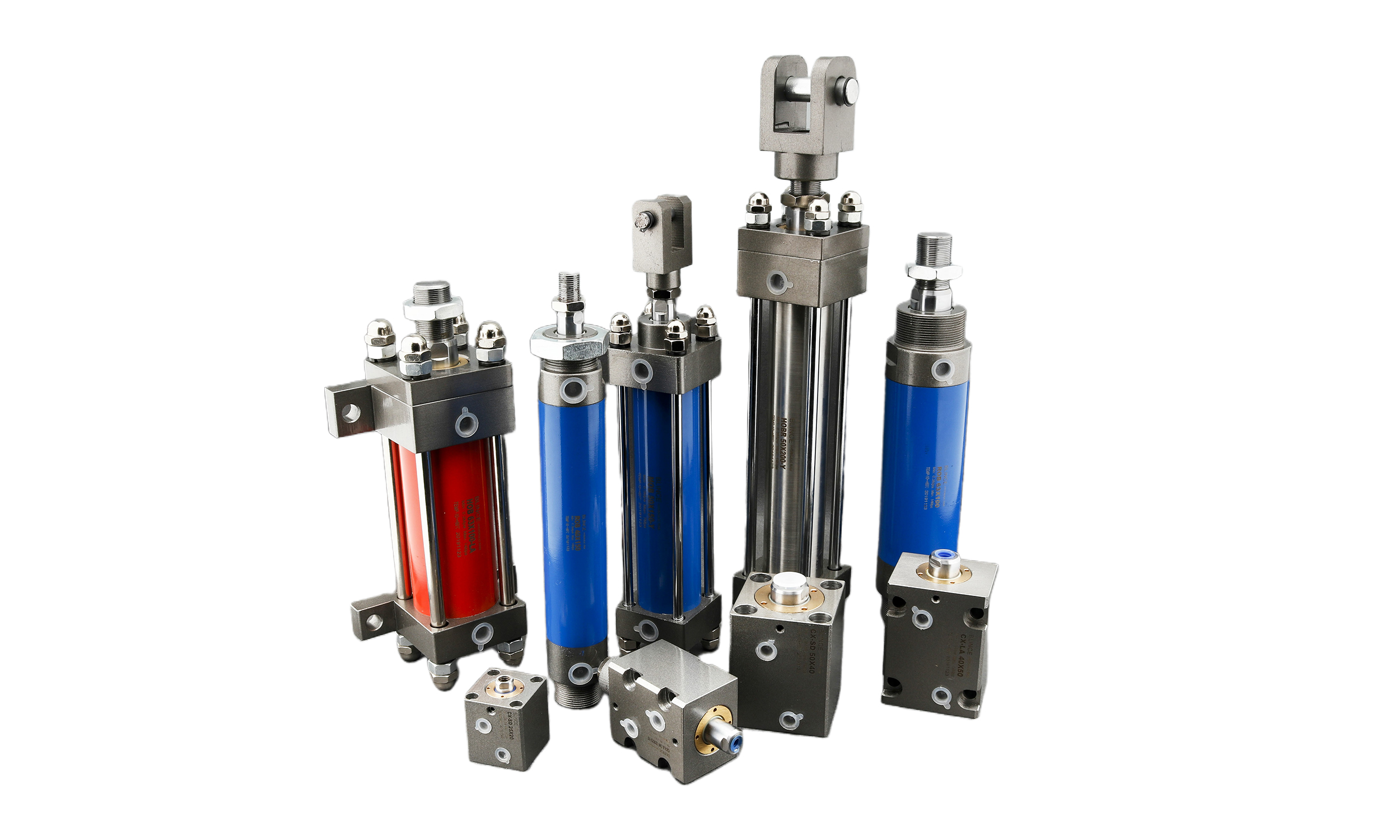

Hydraulic Cylinder Repair Guide: A Handbook for Hydraulic Cylinder Seal Replacement

Hydraulic cylinders are important power components in construction machinery, metallurgical equipment, agricultural machinery, etc. However, due to long-term high-pressure operation, hydraulic cylinders often experience faults such as oil leakage and decreased thrust. Compared with the expensive replacement of the entire cylinder, the maintenance of hydraulic cylinders (especially the replacement of hydraulic cylinder seals) is not only economical but also can effectively extend the service life. This article will provide you with a complete solution for hydraulic cylinder oil leakage and detail the process and precautions for replacing the hydraulic cylinder seal.

Why Choose Repacking Over Replacement?

Over time, nearly every hydraulic cylinder begins to leak due to seal wear. Replacing seals through repacking ensures the cylinder continues to perform at peak efficiency without the expense of purchasing a new unit. Repacking also helps reduce environmental waste by reusing the original cylinder body.

During the operation of a hydraulic cylinder, the sealing parts are constantly subjected to high pressure, friction and temperature changes, which makes them prone to aging and failure. Common questions include:

Hydraulic cylinder oil leakage → Seal damage, oil leakage, resulting in system pressure drop;

Insufficient thrust → The piston rod moves slowly or is unable to bear weight;

Component wear → Impurities in the oil accelerate the damage to the seals.

Regular maintenance of hydraulic cylinders and replacement of seals can not only ensure the sealing performance of the hydraulic cylinders but also reduce energy waste and equipment downtime

Signs That Your Hydraulic Cylinder Needs Repacking

Recognizing early signs of failure is key to avoiding downtime:

• Oil leakage around the piston rod or ports

• Reduced lifting power or difficulty moving loads

• Implements drifting or lowering faster than normal

Before performing a repack, always test the cylinder:

1. Fill both sides of the cylinder with hydraulic fluid.

2. Cycle the cylinder through full strokes to purge air.

3. Pressurize it when fully extended and check for leaks.

4. Retract and hold under pressure to detect further leakage.

5. Perform an internal bypass test: retract the cylinder, cap the base port, and observe whether the rod moves due to fluid bypassing piston seals.

These checks confirm whether repacking is the right hydraulic cylinder leak solution.

Tools and Equipment for hydraulic Cylinder Repacking

To carry out a safe and effective hydraulic cylinder repair, you’ll need:

• A seal kit specific to your oil cylinder model

• Wrenches and Allen keys

• A rubber mallet, screwdrivers, and pliers

• A torque wrench and emery cloth

• Containers for draining oil and a clean work area

Always compare new seals with old ones to ensure proper size and type. If the cylinder supports heavy loads, secure them with blocks or jacks before starting.

Steps for Replacing Hydraulic Cylinder Seals (8-step Method)

1.Push the control handle multiple times to release the pressure inside the hydraulic cylinder.

2.Disassemble the oil pipe and drain the residual hydraulic oil.

3.Fix the hydraulic cylinder and remove the pin or nut at the end of the piston rod.

4.Carefully pull out the piston rod to avoid dust and metal contamination.

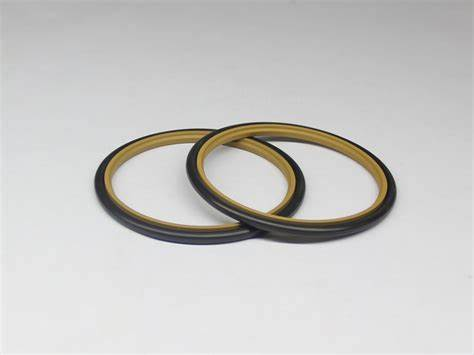

5.Replace the sealing rings and O-rings on the piston and guide sleeve one by one to ensure the groove is clean.

6.Fix the piston bolts with threaded locking glue;

7.Reinstall the guide sleeve to avoid damaging the thread.

8.Reinstall the oil pipe, fill it with oil and test for any oil leakage.

Through the above steps, your hydraulic cylinder can be restored to a nearly brand new working state.

Additional Tips for Effective Hydraulic Cylinder Repair

Thorough Inspection: After disassembly, check for scratches, bent rods, or damaged chrome plating. Replace any defective parts before reassembly.

Seal Fit Matters: Precision sizing of seals is critical. Poorly fitted seals can lead to renewed leaks or premature wear.

Testing Is Mandatory: Always perform stroke and bypass tests before putting the cylinder back into service.

Right Tools: Missing or faulty tools can delay repairs and risk component damage.

Consider Professional Help: If lacking expertise, outsourcing to professionals ensures the repair is done correctly and safely.

The hydraulic cylinder is a key power actuator. If oil leakage occurs, priority should be given to the repair of the hydraulic cylinder rather than blindly replacing the entire cylinder. By replacing the hydraulic cylinder seal correctly, not only can maintenance costs be reduced, but also the service life of the equipment can be significantly prolonged.

However, when your oil cylinder is severely damaged, replacement becomes the only feasible solution. If you need an oil cylinder, you can consult the professional team of blince hydraulic. We provide professional selection suggestions. Contact us immediately to learn about our services
