Hydraulic Pump Vs. Hydraulic Motor: Key Differences & Functions

1. Introduction

Hydraulic systems are essential for the operation of many machines in agricultural and industrial sectors. These systems convert mechanical energy into fluid power and then deliver that power to various components to perform heavy lifting, pushing, and rotating tasks. Among the most crucial components in any hydraulic system are the hydraulic pump and the hydraulic motor.

Hydraulic pumps and motors play roles similar to the heart and muscles in the human body. Although they seem related and are technically reversible in some cases, they are not interchangeable, as each serves a unique function. Read on to learn the fundamental classifications of hydraulic pumps and motors, the differences between them, and why both are vital to hydraulic systems.

2. What Is a Hydraulic Motor?

A hydraulic motor is a precision-engineered mechanical device that converts hydraulic fluid pressure into torque and angular displacement. These motors are key components in various industrial applications, offering high performance and precision. From heavy machinery to automated systems, hydraulic motors deliver power efficiently and reliably.

3. What Is a Hydraulic Pump?

A hydraulic pump is a mechanical source of power that converts mechanical energy into hydraulic energy (hydrostatic energy – i.e., flow and pressure). It is used in both hydrostatic and hydrodynamic systems. The pump generates a flow sufficient to overcome pressure induced by the load at the pump outlet.

4. Types of Hydraulic Motors

• Gear Motors: These motors use interlocking gears to convert hydraulic pressure into rotational force.
  Applications: Ideal for smaller machinery such as winches, conveyors, and automotive power steering systems.

• Axial Piston Motors: Use pistons aligned in parallel with the drive shaft to convert high-pressure oil from a hydraulic pump into mechanical energy.
  Applications: Suitable for high-pressure and high-performance applications like excavators, rollers, marine propulsion, and aerospace systems.

• Radial Piston Motors: Feature pistons arranged radially around a central axis. Known for high torque and low speed.
  Applications: Excellent for demanding heavy-duty machines needing powerful lifting and digging force.

• Orbital Motors: Have extendable vanes rotating inside a casing that convert hydraulic energy into mechanical output.
  Applications: Used in light to medium-duty tools, automation systems, and automotive brake boosters where quiet and repetitive motion is beneficial.

5. Types of Hydraulic Pumps

• Gear Pumps: Comprise two meshing gears driven by a motor. The rotation creates a vacuum that draws in hydraulic fluid and compresses it to generate high pressure.
  Applications: Commonly used in light industrial machinery and compact systems for steady, moderate-pressure flow.

• Piston Pumps: Use reciprocating pistons in a cylindrical chamber. When the piston retracts, it draws in fluid; when it extends, it compresses and discharges the fluid.
  Applications: Ideal for high-pressure systems like manufacturing plants and advanced mobile hydraulic systems, including aircraft.

• Vane Pumps: A rotor with multiple vanes rotates inside a cavity. The centrifugal force and hydraulic pressure push the vanes outward, creating variable chamber volumes.
  Applications: Widely used in HVAC units, mid-pressure systems, and automotive power steering due to smoother flow and moderate speed.

6. Working Principles

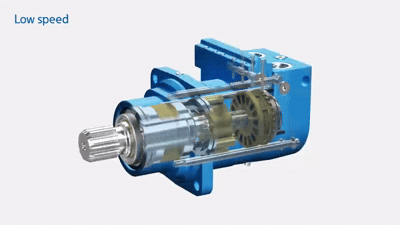

Hydraulic Motor Working Principle
Hydraulic oil enters the motor through an inlet, generating pressure that drives internal components (like pistons, vanes, or gears). This movement produces rotational mechanical output through the output shaft.
Core Process: Hydraulic energy → Mechanical energy

Hydraulic Pump Working Principle
External mechanical energy drives the pump’s rotor (gears, vanes, pistons), which draws in hydraulic fluid and compresses it. The fluid is then discharged into the hydraulic system under controlled flow and pressure.
Core Process: Mechanical energy → Hydraulic energy

7. Similarities and Differences

Similarities

1. Technically reversible in theory: a pump can become a motor if driven by pressure, and a motor can become a pump if driven by torque.

2. Structurally similar, sharing basic components like sealed variable chambers and oil distribution mechanisms.

3. Both rely on changing the volume of sealed chambers for suction and discharge.

Differences

Aspect	Hydraulic Pump	Hydraulic Motor
Function	Converts mechanical energy to hydraulic energy	Converts hydraulic energy to mechanical energy
Desired Efficiency	High volumetric efficiency	High mechanical efficiency
Rotation	Typically unidirectional	Must rotate both directions
Ports	Usually two ports (except axial piston pumps)	Has a separate leakage port
Speed	High-speed operation	Typically low-speed output
Design	Larger suction port, smaller discharge port	Symmetrical ports
Gear Teeth	Fewer teeth	More teeth for smoother torque
Vane Placement	Installed at a slant, sealed by centrifugal force	Radial placement, spring-loaded to stator wall

Although based on similar working principles—changing the volume of sealed working chambers—their purposes differ significantly. Due to structural and functional differences, hydraulic pumps and motors are generally not directly interchangeable.

8. Conclusion

In summary, hydraulic pumps and hydraulic motors are indispensable components of hydraulic systems but serve opposite functions. Pumps are energy sources that generate fluid power, while motors are actuators that convert this power into mechanical motion. Understanding their distinctions—both in structure and operation—is essential for selecting the right component for your hydraulic system.

Whether you're designing heavy machinery, agricultural equipment, or industrial automation systems, knowing how to properly match pumps and motors ensures performance, longevity, and system efficiency. Always remember: the pump sends the energy, and the motor delivers the action.
