What Are The Three Types of Hydraulic Cylinders?

Views: 0     Author: Site Editor     Publish Time: 2025-06-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Hydraulic cylinders are essential components in many industrial systems. They convert hydraulic energy into mechanical force, enabling linear motion that powers everything from construction machinery to factory automation equipment. With their wide range of applications, hydraulic cylinders are found in numerous industries including manufacturing, transportation, agriculture, mining, and more.

Despite the diversity of their uses, most hydraulic cylinders fall into three main categories: tie-rod cylinders, welded body cylinders, and telescopic cylinders. Each type is built with specific structural features, performance characteristics, and ideal use cases. Selecting the right type of cylinder not only improves operational efficiency but also reduces maintenance costs and extends equipment lifespan.

This article will help you understand the differences between these three types of hydraulic cylinders. We will look at their construction, benefits, limitations, and typical applications to help you make informed decisions when sourcing or specifying hydraulic systems for your business.

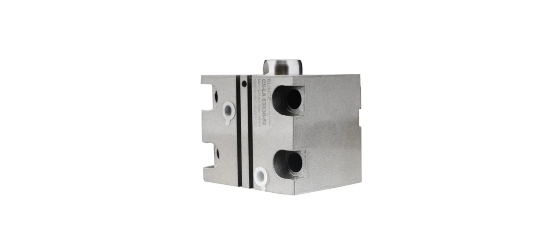

Hydraulic Cylinder

Basic Working Principle of a Hydraulic Cylinder

Hydraulic cylinders operate by converting the pressure of hydraulic fluid into mechanical force. This is accomplished through a piston that moves within a sealed cylindrical chamber. The pressure from the fluid causes the piston to move forward or backward, creating linear force that moves or lifts a mechanical component.

The core parts of a hydraulic cylinder include the barrel, piston, piston rod, seals, and end caps. The barrel houses the hydraulic fluid. The piston separates the internal chamber into two sides. When fluid is pumped into one side, the piston moves and pushes the rod in the desired direction. Seals prevent leakage, and end caps maintain structural integrity.

There are both single-acting and double-acting cylinders. Single-acting cylinders use hydraulic pressure to move the piston in one direction, while double-acting cylinders can apply pressure in both directions, allowing for more controlled and versatile movement.



Tie-Rod Hydraulic Cylinders

Tie-rod hydraulic cylinders are built with one or more steel rods that run the entire length of the cylinder, holding the end caps and barrel together. These tie rods are typically fastened with nuts and washers and can be easily tightened or disassembled when needed.

This design offers high serviceability, which makes tie-rod cylinders a popular choice for industrial applications where maintenance and replacement are frequent. They also comply with standard dimensions such as NFPA or ISO, allowing them to be replaced easily across different equipment brands.

Common applications include factory automation systems, material handling equipment, woodworking machines, presses, and plastics machinery. They are particularly suited for indoor or clean environments where external components are not exposed to extreme conditions.

The primary benefits of tie-rod cylinders include ease of maintenance, modular design, and lower cost. However, their external rods and end cap design make them more vulnerable to corrosion, vibration loosening, and leakage under heavy-duty use. This limits their suitability for mobile machinery or outdoor environments.



Welded Body Hydraulic Cylinders

Welded body cylinders, unlike tie-rod models, have end caps that are welded directly to the barrel. This creates a smooth, compact, and sealed design that can withstand higher pressure and more demanding applications.

The absence of external rods means these cylinders are better suited for use in dirty or rugged environments. They are more compact, which is advantageous when space is limited. In addition, welded cylinders can be customized with different mounting styles, ports, and stroke lengths to meet specific equipment needs.

Welded cylinders are widely used in construction machinery such as excavators, loaders, and bulldozers, as well as in agricultural equipment like harvesters and sprayers. They are also common in mining, waste management, and forestry machinery where performance and durability are essential.

The advantages of welded body cylinders include enhanced strength, better protection against environmental factors, and higher pressure capabilities. However, due to their sealed construction, internal maintenance or component replacement is more difficult and often requires specialized tools or services.



Telescopic Hydraulic Cylinders

Telescopic cylinders consist of multiple stages or sleeves that nest inside one another and extend sequentially. This allows them to achieve a very long stroke while maintaining a compact retracted length, making them perfect for applications where space is limited but a long extension is needed.

These cylinders are typically used in dump trucks, refuse vehicles, mobile cranes, lifting platforms, and aerial lifts. Their ability to lift heavy loads over large distances makes them highly valuable in transportation, logistics, and construction.

Telescopic cylinders can be single-acting or double-acting. Single-acting cylinders extend with hydraulic pressure and retract with gravity or external load. Double-acting cylinders apply hydraulic force for both extension and retraction, offering greater control and speed.

Their primary advantages are high stroke-to-retracted length ratio, compact design, and strong lifting capacity. However, their complexity and number of moving parts make them more prone to wear, especially if subjected to side loads. Proper engineering, installation, and maintenance are essential to maximize their lifespan.



Choosing the Right Hydraulic Cylinder for Your Application

Selecting the right hydraulic cylinder is not simply about choosing the strongest option. The best cylinder for your application depends on a variety of factors such as operating conditions, space constraints, pressure requirements, and maintenance expectations.

If your system requires frequent maintenance or is based in a clean, controlled environment, tie-rod cylinders offer simplicity and ease of service. Their modular design and cost-effectiveness make them a popular choice for factory settings.

For rugged outdoor use or high-pressure applications, welded cylinders are the better choice. They offer a more compact footprint and higher durability, ideal for mobile or heavy-duty equipment that operates in tough conditions.

When space is tight but you need a long extension, telescopic cylinders are unbeatable. They can be retracted into a small space while providing the long reach necessary for lifting, dumping, or vertical motion.

Other factors to consider include:

Operating temperature range

Exposure to contaminants such as dust, water, or chemicals

Required speed and force of motion

Mounting configurations and custom port placements

Compatibility with hydraulic power units and control systems



Why Choose Blince for Your Hydraulic Cylinder Needs

When sourcing hydraulic cylinders, quality and reliability are paramount. Blince Hydraulic offers a complete range of hydraulic solutions, including tie-rod, welded body, and telescopic cylinders designed to meet international standards and demanding industrial requirements.

Blince uses high-quality materials and advanced production techniques such as CNC machining and precision honing. Their cylinders are rigorously tested for performance, pressure resistance, and durability to ensure long service life with minimal maintenance.

Whether you need standard products or customized designs, Blince provides expert engineering support to meet your specifications. Their team can guide you through product selection, customization, installation, and after-sales service, helping your equipment run more efficiently and reliably.

Blince Hydraulic serves clients worldwide in industries such as construction, agriculture, transportation, automation, and material handling. Their commitment to quality and innovation has made them a trusted partner for companies seeking dependable hydraulic solutions.

To learn more about their products or to request a quote, visit the official website at https://www.blince.com



Conclusion

Understanding the three main types of hydraulic cylinders—tie-rod, welded body, and telescopic—is key to selecting the right component for your equipment. Each type has unique advantages and ideal application scenarios. By evaluating your system’s specific needs, you can choose a cylinder that delivers optimal performance, efficiency, and longevity.

Whether you need a simple and serviceable design, a compact and rugged solution, or a long-reach cylinder for mobile machinery, there is a hydraulic cylinder that fits your requirements. Partnering with a reliable manufacturer like Blince Hydraulic ensures you get not only the right product but also the technical support and service to keep your operations running smoothly.

Explore more at https://www.blince.com and discover the full range of hydraulic cylinders engineered for excellence.
