What Is A Hydraulic Valve?

When asking the question “What is a hydraulic valve?” we are exploring one of the most essential components in hydraulic systems. A hydraulic valve is a mechanical device that controls the flow, pressure, and direction of hydraulic fluid—typically oil—within a hydraulic circuit. By regulating fluid movement, hydraulic valves enable machinery to perform various tasks, ranging from heavy lifting in construction equipment to precise movements in industrial manufacturing.

Hydraulic valves are crucial because they allow the controlled transmission of power via pressurized fluid. Without these valves, fluid would flow uncontrollably, making it impossible to direct force or motion accurately. The variety and complexity of hydraulic valves available today are impressive, with designs tailored for countless applications and operating conditions.

Understanding the function, types, construction, and applications of hydraulic valves helps engineers, operators, and buyers optimize system performance and reliability. This article provides a detailed look at hydraulic valves, explaining their core concepts and practical importance.



Basic Function and Importance of Hydraulic Valves

The primary role of a hydraulic valve is to control the flow of hydraulic fluid within a system. Hydraulic systems depend on precise fluid management to operate actuators such as cylinders and motors. Valves fulfill this by performing three main functions: controlling flow direction, regulating flow rate, and managing pressure.

Directional control valves guide the fluid to the desired actuator and allow return flow. Flow control valves adjust the fluid volume, controlling actuator speed and motion smoothness. Pressure control valves maintain system pressure within safe limits, preventing damage and ensuring consistent operation.

By fulfilling these roles, hydraulic valves make hydraulic systems efficient, safe, and capable of complex tasks.



Working Principle of Hydraulic Valves

Hydraulic valves work by opening, closing, or partially obstructing fluid passages inside the valve body. Internally, moving components such as spools, poppets, or discs shift position to change the valve’s flow path.

These movements may be caused by manual effort, mechanical linkages, electric solenoids, pilot pressures, or other actuators. When a valve shifts, it either allows fluid to pass through, restricts flow, or blocks it completely, thereby changing the fluid’s pressure, direction, or rate.

For example, in a directional control valve, a spool moves to connect or block ports, directing fluid to extend or retract a cylinder. In pressure control valves, springs and pistons respond to fluid pressure to open or close at specific thresholds, protecting the system from overpressure.

The precise design and machining of internal parts ensure tight sealing and smooth operation, which are essential for system efficiency and durability.



Types of Hydraulic Valves

Hydraulic valves are categorized mainly into three groups based on their functions: directional control valves, pressure control valves, and flow control valves.

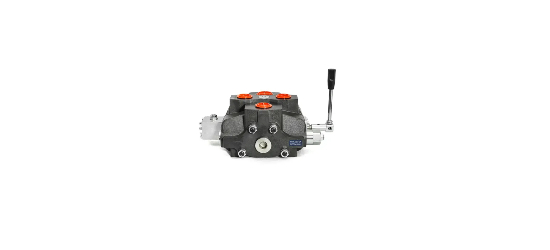

Directional control valves determine the fluid’s path within the system. They enable the fluid to reach actuators for movement in various directions. These valves include spool valves, which slide inside the valve body, and poppet valves, which open and close via spring-loaded discs. Electrically actuated solenoid valves offer remote and automated control options.

Pressure control valves regulate system pressure, preventing unsafe conditions and enabling specific operational sequences. Relief valves open to release excess pressure, pressure reducing valves maintain lower pressures downstream, sequence valves ensure operations happen in order, and counterbalance valves prevent loads from dropping suddenly.

Flow control valves adjust the flow rate, managing actuator speed and motion smoothness. Needle valves allow fine adjustments, throttle valves vary orifice sizes, pressure compensated valves maintain consistent flow despite pressure changes, and flow dividers split fluid between multiple actuators.

Each type serves unique functions and is selected based on system demands.



Valve Actuation Methods

Hydraulic valves can be actuated manually, mechanically, electrically, or hydraulically.

Manual actuation involves levers or knobs operated by human hands, suitable for simple or emergency controls.

Mechanical actuation uses cams, gears, or pushrods linked to machine parts, synchronizing valve movement with mechanical actions.

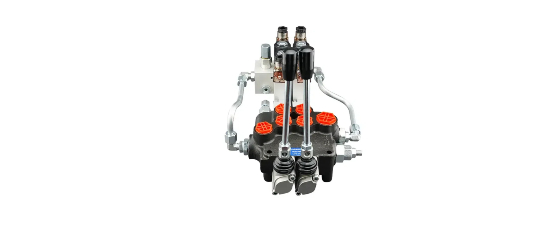

Electric solenoids provide rapid, remote, and programmable control, commonly used in automated systems.

Pilot operation uses hydraulic or pneumatic pressure signals to move the valve spool, allowing control of large valves with smaller actuators.

Choosing the right actuation method depends on required control precision, system complexity, and automation level.



Materials and Manufacturing

Hydraulic valves must endure high pressures and harsh conditions. Therefore, they are constructed from durable materials such as steel, stainless steel, and cast iron. Precision machining ensures components fit tightly to prevent leaks and allow smooth operation.

Seals are made from elastomers resistant to hydraulic fluids, heat, and wear, ensuring long-term reliability. Advanced manufacturing processes like CNC machining and surface treatments enhance valve quality and lifespan.

The choice of materials and manufacturing standards affects valve performance, safety, and maintenance intervals.



Applications of Hydraulic Valves

Hydraulic valves find applications across numerous industries.

In construction, valves control the movements of excavators, cranes, and loaders.

Agricultural machinery uses valves for steering, lifting implements, and operating hydraulic motors.

Manufacturing plants rely on hydraulic presses, injection molding machines, and automated robots, all controlled by hydraulic valves.

Automotive systems use valves in braking, power steering, and suspension.

Aerospace applications demand high-precision valves for flight controls and landing gear.

Marine vessels utilize valves for steering, winches, and deck machinery.

Renewable energy installations, such as wind turbines and solar panel trackers, also use hydraulic valves for position control.

This broad usage highlights the importance of valves in fluid power systems worldwide.



Selecting the Right Hydraulic Valve

Selecting an appropriate hydraulic valve requires considering system pressure, flow rate, fluid type, environmental conditions, control requirements, and maintenance needs.

Valves must be rated for the maximum operating pressure and flow in the system.

Material compatibility with the hydraulic fluid ensures durability.

The actuation type should align with the desired control method—manual, electric, or pilot.

Environmental factors like temperature, contamination, and exposure influence material and sealing choices.

Easy maintenance and availability of replacement parts improve system uptime.

Collaborating with experienced suppliers and engineers ensures the correct valve selection.



Maintenance Best Practices

Proper maintenance prolongs valve life and prevents system failures.

Keep hydraulic fluid clean by using filters and scheduling fluid changes.

Regularly inspect valves for leaks, corrosion, or mechanical wear.

Replace worn seals and components according to manufacturer recommendations.

Monitor system pressure and flow for early detection of valve problems.

Avoid pressure spikes and operate within specified parameters.

Following these practices reduces downtime and repair costs.



Conclusion

A hydraulic valve is a vital component controlling fluid flow, pressure, and direction in hydraulic systems. Their ability to manage fluid precisely allows machines to perform complex and powerful tasks safely and efficiently.

Understanding the various valve types, how they operate, and their applications empowers users to design, operate, and maintain hydraulic systems effectively.

Choosing high-quality valves and maintaining them properly ensures reliable system performance and longevity.

Whether in construction, manufacturing, automotive, aerospace, or renewable energy, hydraulic valves remain key to fluid power technology.
