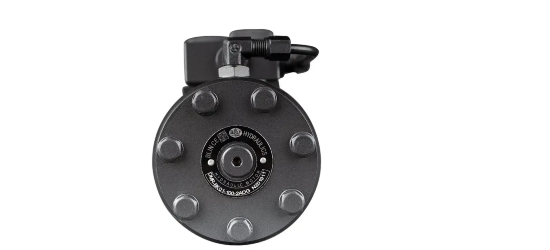

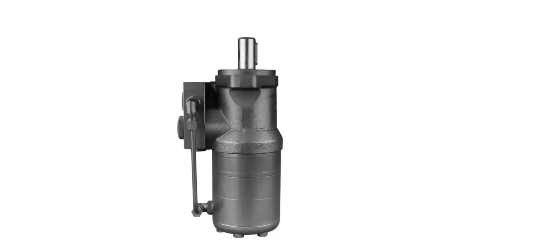

An orbital hydraulic motor is a type of hydraulic motor that converts hydraulic energy into mechanical rotational energy through a unique orbital or epicyclic motion of internal components. It is known for providing high torque at low speeds, compact size, smooth operation, and high reliability. This combination makes it indispensable in a wide range of industries such as construction, agriculture, forestry, material handling, mining, marine, and industrial automation.
Orbital motors are sometimes referred to as gerotor or geroller motors based on the specific internal mechanism used. These motors stand out from other hydraulic motors due to their special internal geometry that allows the internal rotor to orbit inside an outer ring, producing rotational force with very high efficiency and durability.
The core operating principle behind an orbital hydraulic motor involves two key internal components: the inner rotor and the outer ring. The inner rotor has fewer teeth than the outer ring, and these two parts mesh eccentrically inside the motor housing. This meshing forms multiple sealed chambers between the rotor and ring.
When pressurized hydraulic fluid enters the motor, it fills the expanding chambers formed by the teeth of the inner rotor and outer ring. The fluid pressure pushes the rotor to orbit or move eccentrically within the outer ring. This orbital motion turns the motor’s output shaft. As the rotor continues to orbit, the chambers on the opposite side contract, forcing the fluid out of the motor.
This continuous sequence of expansion and contraction allows the motor to generate a smooth and continuous torque output. Because the movement is orbital rather than purely rotational, the motor achieves high torque at low rotational speeds.
The design minimizes vibration and noise and maintains excellent volumetric efficiency, meaning the fluid’s energy is efficiently converted into mechanical work with minimal leakage.
Understanding the construction helps appreciate why orbital hydraulic motors are so effective.
The gerotor or geroller assembly is the heart of the motor. The gerotor type features curved teeth that mesh, forming fluid-tight chambers that expand and contract. The geroller variant replaces the curved teeth with rollers mounted on the inner rotor, which increases strength and wear resistance.
A crescent-shaped plate or swash plate is installed between the inner rotor and the outer ring to seal the chambers and prevent fluid crossflow between high and low-pressure areas. This sealing is crucial for maintaining efficiency and torque output.
The output shaft is connected to the inner rotor, so as the rotor orbits inside the outer ring, the shaft rotates and delivers mechanical power to the connected machinery.
The motor housing is made of robust materials like high-grade steel or cast iron, designed to withstand high pressures and mechanical stresses. Precision machining of internal parts ensures tight tolerances, which are critical to reduce internal leakage and maintain smooth operation.
Orbital hydraulic motors offer several key benefits that have made them popular:
One of the most significant advantages is the ability to produce high torque at low speeds without requiring additional gearing. This capability makes them ideal for applications like conveyor drives, winches, augers, and track drives, where heavy loads must be moved slowly but powerfully.
Compared to other hydraulic motors capable of similar torque, orbital motors are generally smaller and lighter. This compactness allows easier integration into machines where space and weight are concerns, improving overall machine design flexibility.
With fewer moving parts and a simple internal mechanism, orbital motors experience less wear and are highly resistant to shock loads and vibration. Their robust construction allows them to perform reliably even in harsh working environments, including dirt, dust, and moderate contamination.
The orbital motion produces continuous torque with minimal pulsation, significantly reducing vibrations and noise levels. This smooth operation benefits both machinery longevity and operator comfort.
Because of the excellent sealing and precise machining, orbital motors convert most of the hydraulic fluid’s energy into mechanical power. This efficiency reduces fuel or power consumption and lowers operating costs.
By reversing the hydraulic fluid flow, orbital motors can rotate the output shaft in either direction, making them versatile for applications requiring both forward and reverse motions.
While clean hydraulic fluid is always preferable, orbital motors tolerate some level of fluid contamination better than many other motor types. This tolerance results in fewer failures and longer service intervals in demanding field conditions.
Orbital hydraulic motors are found in many industries, thanks to their unique characteristics.
They are widely used in excavators, skid steers, compact loaders, and other construction machinery. Typical applications include driving crawler tracks, augers for drilling, conveyor belts for moving materials, and winches for lifting.
Orbital motors power a variety of farming equipment such as balers, spreaders, seeders, and harvesters. These motors drive rotating components and conveyors that move crops or soil.
In forestry, orbital motors drive feller bunchers, chippers, and saws. Their high torque capacity and reliability make them ideal for the rugged, demanding forestry environment.
Conveyor systems, pallet movers, lift platforms, and automated guided vehicles often rely on orbital hydraulic motors for smooth, controlled, and powerful movement.
Drills, crushers, and other mining equipment use orbital motors because they can sustain heavy loads, work reliably under shock and contamination, and offer precise speed control.
In marine vessels, orbital motors are commonly used for steering gear, deck winches, cranes, and other hydraulic-driven equipment, benefiting from their compactness and reliability.
Robotics, presses, and other automated machinery incorporate orbital motors where precise torque control and low-speed operation are required.
Orbital motors mainly come in two types:
These have an inner rotor and outer ring with curved teeth that mesh to form chambers. They are suitable for applications with low to medium operating pressures and are widely used in lighter-duty machinery.
These use rollers mounted on the inner rotor instead of curved teeth. Geroller motors are stronger and more resistant to wear and are preferred in heavy-duty applications requiring higher pressures and longer service life.
Choosing the best orbital motor for your application involves assessing several critical factors:
Verify the motor’s maximum rated pressure matches or exceeds the system’s highest working pressure to avoid premature failure.
Determine the required torque and speed. Motor displacement, typically expressed in cc/rev or in⊃3;/rev, influences these parameters: higher displacement provides more torque but reduces speed.
Ensure the motor’s mounting flange and shaft design are compatible with your equipment to avoid costly modifications.
Consider operating temperature ranges, exposure to contaminants, and fluid cleanliness. Select materials and seals accordingly.
Choose products from reputable manufacturers with good availability of spare parts and technical support to minimize downtime.
Consulting with experienced engineers or suppliers and reviewing detailed technical datasheets will ensure optimal motor selection.
To maximize reliability and lifespan of orbital hydraulic motors:
Use clean hydraulic fluid with appropriate filtration and perform regular fluid changes.
Perform routine inspections for signs of leaks, wear, noise, or vibration.
Replace seals and bearings promptly when signs of wear appear.
Monitor operating temperatures and avoid exceeding recommended limits.
Adhere strictly to manufacturer maintenance schedules.
Regular maintenance reduces unexpected breakdowns and costly repairs.
An orbital hydraulic motor is a highly effective solution for converting hydraulic energy into mechanical rotation with high torque, smooth operation, and compact design. Its unique orbital gear mechanism delivers reliable performance across a vast range of applications including construction, agriculture, forestry, mining, marine, and industrial automation.
By understanding the working principles, types, advantages, and applications of orbital motors, users can select and maintain the right motor to ensure long-lasting, efficient operation.
For those seeking durable and efficient hydraulic motors, orbital hydraulic motors represent a reliable choice backed by proven technology and extensive industry usage.
