Hydraulic Motor Drain Pressure: Hidden Risks and How to Prevent Failures

Introduction: The Overlooked Threat in Hydraulic Motor Performance

In hydraulic system maintenance, most professionals focus on mainline pressure, flow rates, and system temperature. However, there’s a hidden threat that quietly damages components and shortens system lifespan: hydraulic motor drain pressure.

Over 90% of hydraulic motor failures—such as internal leakage, excessive wear, and operating inefficiency—are linked to uncontrolled drain pressure. Ignoring it could mean overlooking the root cause of serious system problems.

What Is Hydraulic Motor Drain Pressure?

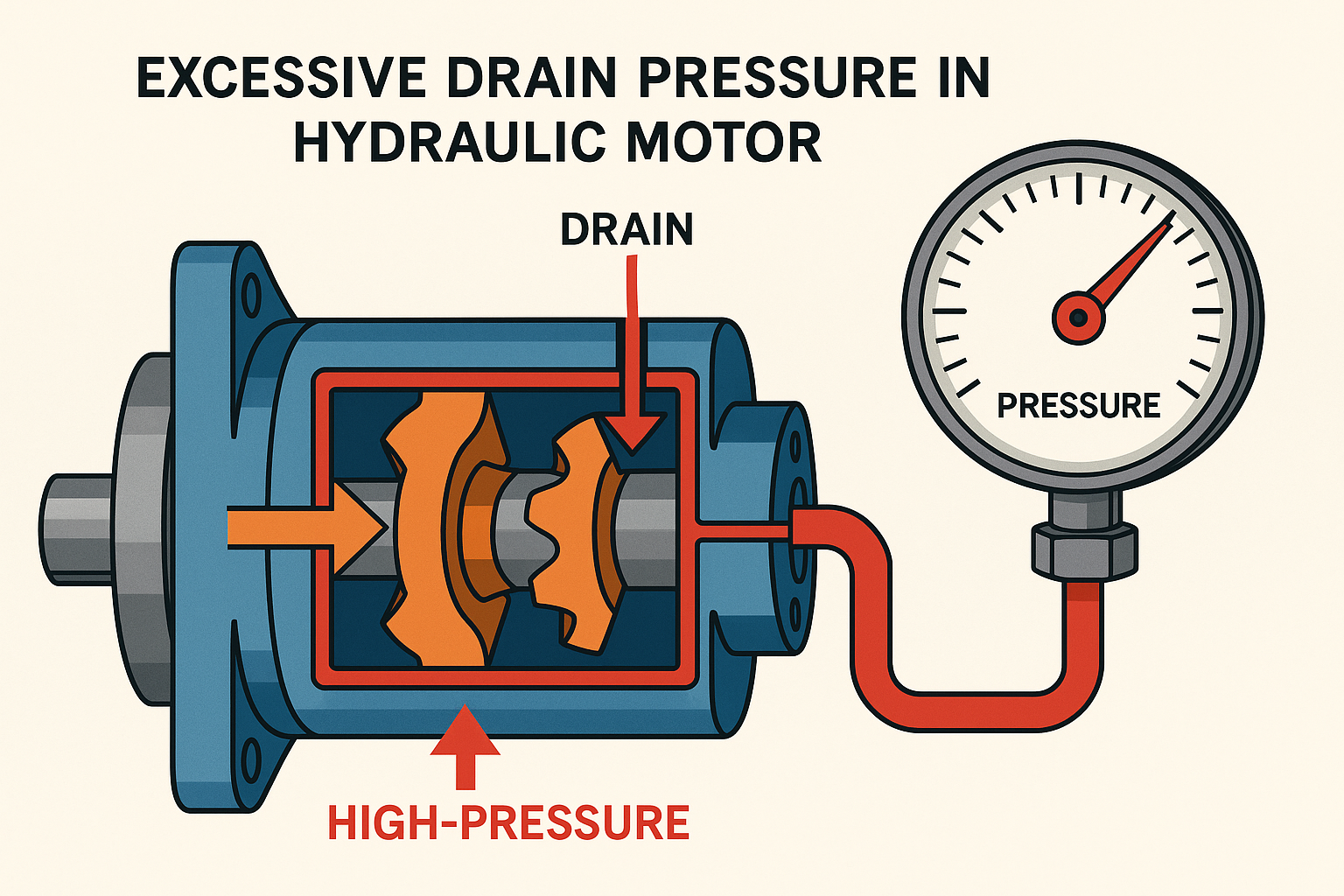

Drain pressure refers to the pressure within the non-working cavity of a hydraulic motor, where internal leakage is collected. This oil must flow back to the reservoir without restriction.

If it builds up—creating backpressure—it disrupts the lubrication of bearings and stresses shaft seals, leading to system degradation.

✅ Ideal Drain Pressure Range: ≤ 0.3 MPa (3 bar)
Higher values often lead to hidden and compounding failures.

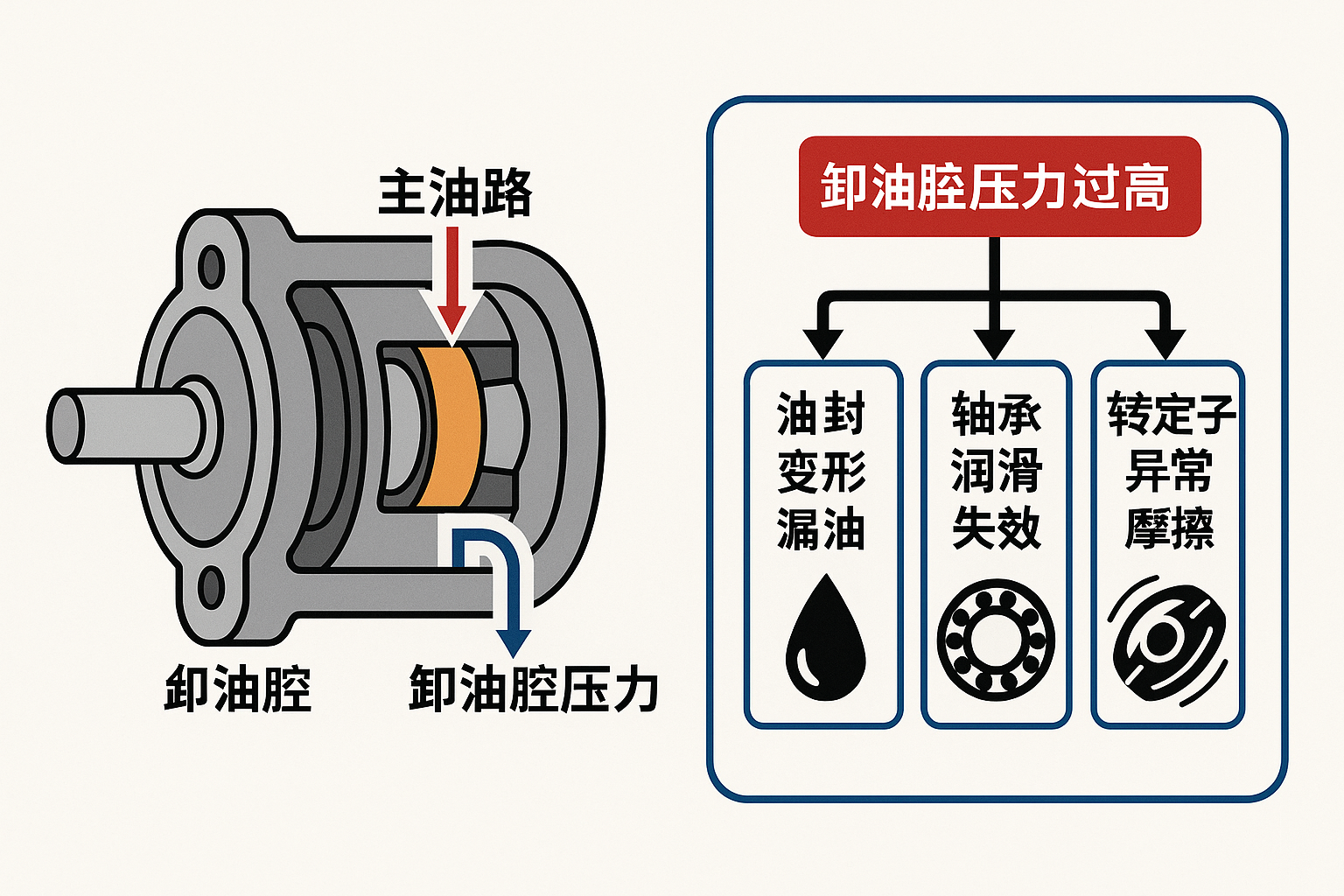

Top 3 Failures Caused by High Drain Pressure

1. Shaft Seal Failure and Hydraulic Leaks

Excessive drain pressure exerts reverse stress on shaft seals. Over time, this leads to deformation, swelling, or rupture—causing oil leaks, fluid contamination, and reduced motor efficiency.

2. ⚙️ Bearing Lubrication Breakdown

Bearings rely on a stable oil film. When drain pressure is too high, this film is compressed or lost—resulting in metal-on-metal contact, increased friction, and premature bearing failure.

3. Overheating and Motor Seizure

Restricted return flow elevates internal temperatures and friction. In worst cases, it causes the rotor and stator to seize—bringing the motor (and your equipment) to a sudden halt.

How to Prevent Drain Pressure-Related Failures

Use these hydraulic motor maintenance tips to reduce system risk:

• ✔ Optimize Return Line Design: Use large-diameter pipes, minimal bends, and direct-to-tank return paths.

• ✔ Add Pressure Monitoring: Install sensors or gauges to track drain pressure in real-time.

• ✔ Check for Seal & Line Degradation: Regular inspections help prevent oil return blockage.

• ✔ Use Low-Restriction Components: Select hydraulic parts engineered for minimal return flow resistance.

• ✔ Avoid Routing Through Valve Blocks: Direct drain lines to the tank instead of passing through complex manifolds.

•


Conclusion: Don’t Let Drain Pressure Destroy Your System

Drain pressure may seem like a minor parameter, but it's one of the most critical factors for ensuring the reliability and lifespan of your hydraulic motor. With proper system design, pressure monitoring, and routine inspection, you can prevent costly failures and downtime.

✅ Actionable Tip: Add a drain pressure check to your next maintenance checklist. It might just save your entire system.

FAQs: Hydraulic Motor Drain Pressure Explained

Q1: What is the normal range for drain pressure?
A: Keep it at or below 0.3 MPa (3 bar) unless otherwise specified by your equipment manufacturer.

Q2: How can I detect if my system’s drain pressure is too high?
A: Use a gauge or sensor on the drain line. If readings are consistently over 0.3 MPa, troubleshoot immediately.

Q3: Can I use a bypass valve to relieve high drain pressure?
A: It may help temporarily, but proper return line design and seal optimization are the long-term solutions.
