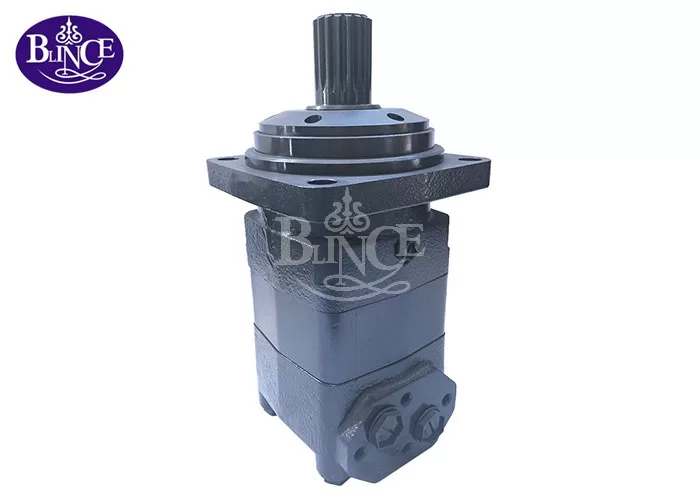

Blince OMV Hydraulic Motor Features
Advanced Design: This motor uses an advanced Geroler gear set. The design includes a disc distribution flow. It is built for high pressure. This makes the motor efficient and powerful.
Versatile Function: The motor can be adjusted for different needs. It is able to operate with multiple functions. You can choose a variant that fits your specific application. This offers great flexibility.
Broad Compatibility: This motor is a great replacement option. It is interchangeable with many other motors. These include models like Danfoss OMP and Danfoss OMV. You can match it to an original part number.
High Performance: This motor is designed for moderate to heavy loads. It provides low-speed power. It works well in both closed and open-loop hydraulic circuits. This makes it suitable for many demanding tasks.
| Type | OMV 315 | OMV 400 | OMV 500 | OMV 630 | OMV 800 | OMV 1000 |
| Displacement (cc/rev) | 333 | 419 | 518 | 666 | 801 | 990 |
Max torque (n.m) | cont | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 |
Max pressure (Mpa) | cont | 20 | 20 | 20 | 18 | 16 | 14 |
| int | 24 | 24 | 24 | 21 | 18 | 16 |
Max speed rate (rpm) | cont | 510 | 500 | 400 | 320 | 250 | 200 |
| int | 630 | 600 | 480 | 380 | 300 | 240 |
Max flow (L/min) | cont | 160 | 200 | 200 | 200 | 200 | 200 |
| int | 200 | 240 | 240 | 240 | 240 | 240 |
| Weight(kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6
|
