How To Control Hydraulic System Oil Temperature

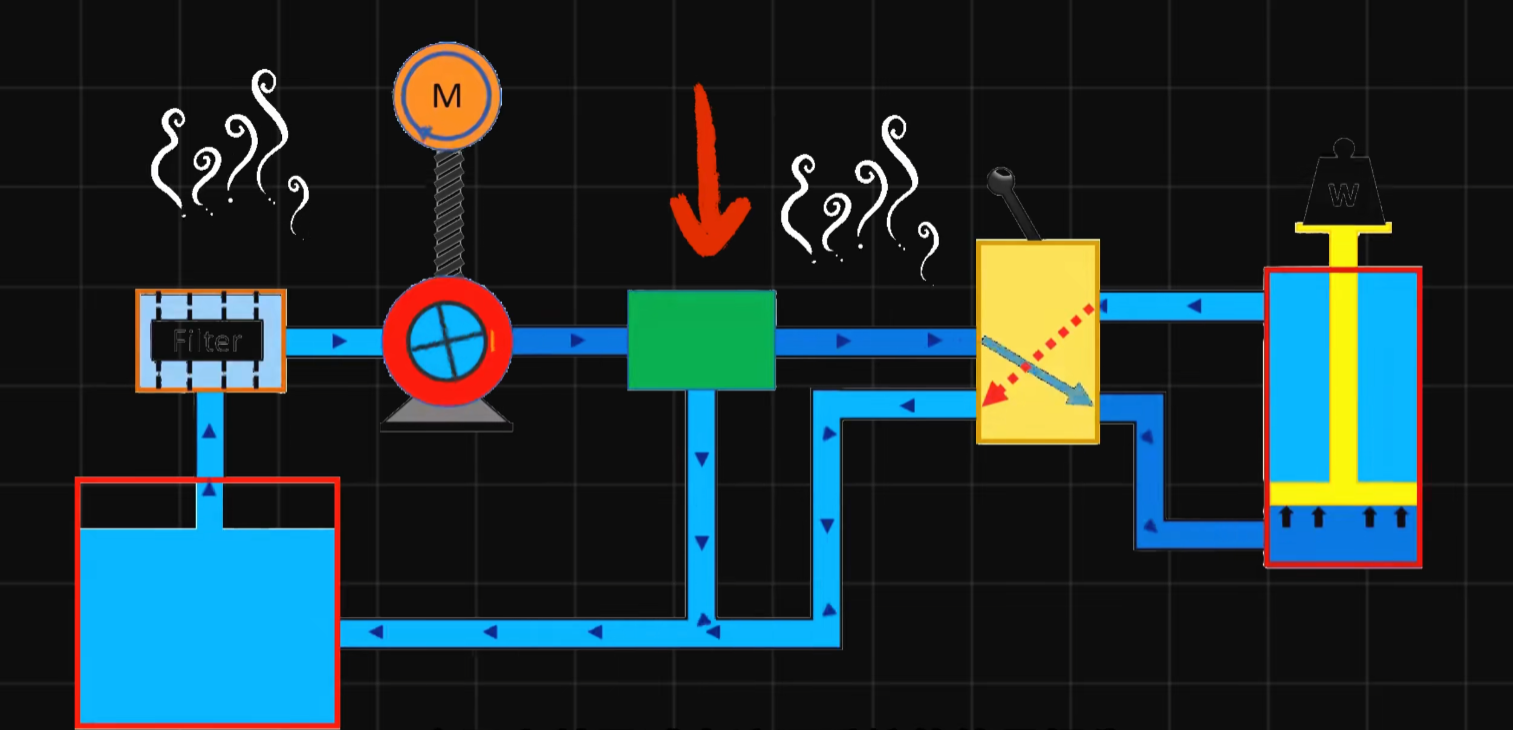

In every hydraulic system, managing oil temperature is critical for performance and reliability. A hydraulic pump converts mechanical energy into hydraulic energy, but part of that energy inevitably turns into heat. When the generated heat exceeds the dissipation capacity of the Hydraulic Cooler or Hydraulic oil cooler, the Hydraulic oil overheats ,this is hydraulic oil overheating causes.

Excessive oil temperature reduces viscosity, decreases lubrication, accelerates seal wear, and leads to internal leakage in components such as the Hydraulic valve, Directional Control Valve, and pressure relief valve. For industries like agriculture, livestock machinery, and construction equipment, keeping oil temperatures within a safe range is essential to avoid downtime and costly repairs.

1. Reduce Heat Sources in the Hydraulic System

The first step to controlling oil temperature is to minimize unnecessary energy loss that generates heat.

Optimize Hydraulic System Design

• Avoid sharp bends or undersized oil passages in the hydraulic circuit.

• Limit the excessive use of throttling valves or flow control valves in the main circuit, which force the hydraulic pump to generate extra pressure and heat.

• Adjust the pressure relief valve setting to slightly above the actual working pressure to reduce continuous high-pressure operation.

Keep Hydraulic Oil Clean and Reliable

Contaminated or degraded Hydraulic oil increases friction, causes energy loss, and accelerates system wear.

• Replace oil at regular intervals.

• Use high-quality Hydraulic hose and oil hose to ensure leak-free and contamination-free oil circulation.

Use Energy-Saving Hydraulic Pumps

• Adopt load-sensing pumps, pressure-compensated pumps, or modern servo pumps.

• A servo pump supplies oil on demand, reducing unnecessary flow and pressure output. This significantly cuts heat generation and improves overall efficiency.

Reduce Valve Pressure Losses

• Inspect the Hydraulic valve and Directional Control Valve for internal leakage, which causes constant throttling and heating.

• For large-flow systems, avoid placing coolers or filters in the main circuit. Instead, apply bypass cooling and filtration, which reduces pressure loss while maintaining proper oil temperature control.

2. Enhance Cooling Capacity

Minimizing heat generation alone is not enough. A hydraulic system also needs effective heat dissipation.

Maintain and Upgrade Hydraulic Coolers

• Regularly clean dust from air coolers and ensure sufficient ventilation. A fan cooler should generally handle 3–5 times the system flow for effective performance.

• For water coolers, remove scale deposits to maintain heat exchange efficiency.

• If the existing Hydraulic oil cooler is undersized, install an additional Hydraulic Cooler to meet the system’s cooling needs.

Design the Reservoir Correctly

• Oil reservoir capacity directly affects cooling.

• Stationary equipment: reservoir size ≥ 3–5 times pump flow.

• Mobile equipment: reservoir size ≥ 1–2 times pump flow.

• Aviation equipment: reservoir size ≥ 1 time pump flow.

• Painting the oil tank in a light color can reduce external heat absorption.

Ensure Sufficient Oil Supply

Insufficient Hydraulic oil may cause the hydraulic pump to run dry and create cavitation, generating excessive heat. Adequate oil volume ensures proper circulation and natural cooling within the system.

3. Blince Hydraulic Professional Recommendations

Controlling hydraulic system oil temperature requires a dual strategy: reduce heat generation and improve cooling efficiency.

At Blince Hydraulic, we provide complete hydraulic solutions, including:

• High-performance hydraulic pumps and servo pumps

• Durable Hydraulic valves, Directional Control Valves, and pressure relief valves

• Efficient Hydraulic oil coolers and Hydraulic hoses / oil hoses

These products are engineered to minimize energy loss, extend equipment life, and ensure stable operation even under harsh working conditions in agriculture, livestock, and industrial applications.

Conclusion

Overheating in hydraulic systems is a common but preventable issue. By optimizing system design, using clean and adequate Hydraulic oil, adopting energy-efficient servo pumps, and applying the right Hydraulic oil cooler, companies can significantly lower oil temperature and improve productivity.

Blince Hydraulic is committed to delivering high-quality hydraulic components and customized solutions for global clients, helping your machinery run cooler, longer, and more efficiently.
