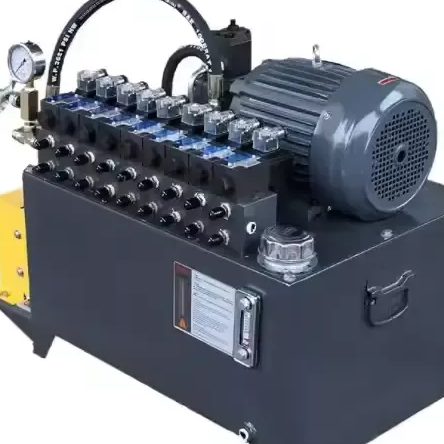

Hydraulic power units (HPUs) are the heart of modern manufacturing, construction and energy systems. Their reliability directly affects equipment uptime, production efficiency and safety. Industry research shows that fluid contamination is the “silent killer” responsible for roughly 75–80 % of hydraulic system failures. When contamination causes a pump failure, unplanned repairs can cost US $85 000–145 000 per incident and emergency call‑outs cost three to five times more than scheduled maintenance. For factories and fleets in California and across the United States, avoiding these costs starts with a rigorous acceptance process for every new hydraulic station.
This guide follows the structure of professional blogs used by leading machining suppliers and adapts it to hydraulic equipment buyers. It outlines a four‑step “Look‑Verify‑Fill‑Test” method—often summarised as “看对加测” in Chinese—for accepting a new hydraulic station. The article also highlights how premium components such as hydraulic motors, pumps, hydraulic valves, cylinders and heat exchangers contribute to long‑term reliability.
| Metric or standard | Key facts |
| Failures due to contamination | Fluid contamination accounts for up to 75 % of hydraulic system failures; industry publications put the figure at ≈80 % |
| Cost of emergency repairs | Emergency hydraulic repairs cost US $85 000–145 000 per incident and reactive maintenance is 3–5 × more expensive than scheduled servicing |
| Benefits of preventive maintenance | Proper preventive maintenance reduces unplanned downtime by 30–50 % and can double or triple component life |
| Fluid cleanliness codes | Sensitive systems require fluid cleanliness between ISO 18/16/13 and 16/14/11 |
Why acceptance matters
Hydraulic stations (power units) integrate pumps, motors, valves, cylinders and reservoirs into a compact package. They are the energy source for press brakes, injection moulding machines, drilling rigs and even mobile cranes. Modern units operate at higher pressures and tighter tolerances than ever before; a single particle of dirt measuring only 4–14 µm can score valve surfaces and clog servo passages. Contamination infiltrates new systems during manufacturing, transport and installation, which is why built‑in cleaning and acceptance are critical.
The consequences of poor acceptance are severe:
Downtime costs – With unplanned failures costing fleets between $448–760 per day and emergency repairs exceeding $85 000, even a brief shutdown can wipe out profit margins.
Safety risks – High‑pressure leaks can cause injection injuries and slip hazards, while overheating oil can ignite.
Reduced equipment life – Dirty fluid erodes pump and valve surfaces, cutting component life by more than half and eventually necessitating complete system overhaul.
For large purchasers who operate fleets of machines or run high‑volume manufacturing lines in California, verifying a new HPU before commissioning is essential. The following four steps provide a practical checklist.
Step 1 – Look: Visual inspection
Visual inspection identifies most issues before energising the system. According to fluid power standards, thorough visual checks can uncover over 80 % of potential problems before they cause downtime. Use the following checks:
1.1 Check piping, fittings and surfaces
Oil residues and leaks – Examine every pipe junction, valve face and cylinder rod for oil film or drips. Even minor oil films indicate seal damage or loose fittings.
Fastener torque – Verify that mounting bolts, hose clamps and screw connections meet the specified torque. Use calibrated torque wrenches and hydraulic bolt tensioners where applicable.
1.2 Use professional inspection tools
Borescope inspection – Inspect hard‑to‑reach internal passages using a flexible borescope. Standards call for 1080p resolution to identify defects as small as 0.1 mm. Borescope checks reveal welding slag, metal chips and corrosion on the inside of valve blocks and pipes.
Magnetic probe – Run a strong magnetic probe along the interior of pipes to collect metal debris. Metal fragments are a major source of contamination and can damage pumps and valves.
Magnifying lens – Inspect sealing surfaces at 5× to 10× magnification. Surface roughness should be no more than Ra 0.8 µm—higher values lead to seal failure.
1.3 Safety and compliance
Electrical safety – Ensure motor wiring and grounding meet the latest national electrical standards. Check for proper cable routing, intact insulation and secure terminal connections.
Environmental protection – Install an air breather with appropriate filtration on the reservoir. Maintain a clean installation environment (ISO 14644‑1 class or better) to keep dust and moisture from entering the tank.
High‑quality components help mitigate these risks. Blince hydraulic pumps feature robust cast‑iron housings and precision‑machined alloy steel parts that resist vibration and leakage, while Blince valves are designed with tight tolerances to reduce internal leakage. Choosing reputable components reduces inspection time and increases reliability.
Step 2 – Verify: Check the schematic
Hydraulic stations involve many stakeholders—designers, fabricators and installers. Studies show that up to 68 % of system failures are caused by design or assembly errors. Before powering the unit:
2.1 Interpret circuit diagrams
Identify symbols – Follow ISO/GB symbol standards to distinguish pumps, pressure‑control valves, directional control valves and cylinders. Ensure that components installed on the machine match the symbols on the drawing.
Validate functional logic – Confirm that pressure‑control circuits include relief and reducing valves, and that flow‑control circuits use the correct throttle or proportional valve. Check that servo valves receive filtered oil with the required cleanliness code (e.g., ISO 16/14/11 for servo applications).
2.2 Verify piping and interfaces
Pipe routing – Compare actual pipe routing with the layout drawing. Verify that suction, return and pressure lines are connected correctly; reversed connections can starve pumps or overload return lines.
Interface alignment – Measure flange and thread sizes to confirm that pump ports, valve blocks and pipes are correctly matched. Check right‑angle bends and mating surfaces for misalignment or gaps that could introduce leaks.
2.3 Check multi‑circuit coordination
Pressure distribution – In multi‑circuit systems, secondary circuits should operate 10–20 % below the main circuit pressure. Use calibrated pressure transducers to verify distribution.
Flow distribution – Verify that each actuator receives sufficient flow. Use flow meters (accuracy ±1 % FS) to measure each branch and compare with design requirements.
Selecting integrated manifolds and valves from suppliers like Blince simplifies schematic verification. Their manifolds combine relief, flow‑control and logic functions, reducing plumbing complexity and eliminating mismatched fittings.
Step 3 – Fill: Clean filling and oil management
Oil cleanliness directly affects service life. Contamination control during the first fill can reduce failure rates by more than 40 % and extend component life threefold.
3.1 Select the right fluid
Viscosity grade – Choose oil according to local temperature range. In cooler climates (−20 °C to 5 °C) use low‑viscosity oils (ISO VG 32–68), while in hot climates (35 °C to 60 °C) select higher‑viscosity or synthetic oils. For moderate temperatures (5 °C to 35 °C), VG 46 oils are typical.
Cleanliness class – New oil must meet NAS 1638 class ≤7 or ISO 4406 code 18/16/13. Test new oil with a particle counter to confirm cleanliness before pouring.
3.2 Clean the reservoir and fill
Tank cleaning – Wipe the reservoir with lint‑free cloth and verify there are no welding slag or metal chips. Fill using a dedicated filtration unit rated at ≤5 µm and circulate the oil through the filter at least three times. Maintain vacuum at −0.06 to −0.095 MPa and monitor flow rate (~12 000 L/h) to ensure effective filtering.
Protect the fill port – Fit a 100‑µm screen and dust cap to the fill port. Fill and immediately seal the tank to prevent airborne contamination.
3.3 Verify oil level and sealing
Level check – Use a magnetic float gauge (accuracy ±1 % FS) to ensure the oil level is at the midpoint of the sight glass. Too low a level causes pump cavitation; too high a level reduces cooling efficiency.
Gauge calibration – Calibrate magnetic level gauges according to the manufacturer’s instructions: zero the scale with an empty tank and use a magnet to reset the float.
Seal integrity – Verify that the reservoir cover and breather are tight and that gaskets are undamaged. Use OEM gaskets to ensure compatibility and sealing performance.
Premium Blince hydraulic heat exchangers and oil coolers maintain optimum oil temperatures, preventing viscosity breakdown. High‑quality filters and accessories available through Blince also help maintain ISO cleanliness codes.
Step 4 – Test: Pressure and functional testing
Testing verifies that the hydraulic station meets design specifications and ensures safe commissioning.
4.1 No‑load testing
Initial start‑up – Close the outlet valve, jog the motor to confirm rotation, then run the pump for 2–3 minutes without load. Listen for abnormal noise and measure vibration (< 3 mm/s RMS). Adjust the relief valve gradually to the working pressure in 20 % increments to avoid pressure shocks.
4.2 Low‑pressure circulation
4.3 Load testing and performance verification
Stepwise loading – Load the system to 50 %, 80 % and 100 % of rated pressure, holding each level for 10 minutes. Check for leaks, deformation and temperature rise. On high‑pressure systems (> 30 MPa) use sensors with accuracy ±0.25 % FS.
Flow characteristics – Adjust reducing valves so that secondary circuits run 10–20 % below main pressure. Measure flow in each branch; ensure that actuators receive design flow.
4.4 Multi‑cylinder synchronisation
Synchronisation error – For systems with multiple cylinders, measure the displacement error with laser or magnetostrictive sensors (accuracy ±0.1 mm). Synchronisation error should be ≤2 %.
Control methods – For flow divider circuits, verify equal flow distribution; for proportional valve circuits, confirm that each cylinder’s flow responds linearly to command signals.
4.5 Servo tuning and calibration
Proportional valve calibration – Use a signal generator (0–10 V) to calibrate the relationship between control voltage, spool position and flow. Acceptable linearity error is ≤2 % and hysteresis ≤1 %.
Position sensor installation – Install high‑precision position sensors (e.g., magnetostrictive types with ±0.1 mm accuracy) on servo cylinders. Secure mounting prevents vibration and ensures accurate feedback.
After testing, record baseline pressure, flow and temperature data for future trending. Compare readings against manufacturer specifications—deviations may indicate contamination or assembly issues.
Common faults and prevention
Even with rigorous acceptance, faults can occur. Understanding common failure modes helps maintenance teams respond quickly.
Low system pressure
Causes: Stuck relief valve, pump wear, contaminated oil, blocked suction line.
Prevention: Test relief valve operation during acceptance; maintain clean fluid; replace suction filters every 500 hours; use high‑quality pumps and valves.
Remedy: Clean the relief valve; measure pump volumetric efficiency—replace if below 80 %; change oil; clean or replace suction filters.
High oil temperature
Causes: Poor heat dissipation, incorrect viscosity, internal leakage or clogged cooler.
Prevention: Keep coolers clean; select oil with proper viscosity; ensure good sealing to minimise internal leakage.
Remedy: Clean or replace the cooler; switch to a fluid with appropriate viscosity; repair leaks and check cooler flow.
Abnormal noise and vibration
Causes: Cavitation, mechanical wear, resonance or loose pump mounting.
Prevention: Ensure suction lines are leak‑free; maintain clean oil; check bearings and gears regularly; mount pumps securely.
Remedy: Fix suction leaks; analyse oil samples; replace worn bearings and gears; tighten mounting bolts; purge air from the system.
Seal aging and leakage
Causes: Natural wear, high temperature, contaminated fluid, incorrect installation.
Prevention: Inspect seals regularly; control oil temperature between 40–60 °C; maintain fluid cleanliness; install seals correctly using manufacturer guidelines.
Remedy: Replace aged seals; flush or filter contaminated oil; maintain proper temperature; re‑install seals following OEM procedures.
Q&A
1.Why do I need to inspect a new hydraulic station?
Because fluid contamination causes about 75–80 % of hydraulic system failures. Emergency repairs after a failure can cost US $85 000–145 000 per incident and reactive maintenance is 3–5 × more expensive than scheduled servicing. A thorough acceptance process helps catch issues early and prevents costly downtime.
2.What does the “Look‑Verify‑Fill‑Test” method mean?
It is a four‑step acceptance approach:
Look – visually inspect piping, fittings and surfaces for leaks, residue or loose fasteners.
Verify – check the hydraulic schematic to ensure components are correctly installed and circuits are properly routed.
Fill – clean the reservoir and fill with fluid that meets ISO/NAS cleanliness codes.
Test – run no‑load, low‑pressure and full‑load tests to confirm pressures, flows and synchronisation.
3.Which tools are recommended for visual inspection?
A flexible borescope with 1080 p resolution can detect defects as small as 0.1 mm, a magnetic probe collects metal particles inside pipes, and a magnifying lens helps inspect sealing surfaces. Torque wrenches and hydraulic bolt tensioners verify that all fasteners are tightened properly.
4.How does contamination damage hydraulic systems?
Contamination is the “silent killer” of hydraulic equipment. Microscopic particles and water droplets circulate through the fluid and erode pump surfaces, clog servo valves and accelerate seal wear. Cleanliness codes such as ISO 18/16/13 are required for general systems, and even stricter levels for servo circuits.
5.How should I select and handle hydraulic fluid during installation?
Choose viscosity according to your climate: ISO VG 32–68 oil for cold conditions (−20 °C to 5 °C), VG 46 for moderate climates, and VG 46–68 or synthetic oils for hot environments. New fluid must meet NAS 1638 class ≤ 7 or ISO 4406 code 18/16/13. Clean the reservoir thoroughly and filter oil through a ≤ 5 µm filter before filling.
6.What benefits do preventive maintenance and proper acceptance bring?
A structured acceptance procedure combined with preventive maintenance can reduce unplanned downtime by 30–50 % and double or triple component life. By contrast, emergency repairs after failures cost much more and often cause secondary damage.
7.Why consider Blince hydraulic components for your station?
Blince motors, pumps, valves, cylinders and heat exchangers are made from robust cast iron and precision‑machined alloy steel, reducing vibration and leakage. Integrated manifolds simplify piping and improve reliability, making it easier to meet the required cleanliness and performance standards.
8.What common faults should I watch for and how can I prevent them?
Typical issues include low system pressure (caused by stuck relief valves or pump wear), high oil temperature (from poor cooling or wrong viscosity), abnormal noise and vibration (due to cavitation or mechanical wear), and seal aging. Prevent problems by maintaining clean fluid, replacing filters regularly, keeping coolers clean, inspecting seals and hoses, and adhering to the four‑step acceptance method.
Conclusion: Invest in quality and proactive maintenance
Accepting a new hydraulic station using the Look‑Verify‑Fill‑Test method lays the foundation for safe and efficient operation. Visual inspection finds most defects early; schematic verification ensures correct assembly; clean filling keeps contaminants out; and thorough testing validates performance. Following this structured procedure can reduce system failure rates by more than 70 % and extend component life two to three times, while proactive maintenance lowers unplanned downtime by 30–50 % and reduces operating costs.
For purchasing managers seeking reliable HPUs for factories in Los Angeles, the Bay Area or across North America, partnering with a trusted supplier is just as important as following acceptance procedures. Blince hydraulic motors, pumps, valves, cylinders, heat exchangers and steering control units are engineered with robust materials and precision manufacturing to withstand heavy‑duty service. Using high‑quality components reduces the likelihood of leakage, vibration and premature failure, simplifying acceptance and lowering total cost of ownership.
