Hydraulic cylinders are a vital power component in countless machines. They convert the energy of pressurized hydraulic fluid into controlled linear motion. If you operate equipment that relies on hydraulics, understanding the structure of the hydraulic cylinder is essential for correct maintenance and operation. This article explains the main parts of a hydraulic cylinder and emphasises the importance of maintaining stable system pressure.
1. Cylinder Barrel
What is a cylinder barrel? The cylinder barrel forms the main structural body of a hydraulic cylinder. It is typically fabricated from a high-strength seamless steel tube and acts as the “shell” and load-bearing carrier within which all internal motion, pressure transfer, and sealing take place. Inside this barrel, the piston slides along its inner wall, driven by hydraulic fluid pressure to produce linear motion. The inner diameter of the barrel must be precisely machined to ensure the piston moves smoothly. Additionally, the barrel’s inner surface is often subjected to precision honing or roller-burnishing (achieving typical internal surface roughness values in the range of 4–16 μm) so that the surface is extremely smooth. This smoothness helps significantly reduce friction, extend the service life of seals, and minimise wear.
Why the cylinder barrel matters
High pressure resistance: Hydraulic cylinders frequently operate under internal pressures of tens of megapascals (MPa). The barrel must resist plastic deformation or cracking under these conditions.
Structural core of the system: The barrel not only carries pressure but also houses the piston, piston rod, seals, cylinder head/cap and other critical components. It is literally the “skeleton” of the cylinder. Any deformation, scoring, corrosion or cracking of the barrel can lead to seal failure, drop in efficiency or even equipment shutdown.
Basis for motion precision: The quality of the barrel’s inner wall directly affects how smoothly the piston slides, the response speed of the system, the wear rate of seals, and hence the overall lifespan of the cylinder.
Environmental adaptability: In practical use, the barrel may be exposed to dust, mist, corrosive media or harsh environments. Thus, the choice of material and surface treatment (such as chrome plating, coatings or heat-treatment) is also a key factor.
Supplementary notes
Material selection: While carbon steel or alloy steel is standard, certain applications requiring light-weight, high corrosion-resistance or special temperature performance (such as food industry, marine, aerospace) may employ aluminium alloy, composite materials or stainless steel barrels.
Specification variety: Barrel diameter, wall-thickness, length, internal diameter tolerance, surface finish, heat-treatment condition and other parameters are customised depending on machine thrust, stroke length, load, speed and installation space. Selecting the correct specification is a prerequisite for achieving system performance targets.
Manufacturing quality requirements: These include internal bore concentricity, straightness, roundness, surface roughness and residual stress after heat-treatment – all of which affect long-term reliability.
Maintenance tips: During normal use, avoid pits, scratches or rust on the barrel inner wall. If scoring or abnormal sounds are found, shut down promptly and inspect the seals and barrel condition.
2. Piston and Piston Rod
What is a piston? The piston is the core moving component installed inside the barrel. It converts the pressure energy of the hydraulic fluid into linear mechanical force. The piston’s cross-section is typically disc-shaped and fits closely to the barrel inner wall, but with a small clearance to accommodate seal installation. The piston is typically fitted with seal rings (for example U-type, V-type or metal backup rings) to prevent bypass or leakage of hydraulic fluid from one side of the piston to the other, thereby maintaining the pressure differential required for motion. The diameter, material (commonly steel or aluminium alloy), surface coating or hardening (such as heat-treatment, chrome plating) of the piston are designed according to working pressure, sliding speed and lifespan requirements.

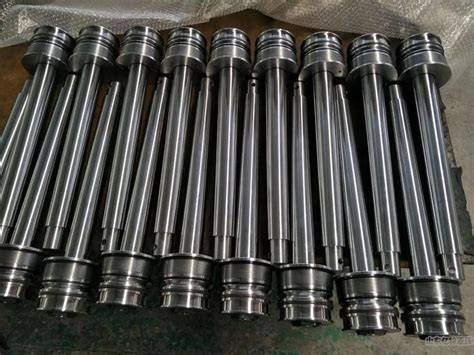

What is a piston rod? The piston rod connects to the piston and extends outside the cylinder barrel; it is the bridge for transmitting force from the hydraulic cylinder to the external mechanical load. The piston rod must withstand axial thrust, pull forces, side-loads, bending and impact loads. Typically, the piston rod is made of cold-rolled steel and may be hard chrome-plated (or otherwise surface-treated) to enhance wear resistance, corrosion resistance and surface finish. The chrome layer improves compatibility with seals and reduces wear. Key quality indicators of the piston rod include surface finish (e.g., Ra value), hardness, straightness and absence of surface defects (such as cracks or scratches). These significantly affect the life of the piston rod and the overall system reliability.
Working principle When hydraulic fluid enters one chamber of the cylinder (such as the cap end or rod end), it exerts pressure on the piston. Under the resulting pressure differential, the piston moves axially along the barrel. The piston rod, rigidly connected to the piston, extends or retracts accordingly and transfers the linear motion to an external load. One can liken the piston to the “engine” inside the cylinder and the piston rod to the “driveshaft” that delivers the generated power to the working device. In a double-acting cylinder, both sides of the piston can be pressurised or relieved; in a single-acting cylinder, typically only one side is pressurised while the return stroke relies on a spring, gravity or external force.
Supplementary notes
When designing the piston and piston rod, consideration must be given to side-loads on the rod. If side-load is significant, a guide bushing or support rail should be introduced to reduce wear.
Since the piston rod is exposed outside the cylinder barrel, it is vulnerable to dust, mud, corrosive media and other external influences. The rod end seal must perform reliably and the surface must be defect-free.
Routine maintenance should focus on checking the piston rod surface condition (for scratches, dents or corrosion), verifying that connecting bolts are tight and ensuring the rod-end attachments are secure and aligned.
3. Cylinder Head & Cylinder Cap
What are the cylinder head and cap? The cylinder head (often called the gland or end-head) and the cylinder cap (also called the base or end-cap) form the sealed ends of the cylinder barrel, thus creating a closed pressure chamber. They also provide the support for mounting the cylinder and for routing hydraulic fluid. Specifically, the cylinder head frequently integrates the rod-seal arrangement, rod guide components, ports for fluid entry/exit and dust-wiper elements. These features ensure the piston rod maintains axial alignment and reliable sealing during extension and retraction. The cap typically serves for mounting, structural support and closing the opposite end of the barrel.
Why they matter
Pressure integrity: If the head or cap has faulty sealing or loose connections, internal pressure can leak, reducing effective output force or even causing failure.
Contamination protection: The head’s dust-wiper or scraper ring prevents ingress of external particles (dust, slurry, moisture) into the barrel, protecting the piston, seals and inner bore from damage.
Guide and alignment function: As the piston rod reciprocates, side loads, angular deflections or vibrations may occur; the head’s guide structure reduces rod misalignment and extends seal life.
Maintenance friendliness: Many industrial cylinders are designed with detachable heads or caps, enabling easier maintenance, seal replacement and inspection of internal components.
Supplementary notes
Materials & manufacturing: Heads and caps are typically cast or forged steel, capable of withstanding high pressure. Sealing and wiper components are chosen based on fluid type, temperature, speed and contamination level (materials such as nitrile rubber, polyurethane, FKM, PTFE).
Connection methods: Heads/caps may attach to the barrel via bolts, tie-rods, threads or welding. The choice affects ease of maintenance, structural stability and cost.
Maintenance advice: Always release system pressure before disassembly. After removal, inspect gasket or O-ring condition, ensure mating surfaces between head/cap and barrel are clean and undamaged, and avoid misalignment or twisting during reassembly.
4. Seals and Seal Rings

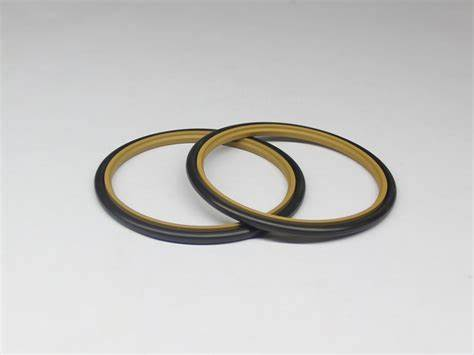

What are seals and seal rings? Seals and seal rings are oft-underappreciated yet essential components of hydraulic cylinders. Their primary function is to prevent hydraulic fluid from escaping the system while preserving internal pressure and blocking contaminants from entering. Common seal types include:
O-rings: Circular rubber rings used for static sealing between non-moving parts (e.g., head/barrel interface).
Piston seals: Installed on the piston to seal the gap between piston and barrel, separating pressure zones.
Rod seals: Located at the head end around the piston rod, preventing fluid leakage while the rod moves.
Wipers/Scrapers: Installed at the rod-entry point to scrape off dirt or moisture from the rod before it enters the barrel.
Why seals and rings matter
Pressure = power: The force output of a hydraulic cylinder is proportional to the piston area multiplied by oil pressure. If seals leak, the pressure cannot be maintained, output force drops and efficiency suffers.
Preventing contamination: Leaking or failed seals allow ingress of external contaminants (dust, water, metal shavings), which accelerate wear of the cylinder bore, piston rod, seals and other components.
Prolonging service life: Quality seals significantly reduce the wear rate of internal components and delay the onset of failure, thereby extending the service life of the hydraulic cylinder.
Supplementary notes
Material selection: Seal materials are chosen based on oil type, operating temperature, speed, pressure and contamination environment. Examples: Nitrile rubber (NBR) for standard conditions, polyurethane (PU) for high-speed motion, fluorocarbon rubber (FKM) or PTFE for high temperature/ aggressive fluids.
Consumable nature: Seals are considered consumable items – even with optimal design and care they will wear out. Regular inspections for seepage, drips, radial movement or rod-end oil weeping are essential.
Maintenance tip: When replacing seals, ensure the seal groove and bore surfaces are clean, the correct seal dimension and orientation are used, and apply suitable lubrication to avoid initial dry wear or snagging.
5. Overall Hydraulic Cylinder System Operation
To fully understand how all the parts above work together, here is a summary of the operation of a hydraulic cylinder:
A hydraulic pump pressurises oil which is directed by a control valve into one chamber of the hydraulic cylinder (either the cap end or the rod end).
The pressurised fluid acts on the piston surface, causing the piston to move along the barrel. The piston rod transfers the resulting motion to an external load.
In a double-acting cylinder, both chambers can alternately be pressurised or drained, enabling extension and retraction. In a single-acting cylinder, only one chamber is pressurised; retraction is achieved via a spring, gravity or external force.

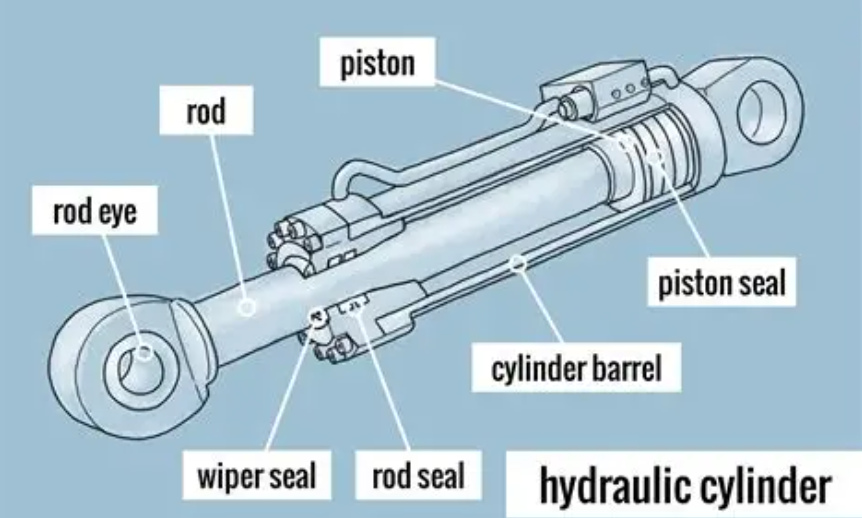

The cylinder barrel provides the pressure-containing volume and structural integrity; the head and cap seal the ends and house ports and guides; the piston and piston rod convert pressure into motion; the seals maintain internal pressure and exclude contaminants.
System performance is affected by multiple factors: pump pressure and flow rate, hydraulic fluid volume and condition, barrel diameter, piston-rod ratio, barrel inner surface finish, seal condition, mounting alignment, ambient temperature, contamination level and more.
6. Summary and Recommendations
Through the detailed explanation above, we see that although a hydraulic cylinder is a single unit, its performance truly depends on four major parts: the cylinder barrel, piston/piston rod, cylinder head/cap and seals. Their design, material selection, manufacturing and maintenance directly influence reliability and longevity.
During selection: Consider machine thrust, stroke, speed, installation space and environment when choosing barrel size, piston rod material, seal type and mounting style.
During use & maintenance:
Inspect barrel inner wall for scratches, pits or corrosion.
Check piston rod surface for smoothness, scratches or bending.
Monitor seals for seepage, drips or rod-end oil leaks; ensure rod-end connections are tight and aligned.
Maintain hydraulic fluid cleanliness, temperature control and avoid ingress of contaminants.
During repair or replacement: Prefer components that meet or exceed original specifications. Use proper materials and tolerances to avoid early failure from inferior parts. By mastering the structure and operating principles of hydraulic cylinders, you can enhance selection efficiency, extend service life and improve system reliability — as well as diagnose maintenance needs or faults more effectively.
