What Is A Hydraulic Heat Exchanger?

Views: 0     Author: Site Editor     Publish Time: 2025-06-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Hydraulic systems are widely used across industries such as construction, agriculture, manufacturing, mining, and marine operations. These systems rely on pressurized fluid to transfer energy, enabling heavy-duty tasks like lifting, pushing, rotating, or clamping. However, as hydraulic fluid flows through pumps, valves, and actuators under high pressure, it generates heat due to internal friction and system inefficiencies.

Excess heat in a hydraulic system can reduce fluid viscosity, damage seals, lower energy efficiency, and even cause complete system failure if left unmanaged. That’s where hydraulic heat exchangers play a critical role. A hydraulic heat exchanger is a device designed to remove excess heat from hydraulic fluid and maintain the system at a safe operating temperature. Without it, system performance and component lifespan would be severely compromised.

Understanding how hydraulic heat exchangers work, their different types, and how to choose the right one is essential for optimizing the performance and reliability of any hydraulic-powered machine or system.



Hydraulic Heat Exchange

The Purpose of a Hydraulic Heat Exchanger

The main function of a hydraulic heat exchanger is to regulate the temperature of the hydraulic fluid by transferring heat away from it. When hydraulic oil absorbs heat from internal mechanical resistance, the exchanger draws that heat away using a secondary medium—usually air or water.

If the oil temperature becomes too high, its properties begin to degrade. The fluid may thin out, reducing lubrication and increasing the risk of metal-to-metal contact within the system. Over time, this leads to faster component wear, reduced machine precision, and more frequent maintenance. By keeping the hydraulic oil within its optimal temperature range, the heat exchanger prevents such issues and supports smooth, consistent system operation.



How Does a Hydraulic Heat Exchanger Work?

A hydraulic heat exchanger works by placing the hot hydraulic oil in thermal contact with a cooler medium. The heat naturally flows from the hot oil to the cooler substance, which could be ambient air or circulating water. Once the heat is transferred, the cooled oil returns to the system, while the heated medium is released or cycled out for further cooling.

In most hydraulic systems, the heat exchanger is installed on the return line, cooling the fluid before it re-enters the tank or reservoir. This helps maintain a stable operating temperature throughout the system. In advanced setups, thermostatic control valves are added to direct oil flow only when cooling is needed, improving efficiency and preventing overcooling during cold starts.



Types of Hydraulic Heat Exchangers

There are two major categories of hydraulic heat exchangers, based on the cooling medium they use: air-cooled and water-cooled. Within these categories, several specific designs are commonly used depending on the application.

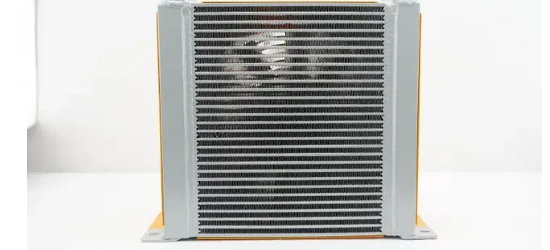

Air-cooled hydraulic heat exchangers use fans to blow ambient air across a heat transfer surface, usually made of aluminum fins. As the hot oil passes through the exchanger, the moving air removes heat from the metal surface. This type is popular in mobile equipment or remote locations where a water supply is not available.

Water-cooled hydraulic heat exchangers use cold water to extract heat from the hydraulic oil. The oil and water flow through separate channels or tubes inside the exchanger, allowing heat to transfer without mixing the fluids. This design provides faster and more effective cooling, making it ideal for large industrial machines or high-load applications.

Among the most common designs are:

Plate heat exchangers. These consist of thin, corrugated metal plates arranged to form alternating channels for oil and water. They offer a high surface area for heat transfer and are compact and efficient.

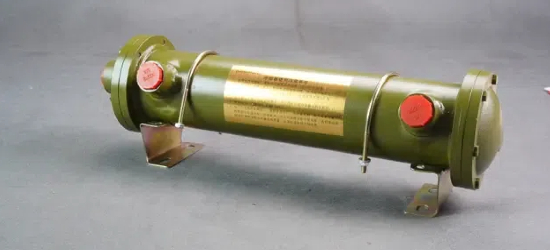

Shell and tube heat exchangers. In this design, hydraulic oil flows through a bundle of tubes enclosed in a larger shell, while the cooling water flows around the outside of the tubes. It is robust, suitable for high-pressure operations, and easy to clean.

Brazed plate exchangers. Similar to plate types but sealed with brazing instead of gaskets, these offer improved heat transfer and compactness, ideal for space-constrained environments.

Air-oil coolers. These combine a radiator-like structure with a fan system. They are widely used in construction, agricultural, and forestry equipment where rugged and independent cooling systems are required.



Applications of Hydraulic Heat Exchangers

Hydraulic heat exchangers are found in virtually every hydraulic-powered machine where heat buildup is a concern. Some common applications include:

Excavators, bulldozers, and loaders in construction

Tractors, sprayers, and harvesters in agriculture

Hydraulic presses, injection molding machines, and die-casting equipment in manufacturing

Drilling rigs, crushers, and haul trucks in mining

Cranes, steering systems, and deck equipment in marine vessels

Wind turbines, solar tracking systems, and other renewable energy applications

In all these use cases, the heat exchanger plays a vital role in protecting sensitive components, improving energy efficiency, and reducing equipment downtime.



Benefits of Using a Hydraulic Heat Exchanger

Maintaining proper fluid temperature in hydraulic systems offers a wide range of performance and cost benefits. A high-quality heat exchanger can make a significant difference in system longevity and reliability.

First, it extends the service life of hydraulic components by preventing fluid overheating, which can cause premature seal and pump failure.

Second, it preserves fluid properties such as viscosity and lubrication, ensuring smooth and consistent power transmission.

Third, it enhances system efficiency by preventing energy loss due to fluid thinning or thermal expansion.

Fourth, it reduces maintenance intervals and fluid replacement frequency, helping lower the total cost of ownership.

Finally, it improves safety by preventing dangerous system failures or uncontrolled pressure buildup caused by excessive heat.



Choosing the Right Hydraulic Heat Exchanger

Selecting the appropriate heat exchanger requires a thorough understanding of your hydraulic system and its operating conditions. Some key factors to consider include:

Heat load. Estimate the amount of heat your system generates to ensure the heat exchanger can handle the thermal demand.

Cooling medium availability. Choose between air-cooled or water-cooled designs based on your site conditions and resources.

System pressure and flow rate. The heat exchanger must be capable of withstanding system pressure and allowing adequate flow without causing restriction.

Ambient conditions. For outdoor applications, consider temperature extremes, dust exposure, and vibration when choosing your exchanger’s materials and design.

Space constraints. Compact exchangers may be necessary in mobile or tight installations.

Installation position. Decide whether the unit will be mounted in-line, on the tank, or in a bypass configuration.



Why Work With a Trusted Hydraulic Heat Exchanger Supplier?

To ensure reliable performance and long-term durability, it is essential to source your hydraulic heat exchangers from an experienced and trustworthy supplier. A reputable manufacturer will offer:

Engineered solutions tailored to your system requirements

High-quality materials and precision manufacturing

Technical support for sizing, installation, and troubleshooting

Global service network and timely delivery

Competitive pricing and customized product options

Partnering with the right supplier helps you avoid unnecessary system failures, reduce maintenance costs, and ensure operational efficiency in demanding environments.



Conclusion

A hydraulic heat exchanger is not just an accessory—it is a vital component in any hydraulic system that operates under high pressure and continuous duty cycles. It protects the system from the damaging effects of heat, improves performance, and minimizes downtime.

Understanding the types, functions, and selection criteria of hydraulic heat exchangers allows equipment designers, maintenance engineers, and procurement managers to make informed decisions. Whether you're operating industrial machinery, mobile equipment, or marine systems, the right heat exchanger ensures consistent, efficient, and safe hydraulic operations.

If you're looking to improve your hydraulic system with durable and efficient heat exchangers, now is the perfect time to consult a professional supplier and explore advanced cooling solutions that match your needs.
