Blince wireless hydraulic remote control valves are designed for mobile machinery and hydraulic equipment that require safe, flexible, and precise remote operation. The product range includes wireless hydraulic directional control valves, six-way remote control valve units, and electronic control hydraulic distributors for multi-function hydraulic systems.
With up to 250 bar working pressure, flow options up to 400 L/min, wireless radio control, and configurable spool sections, Blince remote-control hydraulic valves help operators control hydraulic functions from a safer and more convenient position.
Built for Safer Hydraulic Operation
Manual valve operation can be inconvenient or unsafe when equipment is moving, lifting, loading, or working in narrow spaces. Blince wireless hydraulic valve solutions allow operators to control hydraulic cylinders, motors, and other actuators remotely, improving visibility and reducing the need to stay close to moving machinery.
These valves are suitable for tractors, loaders, cranes, excavators, special vehicles, aerial work vehicles, wood grabs, crawler trucks, and other mobile hydraulic equipment.
Product Options

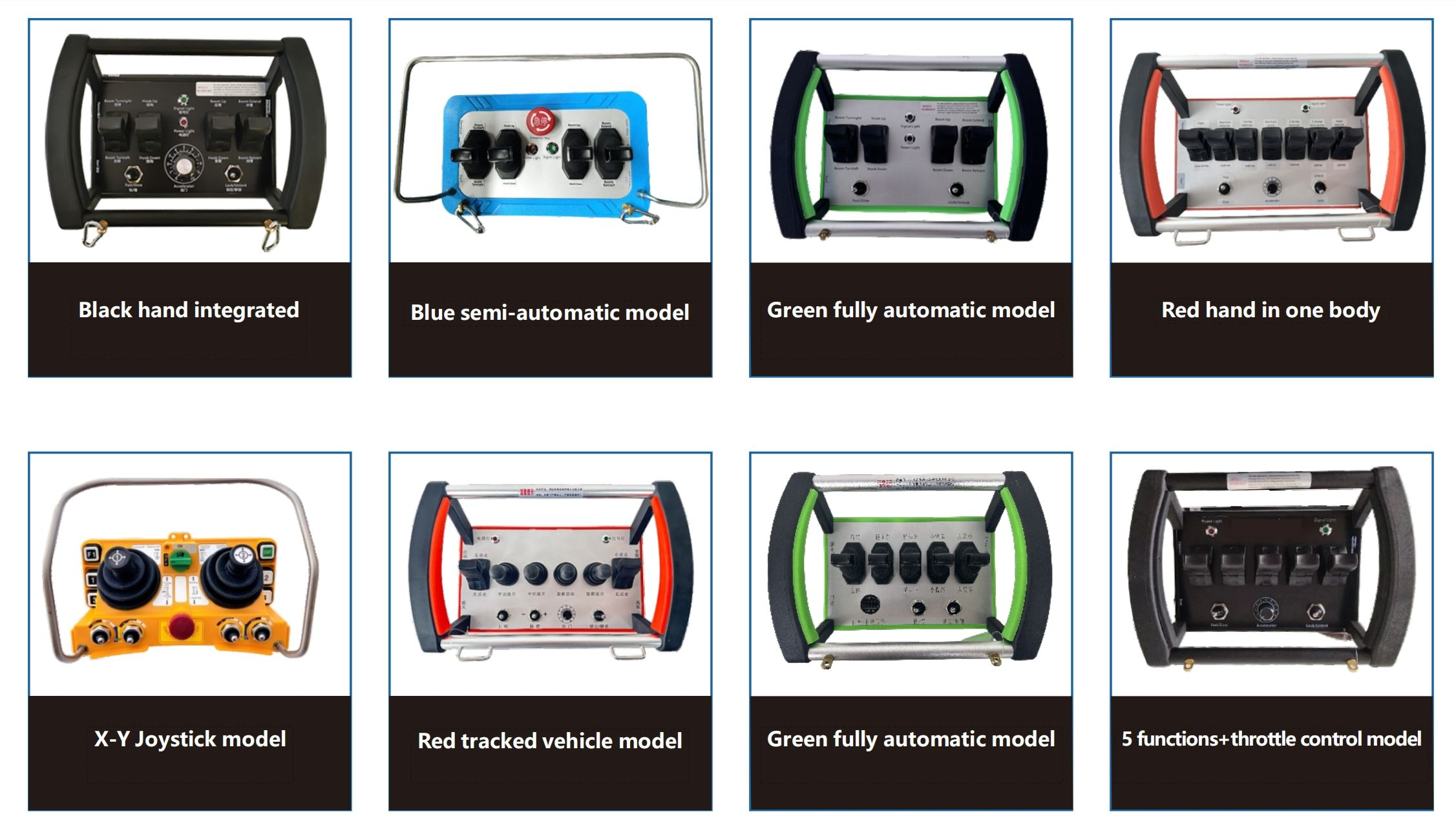

Hydraulic Wireless Remote Control Valve Unit
This high-flow wireless remote control unit is designed for hydraulic directional valve control in tractors, loaders, cranes, and mobile machinery. It supports six-way control, 1-6 section/spool options, DC12V/DC24V working voltage, 433Hz signal module, and IP68 waterproof protection.
It is suitable for equipment that requires higher flow capacity, outdoor operation, and reliable remote-control performance.
Key specifications
Six-way directional valve control
1-6 sections / spools
Maximum pressure: 250 bar / 25 MPa
Maximum flow rate: 400 L/min
Working voltage: DC12V / DC24V
Signal module: 433Hz
Waterproof grade: IP68
Port sizes: 1/4, 3/8, 1/2, 3/4, 1 in
Certification: RoHS / CE / ISO9001:2015

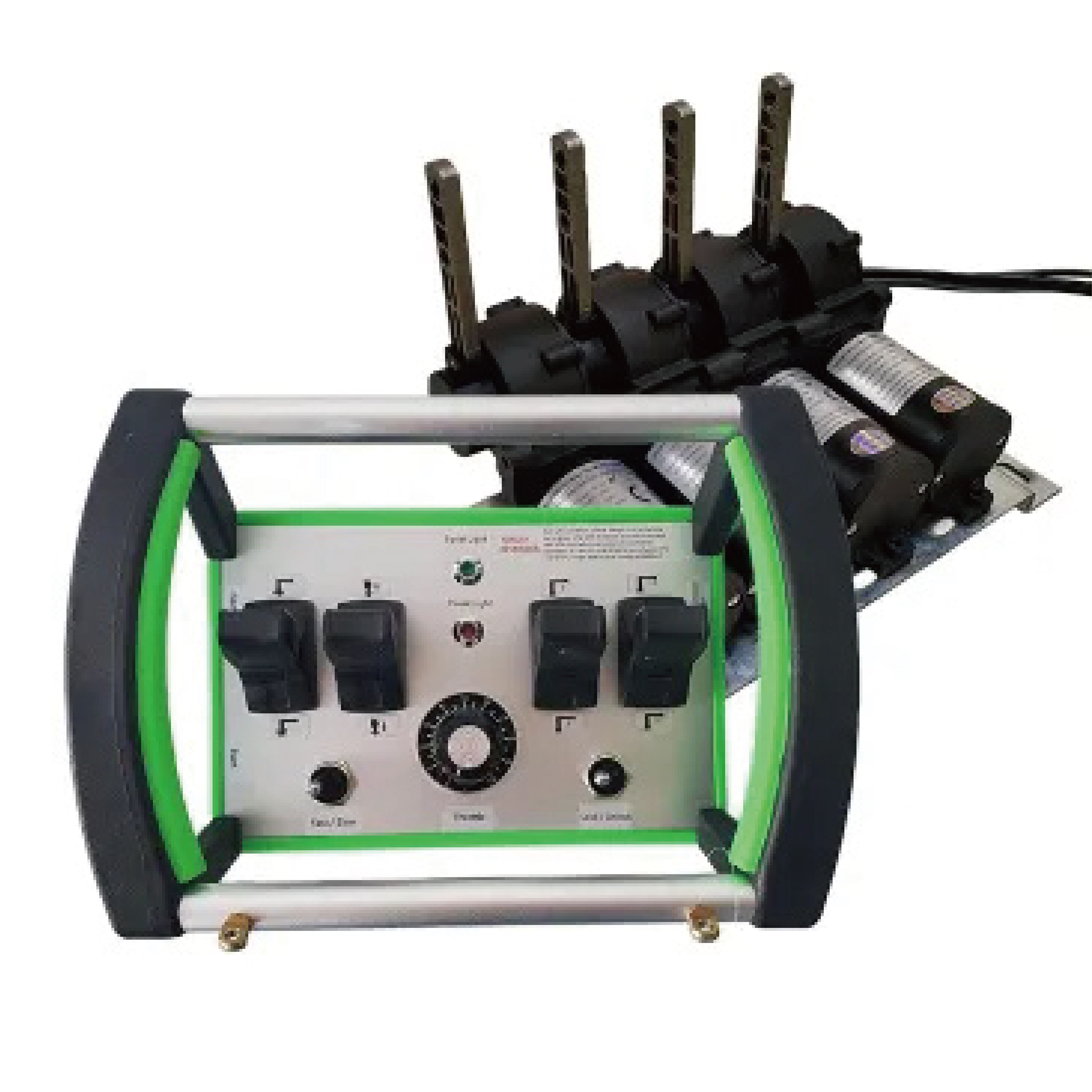

Wireless Hydraulic Directional Control Valve
This wireless hydraulic directional control valve is designed for mobile hydraulic systems that need proportional remote operation and multi-way hydraulic control. It can be configured with 1-12 spools and is available in related P40, P80, and P120 series configurations.
It is suitable for special vehicles, cranes, track excavators, crawler trucks, wood grabs, aerial work vehicles, and multi-function hydraulic machinery.
Key specifications
Directional control valve / monoblock directional valve
1-12 spool options
Maximum pressure: 250 bar / 25 MPa
Flow range: 40-120 L/min
Maximum flow rate: 120 L/min
Cast iron alloy body
Port sizes: 1/4, 3/8, 1/2, 3/4, 1 in
Similar series: P40, P80, P120
Certification: RoHS / CE / ISO9001:2015
Key Features
Wireless Remote Control
Wireless remote operation allows operators to control hydraulic functions away from the machine body, improving working visibility, operating convenience, and safety.
Both product configurations support working pressure up to 250 bar / 25 MPa, making them suitable for demanding mobile hydraulic applications.
Flexible Flow Options
Blince offers flow options from 40-120 L/min for standard wireless directional valve systems and up to 400 L/min for high-flow six-way remote control valve units.
Configurable Spool Sections
Choose 1-6 section configurations for the wireless remote control valve unit or 1-12 spool configurations for the wireless hydraulic directional control valve, depending on the number of hydraulic functions required.
Mobile Machinery Compatibility
DC12V/DC24V electrical compatibility, 433Hz radio control, and IP68 waterproof protection are available for the wireless remote control valve unit, making it suitable for outdoor mobile equipment.
Durable Construction
The wireless hydraulic directional control valve uses a cast iron alloy body for strength, wear resistance, and stable operation in hydraulic systems.

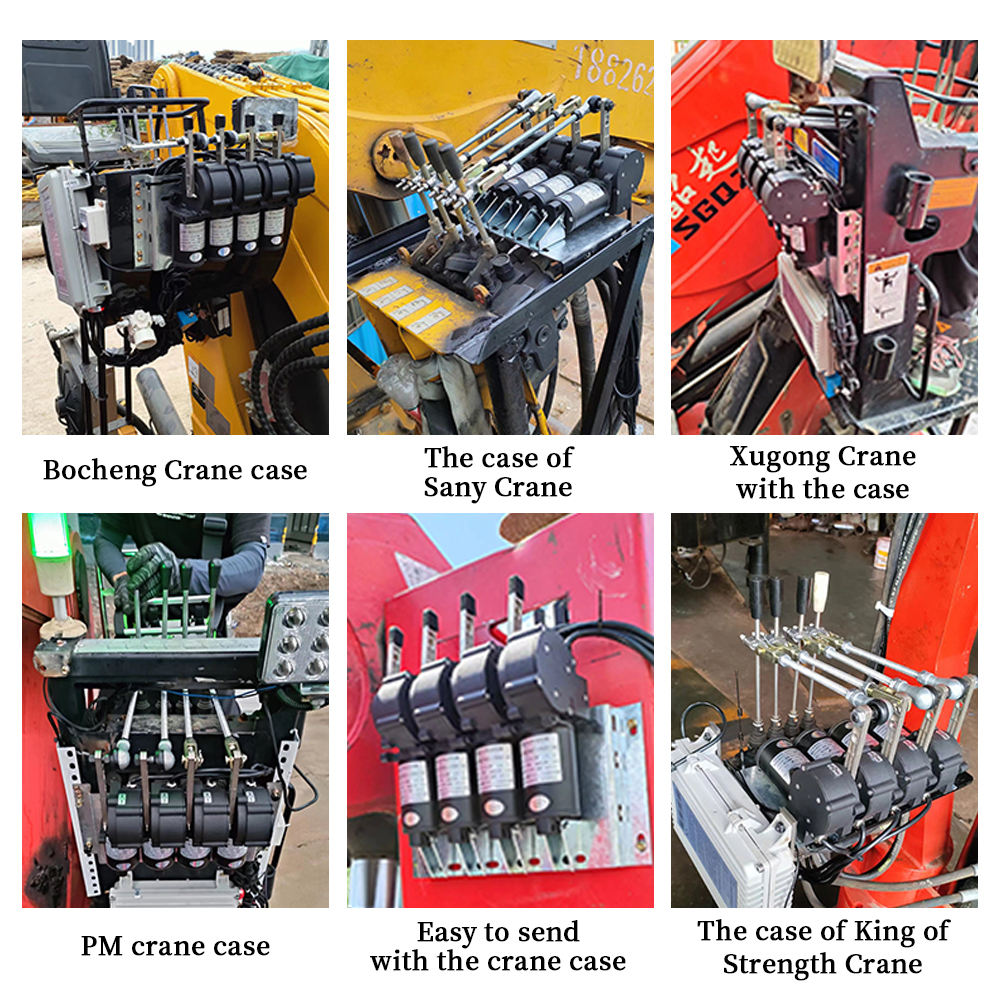

Applications
Blince wireless hydraulic remote control valves are suitable for:

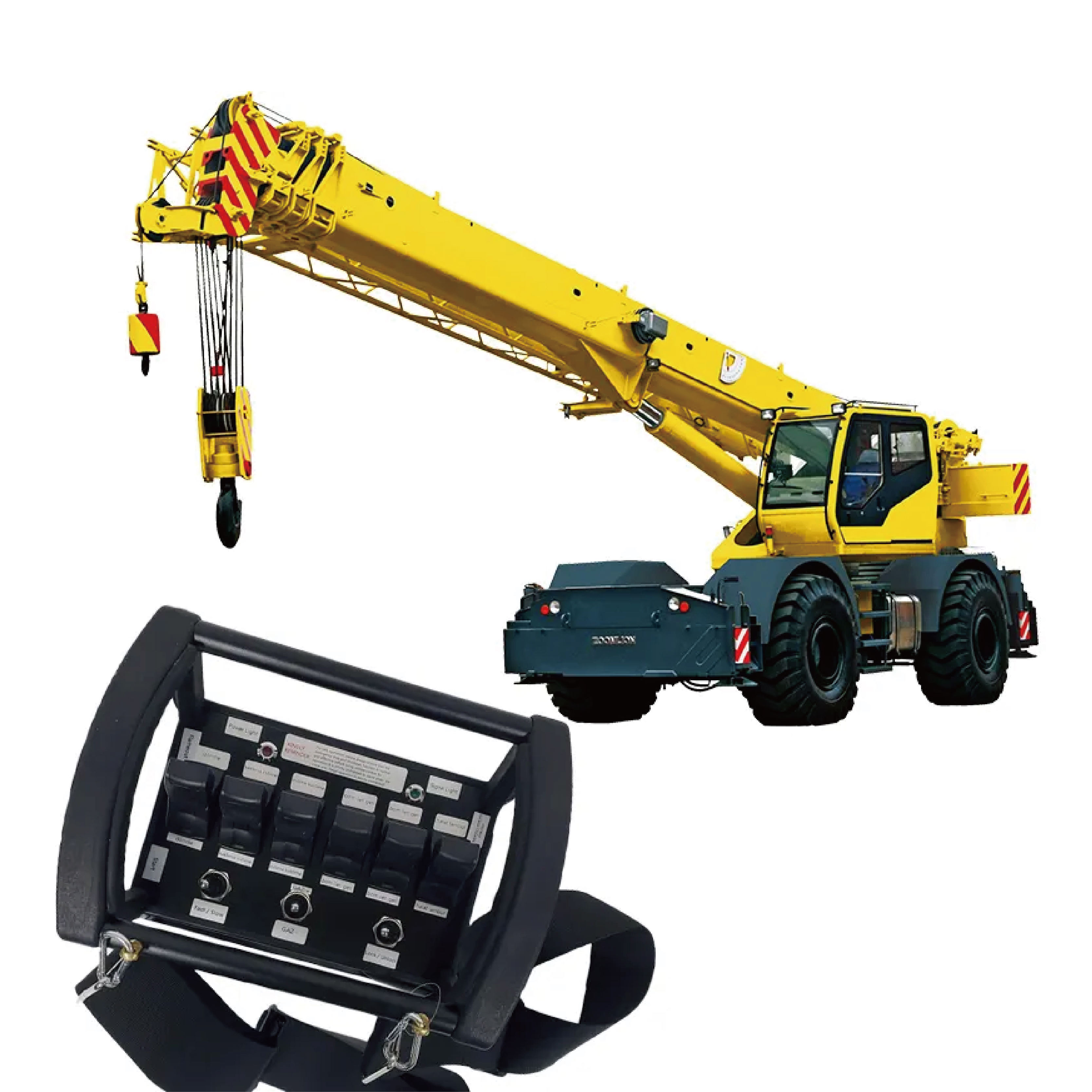

Truck cranes and small cranes
Tractors and agricultural machinery
Loaders
Track excavators
Crawler trucks
Wood grabs
Aerial work vehicles
Special vehicles
Mobile hydraulic power systems
Multi-function hydraulic machinery
Joystick hydraulic remote control systems
Radio remote control hydraulic systems
Technical Specifications
Item | Wireless Remote Control Valve Unit | Wireless Hydraulic Directional Control Valve |
Valve type | Directional control valve | Directional control valve / monoblock directional valve |
Control type | Hydraulic wireless remote control | Wireless proportional remote control |
Number of ways | Six-way | Configurable |
Spool sections | 1-6 | 1-12 |
Max pressure | 250 bar / 25 MPa | 250 bar / 25 MPa |
Max flow | 400 L/min | 120 L/min |
Flow range | 20 gpm | 40-120 L/min |
Voltage | DC12V / DC24V | Confirm by configuration |
Signal | 433Hz | Confirm by configuration |
Waterproof grade | IP68 | Confirm by configuration |
Material | Confirm by configuration | Cast iron alloy |
Port sizes | 1/4, 3/8, 1/2, 3/4, 1 in | 1/4, 3/8, 1/2, 3/4, 1 in |
Similar series | Confirm by configuration | P40, P80, P120 |
Certification | RoHS / CE / ISO9001:2015 | RoHS / CE / ISO9001:2015 |
Warranty | 1 year | 1 year |
How to Select the Right Valve
To recommend the correct wireless hydraulic remote control valve, please provide:
Machine type and working application
Required hydraulic functions
Number of spools or control sections
Hydraulic pump flow
System working pressure
Voltage requirement
Required remote-control distance and working environment
Port size and installation space
Whether proportional control is required
Cylinder or hydraulic motor specifications
For higher flow demand, choose the hydraulic wireless remote control valve unit with up to 400 L/min flow. For multi-way directional control with more spool options, choose the wireless hydraulic directional control valve with 1-12 spool configurations.
Why Choose Blince
Blince supplies hydraulic valves, hydraulic motors, and hydraulic control solutions for mobile machinery and industrial hydraulic systems. Our team can help match the correct valve configuration according to flow, pressure, voltage, spool quantity, control method, and installation requirements.
Whether you need a standard wireless hydraulic valve, a high-flow six-way remote control unit, or a customized electronic control hydraulic distributor, Blince can support product selection and hydraulic system matching.
FAQ
What is a wireless hydraulic remote control valve?
A wireless hydraulic remote control valve allows operators to control hydraulic valve functions through a radio remote controller instead of operating the valve manually at the machine body.
What is the maximum pressure of Blince wireless hydraulic remote control valves?
The verified product configurations support up to 250 bar / 25 MPa working pressure.
What is the maximum flow rate?
The wireless hydraulic directional control valve supports up to 120 L/min. The high-flow wireless remote control valve unit supports up to 400 L/min.
Can the valve be customized by spool quantity?
Yes. Available configurations include 1-6 sections for the wireless remote control valve unit and 1-12 spools for the wireless hydraulic directional control valve.
Which equipment can use these valves?
Typical applications include tractors, loaders, cranes, excavators, crawler trucks, wood grabs, aerial work vehicles, special vehicles, and mobile hydraulic systems.
Call to Action
Need a wireless hydraulic remote control valve for your machine?
Contact Blince with your hydraulic system requirements. Our team will help you select the right remote-control valve configuration for safe, stable, and efficient hydraulic operation.
