SAE 100 R19 Hyraulic Hose

Executive Standard: SAE J517 100R19 Tube: Oil resistant synthetic rubber Reinforcement:1 or 2 high tensile steel wire braid Cover: Black smooth or black corrugate, oil,weather and abrasion resistant synthetic rubber Temperature Range: -40℃ ~+100℃（-40 ℉ ~+212 ℉） Application: smaller bending radius, transmit petroleum base hydraulic fluids or water base hydraulic fluids

Availability:



Inquire

SAE 100R19 COMPACT,28MPA MAXIMUM WORKING PRESSURE WIRE HYRAULIC HOSE

Blince SAE 100 R19 Hydraulic Hose

This hose offers reliable performance. It handles various hydraulic fluids. The design ensures a tight bend radius. It is good for many applications. This hose meets high industry standards. You can count on its durability. It resists oil and wear.

The inner tube is strong. It uses oil-resistant rubber. The hose has steel wire braiding. This adds great strength. The cover is black. It resists weather damage. This hose works under high pressure. It is a robust choice.

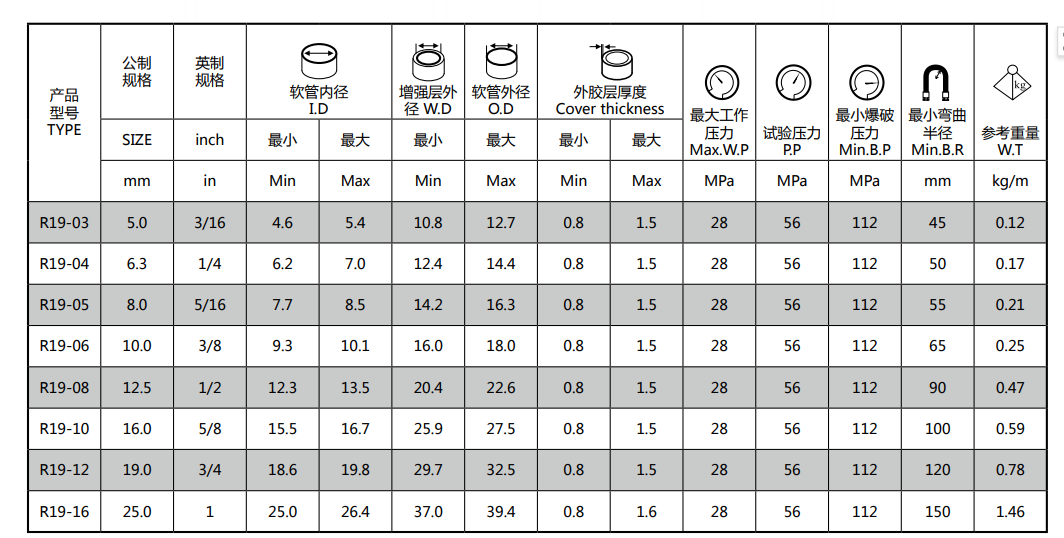

r19

Material	Inner Tube: Oil-resistant synthetic rubber Reinforcement: 1 or 2 layers high-tensile steel wire braid Outer Cover: Oil, weather, abrasion resistant synthetic rubber (black, fabric or smooth finish)
Certifications	CE, ISO, SGS

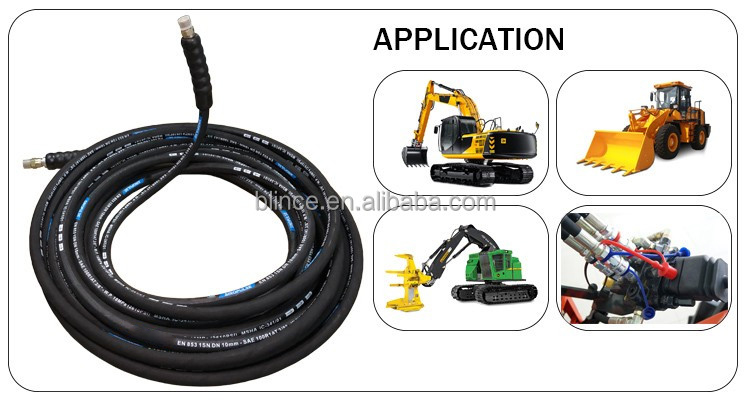

Application	Small bend radius. Suitable for petroleum and water-based hydraulic fluids.
Working Pressure	Max 28 MPa (depends on hose size)
