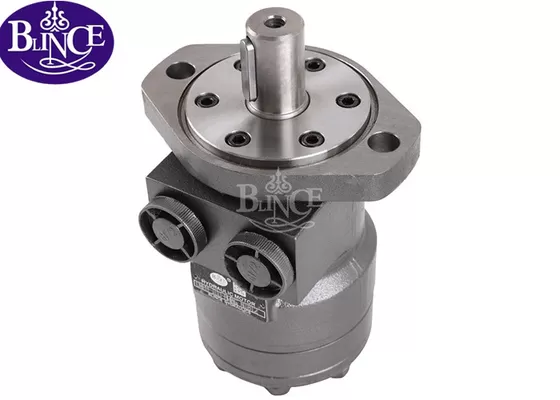

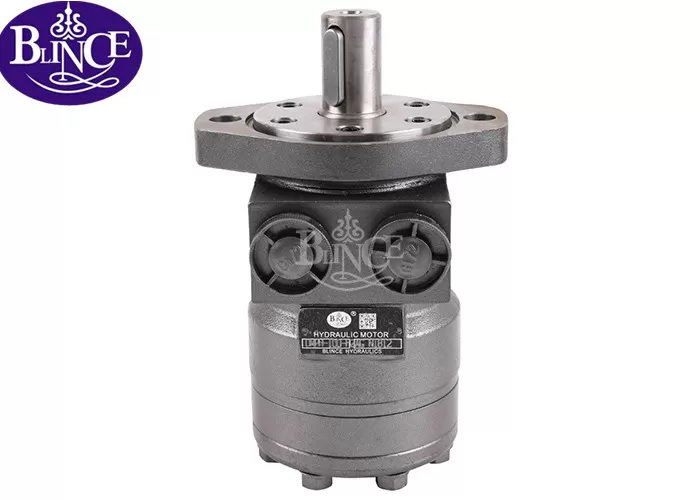

Blince presents the H series mini hydraulic motor. It is a compact and efficient motor. The H series is built with durable cast iron. It weighs between 5.6kg and 8kg. The motor has a black phosphating finish.
This motor is designed for various applications. It offers a continuous speed range. The speed is from 120 to 1500 rpm. Its displacement ranges from 36 to 486.5cc/rev. The continuous torque is from 55 to 430 N.m. It can handle a maximum pressure of 140 bar.
The H series motor delivers a powerful output. The output is from 6.0 to 11.0kw. This makes it a great choice. It is suitable for many small hydraulic systems. Blince guarantees quality. We offer a one-year warranty.
| Parameter | Value |
| Max Pressure | 140 bar |
| Continuous Speed | 120-1500 rpm |
| Displacement | 36-486.5 cc/rev |
| Output | 6.0-11.0 kw |
| Material | Cast Iron |
| Continuous Torque | 55-430 N.m |
| Warranty | One Year |
| Color | Black |
| Appearance | Phosphating |
| Weight | 5.6-8 kg |
| Highlight | hydraulic gear motor, small hydraulic motors |
Compact Design: This motor features a small, economical design. It uses a Gerotor gear set and a shaft distribution flow. This structure ensures a compact size while delivering high power and low weight.
Durability: The motor's surface undergoes a phosphating treatment. This process makes it highly resistant to rust. Imported bearings are used to prevent leakage, ensuring long-term reliability.
Versatile Ports and Mounts: The motor has angled in and out ports for easy operation and a compact structure. Its mounting holes use conical threads for a superior seal. A flexible drain port allows for practical use in many applications.
Equivalent Performance: This motor is a great alternative to the Eaton Char-lynn 101 H series. It offers similar gerotor hydraulic motor performance. It comes in various geometric displacements from 36cc to 500cc.
Flexible Shaft and Flange Options: The motor can be adapted to many systems. It offers different shaft options, including 25 parallel key, 25.4 Woodruff key, and 25.4 splined tooth. Various flange types are also available, such as two-bolt or four-bolt rhomb and four-bolt square.
Torque Compensation: The orbit motor includes an automatic torque compensation function. This feature helps maintain consistent performance under different load conditions.
| type | OMP OMPH 36 | OMP OMPH 50 | OMP OMPH 80 | OMP OMPH 100 | OMP OMPH 125 | OMP OMPH 160 | OMP OMPH 200 | OMP OMPH 250 | OMP OMPH 315 | OMP OMPH 400 | OMP OMPH 500 | |
| Geometric displacement | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max.speed.(rpm) | con. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max.torque(N.m | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 383 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| Max.output(KW) | cont. | 8.0 | 10.0 | 10.0 | 11.0 | 10.0 | 10.0 | 10.0 | 8.5 | 7.0 | 6.0 | 5.0 |
| int | 11.5 | 12.0 | 12.0 | 13.0 | 12.0 | 12.0 | 12.0 | 10.5 | 8.5 | 7.0 | 6.0 | |
Max.pressure Drop(Mpa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| Max.flow(L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
