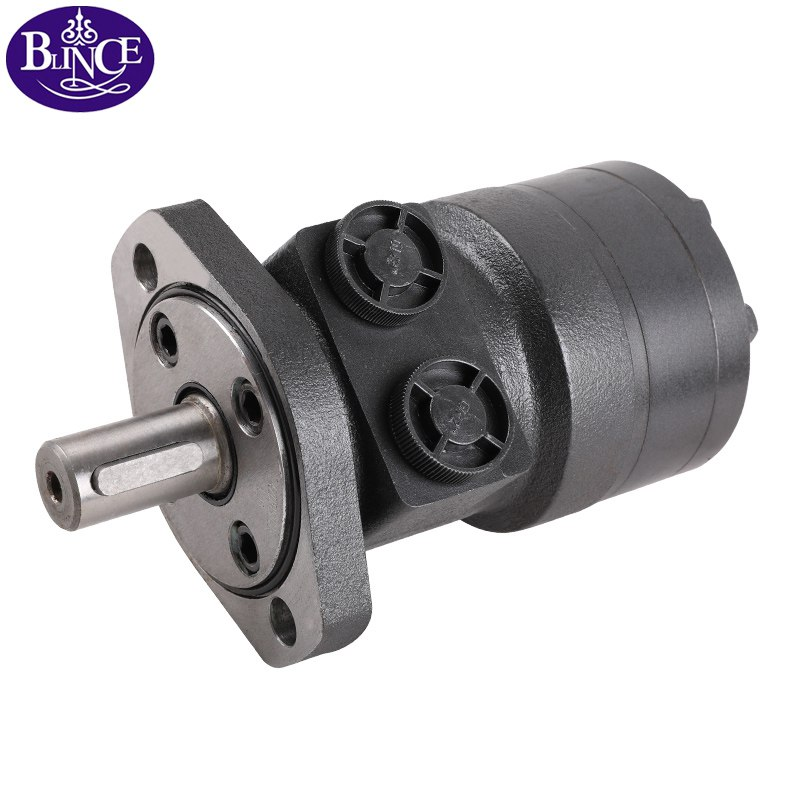

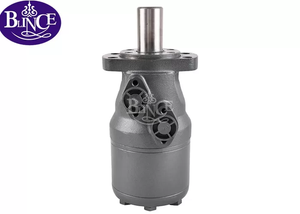

BMRS/OMRS hydraulic motor

Equilvelent with Eaton char-lynn S 103-xxx-xxx

OMRS series motor adapt the advanced Geroler gear set design with shaft distribution flow,which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.

Inquire Now

DESCRIPTION

Characteristic features:

*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.

*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.

*Special design in the driver-linker and prolong operating life

*Special design for distribution system can meet the requirement of low noise of unit.

*Compact volume and easy installation

Type		OMRS	OMRS	OMRS	OMRS	OMRS	OMRS	OMRS	OMRS	OMRS	OMRS
Displacement (cc/rev)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max speed rate (rpm)	cont	1250	960	750	600	475	378	310	240	190	155
Max speed rate (rpm)	int	1520	1150	940	750	600	475	385	300	240	190
Max pressure (Mpa)	cont	14	14	17.5	17.5	17.5	16.5	13	11	9	7
Max pressure (Mpa)	int	16.5	17.5	20	20	20	20	17.5	15	13	10
Max torque (n.m)	cont	72	100	195	240	300	360	360	390	390	365
Max torque (n.m)	int	83	126	220	280	340	430	440	490	535	495
Max flow (L/min)	cont	45	50	60	60	60	60	60	60	60	60
Max flow (L/min)	int	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7.0	7.3	7.6	8.0	8.5	9.0	9.5
