HMS05 HMSE05 Radial Piston Hydraulic Travel Motor

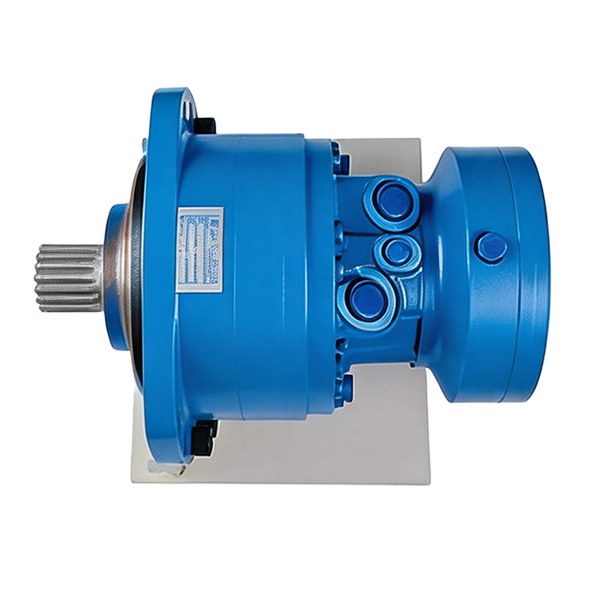

High-flow-radial-piston-hydraulic-oil-motor-factory

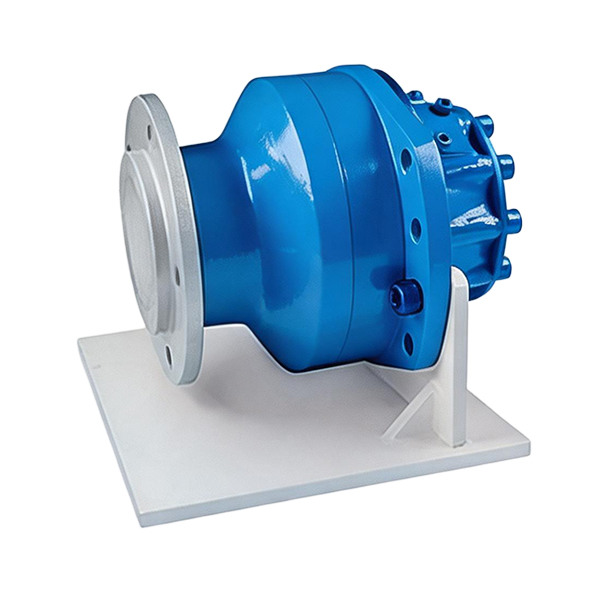

China-customized-hydraulic-travel-motor-MS05

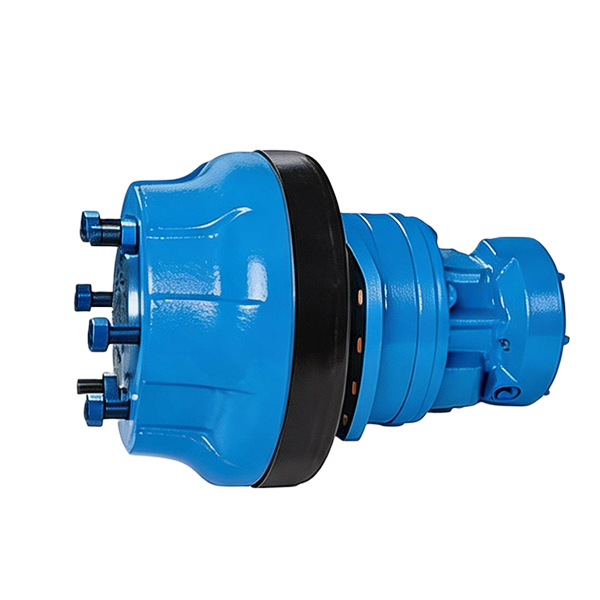

Multipurpose-hydraulic-motor-HMSE05-slew-drive

The HMS05 and HMSE05 series is a high-torque hydraulic piston motor. It is a high flow radial piston hydraulic oil motor designed for medium-sized machinery. This multipurpose hydraulic motor functions as a reliable travel motor or slew motor. It is a direct, 1:1 replacement for Poclain MS05 and MSE05 models.

Availability:



Inquire

Product Description

Product Parameters

Application Scenarios

FAQ

Our motor factory manufactures the HMS05/HMSE05 Poclain motor with a focus on durability. It uses a radial piston design to ensure high mechanical efficiency. As professional motor manufacturers, we offer China customized configurations to meet your machine's exact mounting needs.

This hydromotor delivers high torque even at low speeds. It is a top choice for motor suppliers who need reliable alternatives for the Poclain MS05 and MSE05. Whether used as a hydraulic travel motor for heavy wheels or a hydraulic slew motor for rotation, this unit provides peak performance.

Product Parameters

Feature	Technical Specification
Product Model	HMS05 / HMSE05
Interchangeable With	Poclain MS05 / MSE05
Motor Type	Radial Piston Hydraulic Motor
Displacement Range	260cc - 565cc / rev
Max. Pressure	400 Bar (40 MPa)
Max. Torque	Up to 3500 N.m
Max. Speed	0 - 300 RPM
Customization	China Customized Shafts / Brake Options

Application Scenarios

The HMS05 multipurpose hydraulic motor is ideal for these industries:

Construction: High-efficiency hydraulic travel motor for mini-excavators and road rollers.
Material Handling: Reliable hydraulic slew motor for truck-mounted cranes and forklifts.
Agriculture: Robust hydromotor for sprayers and forestry harvesting equipment.
Industrial: Heavy-duty hydraulic drive motor for conveyor systems and mixing equipment.

FAQ

Q: Can your motor factory ship HMS05 motors to North America or Europe?

A: Yes. We are global motor suppliers. We ship China customized hydraulic motors to the USA, Canada, Germany, and the UK. We handle all export documentation for fast delivery to your local warehouse.

Q: Are these motors 100% compatible with Poclain MS05 units used in Australia?

A: Absolutely. Our hydraulic piston motor follows the exact technical standards of the MS05 and MSE05 series. They are used widely in Australian mining and farming equipment with perfect fitment.

Q: Do you offer local technical support for a hydraulic slew motor purchase?

A: As leading motor manufacturers, we provide 24/7 technical assistance online. We can help you identify the correct displacement and porting for your local work environment.

Q: How do I know if this travel motor will fit my specific machine ports?

A: We offer China customized porting. Whether your region uses NPT, BSP, or Metric threads, our motor factory can manufacture the hydromotor to match your existing plumbing perfectly.
