The MK18 Hydraulic Travel Motor is a compact radial piston Hydraulic Piston Motor designed for high-torque hydraulic drive systems. With 1395–2812 cc/rev displacement, 400–450 bar maximum pressure, up to 70 kW power, up to 17,900 N·m torque and up to 160 rpm speed, it is suitable for Hydraulic Travel Motor, Travel Motor, Slew Motor, hydraulic Slew Motor, construction machinery, mining machinery, agricultural equipment and customized hydraulic systems.

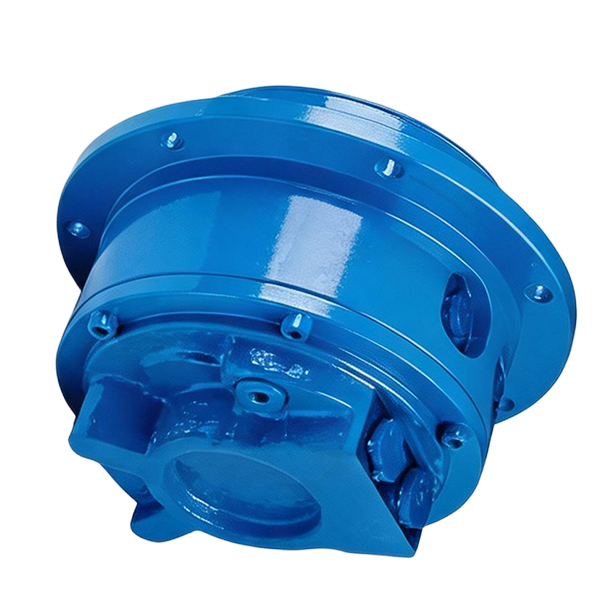

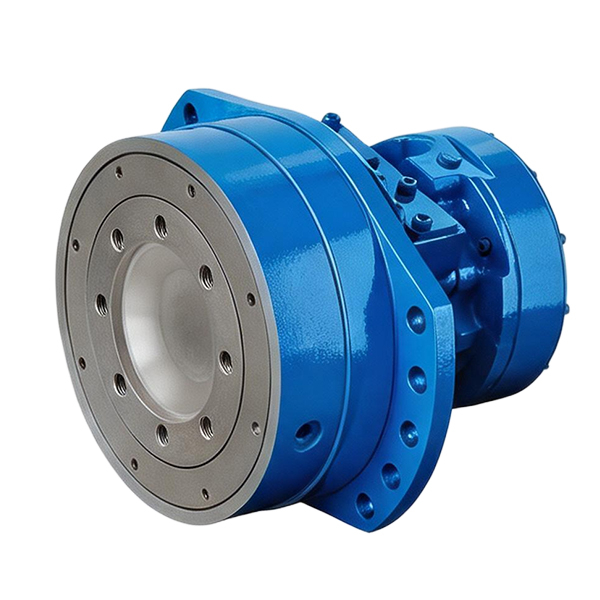

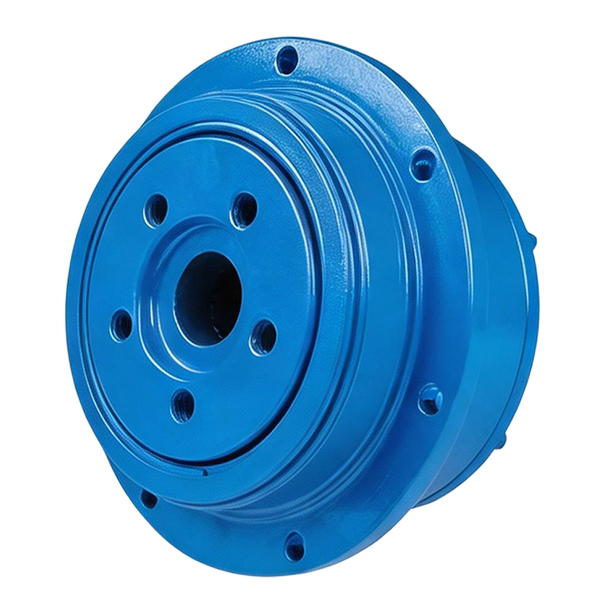

High-Performance MK18 Series Radial Piston Hydraulic Motor
The MK18 Poclain motor is a premium-grade high flow radial piston hydraulic oil motor designed for heavy-duty industrial and mobile applications. As professional motor manufacturers, we offer this China customized solution to provide a perfect 1:1 replacement for standard Poclain MSE18 series.
This multipurpose hydraulic motor excels in delivering high torque at low speeds, making it the ideal hydraulic drive motor for demanding environments. Whether you need a robust hydraulic travel motor for tracked vehicles or a precise hydraulic slew motor for crane rotations, our MK18 series ensures peak mechanical efficiency and long-term durability.
As trusted motor suppliers, we ensure our hydromotors meet international quality standards, offering a cost-effective yet high-performance alternative for global machinery dealers and OEM projects.

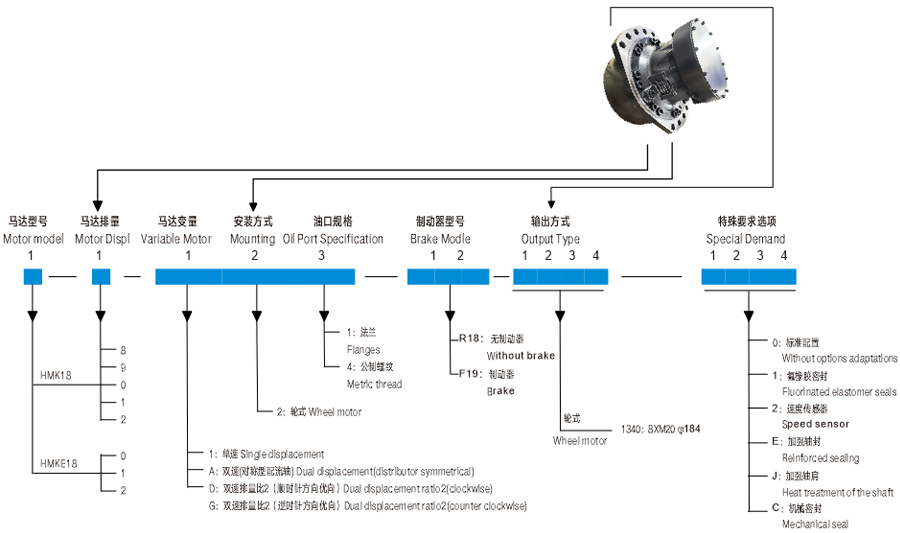

Product Parameters
Feature
Specifications
Product Model
MK18 Series (MSE18 Equivalent)
Motor Type
Radial Piston Hydraulic Motor
Displacement
1000 - 2800 ml/r
Max. Pressure
400 Bar (40 MPa)
Max. Torque
Up to 12000 N.m
Speed Range
0 - 150 RPM
Configuration
China Customized / Standard
Application
Travel Motor / Slew Motor
Application Scenarios
Construction Machinery: The primary travel motor for excavators, skid steer loaders, and trenching machines.
Mining Equipment: Used as a heavy-duty hydraulic drive motor for underground mining vehicles and rock drills.
Marine & Offshore: Ideal multipurpose hydraulic motor for winches, deck cranes, and propulsion systems.
Agriculture: High-efficiency hydromotor for fruit harvesters and forestry equipment.
Material Handling: Reliable hydraulic slew motor for mobile cranes and heavy-duty forklifts.
Why Choose Our Motor Factory?
Leading Motor Manufacturers: Advanced production line for high flow radial piston hydraulic oil motors.
Global Motor Suppliers: Proven track record in exporting high-quality poclain motors to over 50 countries.
Customization: We provide China customized services to meet your specific torque and mounting requirements.
