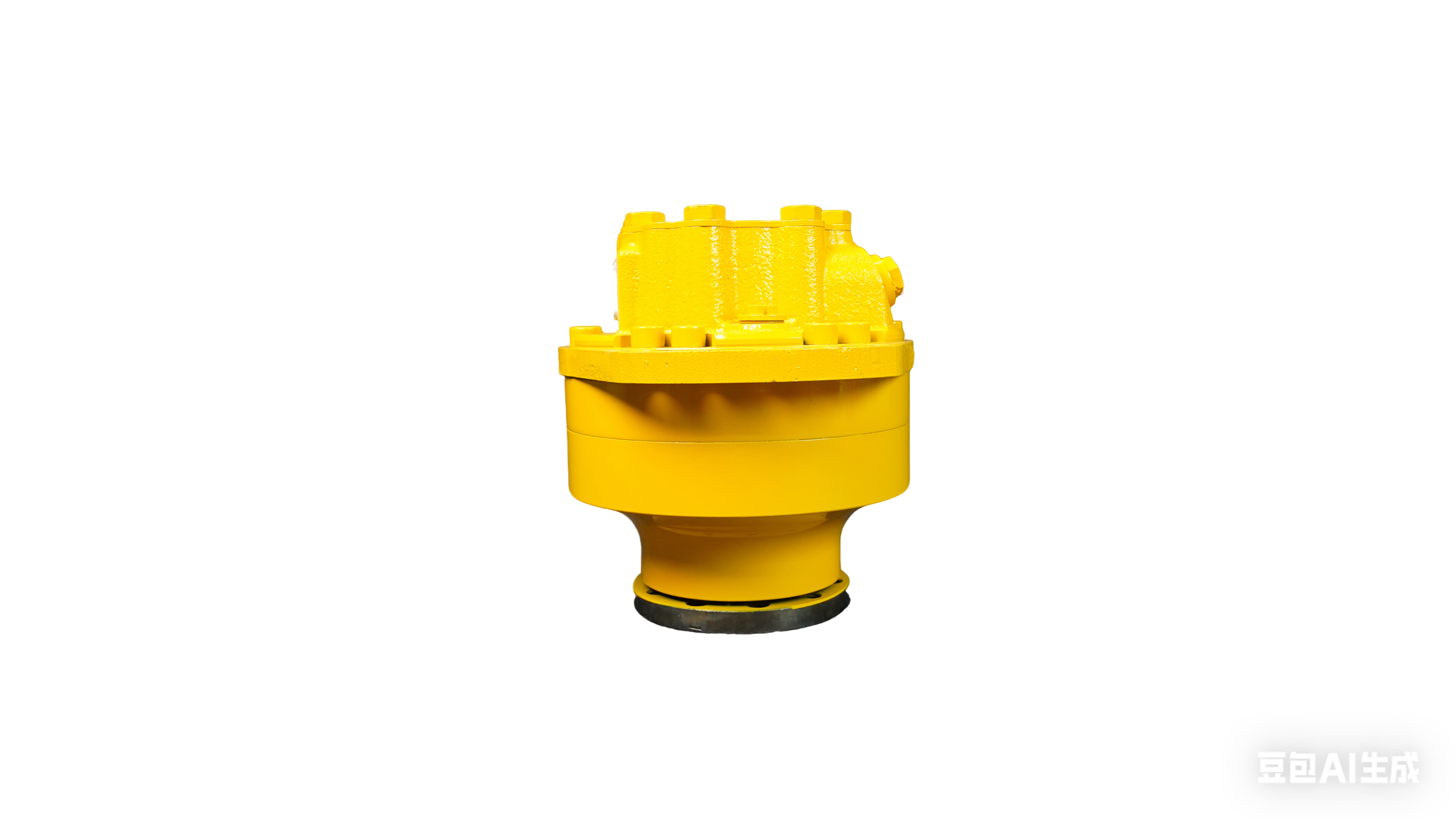

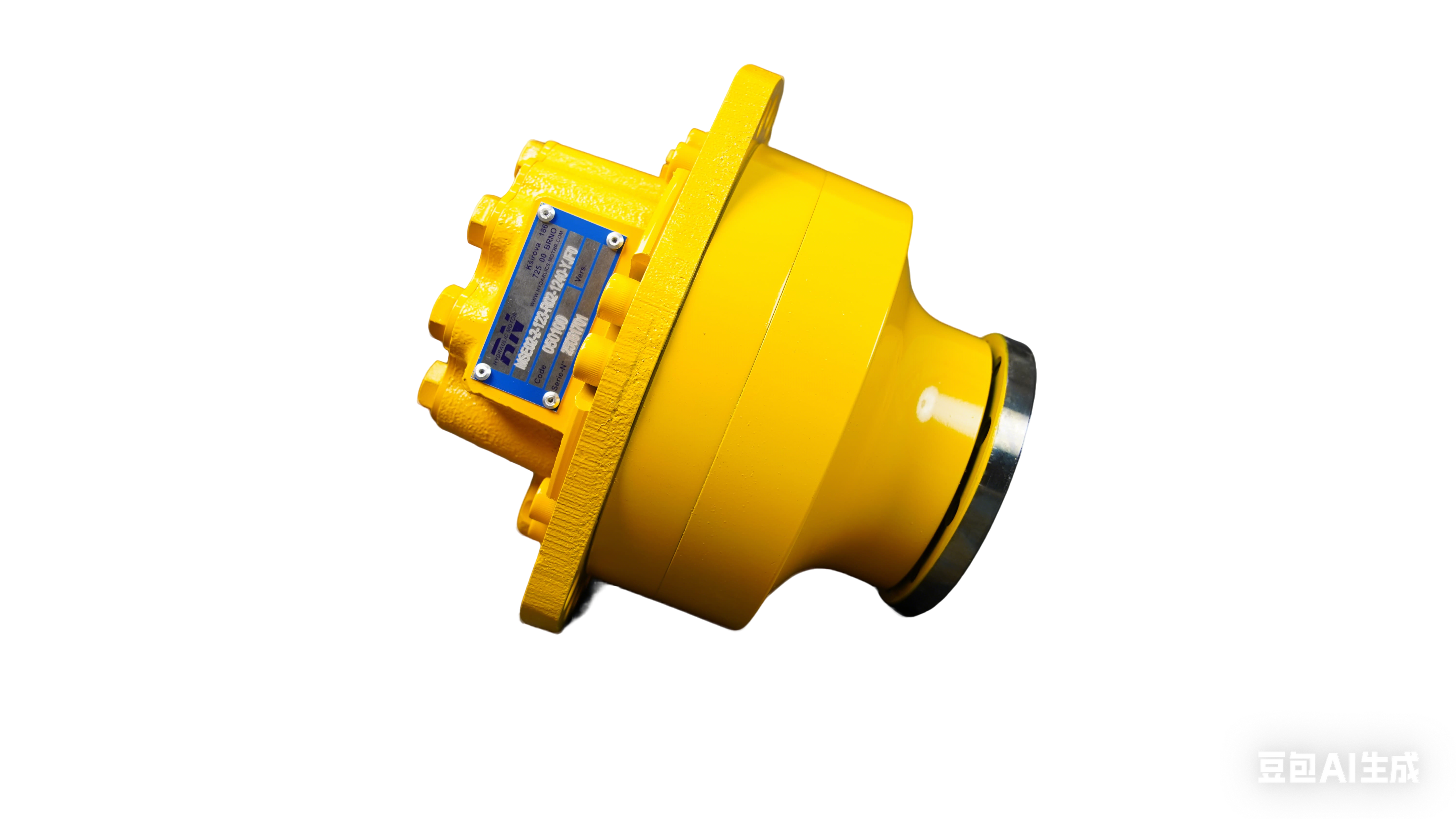

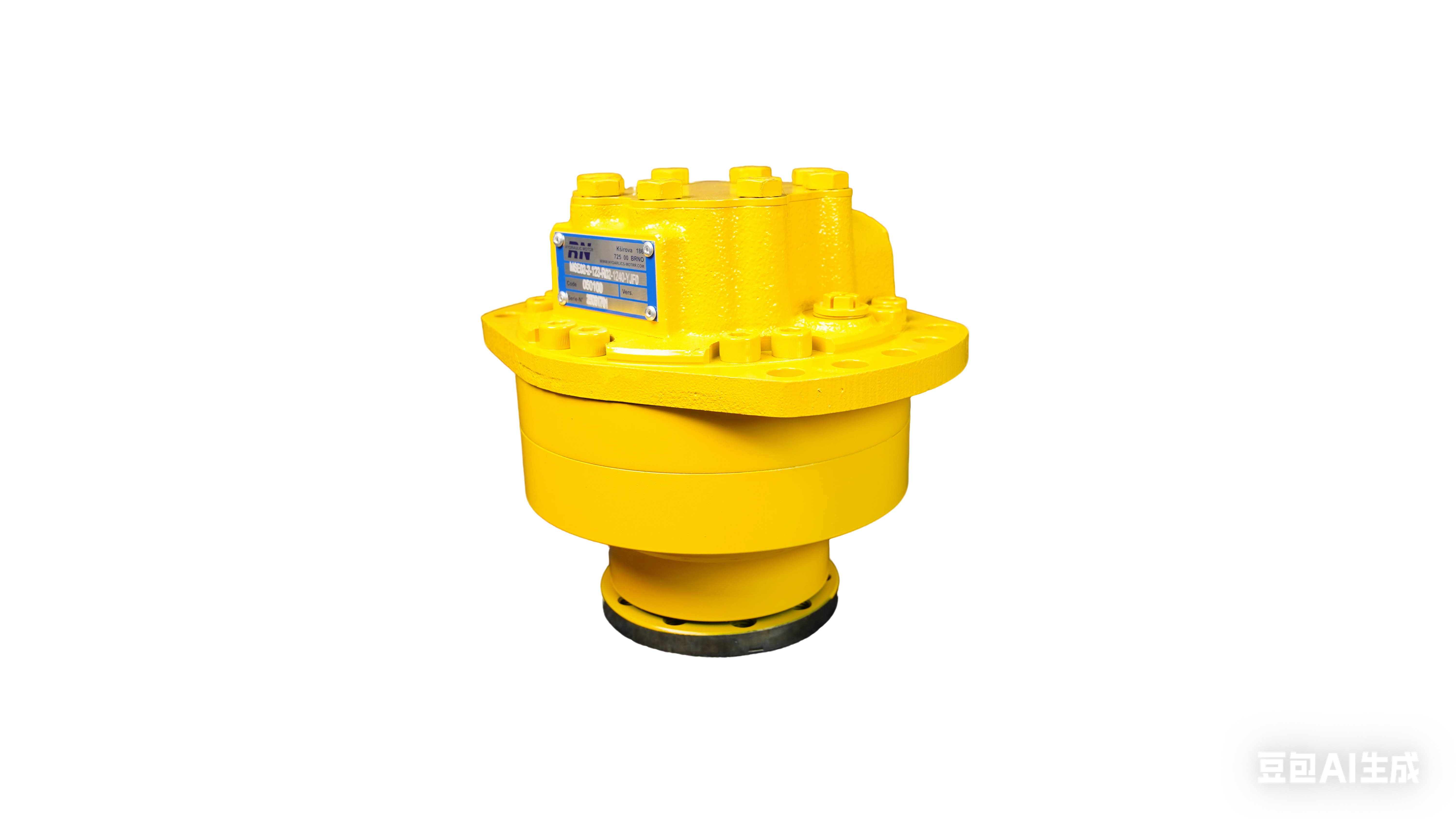

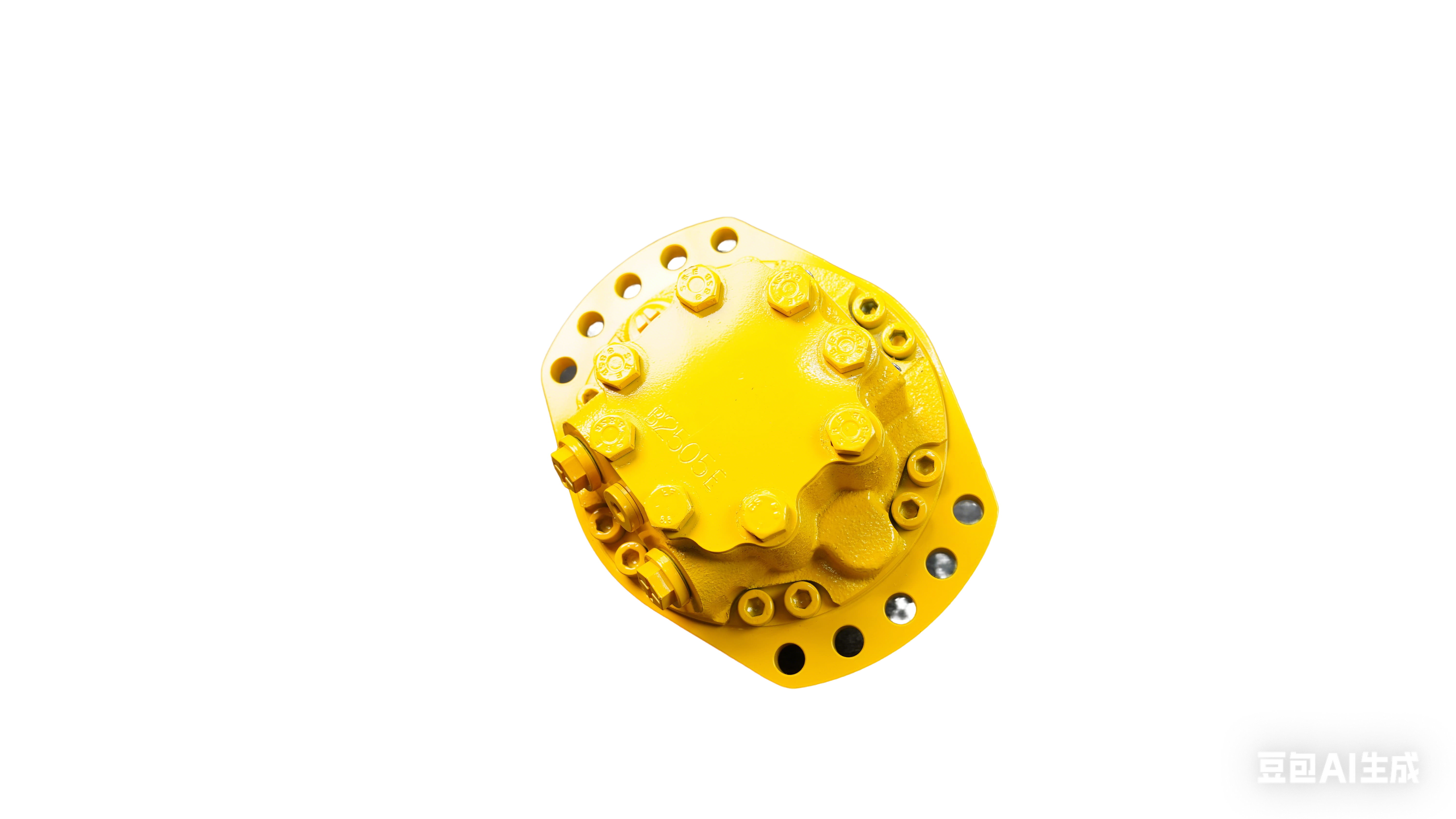

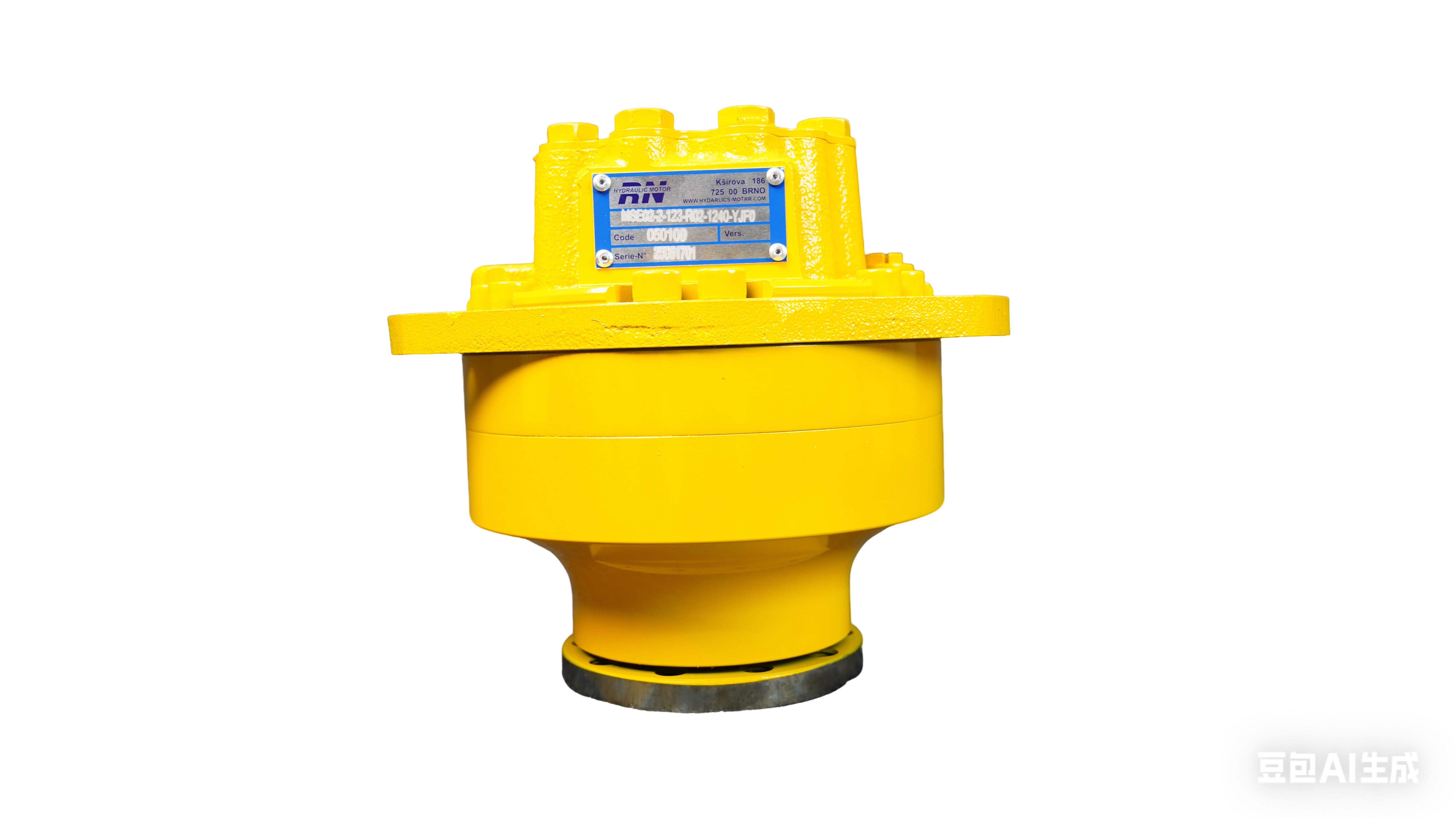

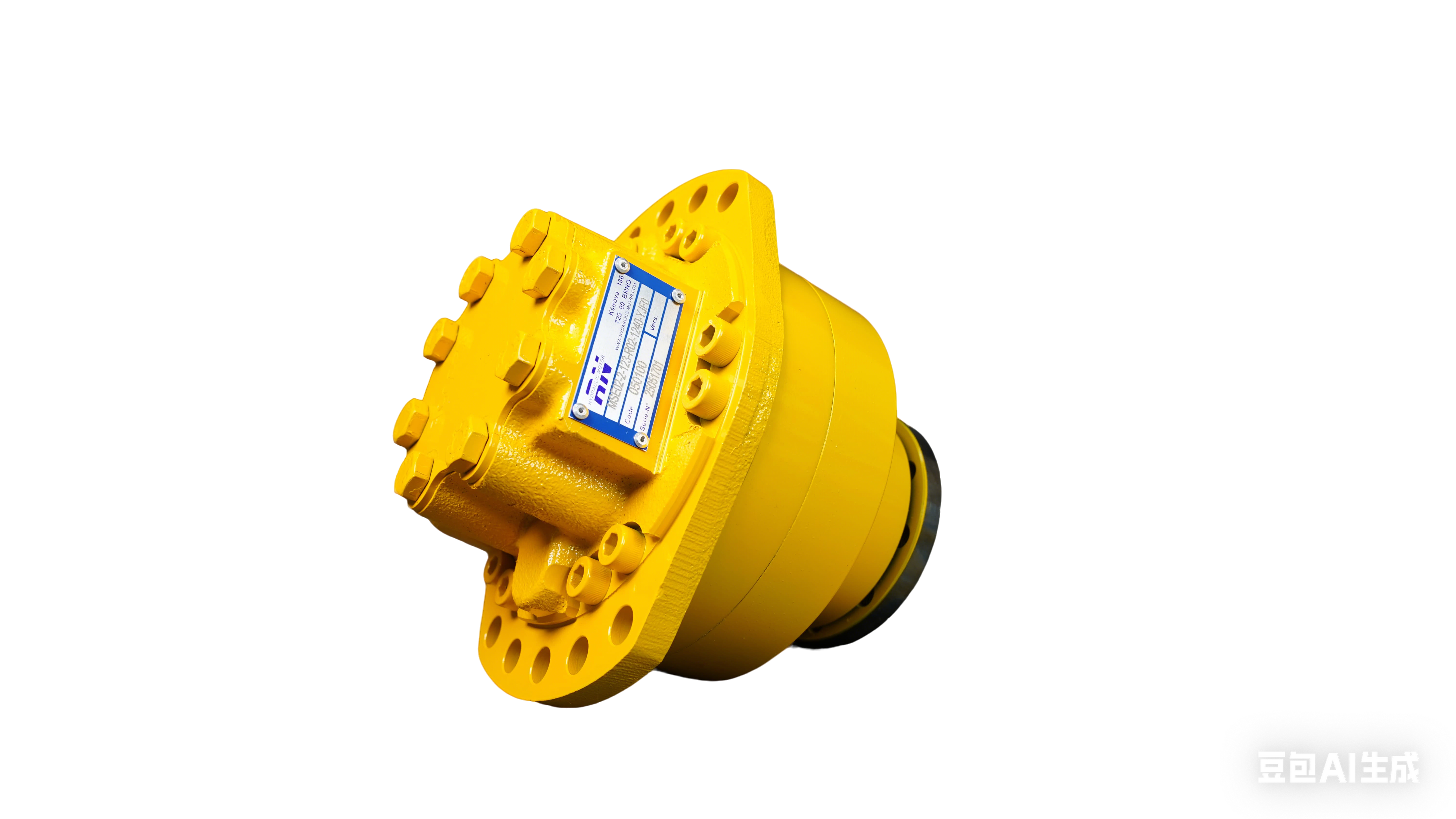

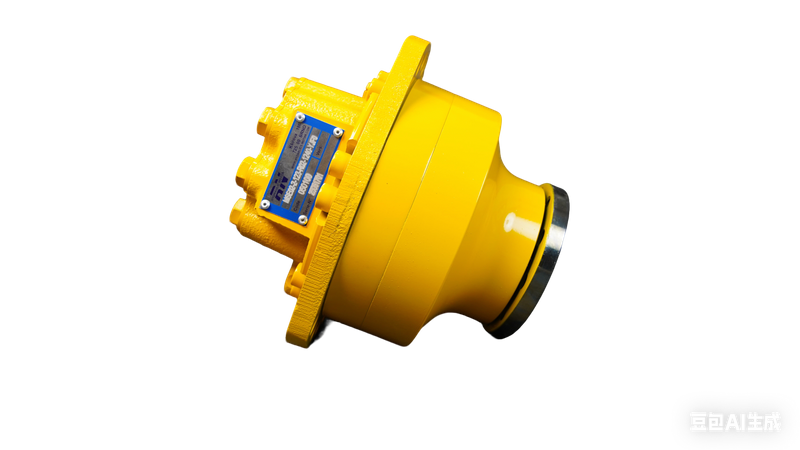

The Blince MSE series offers high-performance direct drive motors. These motors are ideal for wheel drives. They also work well for tool drives.
Performance Specifications
The MS02 and MSE02 models reach 22 kW of power. Displacement ranges from 172 to 398 cc/rev. Maximum pressure stays between 400 and 450 bar. The motor delivers a maximum torque of 2500 N.m. Speeds can reach up to 900 rpm.
Key Features
This series uses a modular design. It supports multiple speed settings. The build fits demanding market needs. It provides reliable power in compact spaces. The design simplifies installation on various machines.
Blince MSE Series Travel Motor Features
Based on the technical specifications for the Blince MSE series, here are the key product features:
High Power OutputThe motor delivers a maximum power of 22 kW or 29.5 HP. This direct drive capability makes it suitable for heavy-duty wheel and tool drives.
Superior Torque PerformanceIt generates a maximum torque of 2500 Nm or 1843 lb-ft. This high torque ensures strong starting power and steady movement under heavy loads.
Wide Displacement RangeDisplacement options reach up to 398 cc/rev or 24.3 cu.in/rev. This range allows for precise control across different machine sizes and requirements.
High Pressure ResistanceThe unit handles a maximum pressure of 450 bar or 6527 PSI. This robust construction supports operation in high-intensity hydraulic systems.
High Speed CapabilityThe motor reaches a maximum speed of 900 RPM. This speed allows for efficient travel and rapid tool rotation in mobile equipment.
Modular DesignThe modular build adapts to various demanding applications. It works in construction, mining, agriculture, and marine industries.
