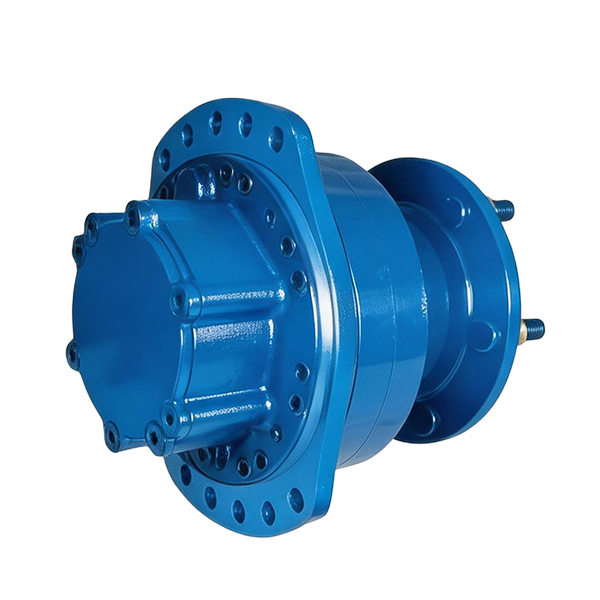

HMS08 Series Radial Piston Hydraulic Travel Motor

The HMS08 series is a high-torque hydraulic piston motor designed for heavy-duty applications. This high flow radial piston hydraulic oil motor offers standard power up to 41kW. It serves as a reliable, high-efficiency replacement for the Poclain MS08 travel motor.

Availability:



Inquire

Product Description

Product Parameters

Application Scenarios

FAQ

Our motor factory produces the HMS08 Poclain motor to meet rigorous industrial standards. This multipurpose hydraulic motor excels in both travel motor and slew motor configurations. As professional motor manufacturers, we offer China customized designs to fit your specific machinery.

The HMS08 and HMSE08 models provide a wide range of displacements, from 467 ml/r to 1248 ml/r. With a maximum pressure of 31.5 MPa, this hydraulic drive motor delivers smooth, powerful performance. It is the ideal choice for motor suppliers looking for durable, high-torque hydromotors.

Product Parameters

Feature	Technical Specification
Model Code	HMS08 / HMSE08
Displacement Range	467 ml/r — 1248 ml/r
Rated Pressure	25 MPa
Max. Pressure	31.5 MPa
Max. Torque	1890 N.m — 5050 N.m
Speed Range	0 — 210 r/min
Max. Power	41 kW (Standard Displacement)

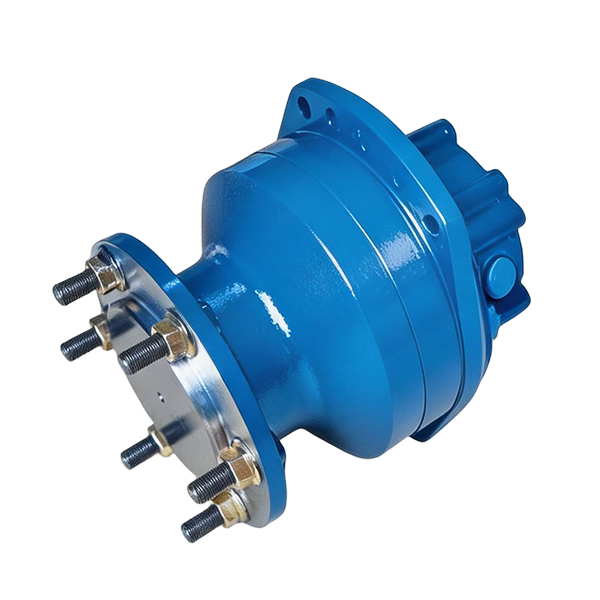

high-flow-radial-piston-hydraulic-oil-motor

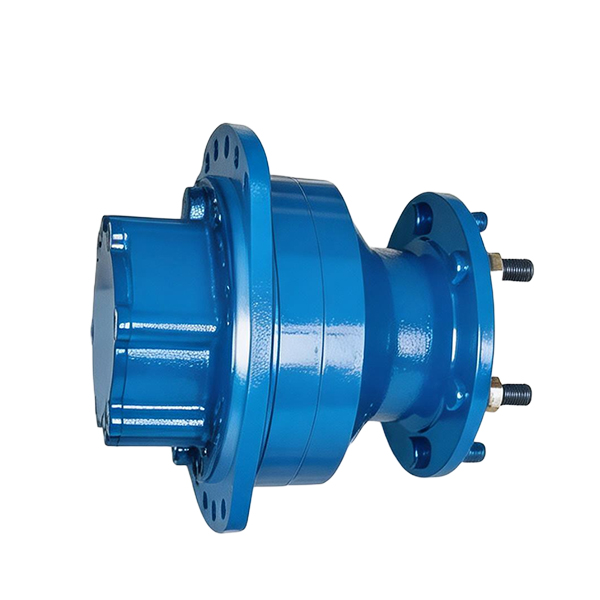

China-customized-hydraulic-drive-motor-factory

Application Scenarios

The multipurpose hydraulic motor is widely used across various heavy industries:

Construction Machinery: Road rollers (MK series), mucking loaders, and excavating loaders.
Mining Machinery: Roadheaders, scrapers (scraper conveyors), and coal drills.
Forestry Machinery: Wood machines, forest loaders, and forestry harvesters.
Agricultural & Special Vehicles: Sprayers and fire trucks.

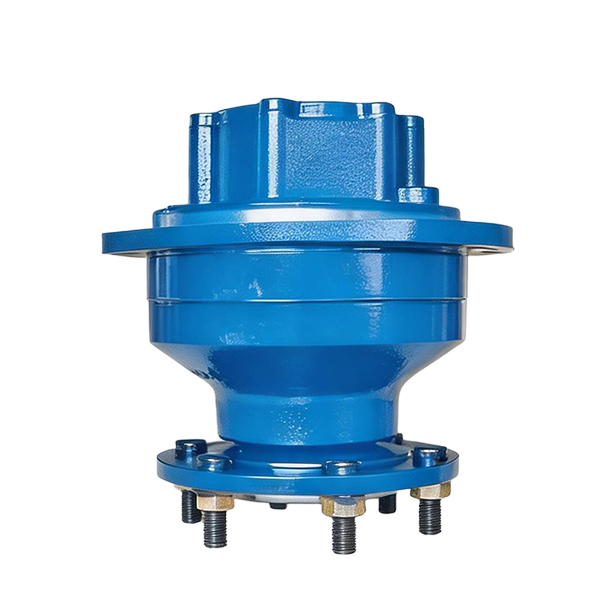

multipurpose hydraulic motor Application

FAQ

Q: Where can I find a reliable HMS08 Poclain motor manufacturer in China?

A: Our motor factory specializes in China customized hydraulic solutions. We serve as global motor suppliers, providing high-quality replacements for MS08 travel motors to North America, Europe, and Southeast Asia.

Q: Is the HMS08 hydraulic piston motor compatible with local machinery in Australia or Canada?

A: Yes. The HMS08 hydromotor follows international mounting standards. It is a direct replacement for MS08 motors used in regional mining and forestry equipment.

Q: Can I get technical support for a hydraulic slew motor purchase in my region?

A: Absolutely. As leading motor manufacturers, we provide full technical data and installation guides for our hydraulic drive motors worldwide. Whether you operate scrapers in South Africa or harvesters in Brazil, we offer 24/7 remote support.
