In any hydraulic system, the hydraulic cylinder plays a crucial role as the main actuator that converts hydraulic energy into mechanical force. It enables linear motion to lift, push, clamp, or press heavy loads, and is widely used in construction machinery, agricultural equipment, mining, marine, and industrial automation. The efficiency and reliability of a hydraulic system depend largely on the performance of its cylinders. However, one of the most common yet hidden failures that affect them is internal leakage — a problem that often goes unnoticed until it’s too late.
What Is Internal Leakage in a Hydraulic Cylinder?

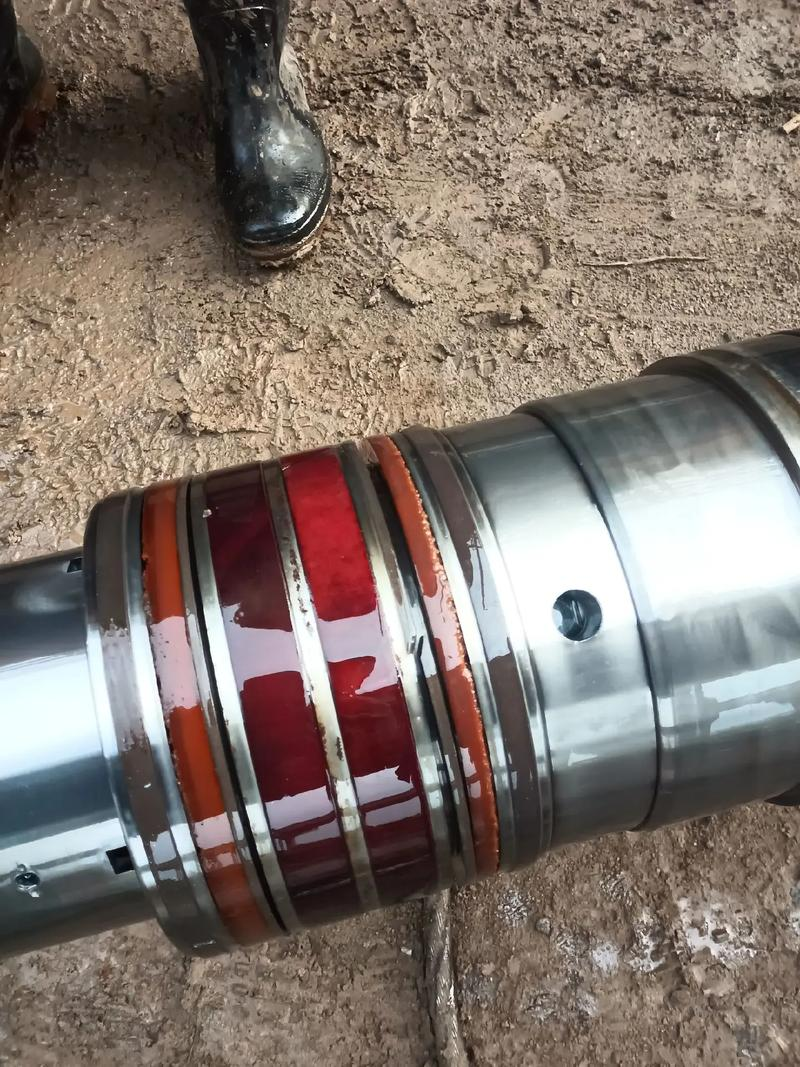

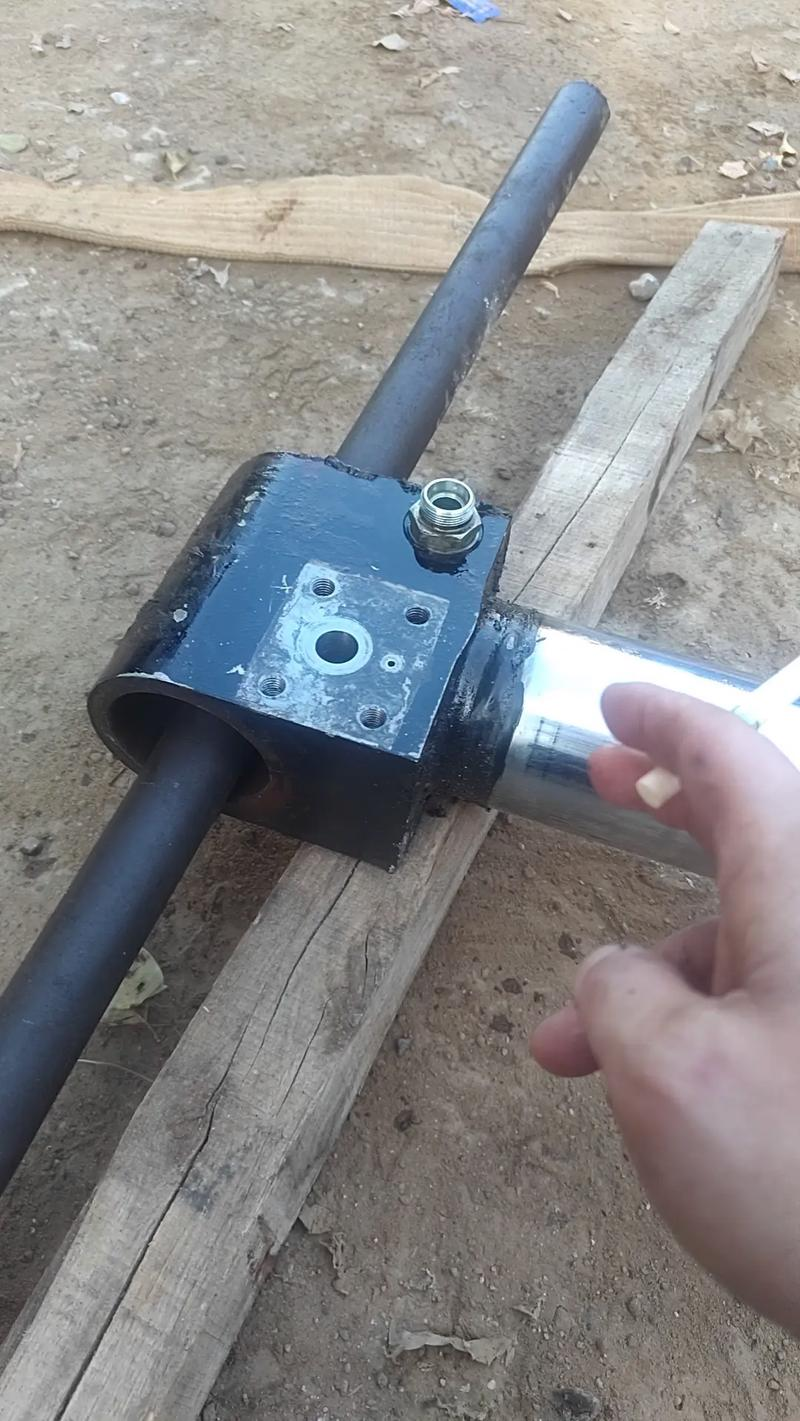

Internal leakage refers to the flow of high-pressure hydraulic fluid from one chamber of the hydraulic cylinder to the other through worn seals, damaged piston rings, or excessive clearance between mating parts. Unlike external leakage, which can be seen as visible oil drips, internal leakage occurs inside the cylinder — invisible from the outside but equally harmful. Over time, seal wear, improper maintenance, or contaminated hydraulic oil can all lead to this issue.
When internal leakage develops, high-pressure fluid bypasses the piston, preventing the cylinder from building sufficient pressure. As a result, the cylinder may still move, but it will lose force, operate slowly, and reduce system efficiency.
Why Internal Leakage Is Dangerous
Even a small amount of internal leakage can cause significant system problems. Here are the most common consequences:
Loss of Power and Efficiency When high-pressure oil leaks across the piston, the cylinder cannot generate full pushing or lifting force. The machine may work fine with no load but stall or weaken under load.
Energy Loss and Overheating Leaking fluid circulates inside the cylinder doing “no useful work,” converting hydraulic energy into heat. This results in rapid oil temperature rise, viscosity loss, and accelerated fluid degradation.
Increased Wear and Seal Damage Excessive heat and abnormal pressure fluctuations speed up wear on seals, guide rings, and cylinder bores, expanding the leakage path further and increasing repair costs.
Poor Control Accuracy Internal leakage makes it difficult to maintain stable pressure or position, causing drifting, vibration, or slow response — especially in precision applications like lifting or clamping.
In severe cases, continuous internal leakage can even lead to system shutdown or safety hazards, especially in load-holding circuits.
Typical Symptoms of Internal Leakage
To identify internal leakage early, look out for these common warning signs:
Cylinder Moves but Lacks Power The cylinder can extend and retract without load, but slows down or stops under load. This means high-pressure fluid is bypassing the piston seal and pressure cannot build up.
Automatic Cylinder Drift When the control valve is in the neutral position, the cylinder slowly creeps or sags. This usually indicates seal failure or clearance wear, allowing fluid to flow between chambers.
Unstable Pressure Gauge Readings If the pressure gauge fluctuates abnormally, rises slowly, or shows inconsistent values during operation, the system pressure is leaking internally.
Abnormal Temperature Rise Internal leakage generates excessive heat as the fluid circulates within the cylinder. A noticeably higher cylinder temperature compared to other components is a clear sign of leakage.
How to Detect Internal Leakage Quickly
Here are several practical methods to confirm whether a hydraulic cylinder has internal leakage:
1️⃣ Static Holding Test
Extend or retract the cylinder to a specific position and stop the operation. If the piston slowly moves without external force, internal leakage is likely.
2️⃣ Pressure Holding Test
Pressurize one chamber of the cylinder and observe the pressure gauge. If the pressure drops gradually, fluid is leaking through internal clearances.
3️⃣ Isolation Test
Disconnect the cylinder from the system, plug the ports, and apply pressure using a hand pump. A steady pressure drop over time indicates internal leakage.
4️⃣ Temperature Comparison Test
Use an infrared thermometer to compare cylinder surface temperatures. A leaking cylinder often shows a higher temperature due to internal friction and fluid bypassing.

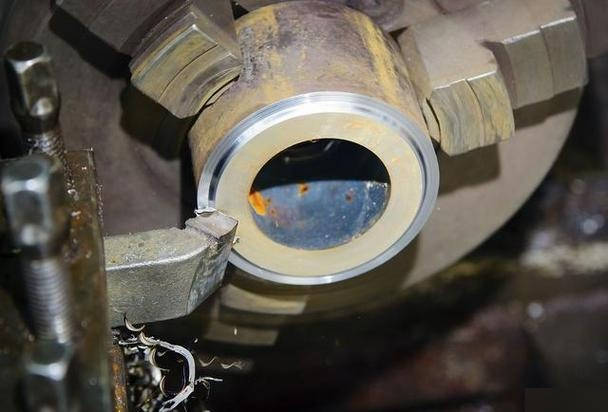

Maintenance and Prevention Tips
Preventing internal leakage starts with proper maintenance and system management:
Inspect and replace seals regularly using high-quality components that match the cylinder design.
Keep hydraulic oil clean — contamination is one of the biggest causes of seal wear and scoring.
Control operating temperature, avoiding long-term high-temperature operation.
Use oil with appropriate viscosity to maintain optimal sealing and lubrication.
Check system pressure and performance periodically, and record temperature and pressure trends for early diagnosis.
Conclusion
Internal leakage in hydraulic cylinders may not be visible, but its effects are serious — from reduced power and overheating to unpredictable system behavior. By recognizing early symptoms such as weak force, creeping movement, unstable pressure, or rapid temperature rise, operators and engineers can take timely action before major failures occur.
Regular inspection, clean hydraulic oil, and preventive maintenance are the best strategies to extend cylinder lifespan, improve equipment reliability, and reduce downtime. In hydraulic systems, prevention is always cheaper — and smarter — than repair.
