Hydraulic Motor Installation and Maintenance: Key Guidelines and Troubleshooting Tips

Hydraulic motors are crucial components in fluid power systems, and their reliability directly impacts system performance. Improper installation or maintenance often leads to leaks, wear, or failure. This guide provides essential precautions, maintenance strategies, and a diagnostic table to help prevent common hydraulic motor issues.

I. Installation Precautions

• Ensure Proper Alignment: When connecting the motor shaft to other machinery, ensure perfect concentricity or use a flexible coupling to avoid misalignment stress.

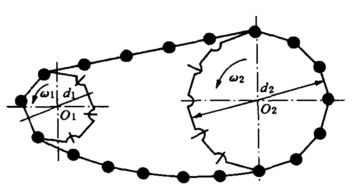

• Radial Load Consideration: Motors not designed for radial loads must not have belt pulleys or sprockets directly mounted on the shaft. For example, a YE-160 belt conveyor motor repeatedly leaked due to radial force generated by a chain drive, causing seal deformation and frequent oil leaks.

• Drain Line Requirements: The drain line must be smooth and free-flowing, preferably without back pressure. If back pressure is necessary, it must not exceed the limit for the motor’s low-pressure seals.

• Oil Filling During Downtime: Ensure the motor casing remains filled with oil to prevent air entry and dry starts after downtime.

• Start-Up Procedure: For motors idle over long periods, always run them under no load before operating under normal working conditions.

II. Usage and Maintenance Best Practices

1. Respect Rated Speed and Pressure: Never exceed the motor’s design limits.

2. Maintain Sufficient Back Pressure: Especially for low-speed or internal curve motors, insufficient back pressure (typically 0.3–1.0 MPa) can cause rollers to separate from the track, reducing life or causing breakage.

3. Avoid Sudden Starts/Stops Under Load: Braking or starting with load can cause harmful pressure spikes.

4. Use Proper Hydraulic Oil: Select oil with the correct viscosity and anti-wear properties suited for your system.

5. Regularly Check Oil Level: Low oil levels can cause vortexing at the pump inlet, introducing damaging air into the system.

6. Keep Oil Clean: Contaminants such as dirt, particles, or water cause up to 80% of hydraulic failures.

7. Monitor Abnormal Signals: Unusual noise, vibration, or heat suggests internal leakage, worn bearings, or failing seals. Early detection can prevent costly downtime.

III. Hydraulic Motor Troubleshooting Table
