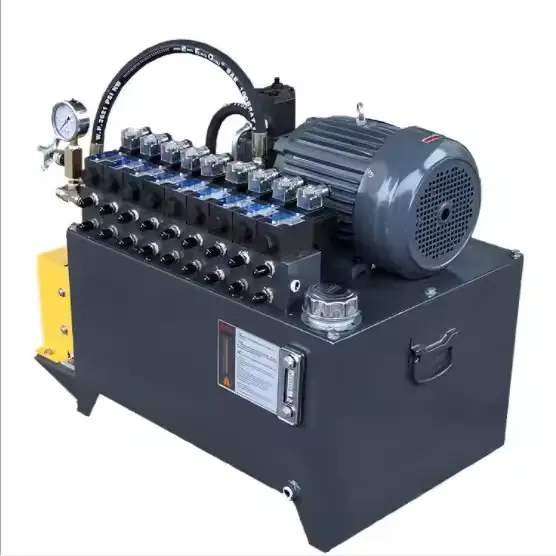

Hydraulic systems are widely used in excavators, tractors, rotary tillers, lifting equipment, and countless types of industrial machinery. Although these machines may look complex, every hydraulic system—regardless of size or application—is built on the same structural foundation. It is always composed of five major components: power components, control components, actuators, auxiliary components, and the working medium.
1. Power Components — The “Heart” of the Hydraulic System
Power components are the source of hydraulic energy. Their primary function is to convert the mechanical energy of a prime mover (electric motor or engine) into hydraulic pressure energy.
A hydraulic pump draws oil from the tank and delivers it to the system at a required pressure and flow rate. Just like a heart pumping blood, the pump ensures that hydraulic oil continuously circulates to maintain system operation.
Common types of hydraulic pumps include:
Gear pumps
Vane pumps
Axial piston pumps
Radial piston pumps
The choice of pump depends on the system’s pressure level, efficiency requirements, and cost considerations.
2. Control Components — The “Brain” of the System
If the pump is the heart, the control components serve as the central nervous system.
These components consist mainly of hydraulic valves, which regulate the direction, pressure, and flow of hydraulic oil. They ensure the system operates safely, smoothly, and efficiently.
Hydraulic valves can be divided into three major categories:
(1) Directional Control Valves
These valves determine where the hydraulic oil flows. They control movement direction, such as extending or retracting a cylinder.
(2) Pressure Control Valves
They protect the system from excessive pressure. A common example is a relief valve that prevents overload and maintains system safety.
(3) Flow Control Valves
These valves regulate the speed of hydraulic actuators by adjusting flow rate.
In most construction and agricultural machinery, multi-section proportional valves or multi-way valves integrate all three control functions into one compact assembly.
3. Actuators — The “Muscles” That Produce Motion
Actuators convert hydraulic pressure energy into mechanical motion. They are responsible for delivering the actual work output of a hydraulic system.
The performance of actuators directly affects the system’s power, speed, and stability.
4. Auxiliary Components — The System’s Support Organs
Auxiliary components do not directly create movement, but they maintain the hydraulic system’s reliability, efficiency, and lifespan. They function just like supporting organs in the human body.
Common auxiliary components include:
Hydraulic oil tank – stores and cools oil, allows air and contaminants to settle
Filters – remove impurities and protect all hydraulic components
Hoses, pipes, and fittings – transport hydraulic oil between components
Heat exchangers or coolers – maintain safe operating temperatures
Accumulators – store energy, stabilize pressure, absorb shocks
A system with poor filtration, inadequate cooling, or leaking hoses will fail long before the pump or valves.
5. Working Medium — The “Blood” of the Hydraulic System
The fluid circulating through the system is known as the working medium, and in most cases, this is hydraulic oil.
Hydraulic oil has multiple important functions:
Transmits power
Lubricates moving parts
Cools the system
Prevents corrosion
Helps maintain internal sealing
The cleanliness, viscosity, and temperature stability of hydraulic oil have a direct impact on the performance and longevity of the entire system. A simple rule applies: Good oil makes a good system. Dirty oil destroys it.
