What Is A Piston Hydraulic Pump?

Views: 0 Author: Site Editor Publish Time: 2026-05-13 Origin: Site

Inquire

Introduction

Do you need raw power for your excavator or press? A piston hydraulic pump delivers it. Unlike gear pumps, it handles extreme pressure up to 700 bar. In this article, you will learn how it works, the main types, and why it saves energy. We will also help you pick the perfect pump for your application.

How Does a Piston Hydraulic Pump Work? – The Basic Operating Principle

The Role of Reciprocating Pistons in Fluid Displacement

Imagine a row of tiny, powerful pistons sliding back and forth inside perfectly matched cylinders. That is the heart of a piston hydraulic pump. Each piston works like a syringe. When it pulls back, it sucks fluid in. That is the suction stroke. When it pushes forward, it blasts that fluid out under high pressure. That is the compression stroke. Dozens of these strokes happen every second. They create a smooth, steady flow of pressurized fluid. You get the power to lift, push, or turn heavy loads. Here is what each stroke does for you:

Suction stroke – Piston retracts, creates a vacuum, fluid rushes into the cylinder.
Compression stroke – Piston extends, squeezes fluid out, builds working pressure. Simple, right? And incredibly reliable.

Axial vs. Radial Piston Pump Designs – Key Differences

You will run into two main designs. Let me help you tell them apart. Axial piston pumps have pistons lined up parallel to the drive shaft. They spin around it like a military parade. This design is compact and loves high speeds. You will find it in excavators and loaders. Radial piston pumps arrange their pistons like spokes around a central cam. They move slower but produce massive torque. They also handle unusual fluids, like water-based ones. So which one fits your machine? Here is a quick breakdown:

Choose axial if – you need high speed, high pressure, and a compact footprint.
Choose radial if – you run at low speeds, need high torque, or use specialty fluids. Think about your operating conditions. Then pick the design that matches.

How Displacement Is Controlled (Fixed vs. Variable)

You also get to choose how much fluid the pump delivers per revolution. A fixed displacement pump gives you the same flow every time. No fuss. No adjustments. It is simple, tough, and cheap. Perfect for machinery that runs at a constant speed, like a conveyor or a small press. But here is the catch: if your machine does not need full flow all day, you waste energy. That excess fluid turns into heat. A variable displacement pump solves that. It uses a clever tilted plate inside – a swashplate – to change the piston stroke length. When you need less power, it reduces flow automatically. Consider these points:

Fixed displacement pros – lower cost, fewer parts, reliable for steady loads.
Variable displacement pros – fuel savings, less heat, longer component life. You save fuel and your system runs cooler. Most modern equipment uses variable displacement for that reason. Pick fixed for budget builds. Pick variable for efficiency and long-term savings.

What Are the Main Types of Piston Hydraulic Pumps Used in Industry?

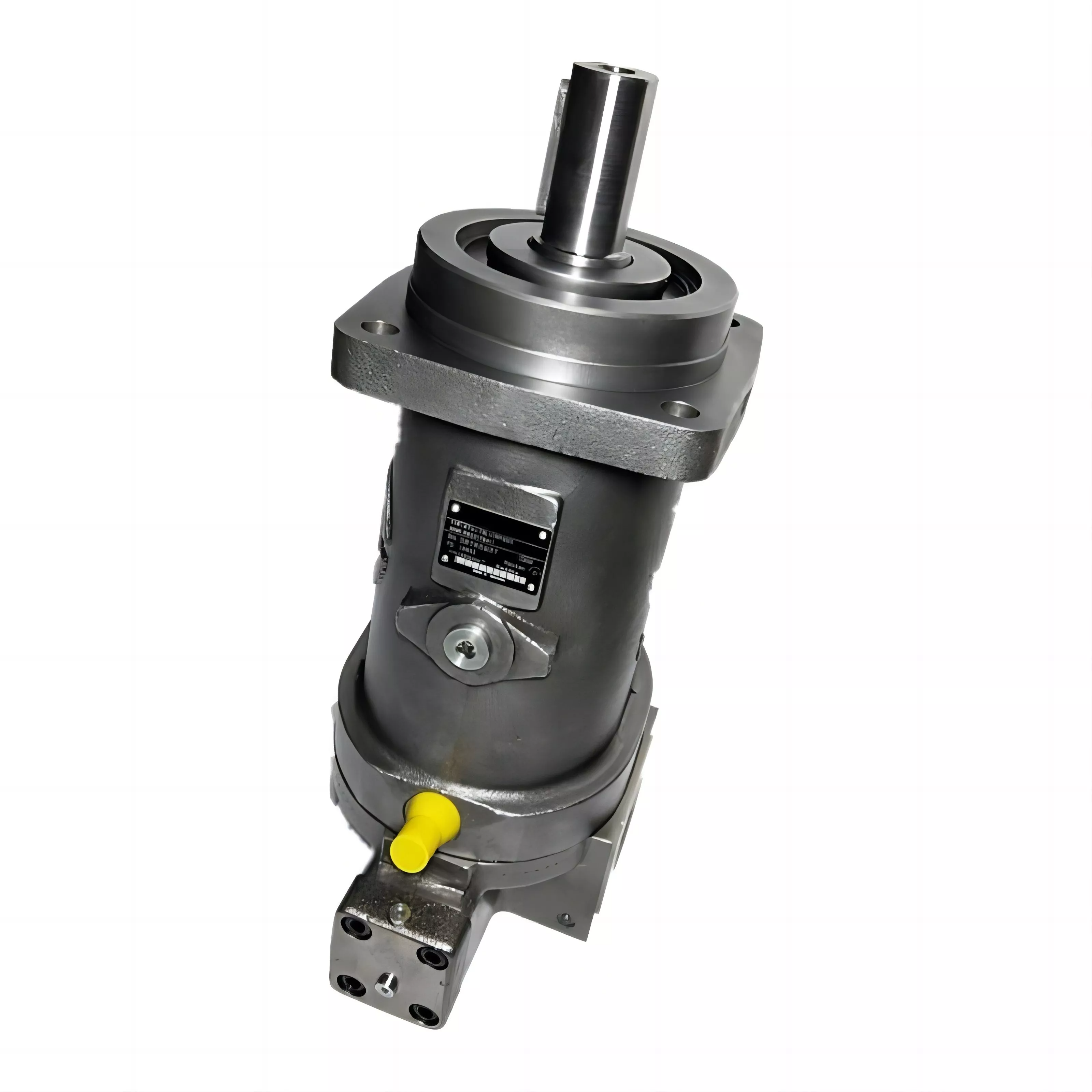

Axial Piston Pumps – The Most Common Choice for High Pressure

You will see axial piston pumps everywhere in heavy machinery. They are the workhorses of the hydraulic world. Why? Because they pack serious pressure into a small space. Two main subtypes exist. Swashplate design uses a tilted plate to push pistons in and out as the cylinder block spins. It is simple, reliable, and easy to control. Bent-axis design angles the entire cylinder block relative to the drive shaft. This version runs even smoother at high speeds. Both deliver pressure up to 450–700 bar. Their volumetric efficiency exceeds 95%. That means very little wasted energy. Where do you find them? Look at excavators digging dirt, injection molding machines squeezing plastic, or hydraulic presses forming metal parts. Here is a quick snapshot of what makes them special:

Feature	Swashplate Type	Bent-Axis Type
Typical max pressure	450–700 bar	450–700 bar
Speed capability	Good	Excellent
Control complexity	Moderate	Higher
Common use	Mobile machinery	Industrial pumps

We love axial pumps because they give you high power without taking up much room. They also come in variable displacement versions. That saves you fuel and reduces heat.

Radial Piston Pumps – When Low Speed and High Torque Matter

Now let us talk about the slow-and-steady option. Radial piston pumps work differently. Their pistons sit around a central camshaft like spokes on a wagon wheel. As the cam rotates, each piston moves in and out. This design shines at low rotational speeds – we are talking 10 to 100 rpm. Even at a crawl, it stays efficient. No other pump type does that well. Radial pumps also love high-pressure, low-flow jobs. They handle water-glycol fluids without complaining. That makes them perfect for special environments like mines or marine settings. Consider these real-world uses:

Test rigs – Need precise pressure at low flow? Radial pumps deliver.
Heavy-duty continuous presses – They run for days without overheating.
Marine steering gear – Low speed, high torque, and reliability matter most out on the water.

You also get very low noise and vibration from them. If your machine runs slowly but needs massive force, a radial piston pump is your best friend. They cost more than axial types. But for the right application, they are worth every dollar.

Fixed vs. Variable Displacement – Which One Suits Your System?

Here is a decision every designer faces. Do you pick fixed or variable displacement? Fixed displacement pumps move the same amount of fluid every revolution. No changes. No surprises. They are simple and tough. You will find them in basic hydraulic power units, log splitters, or small presses. The upside? Lower upfront cost and fewer things to break. The downside? If your system does not need full flow, the extra fluid goes over a relief valve. That wastes energy and creates heat.

Variable displacement pumps are smarter. They use a swashplate or bent-axis mechanism to change piston stroke length on the fly. When you need less flow, it tilts the plate and reduces output automatically. This saves fuel or electricity. It also keeps your oil cooler. Modern excavators, wheel loaders, and injection molding machines all use variable displacement. Check out this comparison to see which fits your situation:

We recommend fixed displacement for budget-conscious, steady-state applications. Choose variable displacement when your machine cycles between idle, partial load, and full power. It will lower your operating costs year after year.

Why Choose a Piston Hydraulic Pump Over Other Hydraulic Pumps?

Higher Pressure Capability Compared to Gear and Vane Pumps

Let us be honest: sometimes you just need raw pressure. Gear pumps top out around 250 bar. Vane pumps? They give up near 200 bar. But a piston hydraulic pump? It laughs at those numbers. You get 350 bar as a starting point. Many go straight up to 700 bar. How does it handle that stress? Three reasons stand out. First, robust bearings take the heavy loads without failing. Second, precision-machined cylinders keep internal clearances extremely tight. Third, the piston design distributes force evenly across strong metal surfaces. No weak spots. No sudden failures. If your application needs serious pushing power – like a stamping press or a heavy-duty injection molder – you simply cannot rely on gear or vane technology. They will leak, crack, or just give up. We see it happen all the time. So do yourself a favor: match the pressure rating to your real demands. Here is what each pump type can actually deliver:

Pump Type	Typical Max Pressure	Practical Limit
Gear pump	≤250 bar	Good for light duty
Vane pump	≤200 bar	Best for medium loads
Piston pump	350–700 bar	Built for heavy work

You want the one on the bottom row. It never backs down.

Superior Volumetric Efficiency and Energy Savings

Pressure is not everything. Efficiency matters too. A piston hydraulic pump gives you 95–98% volumetric efficiency. Gear and vane pumps? They struggle to hit 90%. Usually they sit around 80–85%. What does that mean for you? Less internal leakage. Almost every pump lets some fluid slip past its internal seals. But piston pumps keep that slip to a minimum. Why? Because their pistons fit so snugly inside cylinders. Very little oil escapes from the high-pressure side back to the low-pressure side. That translates directly into energy savings. Your electric motor or diesel engine does not have to work as hard. You burn less fuel. Your hydraulic oil stays cooler. Cooler oil means longer component life. Consider these points:

At full load – Piston pumps waste only 2–5% of input energy. Gear pumps can waste 10–20%.
At partial load – The gap gets even wider. Variable displacement piston pumps automatically reduce flow, saving even more.
Over one year – Those efficiency gains can pay for the pump itself.

We have seen factory owners cut their electricity bills by 15% just by switching to piston pumps. That is real money.

Longer Service Life Under Continuous Heavy Loads

Do you run your machinery 24/7? Steel mills do. Press lines do. Mining equipment does. Those environments kill ordinary pumps fast. But a piston hydraulic pump is built differently. It uses hydrodynamic bearings. Instead of metal grinding on metal, a thin film of oil separates moving parts. That film never goes away under normal operation. Then you have case-drain cooling. A small amount of oil circulates through the pump housing, carrying away heat. Heat is the number one killer of hydraulic components. Remove it, and your pump lasts years longer. Here is what you can expect:

Gear pump in a steel mill – Might need rebuilding every 6–12 months.
Vane pump in continuous service – Often fails within one year under heavy loads.
Piston pump in the same role – Frequently runs 3–5 years before any major service.

We also love how easy they are to rebuild. Replace the piston assemblies, check the valve plate, and you are back in business. Gear pumps often get thrown away. Piston pumps get repaired. That saves you money and downtime. So if your application runs all day, every day, do not settle for less. Get a piston hydraulic pump. It will outlast everything else on your floor.

How to Select the Right Piston Hydraulic Pump for Your Application

Matching Pressure, Flow, and Displacement Requirements

Picking the right pump starts with numbers. Do not guess. Get out your calculator. First, figure out your required flow rate in L/min or GPM. You base this on how fast your actuators need to move and the cylinder area. A simple formula works: Flow = (cylinder area × stroke speed) × number of cylinders. Sounds tricky? It is not. Most manufacturers provide online calculators. Next, nail down your maximum system pressure. Here is a golden rule: choose a pump rated 10–20% higher than your peak demand. That safety margin protects you from pressure spikes. Spikes kill pumps fast. Let us break down what you need to check:

Flow rate – Measure it at the fastest actuator speed. Add 15% for leaks and wear over time.
Pressure – Look at the highest spike in your cycle. Add 20%. Then pick a pump that exceeds that number.
Displacement (cc/rev) – Divide your required flow by pump shaft speed (rpm). This gives you the cc/rev you actually need.

Here is a quick reference table for common applications:

Application	Typical Pressure (bar)	Typical Flow (L/min)	Suggested Displacement (cc/rev)
Excavator	300–400	150–300	60–120
Injection molder	250–350	100–200	40–80
Hydraulic press	350–700	50–150	30–60
Log splitter	150–200	20–40	10–20

Match these numbers to your machine. If you are still unsure, contact a supplier. They can run the math for you.

Understanding Mounting, Shaft, and Port Configurations

You found the perfect pump. But will it bolt onto your system? Mounting standards matter. A lot. Common ones include SAE (Society of Automotive Engineers), ISO (International Organization for Standardization), and DIN (German standard). Each has different bolt patterns and pilot diameters. Flange types come in two-hole or four-hole designs. Two-hole flanges are simpler. Four-hole flanges handle higher torque. Check your existing motor or engine flange before ordering. Next, look at the shaft. Options include:

Keyed shaft – A classic. Uses a metal key to transmit torque. Easy to find, easy to replace.
Splined shaft – Multiple grooves around the shaft. Handles higher torque without wearing out keys.
Tapered shaft – Fits into a matching tapered coupling. Great for precise alignment but harder to service.

Port threads confuse many people. Do not let them. Three common types dominate the market:

Thread Type	Best For	Seal Method	Common Region
NPT (National Pipe Thread)	Low-pressure, temporary connections	Tapered threads + sealant	North America
BSPP (British Standard Pipe Parallel)	High-pressure, permanent fittings	O-ring or washer seal	Europe, Asia
SAE O-ring	High-pressure, leak-free systems	O-ring compressed in groove	Global – industrial

Pick the wrong thread, and you will chase leaks forever. We recommend SAE O-ring for most high-pressure piston pump applications. It just works.

Environmental and Fluid Compatibility Considerations

Your pump lives in a harsh world. Heat, dirt, moisture – they all attack. Start with oil type. Most piston hydraulic pumps run happily on mineral oil (ISO VG 32, 46, or 68). It is cheap and effective. But some applications need special fluids. Synthetic fluids handle extreme temperatures better. They cost more but last longer. Water-based fluids (like water-glycol or water-oil emulsions) come into play where fire safety is critical – think mines or near furnaces. Not all piston pumps tolerate water-based fluids. Check the manufacturer's seal materials first.

Operating temperature range matters just as much. Most pumps work best between 30°C and 80°C (86°F to 176°F). Below 30°C, oil gets thick. The pump struggles to suck it in. Above 80°C, seal life drops fast. Every 10°C above 80°C cuts seal life in half. Here is what you should do:

Cold environment – Use a low-viscosity oil or add a tank heater. Let the machine warm up before loading it.
Hot environment – Install a cooler. An air-to-oil or water-to-oil cooler keeps temperatures in check.
Dirty environment – Add a high-quality return filter and a breather cap. Change filters regularly.

We also recommend checking viscosity limits on the pump datasheet. It will list a minimum and maximum cSt (centistokes). Stay inside those numbers. If you cannot, change your oil type or add a heat exchanger. Doing this upfront saves you from expensive repairs later.

Conclusion

A piston hydraulic pump delivers high pressure, efficiency, and durability for demanding machines. We explored how it works, its main types, and why it beats gear or vane pumps. You also learned how to select the right one for your system. Blince offers reliable piston hydraulic pumps built for real-world applications. Their designs help you save energy and reduce downtime. Choose Blince to power your equipment with confidence.
