Hydraulic systems play a crucial role in modern machinery, converting energy from a power source into precise, controllable motion through pressurized fluid. Whether lifting heavy loads, driving conveyors, or powering industrial presses, the interplay between hydraulic pumps and motors determines system efficiency, reliability, and safety. Understanding how these components work together—and how to select the right combination—can significantly reduce downtime, enhance performance, and extend the lifespan of your equipment.
Hydraulic Systems in Action
A hydraulic system converts energy from a power source—usually an electric motor or diesel engine—into motion through pressurized fluid. The hydraulic pump and hydraulic motor are the two key components. The pump pushes oil through the system, generating pressure and flow. The motor receives this fluid, converting it back into mechanical energy to drive wheels, lift loads, or rotate machinery.
Think of it like this: the pump is the heart that keeps fluid circulating, while the motor is the muscles that make the machine move. A crane lifting a heavy beam, a press stamping metal, or a conveyor moving packages all rely on this interaction.
Why Understanding the Difference Matters
Many machine failures trace back to confusing pumps and motors or mismatching them. Using a high-speed, low-torque motor where a low-speed, high-torque motor is needed will cause stress and inefficiency. Likewise, a pump delivering insufficient flow will starve the motor, leading to underperformance. Proper pairing ensures:
Energy Efficiency – Less wasted fluid power.
Reduced Wear – Pumps, motors, and seals last longer.
Consistent Performance – Smooth, predictable motion.
Safety – Prevents overheating or sudden failures.
Core Differences Between Hydraulic Pumps and Motors
| Feature | Hydraulic Pump | Hydraulic Motor |
| Function | Converts mechanical energy into hydraulic energy | Converts hydraulic energy into mechanical motion |
| Energy Flow | Pushes fluid into the system | Uses fluid to create rotation or linear motion |
| Pressure Handling | Generates high pressure to drive motors | Operates under system pressure to produce torque or motion |
| Speed & Torque | Usually higher speed, lower torque | Often lower speed, higher torque |
| Direction | Fixed rotation | Can be reversible, depending on system design |
| Design | Optimized for consistent flow and pressure | Optimized to handle variable load and torque |
| Role in System | Source of hydraulic power | Mechanical output; moves or drives machinery |
This table shows that pumps and motors are complementary, not interchangeable. The pump creates the energy, the motor uses it. Their design, efficiency, and performance specifications differ significantly.
How Hydraulic Pumps Differ From Motors in Design

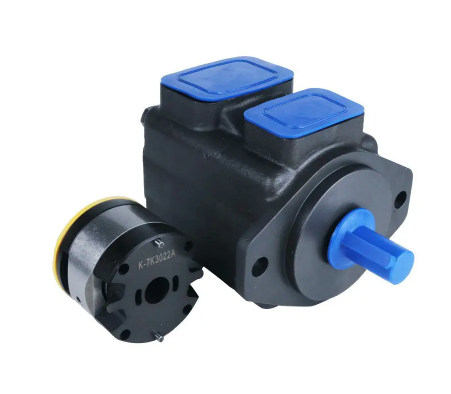

Hydraulic Pumps:
Hydraulic pumps are the source of energy in a hydraulic system. They are primarily designed to maintain a consistent flow of fluid at a specified pressure, ensuring that the rest of the system receives a steady supply of hydraulic power. Most pumps operate at higher rotational speeds than motors, allowing them to move large volumes of fluid quickly.
Pumps come in various types—gear, vane, piston, and screw pumps—each suited for different applications. For instance, gear pumps are simple and robust, suitable for low to medium-load tasks, while piston pumps handle high pressures and large flow rates, making them ideal for heavy-duty presses, cement mixers, or steel mills.
The design focus of a hydraulic pump is on efficiency in fluid transfer, minimizing energy loss, and maintaining stable pressure under variable loads. Heat management is also important because excessive temperature can reduce efficiency and accelerate wear. Proper pump selection is essential for achieving reliable hydraulic system performance and ensuring that the connected hydraulic motor can operate effectively.
Hydraulic Motors:
Hydraulic motors, on the other hand, are designed to convert hydraulic energy into mechanical motion. They act as the output device in a hydraulic system, taking the pressurized fluid supplied by the pump and turning it into torque and rotational movement. Unlike pumps, motors must handle variable loads—for example, a crane lifting a heavy load may require high torque at low speed, while a conveyor belt may need consistent moderate torque at a steady speed.
Hydraulic motors come in several designs, including gear, vane, axial piston, bent-axis piston, and radial piston motors. Each type has unique characteristics: gear motors are compact and reliable for light-duty tasks, while axial piston motors provide precise high-pressure performance. Radial piston motors offer high torque at low speeds, which is essential in heavy industrial machinery.
Motor efficiency focuses on smooth rotation, torque output, and mechanical reliability rather than just fluid transfer. They must resist heat, handle pressure fluctuations, and work continuously without stalling. Incorrect pairing with a hydraulic pump can lead to overheating, cavitation, or seal failure, reducing system life and reliability.
Key Takeaways:
Pumps generate and control fluid power, while motors convert that power into mechanical work.
Pumps are optimized for pressure and flow, motors for torque and rotational performance.
Mismatched pumps and motors in a hydraulic system can cause low efficiency, heat buildup, and accelerated wear.
In short, a hydraulic pump and motor are complementary components. Understanding their distinct roles and characteristics ensures the hydraulic system runs efficiently, safely, and reliably under real-world operating conditions.
How Pumps and Motors Work Together
In any hydraulic system, pumps and motors function as a carefully matched pair. The pump generates flow and pressure, sending hydraulic fluid through the system, while the motor converts that energy into mechanical motion, whether rotational or linear. Selecting the correct combination is critical: insufficient flow can cause sluggish operation or stalling, whereas excessive pressure may overheat the motor or damage its seals. Proper matching of flow rate, pressure, displacement, and motor type ensures the system runs efficiently, safely, and reliably.
Examples of Pump-Motor Pairings
Small Workshop Press
Heavy-Duty Crane
Pump: Piston pump
Motor: Bent-axis piston motor
Capable of delivering high torque at low speed, making it suitable for lifting heavy loads safely and steadily.
Industrial Conveyor
Pump: Vane pump
Motor: Vane motor
Offers quiet, smooth, and reliable speed control, ideal for continuous operations and indoor settings.
Real-World Considerations
Even when pumps and motors are correctly paired, several external factors influence performance. Operators should carefully consider these elements to maximize efficiency and extend system life.
Temperature and Oil Viscosity
Hydraulic fluids change viscosity with temperature. Cold conditions make oil thicker, potentially slowing motor response and increasing system strain. High temperatures reduce viscosity, which can lead to leaks or reduced lubrication, accelerating wear. Selecting fluid with appropriate temperature ratings and monitoring oil temperature is essential.
Noise Limitations
Different motor types have distinct noise characteristics. Vane motors are generally quieter, suitable for indoor or noise-sensitive environments. Piston motors tend to be louder but can handle higher loads. Factoring in noise levels can improve workplace comfort and compliance with regulations.
Mounting Orientation
Some motors are sensitive to installation orientation. Vertical or horizontal mounting affects lubrication, cooling, and overall performance. Improper orientation can reduce lifespan, cause cavitation, or increase wear on internal components. Always follow manufacturer specifications.
Maintenance and Monitoring
Routine maintenance is critical. Leaks, unusual noises, vibrations, or fluctuating performance often indicate mismatched components or system stress. Regular inspections, oil analysis, and monitoring of pressure and temperature can prevent downtime and costly repairs.
FAQ
1. What is the main difference between a hydraulic pump and a hydraulic motor?
A hydraulic pump converts mechanical energy into hydraulic energy by generating flow and pressure, while a hydraulic motor converts hydraulic energy back into mechanical motion to produce torque or linear movement.
2. Can I use any pump with any hydraulic motor?
No, pumps and motors must be carefully matched in terms of flow rate, pressure, displacement, and type; using mismatched components can lead to poor performance, overheating, or mechanical failure.
3. Why does fluid viscosity matter in a hydraulic system?
Fluid viscosity changes with temperature, affecting motor speed and pump efficiency. Cold oil may slow the system, while overly thin oil at high temperatures can reduce lubrication and cause excessive wear.
4. How do different types of motors affect system performance?
Motor types influence torque, speed, and noise levels. Vane motors are quiet and smooth for indoor applications, gear motors are compact and reliable for light loads, and piston motors handle high torque and heavy-duty operations.
5. What are common signs of a mismatched pump and motor?
Unusual noises, vibrations, overheating, fluctuating speeds, or leaks often indicate that the pump and motor are not properly paired or that system components are under stress.
Conclusion
Selecting the right hydraulic pump and motor pairing is essential for smooth, efficient, and safe operation across a wide range of industrial applications. From workshops to heavy-duty cranes, proper understanding of flow, pressure, and torque ensures optimal system performance and longevity. For high-quality hydraulic solutions and expert guidance in designing and maintaining reliable systems, Dongguan Blince Machinery & Electronics Co., Ltd. provides professional products and services tailored to meet diverse industrial needs.
