Industrial / Automotive High Speed High Torque Hydraulic Motor OMER 750 Four Bolts Magneto Mount

OMER TG / RE series Gerotor Hydraulic motor adapts the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Availability:



Inquire

Product Description

Features

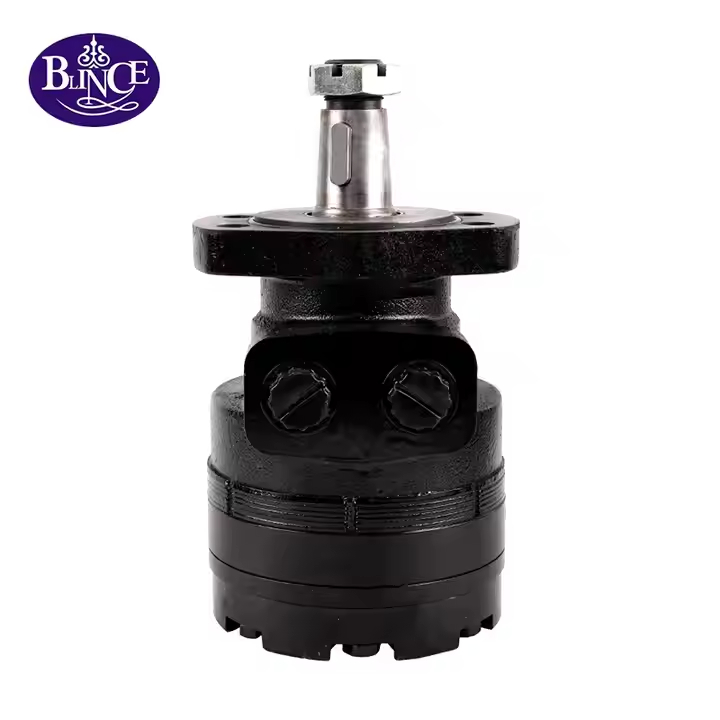

Blince OMER 750 Hydraulic Motor

This motor is designed for tough jobs. It delivers high torque, with a rating of 1050 N·m. The design is compact. The motor is durable.

It is a key component for industrial use. It works well in automotive systems. The motor provides high speed. It also offers high torque.

This hydraulic gear motor is small. It is also powerful. It has a displacement of 745 cc/rev. The output is 8 kW. This motor is a great choice.

The shaft is a magneto mount. It has four bolt holes. This design ensures a secure fit. The motor has a global market. It is often used in road sweepers. Blince provides a one-year warranty.

Product Specifications

Parameter	Value
Torque	1050 N·m
Shaft	Magneto Mount, 4-hole
Warranty	One Year
Market	Global
Application	Road Sweeper
Displacement	745 cc/rev
Output	8 kW
Highlight	Small hydraulic motor

OMER 750 Hydraulic Motor Features

Geroler Gear Set: The motor's advanced Geroler gear set ensures a smooth and dependable start-up. It uses low pressure to begin operation, providing high efficiency and reliable performance. This design is built for consistent, smooth movement.

Durable Output Shaft: The output shaft is supported by needle roller bearings. This feature allows it to withstand high forces. It can handle both axial and radial loads. The motor casing is also strong, offering high pressure and torque capacity for many different uses.

High-Speed Distribution: An advanced flow distribution design ensures high volume efficiency. It automatically compensates for changes during operation. This design provides smooth and reliable performance over a long lifespan, even at high speeds.

Precise Timing and Low Leakage: The motor has a very low leakage rate and precise timing. The commutator rotates six times faster than the shaft, which increases distribution accuracy. This leads to a longer product life, excellent efficiency, and smooth operation, even at low speeds. A gearbox is not needed.

Type		BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacemen(cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max.speed(rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max.speed(rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max.torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max.output(kW)	cont.	12	15	15.5	16	17.5	18	17.5	16.5	14.5	11.5	8
Max.output(kW)	int.	14	17.5	18	19	20	21	20	19	16.5	15	10
Max. pressure drop(MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90
