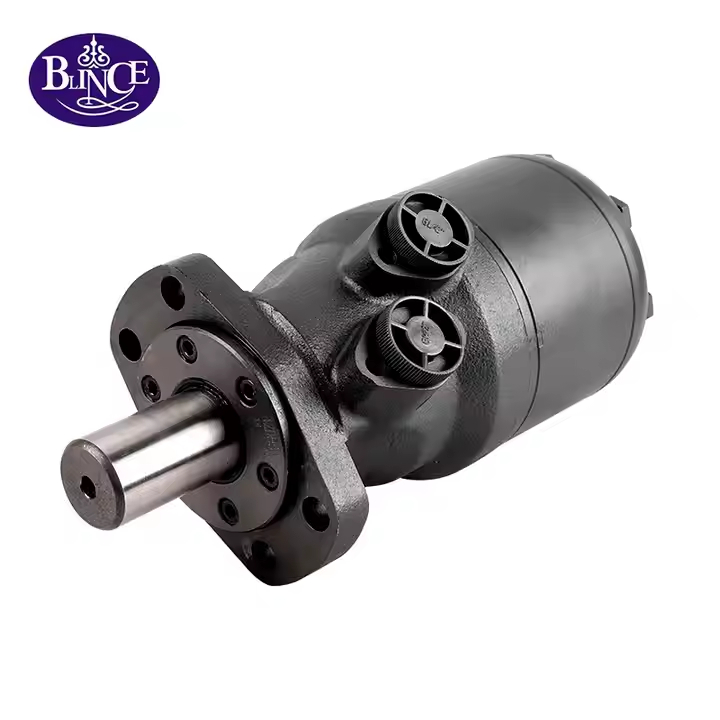

High Efficiency Gerotor Hydraulic Motor OMH BMH 200cc 250cc 75L / Min Features
Durable Output Shaft: The output shaft uses a deep groove ball bearing. This design allows it to withstand both axial and radial forces. This ensures a stable performance and a long operational life.
Extended Service Life: The motor has a specially designed driver-linker. This unique feature helps to prolong its service life. This reduces the need for frequent maintenance.
Low Noise Operation: The distribution system is designed to minimize noise. This feature makes the motor suitable for applications where low noise is a key requirement.
Easy to Install: The motor has a compact design. This makes installation simple. Its size allows it to fit easily into various systems.
| Type | OMH 200 | OMH 250 | OMH 315 | OMH 400 | OMH 500 |
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| inter | 439 | 348 | 282 | 220 | 184 |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| inter | 20 | 20 | 20 | 19 | 16 |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| inter | 439 | 348 | 282 | 220 | 184 |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| inter | 90 | 90 | 90 | 90 | 90 |
Weight (kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0
|
