How Does A Throttle Valve Work? Principles, Types, And The Difference From Flow Control Valves

Throttle valves are one of the most common components used in hydraulic and fluid control systems. Their primary role is to regulate the flow rate of liquids or gases, thereby maintaining stability and efficiency in pipelines and machinery. You will find throttle valves widely applied in industries such as oil & gas, chemical processing, power generation, water treatment, and manufacturing.

But how exactly does a throttle valve work? And what makes it different from a flow control valve? In this article, we will explain the working principle, common types, applications, and a detailed comparison with flow control valves, so you can make the right choice for your system

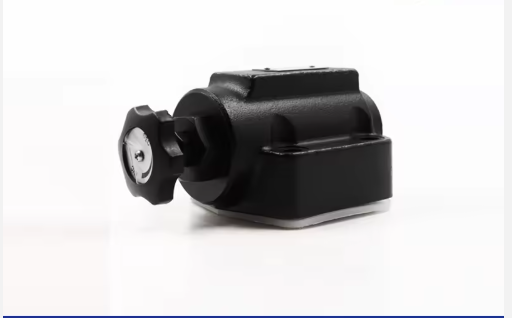

What Is a Throttle Valve?

A throttle valve, sometimes referred to as a control valve, is essentially a “flow regulator.” Similar to how a faucet works, turning the valve changes the position of the valve element, adjusting the opening of the orifice to increase or decrease flow.

• Main function: Regulating flow rate, indirectly affecting pressure and temperature.

• Advantages: Simple structure, low cost, and flexible adjustment.

• Limitations: Flow is easily affected by load and pressure fluctuations. Energy losses during throttling often cause heat buildup in the system.

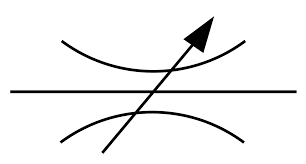

How Does a Throttle Valve Work?

The operating principle of a throttle valve is simple yet effective:

1. Valve body and orifice – The valve body contains a passageway with an adjustable opening.

2. Movable element – A disc, plug, or needle connected to an actuator.

3. Throttling process – When the opening is wide, maximum fluid passes through. As the valve is partially closed, the passage narrows, reducing flow and changing system conditions.

The actuator, whether mechanical, pneumatic, electric, or hydraulic, adjusts the position of the movable element. This allows precise regulation of flow, pressure, and sometimes even temperature.

Common Types of Throttle Valves

• Globe Valve – High precision, suitable for fine flow regulation.

• Butterfly Valve – Cost-effective, ideal for large-diameter pipelines.

• Ball Valve – Quick shut-off capability with partial throttling functions.

• Needle Valve – Excellent for micro-flow and laboratory applications.

• Diaphragm Valve – Clean sealing, widely used in pharmaceuticals and food processing.

• Sliding Stem Valve – Flexible design with globe, angle, or three-way configurations.

Throttle Valve vs. Flow Control Valve (Speed Control Valve)

Throttle valves are often confused with flow control valves, but they are not the same. The key difference lies in flow stability:

• Throttle Valve – Simply adjusts flow by changing the orifice opening. However, when system pressure or load changes, the flow rate will also change. This makes it less accurate and prone to heating issues.

• Flow Control Valve – Combines a throttle valve with a pressure compensator. When pressure fluctuates, the compensator automatically balances the pressure drop across the orifice, ensuring constant flow regardless of load variation.

In short:

• Throttle Valve = basic version, affordable but less stable.

• Flow Control Valve = upgraded version, stable flow with automatic compensation, suitable for high-precision systems.

Where Are Throttle Valves Used?

Throttle valves are widely used due to their straightforward structure and versatile applications:

• Oil & Gas – Controlling the transport of crude oil, natural gas, and petrochemical products.

• Chemical Processing – Precise dosing, mixing, and blending of chemicals.

• Water Treatment – Managing flow in filtration, disinfection, and distribution stages.

• HVAC Systems – Regulating the flow of air and water to maintain temperature and comfort.

• Power Generation – Controlling steam and gas flow to turbines, ensuring reliable electricity output.

• Manufacturing – Flow regulation in food & beverage, automotive, and other industrial processes.

How to Choose Between a Throttle Valve and a Flow Control Valve?

• For cost-sensitive projects → Throttle Valve

• For high flow stability requirements → Flow Control Valve

• For systems with poor cooling or frequent load fluctuations → Flow Control Valve

• For simple systems with small load changes → Throttle Valve

Conclusion

Throttle valves remain one of the most widely used solutions for fluid regulation in industrial systems. They are simple, economical, and effective in many scenarios. However, for systems that require constant and stable flow despite load variations, flow control valves are the better choice.

By understanding the differences, engineers and operators can choose the most suitable valve for their specific application, ensuring both system reliability and operational efficiency.
