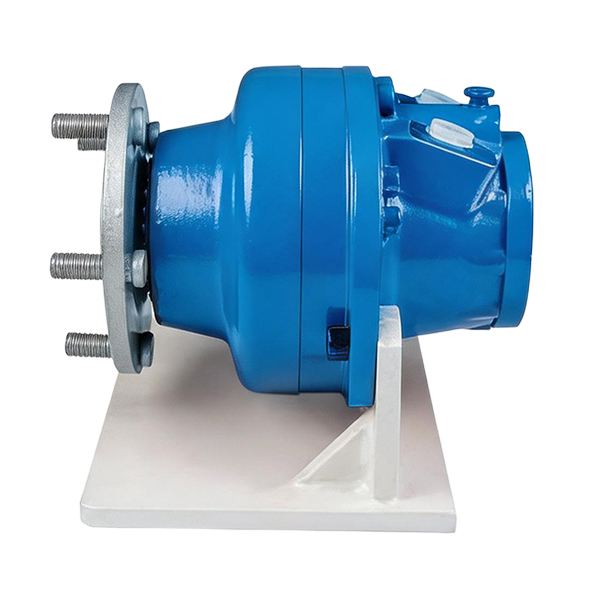

Hydraulic Motor Mounting Types: Flange, Foot and Wheel Mount Explained

The reliability of a fluid power system relies heavily on the mechanical interface between the prime mover, the actuator, and the driven load. Specifying the wrong mounting configuration leads to shaft misalignment, excessive overhung loads, premature bearing failure, and costly unplanned downtime. When a mount fails to support the operational stresses, the resulting deflection destroys shaft seals and internal components rapidly. To ensure optimal power transmission and component longevity, engineers must evaluate the structural realities, load capacities, and standardization requirements of flange, foot, and wheel mounts before finalizing a Hydraulic Motor specification. The physical connection point dictates how radial and axial forces transfer through the machine frame. Ignoring these mechanical realities guarantees fluid leaks and catastrophic mechanical binding. By matching the mounting style to the specific duty cycle and environmental constraints, maintenance teams can eliminate the most common causes of premature drive failure.

• Flange Mounts offer superior shaft alignment and compact integration, relying heavily on standardized SAE and ISO dimensions for modularity.

• Foot Mounts provide high structural rigidity for heavy-duty industrial applications but require precise shimming and alignment protocols to prevent coupling wear.

• Wheel Mounts are engineered specifically for mobile equipment, featuring recessed flanges that position radial loads directly over the motor’s internal bearings.

• Selection Criteria: The final decision must balance radial/axial load profiles, spatial constraints, and long-term maintenance accessibility.

The Role of Mounting in Hydraulic Motor Performance

Defining Success Criteria

Mounting rigidity directly correlates to volumetric efficiency and mechanical lifespan. A secure mount prevents the motor housing from flexing under high torque demands. When the housing remains stable, internal components maintain their precise clearances, maximizing fluid efficiency and preventing premature wear. If the mounting bracket deflects even a few thousandths of an inch under load, the internal rotating group experiences uneven pressure. This uneven pressure forces the internal components against the wear plates, generating heat and metal shavings that contaminate the entire hydraulic circuit. Success means zero visible deflection during peak torque spikes and a vibration signature that remains within acceptable baseline limits over the equipment's lifespan.

Load Distribution Mechanics

Mounting styles dictate how radial (side) loads, axial (thrust) loads, and torsional vibrations transfer through the system. Improper load distribution accelerates bearing fatigue and shaft seal degradation. Understanding the specific load profile of your application is necessary for selecting a mount that can safely absorb these forces. Radial loads push perpendicular to the shaft, common in belt or chain drives. Axial loads push parallel to the shaft, often seen in helical gear setups or fan drives. Torsional vibration occurs when the load rapidly changes, sending shockwaves back through the coupling. The mounting interface must act as a rigid anchor, transferring these forces into the machine frame rather than allowing them to concentrate on the motor's internal bearings.

Alignment Tolerances

The physical mounting interface acts as the primary defense against shaft deflection. Even minor angular or parallel misalignment generates severe stress on the shaft and bearings. A properly selected and installed mount maintains strict alignment tolerances, protecting the internal seals from uneven wear and fluid leakage. When coupling a motor to a driven shaft, the centerlines of both shafts must match perfectly. Angular misalignment means the shafts meet at an angle, while parallel misalignment means the shafts are parallel but offset. Both conditions force the flexible coupling to absorb the error, which eventually transfers the stress directly to the motor shaft. This constant bending cycle leads to metal fatigue and sudden shaft snapping.

Mounting Orientations (Horizontal vs. Vertical Shaft Up/Down)

Operating a motor in non-standard orientations requires careful consideration. Vertical shaft-up installations risk dry running if fluid drains away from the upper bearings. Proper fluid level maintenance, air pocket prevention, and specific bearing lubrication strategies are essential when deviating from standard horizontal mounting. In a shaft-up position, gravity pulls the internal lubricating oil down, leaving the top shaft seal and bearing exposed to air. Without lubrication, these components burn up in minutes. To combat this, technicians must install case drain lines at the highest possible point on the housing to ensure the motor remains completely full of oil at all times. Shaft-down orientations face the opposite issue, where high case pressure can blow out the bottom shaft seal if the drain line is undersized or restricted.

Flange Mounts: Precision and Modularity

Structural Design

Flange mounts utilize direct coupling mechanisms featuring pilot rings and bolt circles. This design ensures strict concentricity with the driven component or bell housing. The pilot ring centers the motor precisely, while the bolt circle provides a secure, rigid connection. The pilot is a machined lip on the front face of the motor that slides into a matching bore on the equipment. This metal-to-metal fit guarantees that the motor shaft is perfectly centered with the driven load, eliminating the need for manual alignment checks. The mounting bolts simply hold the motor against the face; they do not provide the centering alignment. This makes installation fast and highly repeatable in production environments.

Industry Standards (SAE & ISO)

Standardization simplifies integration and replacement. SAE J744 defines common 2-bolt and 4-bolt configurations across various sizes (SAE A, B, C, D). ISO 3019-2 provides metric flange specifications. Understanding dimensional criticality—such as Pitch Circle Diameter (PCD), pilot diameter, and shaft spline/keyway clearances—is vital for proper component matching. When a motor fails in the field, having a standard SAE flange means you can source a replacement from multiple manufacturers without modifying the machine frame. The SAE A flange, for example, always has a 3.25-inch pilot diameter and a 4.187-inch bolt circle for the 2-bolt version. This predictability is the backbone of modern fluid power design.

Electric Motor Cross-Compatibility

Integrating hydraulic systems with electric prime movers requires understanding different standards. Hydraulic SAE standards differ significantly from electric motor interfaces like NEMA C-Face, D-Flange, and IEC Metric B5 or B14 face mounts. Adapters are often necessary to bridge these distinct mounting configurations. You cannot simply bolt an SAE C hydraulic pump directly to a NEMA 254TC electric motor. The pilot diameters and bolt patterns do not match. Engineers use cast aluminum or cast iron bell housings to connect the two. The bell housing has a NEMA pattern on one end and an SAE pattern on the other, ensuring perfect concentricity between the electric motor shaft and the hydraulic shaft.

Ideal Applications

Flange mounts excel in inline drives, gearboxes, pump/motor combinations, and space-constrained enclosures. Their compact nature makes them ideal for applications where minimizing the overall footprint is a primary design objective. Because the motor bolts directly to the driven housing, there is no need for a separate baseplate or mounting bracket. This saves weight and reduces the overall length of the drive assembly. You will find flange mounts heavily utilized in plastic injection molding machines, industrial shredders, and marine winch drives where space is at an absolute premium.

Trade-Offs

While flange mounts offer excellent alignment and space savings, they are highly sensitive to external radial loads. Applications involving belts, chains, or heavy gears often require an overhung load adapter (OHLA) to protect the motor bearings from excessive side forces. The standard bearings inside a flange-mounted motor are designed primarily to handle internal hydraulic forces, not the heavy side pull of a tensioned v-belt. If you hang a heavy sprocket directly on a standard flange motor shaft, the radial load will quickly destroy the front bearing and cause the shaft seal to leak. An OHLA provides a massive external bearing block to absorb these forces, allowing the motor to simply provide rotational torque.

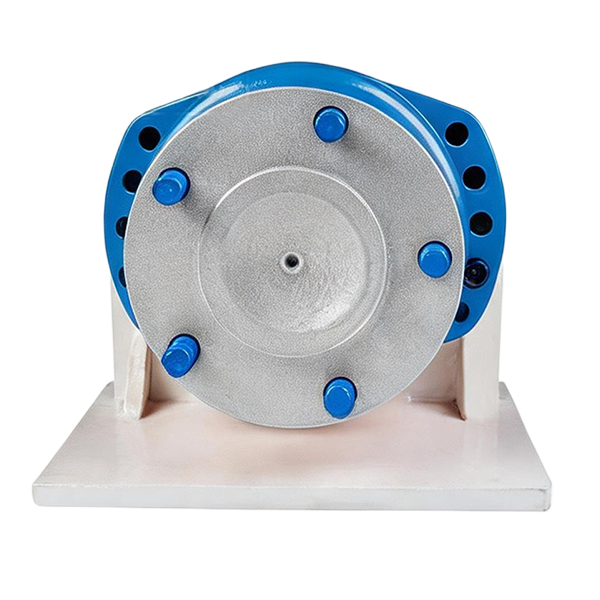

Foot Mounts: Rigidity for Heavy Industrial Applications

Structural Design

Foot mounts feature base-mounted configurations utilizing brackets or integrated cast feet. This allows engineers to secure the motor directly to a machine frame or heavy bedplate, providing exceptional stability for high-torque industrial applications. Unlike flange mounts that hang off the driven equipment, foot mounts sit solidly on a foundation. This transfers the massive reactionary torque directly into the concrete floor or steel skid. The feet are typically cast directly into the motor housing for maximum strength, though heavy-duty L-brackets can be bolted to standard flange motors to convert them to a foot-mounted configuration.

The "Multi-Mount" Foot Design Concept

Some modern designs incorporate detachable, repositionable, or integrated frame feet. Similar to IEC B3 configurations, these multi-mount options allow field modification, enabling horizontal or vertical structural adaptation based on specific installation requirements. This modularity allows a single motor inventory to serve multiple machine designs. Maintenance teams can unbolt the feet and move them to different sides of the motor housing, changing the orientation of the fluid ports to better match the existing hydraulic plumbing. This flexibility is highly valued in large industrial plants where standardizing spare parts is a priority.

Alignment Realities

Foot mounts require rigorous installation procedures. Achieving parallel and angular alignment with the driven shaft necessitates laser alignment tools, dial indicators, and precise shimming. Skipping these steps guarantees rapid coupling wear and potential shaft failure. Because the motor and the driven load sit on separate foundations, there is no pilot ring to guarantee concentricity. The technician must manually align the two shafts.

1. Clean the baseplate and motor feet thoroughly to remove any dirt or rust that could cause a soft foot condition.

2. Place the motor on the baseplate and install the mounting bolts loosely.

3. Mount the laser alignment heads or dial indicators on both the motor shaft and the driven shaft.

4. Rotate the shafts and record the angular and parallel misalignment readings.

5. Insert precision stainless steel shims under the motor feet to raise or tilt the motor until the shafts are perfectly aligned.

6. Torque the mounting bolts to the specified value and perform a final alignment check to ensure nothing shifted during tightening.

Ideal Applications

These mounts are the standard for large-displacement motors, standalone industrial drives, heavy conveyors, and high-vibration environments where structural rigidity is paramount. When driving a massive aggregate conveyor or a heavy-duty ball mill, the starting torque can be violent. A foot mount provides the wide stance and heavy bolting required to keep the motor from twisting off its foundation. They are also preferred when the driven equipment cannot support the physical weight of a large hydraulic motor hanging off its side.

Trade-Offs

Foot mounts provide unmatched stability and simplify maintenance access. However, they demand a larger spatial envelope and require meticulous, time-consuming alignment protocols during installation. The need for a heavy steel baseplate adds weight and cost to the overall machine design. Furthermore, if the foundation settles or the machine frame warps over time, the alignment will be lost, requiring maintenance teams to repeat the shimming process to prevent coupling failure.

Wheel Mounts: Engineered for Mobile Machinery

Structural Design

Wheel mounts feature a recessed mounting flange that pushes the motor deeper into the wheel hub. This specific geometry positions the center of the radial load directly over the motor’s main tapered roller bearings, optimizing load capacity. In a standard flange motor, the mounting face is behind the bearings. In a wheel mount, the mounting face is moved forward, wrapping around the bearing housing. This allows the wheel rim to bolt directly to the motor shaft flange, placing the physical weight of the vehicle directly in line with the heavy-duty internal bearings. This eliminates the leverage effect that would otherwise snap the shaft.

Load Handling Capabilities

These mounts are specifically designed to support the physical weight of the vehicle, managing extreme radial loads while simultaneously transmitting high starting torque to propel the machinery. The bearings inside a wheel mount motor are massive compared to standard industrial motors. They use high-capacity tapered roller bearings capable of handling both the radial load of the vehicle weight and the axial thrust loads generated when the vehicle turns or operates on uneven terrain. The shaft itself is often a heavy-duty flanged design rather than a standard keyed or splined shaft, providing a massive surface area to bolt the wheel rim against.

Ideal Applications

Wheel mounts dominate the mobile equipment sector. They are essential for skid steer loaders, forestry equipment, agricultural machinery, and various propel drives. Any application where a hydraulic motor directly drives a tire or a track sprocket without an intermediate axle requires a wheel mount configuration. You will see them on scissor lifts, combine harvesters, and heavy-duty trenchers. Their ability to handle massive side loads makes them the only viable choice for direct-drive mobile propulsion.

Trade-Offs

While they maximize bearing life in mobile applications and save lateral space, wheel mounts are highly specialized. This specialization limits their interchangeability compared to standard SAE or ISO flange mounts. You cannot easily swap a wheel mount motor into an industrial conveyor application, nor can you use a standard flange motor to drive a skid steer tire. The recessed flange design also makes accessing the hydraulic hoses and fittings more difficult, as they are often buried deep inside the machine frame behind the wheel hub.

Cross-Discipline Integration: Adapting Hydraulic Motors to Electric Prime Movers

Direct Mounting and Pump-to-Motor Adapters

Bridging hydraulic flanges to NEMA C-Face or IEC metric electric motors requires specific hardware. Bell housings and transition couplings provide the necessary mechanical interface for direct mounting. The bell housing bolts to the face of the electric motor and provides a machined mounting pad for the hydraulic component. Inside the bell housing, a flexible jaw coupling connects the two shafts. This setup completely encloses the rotating components, providing a safe and compact drive package. It is the standard method for building hydraulic power units (HPUs) in industrial settings.

Concentricity and Alignment Mitigation

Dedicated adapter housings eliminate the need for manual shimming. By securing both the electric and hydraulic components within a single machined housing, these adapters guard against pilot runout and ensure perfect concentricity. The machining tolerances of the bell housing guarantee that the two shafts are aligned within a few thousandths of an inch. This eliminates the hours of labor required to manually align a foot-mounted setup. The flexible coupling inside the housing absorbs any microscopic misalignment, ensuring long bearing life for both the electric motor and the hydraulic component.

Technical Evaluation Framework: Choosing the Right Mount

Load Profiling

Calculate expected overhung loads (OHL) and thrust loads accurately. Determine if the internal motor bearings can survive the application's duty cycle without external support structures. You must know the weight of the pulleys, the tension of the belts, and the dynamic forces generated during operation. Compare these calculated loads against the manufacturer's bearing life charts (L10 life). If the calculated load exceeds the bearing capacity, you must change the mounting strategy, either by moving to a heavier-duty motor or by adding an external overhung load adapter.

Spatial Constraints (Envelope Size)

Evaluate the physical footprint available. Compare the inline efficiency and compact nature of a flange mount against the bulkier footprint required for a foot-mounted installation. In mobile equipment or compact industrial machinery, space is heavily restricted. A flange mount allows the motor to tuck neatly against the gearbox or driven housing. A foot mount requires a flat, rigid surface that may not exist in the current machine design. Always check the overall length and diameter of the motor, including the necessary clearance for hydraulic fittings and hoses.

Serviceability and Replacement

Assess how easily maintenance teams can access mounting bolts, inspect coupling wear, or replace the motor in the field. Accessibility impacts long-term operational costs. If a motor is buried deep inside a machine frame with no wrench clearance, a simple replacement turns into a multi-day teardown. Foot mounts generally offer better access to the coupling and mounting bolts. Flange mounts can be difficult to remove if the pilot ring rusts into the driven housing. Always apply anti-seize compound to the pilot ring during installation to ensure easy removal years later.

Integration with Existing Infrastructure

Decide between utilizing standard SAE/ISO mounts for future-proofing and ease of replacement versus accepting proprietary OEM mounts that may complicate future sourcing. Proprietary mounts lock you into a single supplier, which can be disastrous if that supplier experiences production delays or goes out of business. Sticking to standard SAE J744 or ISO 3019-2 dimensions ensures that you can always find a replacement motor from multiple global manufacturers. This standardization is critical for maintaining high uptime in production environments.

Implementation Risks and Mitigation Strategies

Failing to address mounting risks during the design phase leads to catastrophic equipment failure. Engineers must proactively identify potential failure points and implement robust mitigation strategies before the equipment reaches the field. The physical connection between the motor and the machine is subjected to constant vibration, thermal expansion, and dynamic loading. Without proper precautions, fasteners back out, brackets crack, and shafts snap.

• Risk: Premature shaft seal failure due to angular misalignment in foot-mounted setups.

  • Mitigation: Mandating strict alignment tolerances using laser alignment equipment and utilizing flexible elastomeric couplings to absorb minor operational shifts.

• Risk: Bearing destruction from excessive radial loads on standard flange mounts.

  • Mitigation: Specifying wheel mounts for mobile drives or integrating heavy-duty bearing blocks/OHLAs for belt-driven applications to isolate the motor shaft from side pull.

• Risk: Structural resonance and fastener fatigue causing the motor to tear off its mount.

  • Mitigation: Implementing proper torque specifications, applying high-strength thread-locking compounds, and utilizing vibration-damping base plates where applicable.

• Risk: Dry running of shaft seals and bearings during vertical-shaft-up installations.

  • Mitigation: Installing external case drain lines at the highest point, maintaining proper backpressure, and utilizing air bleed-off ports to ensure the housing remains flooded with oil.

Conclusion

Specifying a hydraulic motor requires a calculated compromise between volumetric and mechanical-hydraulic efficiency. This balance is dictated by operating pressure, speed, temperature, and duty cycle. Prioritize volumetric efficiency for high-pressure, continuous operations. Accept lower efficiencies for intermittent, low-pressure tasks where initial capital expenditure is the primary constraint.

To seamlessly bridge these efficiency demands with rugged physical reliability, selecting the proper mechanical interface is non-negotiable. As an industry-leading manufacturer with over two decades of fluid power expertise, BLINCE delivers a premium lineup of high-efficiency orbital motors, piston motors, and hydraulic pumps engineered to meet strict SAE and ISO mounting standards. Our ISO 9001-certified production lines utilize advanced manufacturing tolerances to balance boundary lubrication and fluid shear, ensuring your chosen flange, foot, or wheel mount architecture achieves perfect structural alignment and optimal torque delivery under harsh field conditions.FAQ

Q: What is the difference between an SAE 2-bolt and 4-bolt hydraulic motor flange?

A: An SAE 2-bolt flange uses two mounting fasteners and is common for lighter-duty applications. A 4-bolt flange provides greater clamping force and structural rigidity, making it suitable for higher torque and heavier load environments where vibration is a concern.

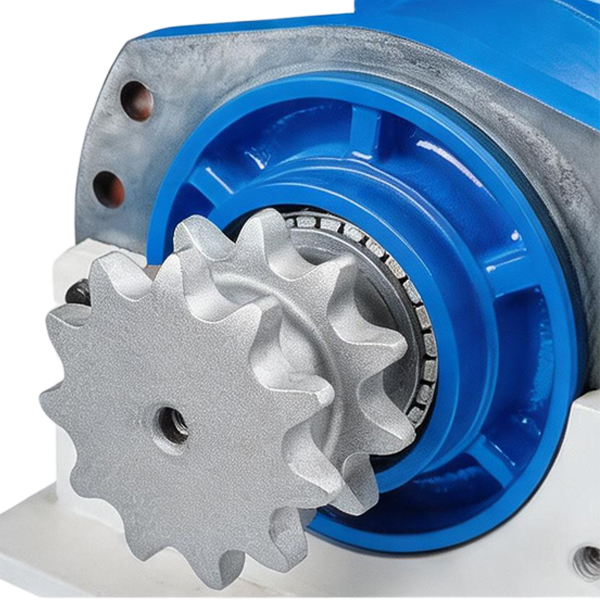

Q: Can a standard flange-mounted hydraulic motor support a pulley or sprocket?

A: Generally, no. Standard flange mounts are designed for inline loads. Using pulleys or sprockets introduces significant radial side loads that quickly destroy internal bearings unless an Overhung Load Adapter is used.

Q: What is the purpose of a wheel mount in hydraulic motors?

A: Wheel mounts feature a recessed flange that positions the radial load directly over the motor's heavy-duty internal bearings. This prevents shaft deflection and bearing failure when supporting the physical weight of mobile equipment.

Q: How do you align a foot-mounted hydraulic motor?

A: Alignment requires precision tools like laser aligners or dial indicators. You must adjust the motor's position using metal shims under the feet to achieve strict parallel and angular alignment with the driven shaft.

Q: What is an overhung load adapter (OHLA) and when is it required?

A: An OHLA is an external bearing block that absorbs heavy radial or axial loads. It is required when driving belts, chains, or heavy gears that exceed the load capacity of the motor's internal bearings.

Q: Are hydraulic motor mounting flanges interchangeable between brands?

A: Yes, provided they adhere to the same industry standards, such as SAE J744 or ISO 3019-2. Always verify the pilot diameter, bolt circle, and shaft specifications before swapping brands.

Q: Can hydraulic motors be mounted vertically (shaft-up or shaft-down), and what are the risks?

A: Yes, but vertical shaft-up mounting risks dry running the upper bearings and seals. Mitigation requires specific case drain plumbing at the highest point to ensure the housing remains full of lubricating fluid.
