Hydraulic Valve Materials Explained: Cast Iron, Steel or Aluminum?

Selecting the wrong metal for a fluid power system creates compounding mechanical failures across an operation. Material mismatch leads directly to catastrophic pressure drops, severe fluid contamination, and unplanned downtime on the job site. Engineers face a constant balancing act. You must match operating pressure, environmental corrosiveness, and strict weight constraints without over-engineering the circuit or compromising safety margins. Default habits often lead to poor procurement choices that fail in the field. You must evaluate hydraulic valve materials based on empirical performance data, lifecycle longevity, and application-specific demands. This guide breaks down the engineering realities of cast iron, steel, and aluminum. We will look at how to match metallurgical properties to exact operational requirements, avoid premature component failure, and keep heavy machinery running under load.

• Cast Iron: Delivers superior vibration damping and cost-efficiency, making it the standard for stationary, low-to-medium pressure hydraulic systems.

• Steel (Carbon, Low-Alloy & Stainless): Essential for high-pressure, high-cycle, or highly corrosive environments where tensile strength and durability are non-negotiable.

• Aluminum: Provides critical weight savings for mobile and aerospace hydraulics but requires strict management of pressure thresholds and fatigue limits.

• Decision Framework: Material selection must strictly align with fluid compatibility, thermal operating ranges, and lifecycle expectations.

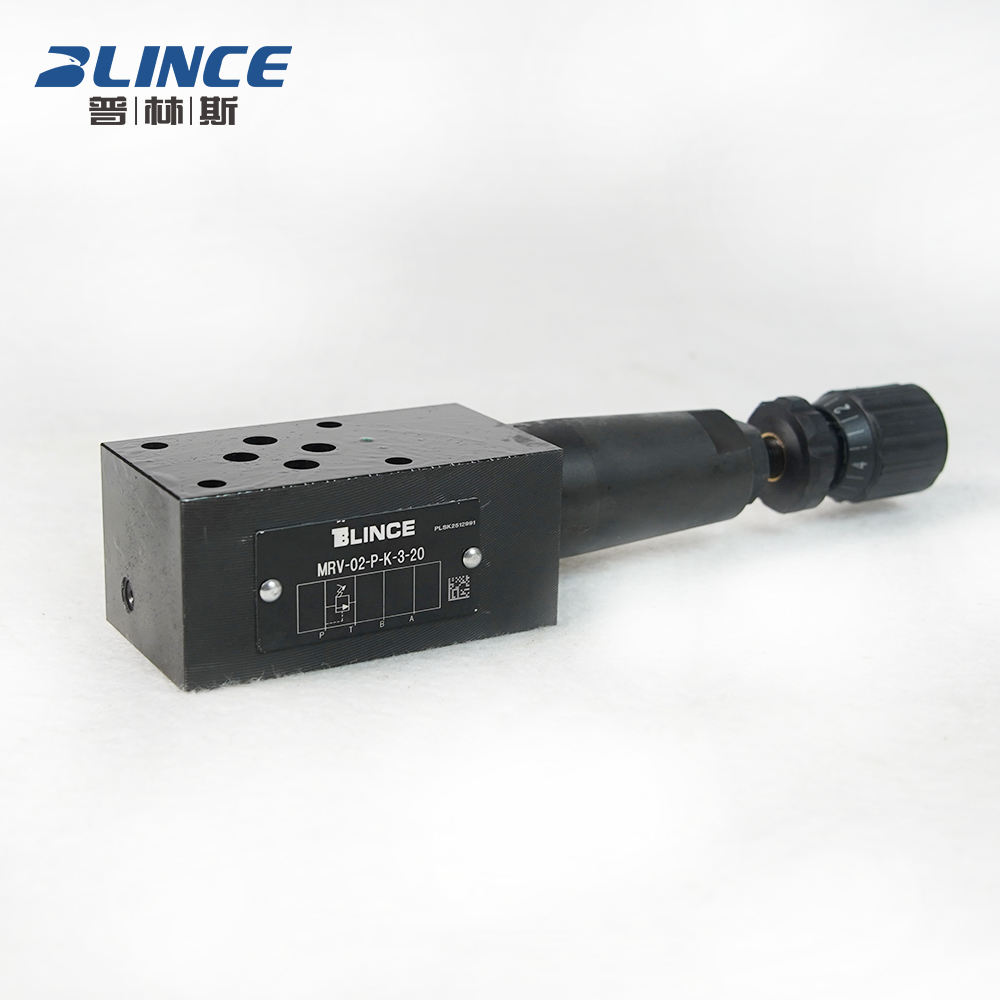

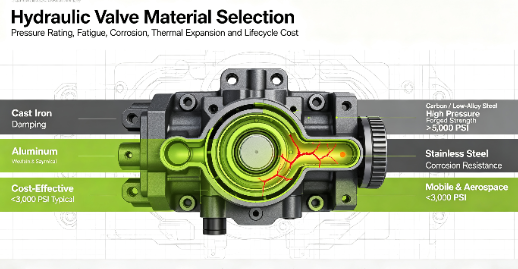

How to Choose Hydraulic Valve Materials

Operating Pressure and Fatigue Limits

Hydraulic systems operate under immense mechanical stress. You must define your tensile strength requirements and burst pressure safety factors before looking at material catalogs. Standard safety margins typically require a 3:1 or 4:1 ratio between burst pressure and maximum operating pressure. Nominal pressure ratings only tell half the story. Pressure spikes and high-cycle fatigue dictate your baseline material strength. A system running at 3,000 PSI may experience transient spikes up to 5,000 PSI during rapid valve actuation. This water hammer effect causes micro-stresses in weaker metals. Over time, these stresses propagate into fatigue cracks. You must select a material that can absorb these cyclic shock loads without yielding. When an excavator bucket strikes solid bedrock, the shockwave travels directly back through the hydraulic fluid to the control valve. If the valve body lacks the tensile strength to absorb that spike, the metal will fracture.

To properly size your valve material for pressure, follow these engineering steps:

1. Identify the continuous operating pressure of the main hydraulic pump.

2. Record the maximum transient pressure spikes during rapid cylinder actuation or load shifts.

3. Apply a minimum 3:1 safety factor to the highest recorded transient spike.

4. Select a metal alloy with a yield strength that exceeds this calculated safety threshold.

Environmental and Fluid Compatibility

The fluid inside your system is just as destructive as the environment outside it. You must identify the risks of oxidation and chemical breakdown. Specific synthetic fluids, like phosphate esters, aggressively attack certain metals and seal materials. Water-glycol mixtures present unique oxidation challenges if the valve body lacks proper surface treatment. External environments introduce the operational threat of galvanic corrosion. When dissimilar metals touch in the presence of an electrolyte, the less noble metal corrodes rapidly. Offshore marine platforms, chemical processing plants, and winter road maintenance equipment expose valves to highly conductive saltwater or de-icing chemicals. Your material choice must account for both internal fluid chemistry and external atmospheric threats.

Thermal Dynamics

Temperature fluctuations physically alter your hydraulic components. You must analyze the coefficient of thermal expansion (CTE) for different metals. Aluminum expands at a significantly higher rate than carbon steel or cast iron. Extreme temperature fluctuations impact valve tolerances and seal integrity. If a valve body expands faster than the internal spool, the increased clearance causes internal fluid bypass and pressure loss. Conversely, if the spool expands faster than the body, the valve will bind and fail to actuate. You must calculate these dimensional changes across your entire operating temperature range. Seal materials must also bridge these dynamic extrusion gaps without tearing or degrading. A machine starting up in sub-zero winter conditions experiences entirely different internal clearances than the same machine running at peak fluid temperatures in the middle of summer.

Valve Body vs. Internal Trim Synergy

You rarely need a valve made entirely from a single expensive alloy. Manufacturers frequently combine materials to optimize performance. A common configuration pairs a cost-effective cast iron body with a hardened steel spool. You might also see carbon steel bodies fitted with stainless steel internal trim. This hybrid construction optimizes both performance and procurement budgets. The outer body handles the bulk structural pressure and environmental mounting stresses. The internal trim handles the high-velocity fluid erosion and precise metering requirements. Mixing materials allows you to deploy high-wear resistance exactly where it is needed without sacrificing overall system reliability.

Cast Iron Hydraulic Valves: Standard Option

Material Properties and Variations

Cast iron remains a foundational material in fluid power engineering. You must differentiate between the specific grades used in hydraulic applications. Ductile iron (nodular iron) contains graphite in spherical nodules, allowing the metal to flex slightly before fracturing. Gray iron contains graphite flakes, making it highly rigid but more brittle. Ferro-steel, often called semi-steel, blends cast iron with steel scrap to improve baseline tensile strength. Ductile iron is the preferred choice for modern hydraulic manifolds due to its superior impact resistance compared to standard gray iron.

Primary Advantages

The mechanical structure of cast iron provides excellent vibration damping characteristics. This is particularly beneficial for large manifold blocks in industrial settings. The graphite matrix absorbs acoustic energy and mechanical resonance generated by high-speed hydraulic pumps. This reduces system noise and prevents vibration-induced pipe fatigue. Cast iron also offers high machinability. Tooling moves through the material easily, which lowers manufacturing times. This overall cost-effectiveness makes cast iron the default choice for large-scale deployments where weight is not a restrictive factor.

Ideal Use Cases

Cast iron excels in environments where mass and volume are not penalized. Specify this material for stationary industrial equipment, such as factory-floor hydraulic presses and injection molding machines. It is also highly effective in municipal water systems and low-pressure fluid power setups. If your application sits bolted to a concrete floor and operates under steady, predictable pressure curves, cast iron provides the most efficient return on investment.

Steel Hydraulic Valves: For High Pressure & Corrosion

Carbon and Low-Alloy Steel: The Industrial Workhorses

When system pressures exceed the capabilities of cast iron, carbon steel becomes mandatory. It offers high tensile strength and budget-friendly scalability for high-pressure applications. You must differentiate between cast steel and forged steel. Cast steel allows for complex internal geometries but can suffer from microscopic porosity. Forged steel, such as ASTM A105, is mechanically compressed under extreme heat. This aligns the grain structure and eliminates porosity, providing superior structural integrity under extreme pressure. Low-alloy steels, like 4140, serve as a middle-ground solution. They provide higher fatigue resistance than standard carbon steel but at a lower cost than stainless variants. However, carbon and low-alloy steels require surface treatments. You must apply zinc plating, nickel plating, or industrial epoxy to mitigate external corrosion.

Stainless Steel (SS304 / SS316): The Corrosion Fighter

Stainless steel relies on a high chromium content to form a passive, self-healing oxide layer. You evaluate stainless steel for its superior resistance to harsh chemicals, offshore marine environments, and sanitary applications. SS304 handles general corrosive environments well. SS316 contains added molybdenum, which drastically improves resistance to pitting from chlorides and saltwater. You must compare the higher initial procurement cost of stainless steel against its long-term lifecycle benefits. In highly corrosive environments, replacing a rusted carbon steel valve three times costs significantly more than installing a single SS316 valve once.

Suitable Applications for Steel Valves

Steel valves dominate extreme environments. Specify forged carbon steel for heavy-duty construction machinery, excavators, and high-pressure hydraulic lifting systems. Specify stainless steel for offshore drilling rigs, chemical processing plants, and food-grade manufacturing facilities. Any application experiencing continuous pressure spikes above 5,000 PSI requires the structural density of steel.

Aluminum Hydraulic Valves: High Strength with Light Weight

Material Properties

Aluminum transforms mobile fluid power design. You will typically encounter aerospace-grade alloys like 6061-T6 or 7075-T6 in hydraulic applications. These alloys undergo solution heat treatment and artificial aging to maximize yield strength. The defining characteristics are low density and high thermal conductivity. Aluminum weighs roughly one-third as much as steel. Furthermore, its ability to transfer heat rapidly helps dissipate fluid temperatures directly through the valve body, acting as a secondary heat sink for the hydraulic circuit.

Primary Advantages

The significant weight reduction benefits are critical for mobile hydraulics. Every pound saved on a tractor, crane, or robotic arm translates directly to improved fuel efficiency and increased payload capacity. In battery-powered mobile equipment, lighter valves extend operational runtimes. Aluminum also forms a natural oxide layer upon exposure to air. This provides a baseline corrosion resistance that outperforms untreated carbon steel, eliminating the immediate need for heavy industrial coatings in mild environments.

Ideal Use Cases

Aluminum is strictly for applications where mass is the primary enemy. Specify aluminum for aerospace fluid power systems, mobile robotics, and automotive hydraulic systems. It is also highly effective in agricultural machinery where reducing soil compaction is a priority. If the equipment moves, flies, or runs on batteries, aluminum is the optimal choice.

Special Alloys: Titanium and Bronze

Titanium and Bronze

Standard Hydraulic Valve Materials occasionally fail to meet extreme engineering criteria. In these rare instances, you must evaluate exotic alloys. Titanium offers the tensile strength of steel at roughly half the weight, paired with near-total immunity to saltwater corrosion. You will find titanium in extreme aerospace conditions and deep-sea exploration vehicles. Bronze, specifically aluminum bronze, resists marine biofouling and cavitation erosion. You specify bronze for specialized marine and subsea requirements where standard stainless steel might suffer from crevice corrosion in stagnant seawater. These materials require specialized machining and command massive procurement premiums.

Comparison: Trade-offs and Long Service Life

Initial Procurement vs. Lifecycle Longevity

You must provide a framework for calculating true ROI based on replacement frequency, maintenance downtime, and initial material costs. Buying the cheapest cast iron valve is a catastrophic financial decision if it fails every six months in a corrosive environment. You must calculate the cost of lost production hours, emergency maintenance labor, and replacement fluid. A stainless steel valve may cost four times as much upfront, but if it lasts ten years without maintenance, the lifecycle longevity heavily favors the premium material.

Weight vs. Performance

You must contrast the operational value of fuel efficiency in mobile systems against the need for structural mass in stationary plants. In a factory setting, a heavy cast iron manifold is beneficial. The mass anchors the system and dampens acoustic noise. In a forestry harvester, that same mass wastes diesel fuel and reduces the machine's lifting capacity. You must assign a financial value to every pound of weight saved in mobile applications to justify the switch to aluminum.

Scalability and Lead Times

Material selection directly impacts your supply chain. Evaluate the availability of raw materials and machining complexities. Cast iron and carbon steel are globally abundant. You can source replacement valves rapidly. Stainless steel and aluminum require specialized tooling and slower machining speeds, which can extend production timelines. Exotic alloys like titanium often suffer from severe supply chain bottlenecks and lead times exceeding twenty weeks. You must ensure your chosen material supports your required maintenance schedules.

Conclusion

1. Map your maximum transient pressure spikes, not just the nominal operating pressure, to determine baseline tensile requirements.

2. Cross-reference your specific hydraulic fluid chemistry with the valve's internal trim and seal materials to prevent chemical degradation.

3. Request certified Material Test Reports (MTRs) from your manufacturer to validate ASTM standards before finalizing any procurement.

4. Calculate the exact weight penalty versus operational fuel efficiency for any mobile hydraulic application considering steel over aluminum.

5. Consult with a hydraulic engineering specialist to design isolation barriers if your system requires mating dissimilar metals.

FAQ

Q: What is the best material for high-pressure hydraulic valves?

A: Forged carbon steel and stainless steel are the best materials for high-pressure systems. Forging aligns the metal grain structure, eliminating internal porosity. This provides exceptional tensile strength and fatigue resistance, allowing the valve to safely handle pressure spikes exceeding 5,000 PSI without yielding or cracking.

Q: Can aluminum valves handle the same pressure as steel valves?

A: No. Aluminum has significantly lower pressure thresholds than steel. It lacks a true fatigue limit, meaning it is highly susceptible to fatigue cracking under high-cycle pressure spikes. Aluminum valves are generally capped around 3,000 PSI and are strictly used when weight reduction is mandatory.

Q: Why is cast iron commonly used in hydraulic manifolds?

A: Cast iron, specifically ductile iron, offers superior vibration damping properties. The graphite matrix absorbs acoustic noise and mechanical resonance from hydraulic pumps. It is also highly machinable and cost-effective, making it the ideal baseline material for stationary industrial systems where weight is not a concern.

Q: What is the difference between carbon steel and stainless steel in hydraulic applications?

A: Carbon steel provides budget-friendly, high-strength performance but requires zinc plating to prevent severe rust. Stainless steel contains chromium, providing superior natural corrosion resistance against harsh chemicals and saltwater. Stainless steel costs significantly more upfront but offers better longevity in aggressive environments.

Q: How does hydraulic fluid type affect valve material selection?

A: Certain synthetic fluids, like phosphate esters, or water-glycol mixtures can chemically degrade specific metals and seals. Water-based fluids accelerate oxidation in untreated cast iron or carbon steel. You must match the valve body, internal trim, and elastomer seals to the specific chemical makeup of your fluid.

Q: What causes galvanic corrosion in hydraulic valves?

A: Galvanic corrosion is an electrochemical process that occurs when two dissimilar metals, such as aluminum and carbon steel, are in direct physical contact within a conductive fluid environment like saltwater. The less noble metal acts as an anode and corrodes rapidly, destroying port threads and sealing surfaces.
