Hydraulic Valve Pressure Loss: Causes, Calculation and Optimization

Unaccounted fluid friction in power systems generates excess heat and wastes significant energy during continuous operation. This energy waste directly degrades system longevity and impacts overall machine performance. Unmitigated pressure drops lead to sluggish actuator response, unpredictable cycle times, and premature component wear. System reliability ultimately fails when fluid resistance goes unchecked across the circuit. We must shift focus from theoretical fluid mechanics to practical, engineering-led approaches. Diagnosing, calculating, and selecting the right components is mandatory for modern hydraulic design. You can minimize hydraulic valve pressure loss by applying systematic design principles and rigorous field evaluation. This guide explores how to optimize internal fluid pathways, calculate expected losses accurately, and improve total system efficiency without relying on guesswork. Proper fluid routing keeps equipment running cooler, faster, and longer under heavy loads.

• Internal flow channel geometry—specifically right-angle turns and sudden cross-sectional changes—is the primary driver of secondary flows and pressure drops.

• Accurate calculation requires moving beyond basic formulas to account for fluid viscosity, operating temperature, and the specific flow coefficient (Cv) of the hydraulic valve.

• Optimizing system efficiency requires balancing the trade-offs between component size, upfront cost, and acceptable operational energy loss.

• Systematic diagnostic frameworks are essential to isolate valve-induced pressure drops from broader pump, hose, or actuator failures while protecting the system from further damage.

The Mechanics of Hydraulic Valve Pressure Loss

Define Acceptable Pressure Drop and Performance Goals

Defining what constitutes a normal pressure drop is the first step in system optimization. Every fluid power component introduces some level of resistance to the circuit. A baseline pressure drop is physically necessary to generate flow and control direction. However, an inefficient pressure drop converts excessive hydraulic energy into wasted heat. Success criteria for system performance rely on minimizing this parasitic energy loss. Engineers must establish a maximum acceptable pressure differential for each circuit branch. This baseline ensures that actuators receive adequate force without overworking the primary pump. Energy conservation requires keeping total system resistance well within the pump's optimal efficiency curve. Exceeding these thresholds indicates a poorly optimized flow path requiring immediate redesign.

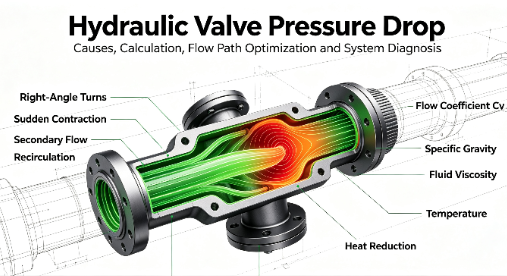

Main Causes: Fluid Friction and Internal Channel Shape

Fluid friction remains the fundamental cause of energy loss in any hydraulic circuit. As hydraulic oil moves through a solid boundary, shear forces generate internal resistance. Internal flow channel geometry dictates the severity of this friction. Right-angle turns force the fluid to abruptly change direction, destroying laminar flow profiles. Sudden cross-sectional changes create high-velocity jets and low-pressure dead zones. Sharp edges within the casting shear the fluid, rapidly converting kinetic energy into thermal energy. Smooth, sweeping internal passages minimize these disruptive shear forces. A well-designed Hydraulic Valve utilizes optimized core geometries to maintain steady fluid velocity. Mitigating sharp transitions directly reduces the primary friction coefficient of the component.

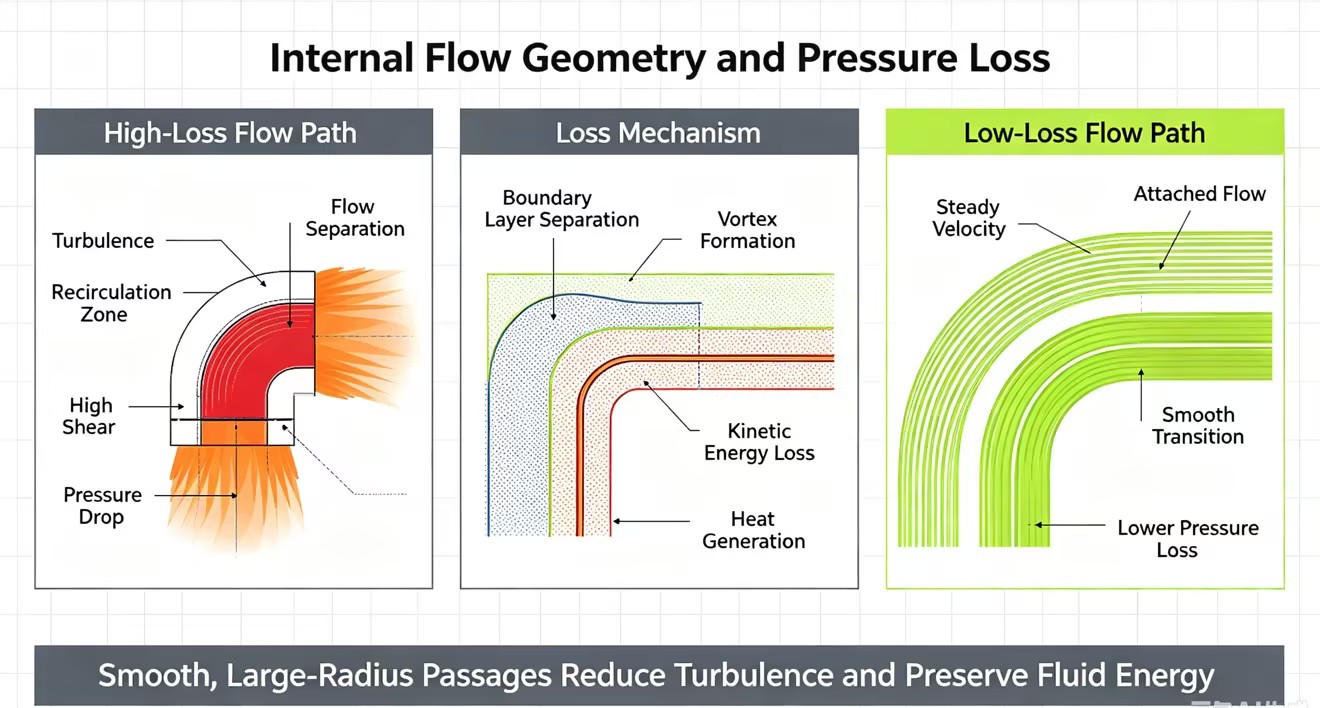

Secondary Flows and Recirculation

Minor losses in pipe flow often compound into major system inefficiencies. These minor pressure losses are usually caused by secondary flows within the fittings and valves. Curvature within the internal flow path forces fluid outward against the casting wall. This centrifugal force creates secondary swirling motions perpendicular to the primary flow direction. Fluid recirculation occurs when oil detaches from the internal boundary layer. These recirculation zones act as fluid blockages, effectively narrowing the usable flow channel. The fluid saps its own kinetic energy as it churns within these internal vortexes. Adjacent fittings installed immediately before or after a valve can exacerbate this recirculation. Straightening the flow before it enters the valve body helps mitigate these secondary losses.

The Impact of Flow Rates and Fluid Viscosity

Pressure drop is directly related to energy changes that occur within the moving fluid. Higher flow rates generally lead to exponentially higher pressure drops. As more fluid volume pushes through a fixed orifice, fluid velocity increases dramatically. This increased velocity squares the resulting friction and resistance against the internal walls. Fluid viscosity also plays a critical role in determining total resistance. Thicker, highly viscous fluids require significantly more energy to shear and flow. Cold start conditions often present the highest pressure drops due to elevated fluid viscosity. As the system warms up, the fluid thins, and the pressure differential typically decreases. Understanding this dynamic relationship is essential for sizing components across varying operational states.

How to Calculate Pressure Drop for Hydraulic Systems

Flow Coefficient (Cv) and Pressure Drop Calculation Formulas

Accurate system design relies on standard industry equations to calculate expected pressure loss. The flow coefficient (Cv) is the universal metric for measuring valve capacity. It represents the volume of water at a specific temperature that will flow through a valve with a one psi pressure drop. Engineers use the Cv value to predict how a specific component will restrict hydraulic oil. The basic formula relates flow rate, specific gravity, and the Cv to find the pressure differential. A higher Cv indicates a less restrictive internal flow path. Calculating this value ensures the selected component can handle the required flow without excessive restriction. Relying solely on port size rather than the Cv often leads to severe miscalculations.

Include Fluid Density and Temperature in Calculations

Standard Cv formulas assume water as the baseline fluid medium. Hydraulic systems utilize specialized oils with entirely different physical properties. Specific gravity measures the density of the hydraulic fluid compared to water. Engineers must insert the fluid's exact specific gravity into the pressure drop equation for accuracy. Thermal fluctuations further complicate these calculations during real-world operation. Temperature directly alters fluid viscosity and slightly shifts the specific gravity. A calculation made for a system operating at ambient temperature will fail at peak operating heat. You must calculate the expected pressure differential across the entire anticipated temperature range. This ensures the system maintains adequate actuator speed even under extreme thermal loads.

Advanced Predictive Tools

Modern fluid power engineering heavily leverages advanced mathematical modeling. Computational Fluid Dynamics (CFD) software simulates internal flow channels with extreme precision. These tools predict pressure loss before any physical implementation or metal casting occurs. CFD highlights exact locations of fluid recirculation, cavitation risks, and high-friction zones. Engineers can virtually modify the internal geometry and instantly see the impact on flow efficiency. Mathematical modeling studies of pressure loss provide empirical data for optimizing spool and poppet designs. These simulations reduce prototyping time and eliminate guesswork from the design phase. Utilizing CFD ensures the final component delivers the lowest possible resistance for its given footprint.

Real-World Calculation vs. Theoretical Models

Theoretical models provide a perfect-world baseline for system performance. Implementation realities often cause field measurements to deviate from mathematical predictions. Engineers must adjust theoretical calculations to account for inevitable field conditions.

• Aging fluid degrades and changes its baseline viscosity over thousands of operating hours.

• Particulate contamination alters fluid dynamics and increases internal friction across tight tolerances.

• Component wear gradually changes the internal geometry, widening clearances and altering flow paths.

• Aeration introduces compressible air bubbles that disrupt steady-state flow calculations.

Adding a safety margin to the calculated pressure drop ensures long-term reliability. Relying strictly on pristine laboratory data often results in underperforming field equipment. Field validation remains a necessary step to confirm theoretical flow models.

Compare Hydraulic Valve Types for Lower Pressure Loss

Directional Control Valves: Spool vs. Poppet Designs

The internal architecture of a directional control valve dictates its inherent pressure drop. Spool valves feature complex, winding internal flow paths. The fluid must navigate multiple right-angle turns and annular grooves to reach the working ports. This tortuous routing creates a naturally higher pressure drop compared to other designs. Poppet valves offer a much more direct fluid pathway. When the poppet lifts from its seat, the fluid flows through a wide, unobstructed orifice. This design significantly reduces fluid friction and secondary recirculation. Systems requiring maximum energy efficiency often favor poppet designs for their low-resistance characteristics. However, spool valves remain necessary for complex multi-port directional control.

Proportional and Servo Valves

Precision control requires a different approach to pressure management. Proportional and servo valves intentionally utilize pressure drops to maintain precise actuator control. These components meter fluid flow by creating a variable restriction within the circuit. A significant pressure differential across the metering edge is physically required for accurate positioning. Engineers cannot simply minimize the pressure drop without destroying the valve's control resolution. System design must account for this intentional energy loss from the beginning. The primary pump must supply enough excess pressure to overcome this metering restriction. Balancing control precision with overall energy efficiency is the core challenge when deploying servo technology.

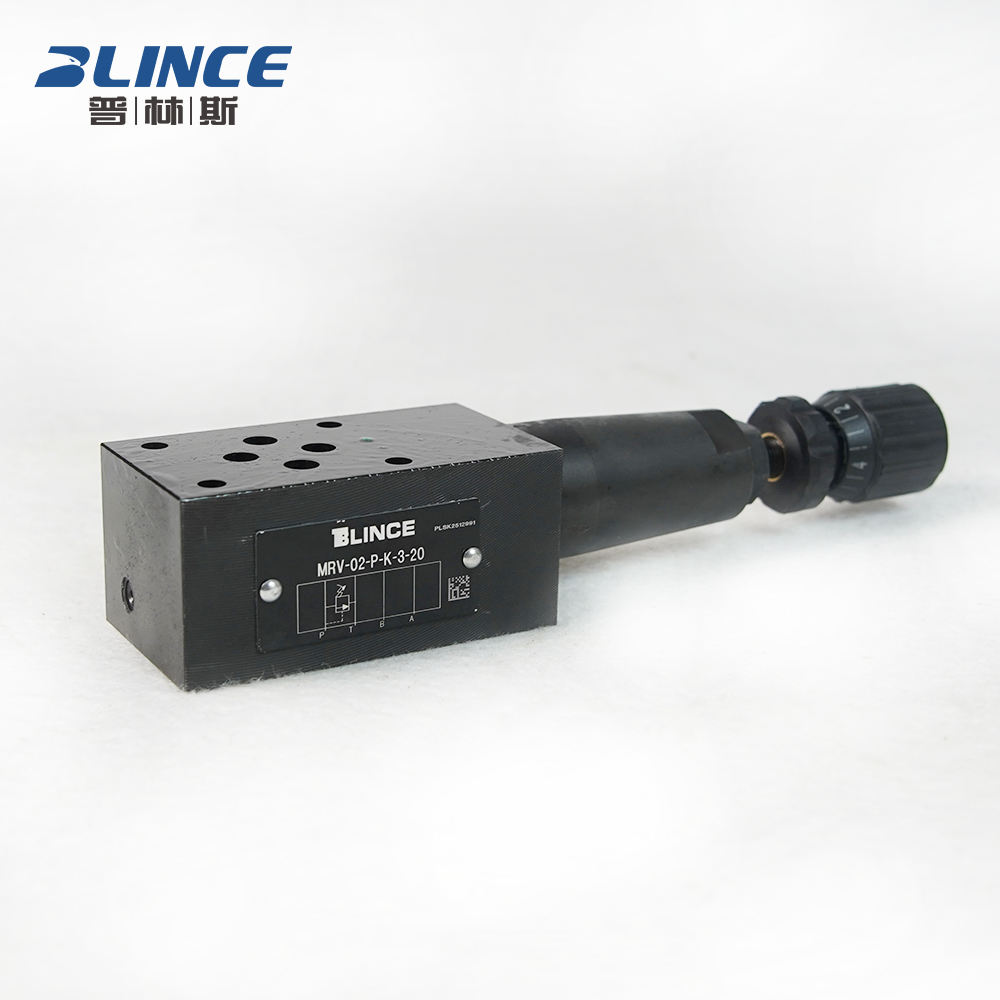

Relief Valve Basics and Bypass Losses

Pressure relief valves protect the circuit from catastrophic overpressure events. However, they are also a primary source of wasted hydraulic energy. Relief valve basics dictate that fluid bypassing the actuator and returning to the tank generates pure heat. Improper setting or sizing leads to continuous energy bleed during normal operation. If the relief setting is too close to the system operating pressure, the valve may partially open prematurely. This cracking pressure allows high-velocity fluid to escape, dropping system efficiency. Engineers must evaluate the energy losses associated with these bypass events. Proper spring selection and precise pressure settings balance necessary system protection with optimal energy conservation.

Strategic Optimization and Sizing

Trade-offs: Oversized vs Undersized Hydraulic Valves

Component sizing requires navigating strict conceptual trade-offs. Undersizing a valve forces high volumes of fluid through a restrictive orifice. This creates excessive heat, severe pressure loss, and potential fluid degradation. The system wastes horsepower simply pushing oil through the undersized component. Conversely, oversizing increases component mass, physical footprint, and upfront material costs. An oversized valve can also introduce control instability, especially in proportional applications. A massive spool shifting slightly may release too much flow instantly, causing actuator jerking. Engineers must match the flow coefficient precisely to the required circuit parameters. Optimal sizing hits the exact middle ground between energy efficiency and control stability.

System-Level Considerations: Hoses, Fittings, and Routing

A valve does not operate in a vacuum; it is part of a broader fluid ecosystem. When pressure drop in hydraulic hoses is not adequately accounted for, the system fails. Quick-connect couplings and adjacent elbows compound the minor losses generated by the valve itself. A highly optimized valve cannot fix a poorly routed hydraulic circuit. Fluid navigating through undersized hoses will arrive at the valve with already depleted kinetic energy. Routing must prioritize straight, short runs with sweeping bends instead of hard angles. Evaluating the cumulative pressure drop of the entire branch is mandatory. System-level optimization ensures the valve receives the fluid energy it was designed to handle.

Manifold Integration vs. Discrete Components

Traditional hydraulic circuits rely on discrete components connected by a web of hoses. This approach introduces dozens of fittings, each adding minor pressure losses to the system. Utilizing custom hydraulic manifolds eliminates these redundant connections entirely. A manifold consolidates multiple control functions into a single, optimized block of metal. Internal gun-drilled passages route fluid directly from one valve to the next. This drastically reduces the cumulative minor losses associated with external plumbing. Manifold integration also reduces the physical footprint and eliminates potential leak points. The smooth internal transitions within a well-machined manifold preserve fluid kinetic energy far better than external hoses.

Cost-Benefit Analysis of Low-Pressure-Drop Components

High-performance, low-pressure-drop components often carry a premium market position. Engineers must evaluate whether this premium is justified by long-term operational metrics. Reduced pressure drop directly translates to lower electrical consumption at the primary pump motor. Less wasted energy also means less heat generation across the fluid circuit. This reduction in thermal load decreases the demands placed on hydraulic cooling systems. Smaller heat exchangers and lower fan speeds further reduce overall energy requirements. A proper cost-benefit analysis focuses on these compounding energy savings over the machine's lifespan. Investing in optimized fluid routing often pays dividends through increased reliability and reduced cooling demands.

Troubleshoot Low Pressure and Potential Hazards

4 Steps to Isolate Valve Pressure Drop

The fastest way to determine the real cause of low system pressure is systematic isolation. You must protect the system from further damage during any diagnostic testing. Follow this sequence to isolate the component:

1. Verify the primary pump output pressure at the main test port to rule out supply failure.

2. Measure the pressure immediately before the suspected valve to confirm adequate fluid delivery.

3. Measure the pressure immediately after the valve while the actuator is under load.

4. Calculate the differential and compare it to the manufacturer's stated Cv curve.

This four-step process isolates valve-induced pressure drops from broader system failures. It prevents mechanics from blindly replacing expensive components without empirical data.

Measurement and Instrumentation

Accurate field diagnostics require professional-grade measurement instrumentation. Inline flow meters provide real-time data on fluid velocity and volume passing through the circuit. Differential pressure transducers offer exact measurements of resistance across a specific component. Analog gauges are often too slow and imprecise to capture transient pressure spikes or drops. Digital data logging allows engineers to record pressure differentials during complex machine cycles. Deploying these instruments at strategic test points removes the guesswork from troubleshooting. Accurate measurement is the only way to validate whether a valve is performing within its specified efficiency range. Proper instrumentation transforms subjective observations into actionable engineering data.

Spot Cavitation and Air Entrainment Risks

Excessive pressure drops introduce severe implementation risks beyond simple energy loss. When localized pressure falls below the fluid's vapor pressure, cavitation occurs. The fluid literally boils at room temperature, creating microscopic vapor bubbles. As these bubbles flow into higher-pressure zones, they violently collapse. This collapse generates localized shockwaves that pit and destroy internal metal surfaces. Aeration presents similar symptoms but involves entrained air rather than fluid vapor. Both conditions cause excessive noise, severe vibration, and rapid component destruction. Identifying these risks requires monitoring the pressure differential closely. Keeping the pressure drop within safe limits prevents the destructive forces of cavitation from forming.

Maintenance Protocols to Prevent Degradation

Hydraulic performance will degrade over time without strict maintenance protocols. Fluid cleanliness standards are the primary defense against increasing internal friction. Particulate contamination acts as a lapping compound, wearing away critical metering edges. This wear alters the internal geometry and increases bypass leakage, dropping system pressure. Routine pressure testing establishes a trend line for component health. Comparing current pressure drops against baseline commissioning data highlights impending failures. Scheduled fluid analysis ensures the oil maintains its required viscosity and specific gravity. Implementing these mitigation strategies ensures the system operates at peak efficiency throughout its intended lifecycle.

Conclusion

Hydraulic valve pressure loss is governed by the strict laws of fluid dynamics. While friction and energy changes make zero pressure drop physically impossible, resistance can be heavily mitigated. Engineers must manage these losses through accurate mathematical modeling and rigorous component selection. Ignoring internal geometry and fluid viscosity leads to sluggish performance and excessive heat generation. The success of a fluid power system relies on minimizing parasitic energy waste at every connection point.

To optimize your fluid power systems and eliminate unnecessary pressure drops, follow these immediate steps:

1. Audit your current machinery using differential pressure transducers to measure exact resistance across control circuits.

2. Match the valve's flow coefficient (Cv) directly to the required circuit flow rate, accounting for specific gravity and operating temperature.

3. Evaluate internal casting geometries and replace restrictive right-angle valves with sweeping channel or poppet designs where applicable.

4. Request a technical evaluation of your manifold routing to eliminate redundant external fittings and hoses.

FAQ

Q: What is an acceptable pressure drop across a hydraulic valve?

A: An acceptable pressure drop typically ranges between 15 to 50 psi for standard directional control valves. Proportional and servo valves may require drops of 150 to 300 psi to maintain precise metering control. The exact acceptable range depends entirely on the system's operating pressure, flow requirements, and thermal management capacity.

Q: How does fluid temperature affect hydraulic valve pressure loss?

A: Fluid temperature shares an inverse relationship with fluid viscosity. As temperature decreases, the hydraulic oil thickens, significantly increasing internal friction and pressure loss. As the system warms up, the fluid thins out, reducing shear resistance and lowering the overall pressure differential across the valve.

Q: Can you completely eliminate pressure drop in a hydraulic system?

A: No, completely eliminating pressure drop is physically impossible. Fluid dynamics dictate that moving oil through any solid boundary generates friction. Energy changes are required to force fluid through orifices and control direction. Optimization focuses on minimizing this resistance, not eliminating it entirely.

Q: What is the difference between major and minor losses in pipe flow?

A: Major losses refer to the friction generated by fluid traveling through straight lengths of pipe or hose. Minor losses are caused by component geometry, such as right-angle turns, curvature, and fluid recirculation within valves and fittings. In complex hydraulic systems, cumulative minor losses often exceed major losses.

Q: How do you calculate the Cv of a hydraulic valve?

A: The basic formula for calculating Cv relates the flow rate (in gallons per minute) to the square root of the specific gravity divided by the pressure drop (in psi). Manufacturers provide the baseline Cv rating, which engineers use to predict pressure loss for their specific fluid and flow rate.

Q: Why does a higher flow rate increase pressure drop?

A: A higher flow rate forces more fluid volume through a fixed internal orifice. This increases fluid velocity dramatically. Because resistance is proportional to the square of the velocity, pushing more fluid through the same space exponentially increases friction and the resulting pressure drop.

Q: How do I know if a pressure drop is causing cavitation?

A: Cavitation produces distinct physical symptoms within the hydraulic circuit. You will hear a loud, rattling noise that sounds like gravel passing through the pump or valve. Severe vibration will occur in the lines. Upon teardown, you will find microscopic pitting and erosion on the internal metal surfaces.
