Specifying the wrong hydraulic actuator leads directly to premature mechanical failure, excessive operational downtime, and severe spatial or weight incompatibilities in machine design. Engineering and procurement teams constantly balance upfront component selection against long-term maintenance realities, physical constraints, and the severity of the operating environment. Choosing between different cylinder architectures dictates how a machine performs under stress and how quickly you can repair it when seals inevitably degrade.
This guide provides an evidence-based, technical comparison oftie rodvs welded hydraulic cylinders to support accurate specification. By understanding the structural differences, load capacities, and maintenance requirements of each design, engineering teams can optimize equipment reliability and streamline lifecycle management without over-engineering the solution.
Maintenance & Repair: Tie rod cylinders allow for rapid, in-field maintenance using standard hand tools, whereas welded cylinders typically require specialized equipment or shop facilities for repair.
Spatial Footprint & Weight: Welded cylinders feature a streamlined, compact, and lighter profile ideal for mobile equipment with tight spatial constraints; tie rod designs are inherently bulkier and heavier due to external hardware.
Standardization vs. Custom Complexity: Tie rod hydraulic cylinders generally adhere strictly to National Fluid Power Association (NFPA) standards for easy interchangeability, while welded cylinders accommodate highly complex designs, including integrated valving and custom mounts.
Durability in Harsh Environments: Welded cylinders provide superior resistance to environmental contaminants and high-vibration applications due to their enclosed, rigid construction, resulting in less maintenance over time.
Table of Contents
Toggle
Tie Rod vs Welded Hydraulic Cylinders: How They Work

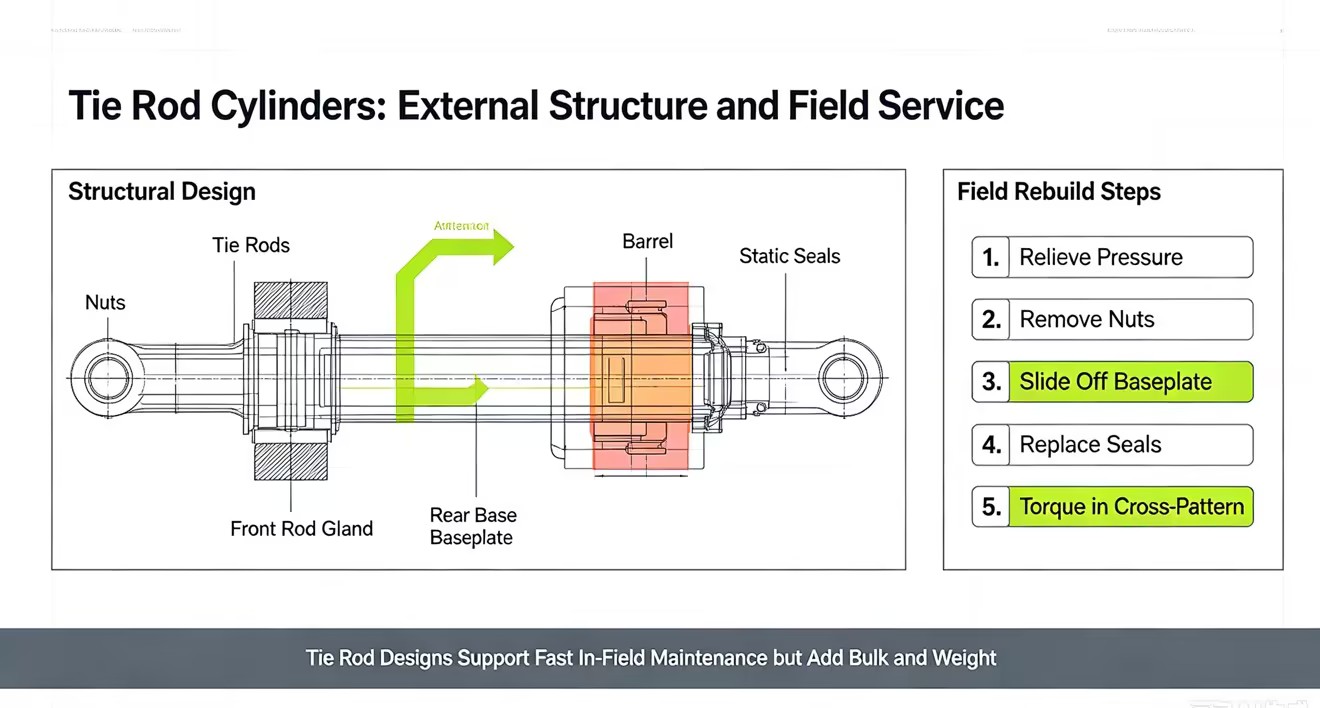

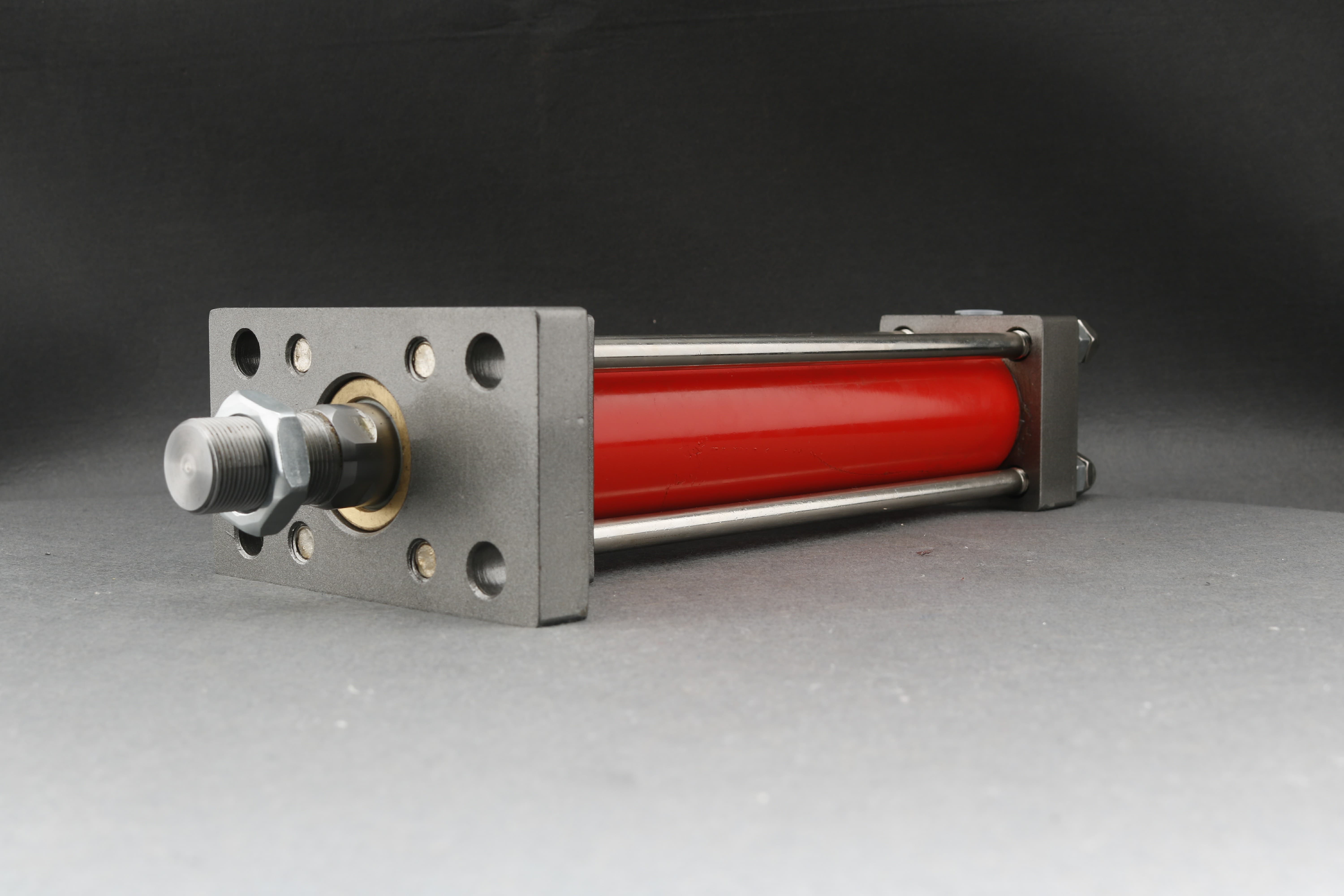

The Mechanics of Tie Rod Hydraulic Cylinders
A tie rod cylinder uses four or more high-strength threaded steel rods running along the outside of the barrel. These rods clamp the front gland and rear baseplate together, while high-tensile nuts maintain the tension needed to keep the internal seals compressed. If vibration or improper maintenance causes uneven rod tension, seal compression can decrease, leading to fluid leaks and pressure loss.
Another key advantage is NFPA standardization, which defines mounting dimensions, port sizes, and rod threads based on cylinder bore and stroke. This makes tie rod cylinders highly interchangeable across manufacturers, allowing maintenance teams to source replacement units without modifying mounts or hydraulic connections.

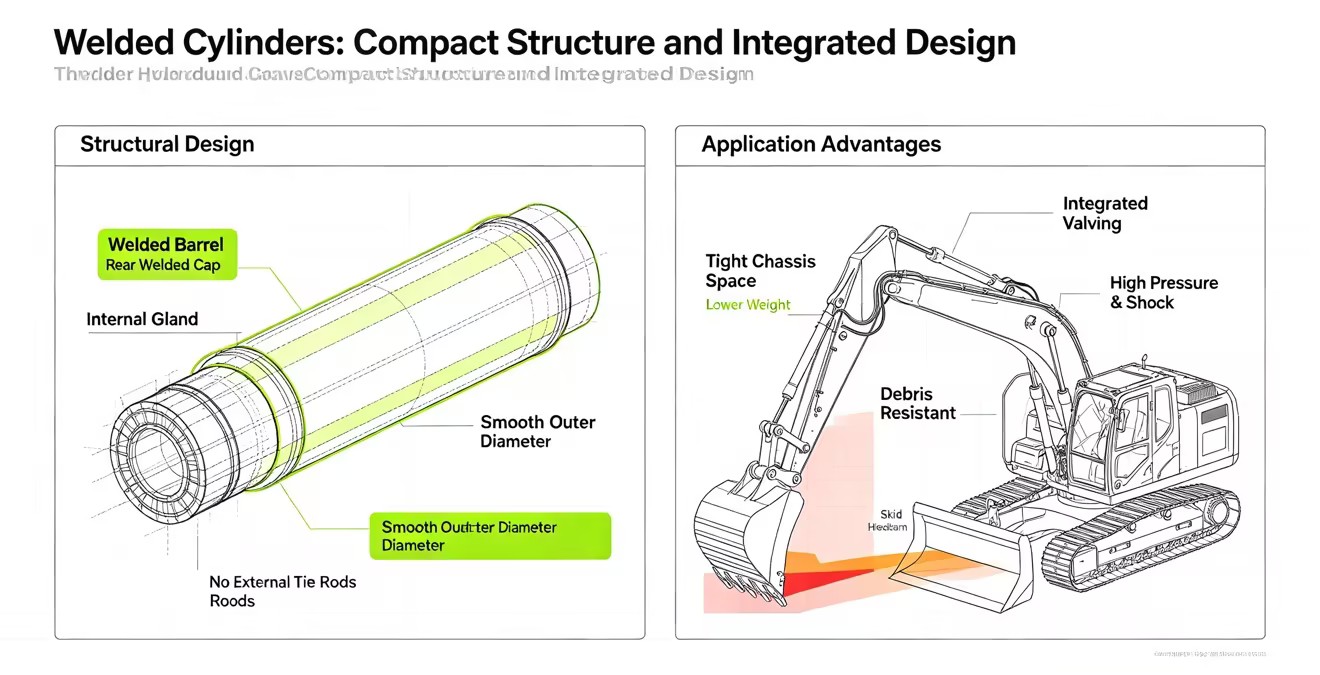

The Mechanics of Welded Hydraulic Cylinders
Welded cylinders eliminate external clamping hardware by welding the steel barrel directly to the rear baseplate, creating a rigid structure that can withstand high internal pressure and external loads. The front gland is typically secured with internal threads, bolted flanges, or snap rings, keeping the cylinder exterior smooth and compact for tight operating spaces.
Welded construction also provides greater design flexibility. Without external tie rods or strict NFPA dimensional limits, manufacturers can adjust wall thickness, customize port locations, and integrate trunnion mounts or valve manifolds directly into the cylinder body. This reduces external plumbing and protects critical components from damage in demanding applications.

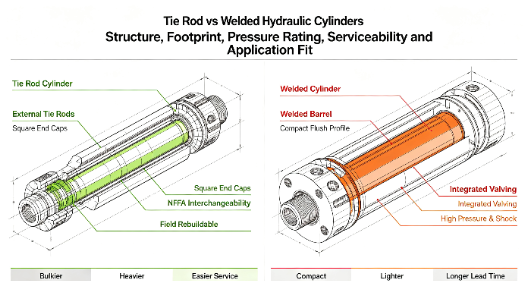

Key Differences Between Tie Rod and Welded Cylinders
Spatial Constraints, Weight, and Equipment Footprint
Physical size and weight are important factors when choosing a hydraulic cylinder. Tie rod cylinders are bulkier because their external rods and square end caps increase the overall width and height, although this is usually not a problem in stationary industrial equipment. Welded cylinders have a more compact, streamlined design that fits better in tight spaces such as excavator booms and skid steer arms. They are also lighter because they eliminate heavy external rods and end caps, helping improve payload capacity and efficiency in mobile equipment. For applications with limited space or strict weight requirements, welded cylinders are often the better choice.
Operating Pressures, Duty Cycles, and Durability
Pressure ratings determine a cylinder’s operating limits. Standard tie rod cylinders typically operate at 2,500–3,000 PSI, while heavy-duty versions may reach 5,000 PSI. However, repeated pressure spikes can stretch the tie rods, reduce seal compression, and eventually cause leakage. Welded cylinders commonly handle 3,000–5,000+ PSI and provide greater structural stability because the welded barrel has no external rods or fasteners to loosen. This makes welded cylinders better suited for high-pressure, high-vibration, and heavy-duty applications.
Maintenance Realities and Downtime Mitigation
Field serviceability represents the most significant operational difference between the two designs. Tie rod units are built for rapid disassembly. A maintenance technician can rebuild one directly on the factory floor using standard hand tools. The process is straightforward:
Isolate the hydraulic system and relieve all residual pressure.
Loosen and remove the four high-tensile nuts at the rear of the cylinder.
Slide the rear baseplate off the barrel.
Pull the rod, piston, and front gland assembly completely out of the tube.
Replace the piston seals, wear bands, and rod wipers.
Reassemble and torque the nuts in a strict cross-pattern to ensure even seal compression.
This simplicity drastically reduces downtime in manufacturing facilities. Repairing a welded cylinder is a much more complex operation. Removing a threaded internal gland often requires heavy-duty spanner wrenches, specialized holding fixtures, and significant torque multiplication. Technicians often need an oxy-acetylene torch to heat the gland and break the factory Loctite seal. In many cases, you must completely remove the cylinder from the machine and transport it to a dedicated fluid power repair facility. If the internal barrel is heavily scored, the repair process involves cutting the welds, honing the tube, and re-welding the assembly—a process demanding specialized machining expertise.
Procurement Logistics and Lifecycle Maintenance
Tie rod cylinders are widely available due to standardized manufacturing and NFPA compliance, making replacements and spare parts easy to source. Welded cylinders, especially custom designs, often require longer lead times. However, in corrosive, abrasive, or high-shock environments, exposed tie rods and hardware can wear quickly and require more frequent maintenance. Welded cylinders have a more enclosed, durable design, often providing longer service intervals that can offset their longer initial procurement time.
Pros and Cons of Tie Rod Hydraulic Cylinders
Core Advantages
The primary advantage of Tie Rod Hydraulic Cylinders is their universal standardization. NFPA compliance ensures that engineering teams can specify a cylinder footprint that will remain supported by the global supply chain for decades. If a specific manufacturer experiences production delays, procurement teams can immediately source an identical drop-in replacement from a competitor without altering the machine design.
This standardization also drives high availability and highly accessible component sourcing. Seal kits, replacement rods, and end caps are universally stocked. Furthermore, the simplified assembly process drastically reduces the mean time to repair (MTTR). Industrial maintenance teams perform complete seal replacements in-house within hours, keeping automated assembly lines and critical manufacturing processes running with minimal interruption.
Primary Limitations
Tie rod cylinders have a bulkier, heavier design, which limits their use in compact or weight-sensitive equipment. Their exposed rods and threads also collect dirt and debris and can corrode quickly in wet or harsh environments, making maintenance more difficult. In addition, tie rod stretch under repeated high-pressure loads can reduce reliability, making these cylinders less suitable for extreme shock applications than welded designs.
Pros and Cons of Welded Hydraulic Cylinders
Core Advantages
The flush, compact design of a welded cylinder allows it to fit seamlessly into restrictive spaces where every millimeter of clearance matters. By eliminating external hardware, manufacturers reduce the overall weight of the actuator, which is a critical performance metric for mobile equipment engineering.
Durability in rugged environments is unmatched. With no exposed rods to bend, catch on debris, or corrode, welded cylinders survive in high-debris, high-vibration applications like mining and forestry. The smooth exterior is easy to clean and resists the accumulation of abrasive contaminants. Furthermore, the architecture is highly customizable. Engineers specify complex integrated valving, multi-stage telescopic requirements, and specialized mounting styles like heavy-duty clevis or spherical bearings directly welded to the barrel.
Primary Limitations
可以适度简化，保留“定制周期长 + 更换困难 + 维修复杂 + 停机时间长”这几个重点：
Welded cylinders often require longer lead times, especially for custom designs. Because they lack universal NFPA standardization, exact replacements may need to be ordered from the original manufacturer. Repairs are also more complex and usually require specialized tools and shop facilities. If a welded cylinder fails, removing, repairing, and reinstalling it can result in significant equipment downtime.
When to Use Tie Rod vs Welded Hydraulic Cylinders
When to Specify Tie Rod Cylinders
Specify tie rod architectures for indoor, stationary industrial applications where space is not heavily restricted and rapid maintenance is the primary operational goal. They dominate factory floors and controlled environments.
Automated manufacturing and assembly lines requiring precise, repeatable strokes.
Plastic injection molding machines, specifically for mold clamp and ejector functions.
Machine tools, metal stamping presses, and heavy-duty industrial compactors.
Environments where minimizing production downtime via rapid, on-site part swapping is the primary success criterion.
When to Specify Welded Cylinders
Specify welded architectures for mobile, outdoor, or heavy-duty applications that demand a compact footprint, weight reduction, and extreme tolerance to environmental abuse and mechanical shock.
Mobile hydraulics, including excavator booms, skid steer loader buckets, and wheel loader lift arms.
Agricultural machinery such as tractor implements, harvesters, and balers.
Mining operations and heavy forestry equipment operating in high-debris zones.
Environments demanding high weather resistance and tolerance to severe, unpredictable mechanical shock loads.
Evaluation Criteria
Tie Rod Cylinders
Welded Cylinders
Standardization
High (Strict NFPA compliance)
Low (Highly customized designs)
Field Repairability
Excellent (Requires basic hand tools)
Poor (Requires specialized shop tools)
Physical Footprint
Bulky (External rods and square caps)
Compact (Flush, streamlined barrel)
Max Operating Pressure
Up to 3,000 PSI (Standard)
5,000+ PSI (Handles extreme shock)
Ideal Environment
Indoor, stationary, controlled
Outdoor, mobile, rugged, high-debris
Conclusion
Audit your physical operating environment for spatial constraints, weight limits, and exposure to corrosive contaminants before selecting a cylinder architecture.
Calculate the acceptable downtime limits for your machinery to determine if rapid, in-field rebuild capabilities are mandatory for your operation.
Evaluate your current maintenance infrastructure to ensure technicians have the proper spanner wrenches, holding fixtures, and torque equipment for the specified cylinder type.
Consult with a fluid power engineer to finalize bore, stroke, and mounting specifications based on the maximum system pressure and anticipated shock loads.
FAQ
Q: Can a welded hydraulic cylinder be repaired in the field?
A: Field repairs for welded cylinders are highly difficult. Removing the internal threaded gland requires heavy-duty spanner wrenches, holding fixtures, and significant torque that you cannot easily apply on a job site. Technicians usually must remove the unit and transport it to a dedicated hydraulic repair facility equipped with teardown benches.
Q: Are tie rod hydraulic cylinders interchangeable between brands?
A: Yes, the vast majority are highly interchangeable. Manufacturers build them to strict National Fluid Power Association (NFPA) dimensional standards. This ensures that mounting footprints, rod thread sizes, and port locations match exactly across different brands, allowing maintenance teams to install drop-in replacements without modifying the machine.
Q: Which hydraulic cylinder type handles higher operating pressures?
A: While engineers can design both types for high-pressure applications, welded cylinders are superior for extreme pressures and heavy shock loads above 3,000 PSI. The continuous weld seam prevents the structural stretching and subsequent seal failure that often occurs in tie rod designs under severe cyclic loading.
Q: Why are welded hydraulic cylinders used on mobile equipment?
A: Mobile equipment requires components that maximize payload and fit into tight chassis spaces. Welded cylinders lack bulky external rods and heavy square end caps, providing a narrow, lightweight, and streamlined profile. Their smooth exterior also prevents mud and debris accumulation in harsh outdoor environments.
Q: What causes tie rod hydraulic cylinders to fail?
A: Common failure modes include tie rod stretch caused by pressure spikes, which leads to static seal extrusion and leakage. Heavy vibration can also cause the retaining nuts to lose torque. In harsh environments, the exposed rods are highly susceptible to physical bending, debris accumulation, and thread corrosion.
Q: Is it better to rebuild or replace a hydraulic cylinder?
A: The decision depends on the extent of internal damage. Standard tie rod cylinders with simple seal wear are highly efficient to rebuild. However, if a welded cylinder has severe internal barrel scoring or a bent rod, complete replacement is often more practical than extensive machining and re-welding.
