What’s the Difference Between a Hydraulic Pump and a Hydraulic Power Unit

1. Overview of Hydraulic Systems

Hydraulic systems transmit power through pressurized fluid to operate machinery. These systems convert mechanical energy into hydraulic energy (pressure and flow), enabling precise control of force and motion. Because of their high power density, responsiveness, and robustness, hydraulic systems are widely employed in sectors such as construction, manufacturing, aerospace, and mobile equipment. Advances in materials, control methods, and fluid technology have continually improved their efficiency, reliability, and performance.

2. Hydraulic Pumps: The Core of the System

A hydraulic pump is a mechanical device that transforms mechanical input (e.g. from an electric motor or engine) into hydraulic energy. It does this by creating fluid flow against system pressure, which then drives actuators such as cylinders or motors.

2.1 Types of Hydraulic Pumps

Most pumps in hydraulic systems are positive-displacement pumps, meaning they deliver (nearly) the same volume per cycle regardless of pressure (until leakage dominates) . They are broadly categorized as fixed-displacement or variable-displacement types.

Here are common pump types used in hydraulic systems:

• Gear Pumps

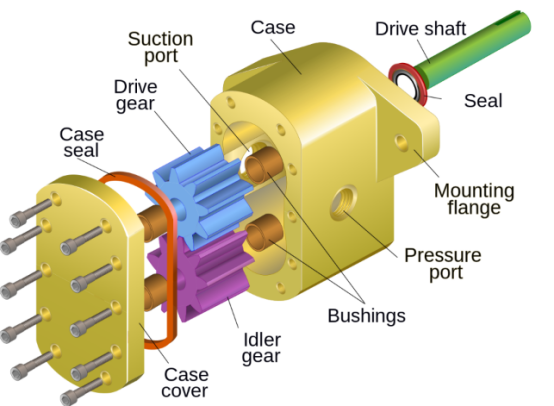

  Gear pumps (external or internal) are among the simplest and most economical positive-displacement pumps. They use meshing gears that carry fluid from the inlet side around gear teeth to the discharge side.
  Advantages: compact, low cost, easy maintenance
  Limitations: higher noise, more flow ripple, limited pressure capability and efficiency at high pressures

• Vane Pumps
  Vane pumps use sliding vanes housed in a rotor. As the rotor turns, vanes slide radially to maintain contact with the pump housing, creating expanding and contracting chambers to draw in and push out fluid.
  They offer smoother flow and lower noise than gear pumps, and many designs allow pressure compensation or variable displacement control.

• Piston Pumps (Axial & Radial)
  Piston (or plunger) pumps are more complex but capable of high pressures and high efficiencies. Multiple pistons reciprocate inside cylinder bores, often driven by a swashplate or bent-axis mechanism.
  These pumps are often used in demanding applications requiring robust performance, precise control, and high pressure capacity.

• Other Types

• Screw Pumps / Progressive-Cavity Pumps: Good for viscous or shear-sensitive fluids; often used in metering or specialty fluid applications

• Flexible-Impeller Pumps: Useful for self-priming or bidirectional flows in lower-pressure settings

2.2 Pump Operation & Performance Metrics

Working Principle
A hydraulic pump essentially creates a partial vacuum at its inlet, causing fluid to flow in from the reservoir. The pump then forces fluid into the system at its outlet, overcoming system pressure.

Key Performance Parameters

• Flow Rate (Q): The volume of fluid delivered per unit time.

• Pressure (P): The force per area the pump must overcome to deliver fluid through the system.

• Efficiency:
  • Volumetric Efficiency (η_v) = actual flow / theoretical flow. It declines due to internal leakage.
  • Mechanical Efficiency (η_m) = theoretical input torque / actual torque (losses from friction, etc.).
  • Overall Efficiency (η_o) = η_v × η_m (i.e. volumetric × mechanical)

Efficiency is critical because losses typically manifest as heat, raising fluid temperature and reducing system performance.

Design and Selection Considerations

• Pumps should be sized to operate near their best-efficiency point; off-design operation reduces efficiency.

• Pressure, flow, fluid compatibility (viscosity, additives), temperature, and contamination levels must be factored.

• Use of variable-displacement or pressure-compensated pumps can reduce wasted flow and improve system energy efficiency.

• Efficiency charts of pump types show varying performance ranges; e.g. piston pumps tend to maintain higher efficiency at higher pressure levels.

2.3 Applications of Hydraulic Pumps

Hydraulic pumps are foundational in systems needing high force, precise control, or continuous operation. Some domains include:

• Construction & Heavy Equipment: Excavators, loaders, cranes, etc., require pumps delivering high flow at high pressure.

• Industrial & Manufacturing: Presses, injection molding machines, stamping lines, and other machine tools.

• Aerospace & Defense: Actuation of flaps, landing gear, brakes—requiring tight control, high reliability, lightweight design.

• Marine / Offshore: Pumps in ship steering, winches, offshore platforms—must resist corrosion and function reliably in harsh environments.

3. Hydraulic Power Units (HPUs): Integrated Power Solutions

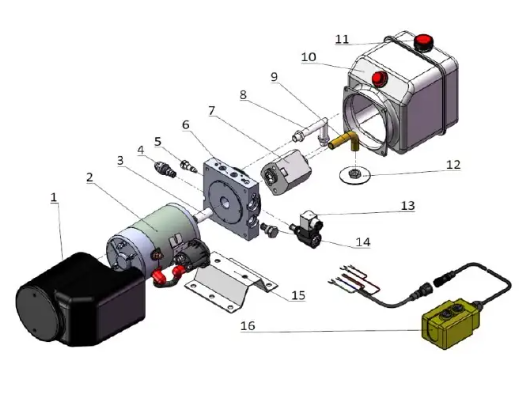

A Hydraulic Power Unit (HPU) integrates the pump with its drive, reservoir, filtration, cooling/heating, and control systems—a turnkey hydraulic power source.

3.1 Main Components

• Reservoir / Tank: Stores hydraulic fluid, allows for thermal dissipation and air separation.

• Prime Mover (Motor or Engine): Supplies mechanical power to drive the pump.

• Pump: Selected to meet system pressure and flow demands.

• Filter System: Maintains fluid cleanliness; contamination is one of the top causes of hydraulic failure.

• Cooling / Heating Systems: Keeps fluid within the optimal temperature range to maintain viscosity and reduce degradation.

• Control Valves, Pressure Relief, Sensors, Instrumentation: Direct and regulate flow, pressure, temperature, etc.

3.2 Operation Workflow

1. Start-up: prime mover turns the pump, initiating fluid circulation.

2. Pressurization: fluid is drawn from the reservoir and pressurized.

3. Supply: pressurized fluid is delivered to the hydraulic circuit via control valves.

4. Return & Conditioning: fluid returns through filters and coolers/heaters to the reservoir.

5. Monitoring & Control: sensors and controllers regulate system conditions in real time.

Because the HPU includes multiple components, the system-level efficiency is lower than a pump alone, due to losses in filters, piping friction, heat exchange, etc.

3.3 Applications of HPUs

• Factory Automation & Processing Lines: Compact and centralized hydraulic power for presses, molds, robots.

• Mobile & Off-Road Machinery: The HPU must be compact, vibration-resistant, and robust.

• Aerospace & Defense Systems: High reliability, redundancy, and lightweight construction are critical.

• Marine, Oil & Gas, Offshore Platforms: Resistance to corrosion, high power, robustness under harsh conditions.

When designing or selecting an HPU, key trade-offs include initial cost, efficiency, maintenance complexity, lifetime cost, and space / weight constraints.

4. Pump vs. Power Unit: A Comparative Perspective

In practice: when you already have hydraulic infrastructure, adding or replacing pumps may suffice. But for new or modular systems, an HPU offers convenience, compact integration, and easier deployment.

5. Design & Selection Best Practices

• Match Flow & Pressure to Demand: Always select pumps or HPUs that can meet peak demands with headroom for safety and future expansion.

• Choose the Right Pump Type: For high-pressure, precision systems, piston pumps often outperform gear/ vane types in efficiency and durability.

• Use Variable Displacement or Compensation: Helps reduce wasted flow and improve energy efficiency in variable-load systems.

• Optimize for Efficiency: Operate pumps near their best-efficiency point; avoid significant off-design operation which lowers performance.

• Fluid & Environmental Compatibility: Consider fluid viscosity range, temperature extremes, contamination, and corrosion.

• Plan for Maintenance: Ensure filters, monitoring sensors, and service access are well thought out.

• Redundancy & Protection: In critical systems, include relief valves, overpressure protection, redundant pumps, and fault detection.

• Total Lifecycle Cost: Don’t focus solely on purchase price; energy costs, downtime costs, repair parts, and longevity are equally or more important.

An example of modern energy-saving strategies is the use of leakage compensation control in excavator actuator circuits, which has demonstrated an approximate 8.5% improvement in system energy efficiency over traditional proportional valve circuits.
