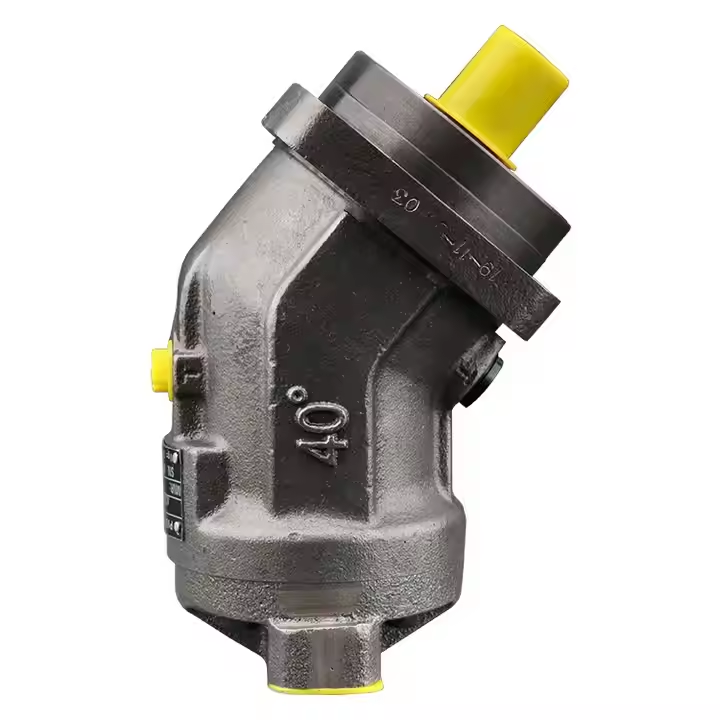

This BLINCE motor is powerful. It features a durable cast iron housing. Internal parts use alloy steel. These parts are heat-treated. This ensures high strength.
It is an axial bent-axis motor. It has fixed displacement. Speed output is stepless. It integrates with gearboxes. This gives high torque. It also operates quietly.
High-pressure seals are used. Bearings are selected for long life. They ensure high reliability. The motor is built to last.
| Brand Name | BLINCE |
| Material | Housing: Durable Cast Iron |
| Internal: Alloy Steel | |
| Warranty | 1 year |
| Certifications | FSC, CE, ISO 9001:2015, SGS |
| Displacement Range | 28–355 cm³/rev |
| Max Speed | Up to 6,900 rpm (depends on displacement) |
| Rated Pressure | Up to 400 bar |
| Peak Pressure | Up to 450 bar |
| Max Output Torque | 160cc: ~1,146 N·m |
| 355cc: ~1,978 N·m | |
| Structure Type | Axial Bent Axis Piston Motor (A2FE series) |
| Design Features | Stepless speed output |
| Efficient gearbox integration | |
| High torque, low noise | |
| Seals and Bearings | High pressure resistant seals |
| Long-life, reliable bearings |
High Power Density: This motor is compact. It fits mechanical gearboxes easily. Installation is simple. It delivers strong power in a small size.
Strong Torque Output: The 160cc model gives up to 1,146 N·m. The 355cc model reaches 1,978 N·m. This provides powerful rotation for demanding tasks.
High Speed Compatibility: Smaller displacement versions reach 6,900 rpm. This allows for fast operation. It suits applications needing high rotational speeds.
High Efficiency, Low Leakage: Quality heat-treated parts combine with good seals. This design ensures high operational efficiency. It also keeps oil leakage to a minimum.
Durable and Reliable: Bearings and the housing use high-strength materials. It works well from -25°C to 80°C. This motor performs reliably in many settings.
Construction Machinery: It drives excavators. It integrates with planetary gearboxes for high pressure output.
Agriculture and Forestry: It powers harvesters. It drives fans and other transmission systems.
Industrial Automation: It works with heavy processing machines. It handles transmission and rotation systems.
Special Vehicles: It serves as a power unit for forklifts. It also drives mining vehicles and underground equipment.
Marine Machinery: It operates winches. It powers capstans and hydraulic propulsion auxiliary systems on boats.
Q1: What materials are used to build the A2FE motor?A1: The housing is made from durable cast iron. Internal parts, like pistons and shafts, use alloy steel. These are precisely heat-treated for strength.
Q2: What is the warranty period for this motor?A2: The A2FE motor comes with a one-year warranty.
Q3: What certifications does the A2FE motor have?A3: It holds several certifications. These include FSC, CE, ISO 9001:2015, and SGS.
Q4: What is the displacement range of the A2FE motor?A4: The displacement ranges from 28 to 355 cm³/rev.
Q5: How high can the motor's speed go?A5: It can reach up to 6,900 rpm. The exact maximum speed depends on the specific displacement model.
Q6: What are the pressure ratings for this motor?A6: The rated pressure is up to 400 bar. It can handle peak pressures up to 450 bar.
Q7: Can you give examples of the motor's torque output?A7: Yes. A 160cc model provides about 1,146 N·m. A 355cc model delivers around 1,978 N·m.
Q8: What type of structure does the A2FE motor have?A8: It is an axial bent-axis fixed displacement piston motor. It belongs to the A2FE series.
Q9: What are the key design features of this motor?A9: It offers stepless speed output. It integrates well with mechanical gearboxes. It provides high torque and low noise performance.
Q10: What kind of seals and bearings are used?A10: It features high-pressure resistant seals. Bearings are chosen for long life and high reliability.
Q11: What makes this motor durable and reliable?A11: Both the bearings and housing use high-strength materials. It operates in temperatures from -25°C to 80°C, suiting many environments.
Q12: Where is the A2FE motor typically used?A12: It's used in construction machinery (e.g., excavators), agriculture and forestry equipment (e.g., harvesters), and industrial automation. You'll also find it in special vehicles (e.g., forklifts, mining vehicles) and marine machinery (e.g., winches).
