Hydraulic Cylinder Stroke Length: How to Select the Correct Stroke

Precision in fluid power design dictates system efficiency and operational safety. At the core of this mechanical precision is the hydraulic cylinder stroke length. Specifying the wrong stroke introduces severe operational risks to your machinery. You face mechanical binding, catastrophic rod buckling, premature seal failure, and incomplete load actuation. Engineers and procurement teams need a reliable framework to accurately measure, evaluate, and select the correct stroke. This guide provides that exact framework for both replacement parts and new OEM applications. We will cover how to measure stroke accurately on the shop floor, apply the 80% rule for stability, and mitigate buckling risks in long-stroke applications. You will learn to avoid common sizing errors that lead to equipment downtime and ensure your fluid power systems operate at peak reliability.

Key Takeaways

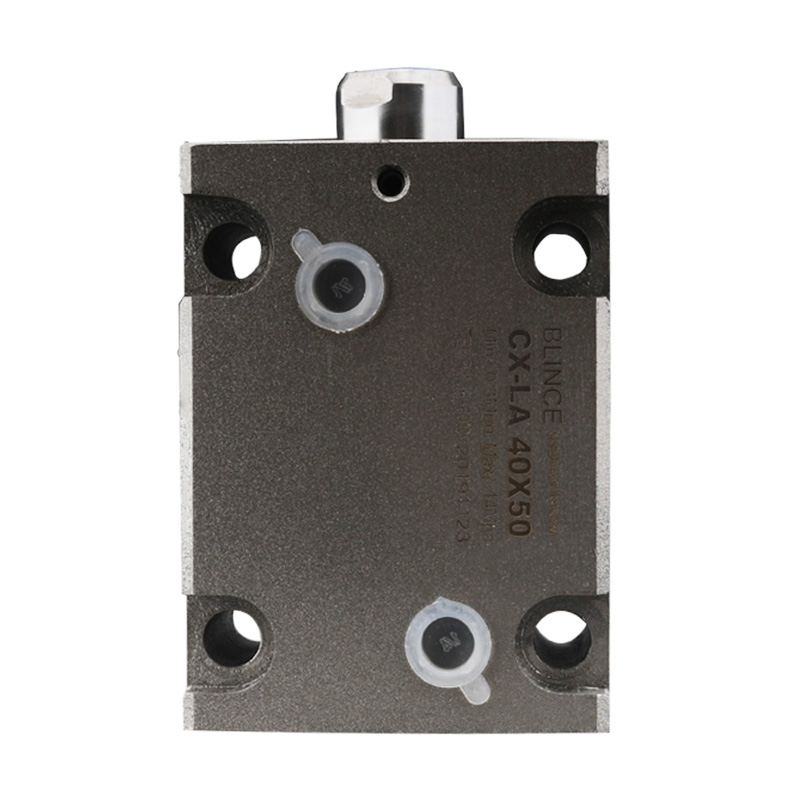

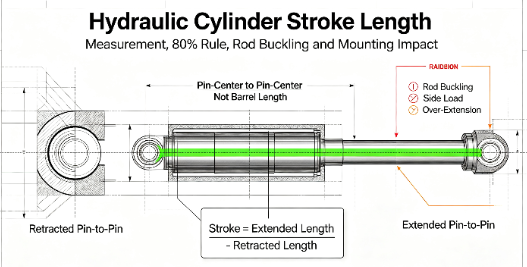

• Measurement Standard: Stroke length is strictly the difference between the fully extended and fully retracted pin-center-to-pin-center measurements, not the overall length of the cylinder housing.

• Holistic Sizing: Selecting the right stroke cannot be done in isolation; it must be calculated in sequence with required force (bore size) and column strength (rod diameter).

• The 80% Rule: For optimal stability and longevity, operational extension should ideally be kept within 80% of the maximum rated stroke to minimize internal wear and side-loading.

• Buckling Mitigation: Long-stroke applications require secondary engineering evaluations for column strength, often necessitating oversized rods or internal stop tubes to prevent buckling under compressive loads.

• Mounting Dependency: The chosen mounting style (e.g., trunnion vs. clevis) directly alters the effective stroke capacity and the cylinder's susceptibility to side-load stress.

Understanding Hydraulic Cylinder Stroke Length in System Design

What Is Hydraulic Cylinder Stroke Length

Stroke length represents the exact distance the piston travels inside the cylinder tube. It spans from full retraction to full extension. This metric defines the maximum linear motion the actuator can produce. It does not refer to the physical length of the outer barrel, the tie-rods, or the entire assembled unit. When a machine requires a specific range of motion, the stroke length dictates whether the actuator can physically reach the required endpoints. Understanding this distinction prevents costly sizing errors during procurement and installation. If you order an actuator based on the barrel length, the actual working travel will fall short, leaving your equipment unable to complete its mechanical cycle.

Step Order for Cylinder Sizing: Force, Stroke, Pressure

Fluid power design follows a strict sequential logic. You cannot isolate stroke length from other operational variables. The sizing process requires three distinct steps to ensure system compatibility. Skipping any of these steps leads to mismatched components and system failure.

1. Step 1: Calculate Required Force (Bore). You must first determine the load the cylinder needs to move. This calculation dictates the internal bore size. A larger bore generates more push force at a given pressure. You must know the maximum weight or resistance the system will encounter.

2. Step 2: Determine Distance of Work (Stroke Length). Once you know the force, you identify how far that load must travel. This establishes the stroke requirement. You measure the physical distance between the starting position and the final actuation point.

3. Step 3: Evaluate Operating Pressure (PSI/Bar). Finally, you assess the hydraulic system pressure needed to achieve the desired output across the established bore and stroke dimensions. The pump must deliver enough flow and pressure to move the volume of fluid required by the stroke length within your target cycle time.

Core Goals When Choosing Cylinder Stroke

Specifying the correct stroke length hinges on three primary objectives. First, the cylinder must achieve the required load travel. Incomplete extension means the machine cannot perform its intended function, whether that is lifting a boom arm or pressing a die. Second, the assembly must maintain structural rigidity. Excessive stroke without proper support leads to rod deflection and seal damage. Third, the unit must fit within the physical envelope of the machinery. Space constraints often dictate the maximum allowable retracted length, which directly limits the available stroke you can package into the machine frame.

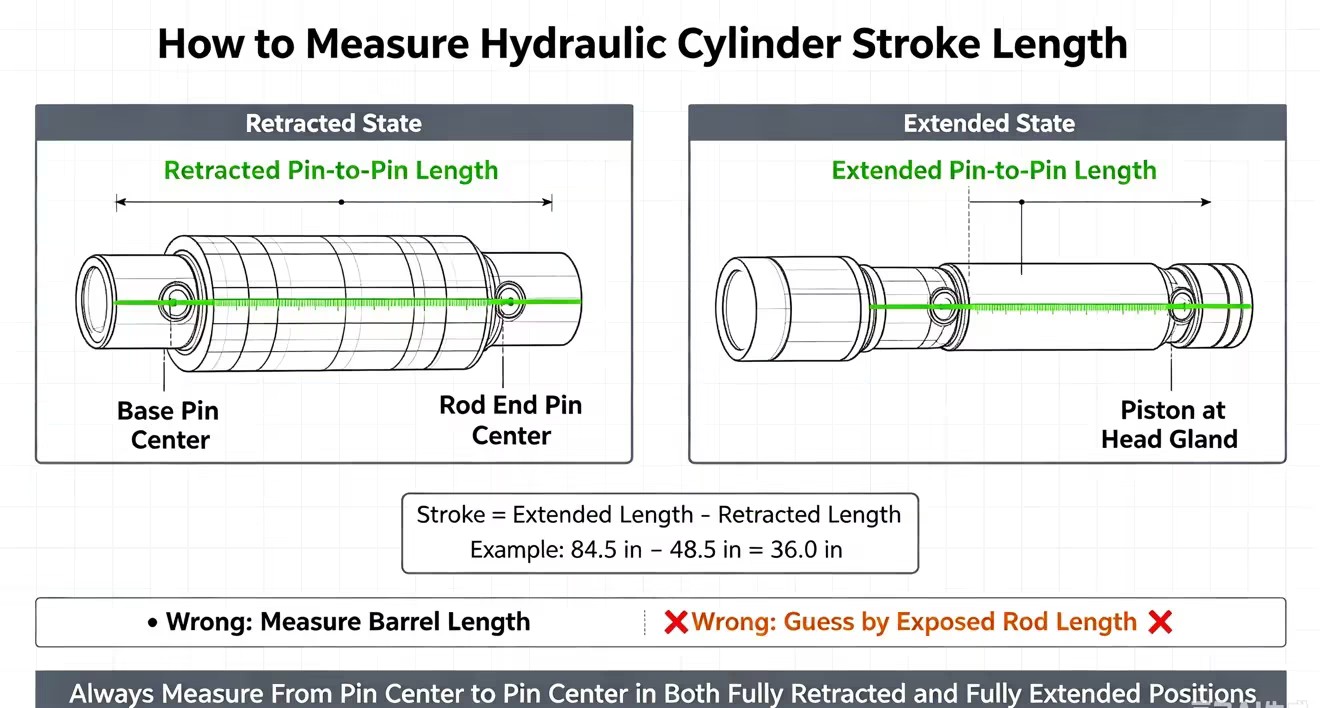

How to Measure Cylinder Stroke for Replacement

Step-by-Step Measurement Protocol for Replacements

Step 1: Measure Bore and Rod Diameter First

Measuring the bore and rod diameter alongside stroke length is mandatory. When replacing a damaged unit, matching the stroke alone is insufficient. The bore determines the force output, while the rod diameter dictates column strength. If you replace a cylinder with the correct stroke but an undersized rod, the new unit will likely buckle under compressive loads. Always capture these three dimensions together to ensure mechanical compatibility. Use digital calipers to measure the rod diameter accurately, as a fraction of an inch difference changes the structural integrity.

Step 2: Retracted Length Measurement

Start by fully collapsing the Hydraulic Cylinder. Ensure no hydraulic pressure remains in the system. Lock out and tag out the equipment if the unit is still mounted. Lay the unit flat on a stable surface. Use a heavy-duty steel tape measure to find the exact center of the base end mounting pin. Extend the tape to the exact center of the rod end mounting pin. Record this pin-center-to-pin-center distance. This represents the absolute minimum physical space the cylinder will occupy in the machine. Do not measure from the edge of the pin hole; always measure from the dead center.

Step 3: Extended Length Measurement

Next, safely extend the rod to its maximum mechanical limit. You may need to use compressed air or manual force to pull the rod out completely. Ensure the piston bottoms out against the head gland. Once fully extended, repeat the pin-to-pin measurement. Measure from the center of the base pin to the center of the rod pin. Record this value accurately. If the unit is too heavy to extend manually, use a shop crane or come-along, but apply force gently to avoid damaging the internal piston seals.

Step 4: The Calculation

Determining the actual stroke requires a simple mathematical calculation. Do not rely on estimating the exposed rod length, as this often includes dead space and threaded sections that do not retract into the gland. Use the standard formula:

Extended Length – Retracted Length = Stroke Length

For example, if the extended length is 84.5 inches and the retracted length is 48.5 inches, the true stroke is exactly 36.0 inches. Always double-check your math before submitting a purchase order.

Unit Standardization

Verify whether your system architecture requires metric (millimeters) or imperial (inches) units. Mixing these units causes significant procurement errors. A 50mm stroke is not equivalent to a 2-inch stroke (it is 1.968 inches). When inputting data into manufacturer configurators, strict adherence to the specified unit standard prevents ordering incompatible parts. Check the original equipment manufacturer (OEM) manual to confirm the native measurement system of the machine.

Common Measurement Errors to Avoid

Housing vs. Stroke

Measuring the outer barrel leads to inaccurate sizing. The cylinder housing includes the base cap, the head gland, and internal piston thickness. This "dead length" does not contribute to linear motion. If you order a cylinder based on the barrel length, the actual stroke will be significantly shorter than required. This results in incomplete actuation and requires you to scrap the new unit and order a replacement.

Ignoring Stroke Limiters

Internal spacers or external mechanical stops create discrepancies between theoretical stroke and actual working stroke. A cylinder might have a theoretical capability of 30 inches, but internal stop tubes might limit the actual travel to 26 inches. Always check for these limiters when measuring a replacement unit to ensure the new cylinder matches the exact working parameters. If you miss a stop tube during measurement, the new cylinder will over-extend and potentially tear the machine linkages apart.

Stroke Sizing Guide for New Machine Designs

Define Movement Requirements for Your Load

Kinematic Analysis

Designing a new application requires mapping the required travel distance of the mechanical load to the linear motion of the actuator. Kinematic analysis helps determine how the load moves through space. If the load moves in a straight line, the stroke length matches the load travel exactly. However, if the cylinder operates a lever, a bell crank, or a pivot arm, the linear motion converts to angular motion. In these cases, a short stroke can produce a large sweeping arc. Consider a bucket loader: a 15-inch stroke might translate to 90 degrees of bucket rotation. You must calculate the exact geometry using CAD software or physical mockups to ensure the stroke provides the correct degree of rotation without binding.

Clearance and Envelope Constraints

Evaluate the physical space available for the cylinder in both its fully retracted and fully extended states. Machine frames have strict spatial limits. You must factor in the differences between welded and tie-rod constructions. Welded designs generally offer a more compact retracted length for a given stroke, making them ideal for mobile equipment. Tie-rod designs often require more clearance due to the protruding rods and bulkier end caps, but they are easier to service in industrial settings. Ensure the chosen stroke length fits within the operational envelope without interfering with hoses, wiring harnesses, or other mechanical components during the full range of motion.

The 80% Rule for Stroke Stability

Operational Longevity

Engineering best practices dictate limiting routine extension to 80% of the maximum rated stroke. Pushing a cylinder to its absolute mechanical limit on every cycle accelerates wear. When the piston bottoms out against the head gland repeatedly, it generates shock loads that degrade the seals, wear bands, and internal components. Designing the system so the normal working stroke falls within the 80% threshold significantly extends the operational lifespan of the equipment. This reserve capacity acts as a mechanical buffer against unexpected load shifts.

How Stroke Reserve Reduces Side Bearing Stress

Keeping a reserve stroke length increases the distance between the piston and the head gland during maximum operational extension. This distance provides critical internal bearing support. When a rod extends fully, the side loads multiply, acting like a lever against the internal wear bands. By maintaining a 20% reserve, you keep the piston deeper inside the barrel. This wider stance resists side-loading forces, prevents rod scoring, and reduces premature seal wear. The further apart the internal bearing surfaces remain, the more rigid the entire assembly becomes under heavy loads.

Check Rod Buckling Risk for Long-Stroke Cylinders

Weak Points of Long-Stroke Hydraulic Cylinders

Compressive Load Dynamics

Euler’s column formula applies directly to fluid power design when evaluating long-stroke applications. As stroke length increases, the buckling risk under push loads grows exponentially. A long, thin rod acts like a column under compression. Even slight side loads or misalignments can cause the rod to bend permanently. You must calculate the critical buckling load based on the rod diameter, the stroke length, and the mounting style. A 2-inch diameter rod might easily push 10,000 pounds at a 12-inch stroke. Extend that stroke to 48 inches, and that same 2-inch rod will bend like a wet noodle under a 4,000-pound load. If the operational load exceeds the critical buckling threshold, catastrophic failure is imminent.

Tension vs. Compression

Stroke length represents a critical failure point in compression (pushing) applications. When pushing a load, the rod is under severe compressive stress, making buckling a primary concern. Conversely, long strokes pose less structural risk in tension (pulling) applications. When pulling a load, the rod acts like a cable under tension. It naturally aligns itself and resists bending. Therefore, long-stroke sizing requires far more rigorous engineering validation for push applications than for pull applications. You can often use a smaller rod diameter for a long-stroke pulling application, saving weight and space.

Mitigation Strategies: Stop Tubes and Rod Oversizing

How Internal Stop Tubes Improve Stability

A stop tube is a metal collar installed inside the cylinder barrel, positioned between the piston and the head gland. It physically prevents the rod from extending fully. This increases the minimum distance between the internal bearing surfaces, vastly improving column stability. The standard rule of thumb suggests adding one inch of stop tube length for every ten inches of stroke exceeding 40 inches. If your stroke is 60 inches, you are 20 inches over the threshold, requiring a 2-inch stop tube. While a stop tube increases the overall retracted length of the housing, it provides essential rigidity for long-stroke push applications.

Upsizing Rod Diameter for Column Strength

If spatial constraints prevent the use of a stop tube, increasing the rod diameter is the next best mitigation strategy. A thicker rod inherently possesses a higher moment of inertia, making it far more resistant to bending. This improves column strength without altering the required stroke length or increasing the retracted length of the housing. However, a larger rod reduces the effective area on the retract side of the piston. This decreases the pulling force and increases the retraction speed, which alters the cycle times of your machinery. You must balance column strength against the required retract dynamics.

How Mounting Styles Influence Stroke Selection

Fixed Mounts vs. Pivot Mounts

Fixed Mounts (Flange, Tie-Rod)

Rigid mounting styles, such as front flanges, rear flanges, and extended tie-rods, hold the cylinder completely stationary. These mounts handle stroke extension well but require perfect linear alignment. Any deviation in the load path introduces severe side-loading. In long-stroke applications, even a fraction of a degree of misalignment causes the rod to bind against the head gland, destroying the rod seal in a matter of hours. Fixed mounts are best suited for applications where the load is strictly guided on external rails, tracks, or heavy-duty linear bearings.

Pivot Mounts (Clevis, Trunnion)

Pivot mounts, including rear clevises and center trunnions, allow the cylinder body to pivot as the rod extends. This accommodates slight arc motions in long-stroke applications, naturally absorbing minor misalignments. However, pivot mounts require careful calculation of the pivot point. A rear clevis mount places the pivot point at the extreme end of the cylinder, maximizing the unsupported column length and increasing buckling risk. A center trunnion mount moves the pivot point closer to the load, effectively reducing the unsupported length and drastically improving buckling resistance for long strokes.

Effective Length Adjustments

The choice of mount directly changes the overall retracted length. A front flange mount typically offers the shortest pin-to-pin equivalent, maximizing the available stroke within a fixed machine envelope. A rear clevis mount adds the length of the clevis bracket and the pin eye to the overall assembly. When working with tight spatial constraints, you must account for the dimensional footprint of the specific mounting hardware. The mount directly impacts the maximum stroke you can fit into the machine before the housing interferes with the surrounding framework.

Standard vs Custom Stroke: Cost and Lead Time Tradeoffs

Standard Stroke Increments

Cost and Availability

Designing around standard stroke increments yields significant financial and lead-time benefits. Manufacturers typically stock raw materials and pre-machined components for standard sizes, such as 2-inch, 4-inch, 10-inch, or standard metric equivalents like 50mm, 100mm, and 250mm. Ordering off-the-shelf sizes eliminates custom machining setups, reducing upfront manufacturing costs and drastically shortening delivery times. For most industrial applications, adapting the machine design to accommodate a standard stroke is far more efficient than demanding a custom build from the factory.

Interchangeability

Standard sizing simplifies future maintenance and sourcing. When a standard cylinder fails in the field, finding a direct drop-in replacement from multiple vendors is straightforward. This interchangeability minimizes equipment downtime and keeps production lines moving. If you design a machine around a highly unique stroke length, you lock yourself into custom reordering cycles. Standard strokes ensure that maintenance teams can quickly source replacement parts locally without waiting weeks for specialized fabrication and shipping.

Benefits of Standard Stroke Sizes

Application-Specific Justification

Certain scenarios make custom machining mandatory. Highly constrained OEM equipment often lacks the physical space to accommodate standard increments. Specialized heavy machinery, such as custom mining excavators, bespoke aerospace testing rigs, or marine steering gears, requires exact stroke lengths to achieve precise kinematic motion. In these cases, forcing a standard stroke into the design compromises the machine's functionality and safety. You must specify the exact travel required to the fraction of an inch to ensure the mechanism operates flawlessly.

Upfront Engineering vs. Operational Efficiency

Specifying custom stroke lengths involves higher upfront engineering and manufacturing costs. Engineers must draft new dimensional drawings, validate column strength for non-standard lengths, and adjust internal tolerances. Machinists must cut bespoke barrels and rods, which requires dedicated setup time on the lathe. However, these initial expenses are often justified by the operational efficiency gained. A perfectly optimized stroke ensures exact load positioning, eliminates the need for external mechanical stops, and maximizes the performance of specialized machinery over its entire lifespan.

Conclusion

Selecting the correct hydraulic cylinder stroke length requires balancing the required mechanical travel with structural stability, force requirements, and spatial constraints. Ignoring any of these variables leads to premature equipment failure, bent rods, or operational inefficiencies. The decision flow is straightforward: calculate the required force, measure spatial constraints accurately, calculate the required travel, assess the buckling risk under load, select the appropriate mounting style, and finally choose between standard or custom sizing.

To ensure optimal performance and safety, execute the following next steps:

• Consult manufacturer load charts to verify that your chosen stroke and rod diameter can handle the expected compressive forces without buckling.

• Verify all column strength calculations with a fluid power engineer, especially for push applications exceeding 36 inches of stroke.

• Review the dimensional drawings of the specific mounting style to confirm the retracted length fits within your machine's physical envelope.

• Implement internal stop tubes for any long-stroke application where side-loading or horizontal deflection is a known risk.

FAQ

Q: What is the difference between bore and stroke in a hydraulic cylinder?

A: The bore is the inner diameter of the cylinder tube, which determines the maximum force the cylinder can exert. The stroke is the exact distance the internal piston travels from full retraction to full extension, determining the linear range of motion.

Q: How do you calculate hydraulic cylinder stroke length?

A: You calculate stroke length by measuring the distance between the center of the base pin and the center of the rod pin when the cylinder is fully extended, and subtracting the pin-to-pin measurement taken when the cylinder is fully retracted.

Q: Why must I measure bore and rod diameter when replacing a cylinder based on stroke length?

A: Matching the stroke ensures the cylinder reaches the correct endpoints, but the bore is required to match the pushing force. The rod diameter is critical to ensure the cylinder has enough column strength to prevent buckling under heavy loads.

Q: Can a hydraulic cylinder stroke be shortened after manufacturing?

A: Yes, a stroke can be shortened by disassembling the cylinder and installing internal stop tubes or spacers between the piston and the head gland. This limits the extension but increases the overall retracted length relative to the new working stroke.

Q: What happens if a hydraulic cylinder stroke is too long for the application?

A: If the stroke is too long, the cylinder may over-extend and damage the mechanical linkages of the machine. Additionally, a longer stroke increases the risk of rod buckling and requires more physical space for the retracted housing.

Q: What is a stop tube, and when is it required for long-stroke cylinders?

A: A stop tube is an internal metal collar that prevents the rod from extending fully. It is typically required for long-stroke pushing applications over 40 inches to increase the distance between internal bearings, thereby improving column stability and preventing buckling.
