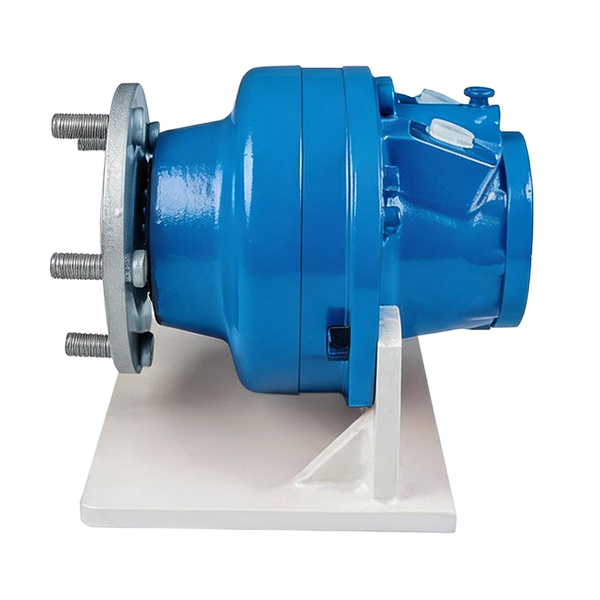

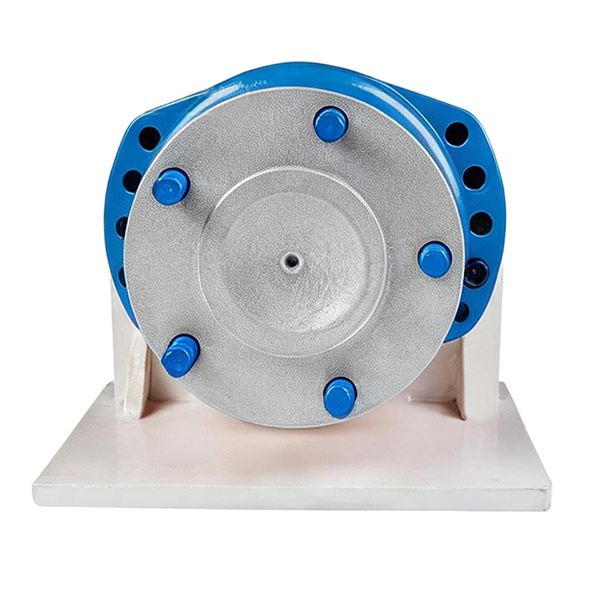

Energy losses in industrial fluid power systems compound rapidly over continuous operation. A Hydraulic Motor is often the primary site of these energy drops. Engineers frequently specify components based solely on theoretical output, ignoring how internal leakage and mechanical friction degrade performance under real-world operating conditions. Analyzing both volumetric and mechanical-hydraulic efficiency is necessary to ensure proper system sizing, prevent excessive heat generation, and select the optimal architecture for specific load and speed requirements. When you ignore the reality of fluid dynamics and mechanical drag, you end up with undersized prime movers and overheating reservoirs. We need to look at the exact mechanics of how fluid power translates into rotational force. This requires breaking down the exact differences between volumetric losses and mechanical drag to build a reliable, high-performing hydraulic circuit.
Table of Contents
Toggle
Key Takeaways
Overall Efficiency is a Product: The total efficiency of a hydraulic motor is calculated by multiplying its volumetric efficiency by its mechanical-hydraulic efficiency.
The Viscosity Paradox: Fluid viscosity forces a compromise; low viscosity degrades volumetric efficiency (increased leakage), while high viscosity degrades mechanical efficiency (increased fluid friction).
The Pump vs. Motor Mathematical Inverse: Volumetric and mechanical efficiency calculations for a hydraulic motor are the mathematical inverse of pump calculations, reflecting that a motor is an energy consumer rather than an energy producer.
Architecture Dictates Baseline Performance: Piston motors generally offer the highest overall efficiency for high-pressure applications, whereas gear and vane motors present lower upfront costs but higher operational energy losses.
Lifecycle Degradation & Case Drain Diagnostics: Efficiency is not static; volumetric efficiency reliably decreases over time as internal wear increases clearances, which can be directly monitored via case drain leakage rates.
The Fundamentals of Hydraulic Motor Efficiency
Defining the Metrics
Understanding efficiency requires establishing clear baseline definitions for the physical parameters of the system. Theoretical flow represents the exact volume of fluid a motor should consume per revolution based purely on its internal physical displacement. You calculate this by multiplying the motor's displacement per revolution by the target rotational speed. Actual flow is the true volume of fluid the system must supply to maintain that specific speed in the field. This number is always higher than the theoretical flow because it accounts for internal leakage.
Theoretical torque is the rotational force generated purely by the pressure differential across the motor's inlet and outlet ports, assuming zero internal friction. Actual torque is the usable mechanical force delivered at the output shaft. This value is always lower than the theoretical torque because internal mechanical drag and fluid shear resistance consume a portion of the energy before it reaches the shaft.
The Pump vs. Motor Efficiency Inversion
Pumps and motors perform opposite functions within a hydraulic circuit. Their efficiency formulas reflect this functional inversion. A pump produces flow. Its volumetric efficiency is calculated as actual flow divided by theoretical flow. Internal leakage reduces the output flow available to the rest of the system. Conversely, a motor consumes flow to generate rotation. Its volumetric efficiency is theoretical flow divided by actual flow. Internal leakage increases the amount of input fluid required to achieve a target rotational speed.
Mechanical-hydraulic efficiency follows a similar inverted logic. A motor's mechanical-hydraulic efficiency is actual torque divided by theoretical torque. Internal friction reduces the usable output torque at the shaft. A pump requires mechanical input from a prime mover, so its mechanical efficiency is theoretical torque divided by actual input torque. The prime mover must supply extra torque to overcome the pump's internal friction.
The Overall Efficiency Formula
Overall efficiency provides a complete picture of performance by combining both volumetric and mechanical factors. The standard equation is straightforward: Overall Efficiency = Volumetric Efficiency × Mechanical-Hydraulic Efficiency. You must convert the percentages to decimals before multiplying them.
A high rating in one metric cannot fully compensate for a severe deficit in the other. If a motor has 95% volumetric efficiency but only 70% mechanical efficiency due to excessive internal drag, the overall power conversion remains a poor 66.5%. Both factors must be optimized for the specific application parameters. Relying on a single efficiency metric leads to flawed system designs and unexpected performance drops in the field.
Impact on System Sizing
Efficiency ratings directly dictate the sizing of all upstream components in the hydraulic circuit. A motor with low volumetric efficiency requires a larger displacement pump to supply the extra bypass flow. This larger pump then requires a more powerful prime mover, such as a larger diesel engine or electric motor, to drive it. Low mechanical efficiency demands higher operating pressures to achieve the target output torque, which stresses hoses, fittings, and valves.
These inefficiencies do not simply disappear; they convert directly into heat. A system with poor overall efficiency generates a massive thermal load. This requires larger cooling systems, high-capacity heat exchangers, and larger fluid reservoirs to dissipate the heat and protect the hydraulic oil from thermal breakdown. Sizing a system based on theoretical motor performance guarantees overheating issues during continuous operation.
Understanding Volumetric Efficiency in a Hydraulic Motor
Definition and Calculation
Volumetric efficiency measures how effectively a motor uses the fluid supplied to it. It is the ratio of the theoretical flow required to the actual flow consumed to maintain a specific rotational speed under load. A motor operating at 85% volumetric efficiency requires 15% more flow than mathematically predicted to hit its target RPM. This metric is highly dependent on operating pressure, as higher pressures force more fluid through internal clearances.
Causes of Volumetric Losses
Internal leakage, commonly referred to as slippage, is the primary cause of volumetric loss. Fluid bypasses the working components through designed running clearances. In a gear motor, this occurs between the gear faces and the wear plates, as well as between the gear tips and the housing. In a piston motor, fluid slips past the piston-to-bore clearances and the valve plate interfaces. High pressure always seeks the path of least resistance, forcing fluid through these microscopic gaps instead of pushing the mechanical components.
Abrasive wear and fluid contamination accelerate these volumetric losses. Particulate contamination acts like a lapping compound inside the motor. It scores internal metal surfaces, scratches valve plates, and increases running clearances over time. Normal mechanical wear also contributes to this gradual widening of internal gaps. As the clearances grow, more fluid slips past the driving mechanisms, and volumetric efficiency plummets.
The Role of Fluid Viscosity and Temperature
Fluid temperature and viscosity share a strict inverse relationship. As hydraulic fluid heats up during operation, its viscosity decreases, meaning it thins out. Hot, low-viscosity fluid drastically increases internal leakage. Thin oil slips through tight internal clearances much easier than cold, thick oil. This reduces volumetric efficiency and forces the upstream pump to work harder to maintain the motor's speed.
Operating a motor beyond its recommended temperature range causes a runaway thermal event. The thin fluid increases leakage, which generates more heat through fluid friction across the tight clearances. This additional heat further thins the fluid, causing even more leakage. Maintaining strict temperature control is mandatory for preserving volumetric efficiency.
Diagnostic Monitoring (Case Drain Analysis)
External case drain flow monitoring is the primary field method for diagnosing volumetric efficiency loss. Most high-performance motors route internal bypass leakage to a dedicated case drain line that returns directly to the reservoir. Measuring the flow rate of this line provides a direct, measurable indicator of internal wear.
To perform a proper case drain analysis in the field, follow these steps:
Bring the hydraulic system up to normal operating temperature to ensure the fluid viscosity matches real-world working conditions.
Secure the motor output shaft so it cannot rotate, creating a stall condition.
Disconnect the case drain line from the reservoir and route it into a calibrated measuring container.
Apply a specific, known pressure to the motor inlet for a set duration, typically one minute.
Measure the volume of fluid collected in the container and compare it to the manufacturer's maximum allowable case drain specifications.
Operational Symptoms
Poor volumetric efficiency manifests clearly during machine operation. Operators will notice a distinct inability to maintain target RPM under heavy loads. As the load increases, pressure rises, forcing more fluid to slip internally, which slows the output shaft. The machine may also experience system drift when holding a load stationary, as fluid leaks past the internal seals. Excessive heat generation at the motor housing is another major symptom, often overwhelming standard heat exchangers and requiring system shutdowns to cool the fluid.
Understanding Mechanical-Hydraulic Efficiency
Definition and Calculation
Mechanical-hydraulic efficiency measures how effectively a motor converts fluid pressure into rotational mechanical force. It is the ratio of actual torque delivered at the output shaft to the theoretical torque generated by the pressure differential across the motor ports. This metric accounts for all internal physical drag, friction, and fluid resistance that subtracts energy from the final output.
Causes of Mechanical Losses
Mechanical friction causes direct boundary lubrication losses. Moving metal components drag against each other during rotation. Shaft bearings, dynamic seals, pistons rubbing against cylinder blocks, and mechanical linkages all generate friction. This metal-to-metal contact is especially severe at start-up before hydrodynamic lubrication films can fully form between the moving parts.
Fluid friction also contributes heavily to mechanical losses. Hydraulic fluid encounters viscous shear and resistance as it moves through the motor. Forcing fluid through narrow internal passages, control valves, and restrictive porting plates requires energy. This energy is subtracted directly from the output torque. The faster the motor spins, the higher the fluid velocity, and the greater the fluid friction losses become.
The Viscosity Trade-Off
Cold, thick fluid increases fluid friction and mechanical drag. High viscosity forces the system to work harder just to move the heavy oil through internal passages. This lowers mechanical-hydraulic efficiency significantly. The motor must overcome the fluid's internal shear resistance before it can apply useful torque to the external load. While thick fluid improves volumetric efficiency by sealing clearances, it penalizes mechanical efficiency by acting like a brake on the internal components.
The Starting Torque Penalty
Starting torque efficiency is significantly lower than running torque efficiency. This is due to break-out friction. When a motor is stationary under load, the internal metal parts rest directly against each other, squeezing out the protective oil film. The transition from static friction to kinetic friction requires a massive spike in pressure. Once the shaft begins spinning, fluid films separate the parts, hydrodynamic lubrication takes over, and internal drag drops rapidly.
Operational Symptoms
Poor mechanical-hydraulic efficiency causes distinct operational issues that operators feel immediately. The motor may fail to generate the required starting torque, stalling out before the load even moves. Operators might experience low-speed cogging or shuddering, where the motor rotation is jerky and inconsistent. The prime mover will also draw increased power, burning more fuel or pulling more electrical current just to overcome the internal drag of the motor.
The Stribeck Curve and Viscosity Optimization
Balancing the Two Efficiencies
The Stribeck curve provides a technical framework for visualizing the friction inside a hydraulic motor. It illustrates the trade-off between boundary lubrication and hydrodynamic lubrication. High mechanical friction occurs at low speeds and high fluid viscosities, placing the motor in the boundary lubrication zone. High volumetric leakage occurs at high speeds and low viscosities. Engineers must find the balance point on the curve where the fluid film is thick enough to separate metal parts but thin enough to minimize fluid shear drag.
Selecting the Optimal Viscosity Index
Selecting hydraulic fluids with high Viscosity Indexes (VI) is critical for maintaining efficiency across varying conditions. High VI fluids maintain a stable viscosity across a wide operating temperature range. This stability maximizes overall efficiency. It prevents the fluid from becoming too thick and causing mechanical drag at startup, while also preventing it from becoming too thin and causing volumetric leakage during heavy, continuous operation.
Thermal Equilibrium
Systems must be designed to operate within an optimum viscosity window. In this window, the sum of volumetric and mechanical losses is balanced and minimized. Achieving thermal equilibrium ensures the fluid stays within this ideal temperature range. You achieve this by properly sizing the reservoir, installing adequate heat exchangers, and ensuring the motor operates within its designed duty cycle. Failing to maintain thermal equilibrium guarantees a rapid drop in overall efficiency.
Evaluating Hydraulic Motor Architectures by Efficiency Profile
Different motor designs offer distinct efficiency profiles based on their internal mechanics. Selecting the right architecture depends entirely on matching the motor's performance characteristics to the application requirements.
Motor Architecture
Volumetric Efficiency Profile
Mechanical Efficiency Profile
Primary Field Application
External Gear Motors
Lower due to fixed internal clearances
Moderate, high starting friction
High-speed, low-pressure auxiliary functions
Vane Motors
Moderate-to-High, self-compensating wear
Highly sensitive to fluid contamination
Medium-pressure, low noise industrial drives
Axial Piston Motors
Highest due to tight manufacturing tolerances
Highest, excellent starting torque
High-pressure, continuous-duty mobile equipment
Radial Piston Motors
Very High, excellent sealing at low speeds
Exceptional mechanical efficiency at low RPM
High-torque low-speed (HTLS) heavy winches
Gear Motors (External and Internal/Geroter)
Gear motors have lower volumetric efficiency due to fixed, larger internal clearances. As pressure increases, fluid easily bypasses the gear teeth. Their mechanical efficiency is moderate, but they suffer from high starting torque losses because the gears are pushed hard against the housing by the inlet pressure. They are best suited for high-speed, low-pressure applications where continuous high-efficiency operation is not critical to the machine's primary function.
Vane Motors
Vane motors offer moderate-to-high volumetric efficiency. The vanes self-compensate for wear by sliding outward via centrifugal force and pressure loading, maintaining contact with the cam ring. However, they are highly sensitive to fluid contamination, which spikes mechanical friction if debris jams the vanes in their rotor slots. They excel in medium-pressure applications requiring low noise, smooth rotation, and consistent performance across a moderate speed range.
Piston Motors (Axial and Radial)
Piston motors provide the highest volumetric and mechanical-hydraulic efficiencies, often exceeding 95% overall. This is due to extremely tight manufacturing tolerances, hydrostatic balancing of internal components, and advanced porting designs. They maintain high efficiency even at extreme pressures. They are ideal for high-pressure, continuous-duty, or high-torque low-speed applications where precise control, maximum power density, and high starting torque are required.
Specification Criteria and Value Influencing Factors
Energy Consumption vs. Upfront Specification
Specifying a low-efficiency motor increases long-term energy consumption drastically. The prime mover must burn more diesel fuel or draw more electrical power to compensate for the internal losses of the motor. While high-efficiency piston motors require a larger initial capital expenditure, the reduction in physical energy waste and the lower demand on the prime mover often justify the specification for continuous-duty cycles. You must evaluate the duty cycle to determine if the energy savings align with the operational hours of the machine.
Cooling System Requirements
Inefficiencies are converted directly into heat. A motor with poor overall efficiency dumps massive amounts of thermal energy into the hydraulic fluid. This requires larger, more robust cooling systems. Upgrading heat exchangers increases the auxiliary parasitic load on the machine, further draining available power from the primary application. A highly efficient motor reduces the thermal load, allowing for smaller reservoirs, smaller coolers, and a more compact overall machine design.
Implementation Risks and Mitigation
High-efficiency motors demand stricter ISO cleanliness codes. The tight internal clearances that provide high volumetric efficiency are easily damaged by microscopic debris. Proper filtration, often down to 3 or 5 microns, is mandatory to prevent premature wear. Additionally, engineers must match the motor's duty cycle accurately. Specifying a motor with peak efficiency at an RPM point that does not match the machine's actual operating state wastes the performance advantage. You must map the motor's efficiency curve against the machine's primary working parameters.
Conclusion
Specifying a hydraulic motor requires a calculated compromise between volumetric and mechanical-hydraulic efficiency. This balance is dictated by operating pressure, speed, temperature, and duty cycle. Prioritize volumetric efficiency for high-pressure, continuous operations. Accept lower efficiencies for intermittent, low-pressure tasks where initial capital expenditure is the primary constraint.
As an industry-leading manufacturer with over two decades of fluid power expertise, BLINCE delivers a premium lineup of high-efficiency orbital motors, piston motors, and hydraulic pumps. Our ISO 9001-certified production lines utilize advanced manufacturing tolerances to balance boundary lubrication and fluid shear, ensuring your systems achieve rapid thermal equilibrium and optimal torque delivery under harsh field conditions.
FAQ
Q: How do you calculate the overall efficiency of a hydraulic motor?
A: Overall efficiency is calculated by multiplying the motor's volumetric efficiency by its mechanical-hydraulic efficiency. This combined metric provides a true representation of how much input fluid power is successfully converted into usable rotational mechanical power at the output shaft.
Q: What is the difference between pump efficiency and motor efficiency calculations?
A: They are mathematical inverses. A pump generates flow, so its volumetric efficiency is actual flow divided by theoretical flow. A motor consumes flow, so its volumetric efficiency is theoretical flow divided by actual flow. Mechanical efficiency calculations are similarly inverted based on torque input versus output.
Q: What causes a hydraulic motor to lose volumetric efficiency over time?
A: Volumetric efficiency drops primarily due to internal wear and abrasive contamination. As particulate matter scores metal surfaces, internal clearances widen. This allows more high-pressure fluid to slip past the driving mechanisms without performing useful work, requiring more input flow to maintain speed.
Q: How does fluid viscosity affect the mechanical-hydraulic efficiency of a hydraulic motor?
A: High fluid viscosity increases fluid friction and internal shear resistance. The motor must expend energy to push this thick fluid through narrow internal passages and ports. This internal drag reduces the amount of usable torque delivered to the output shaft, lowering mechanical-hydraulic efficiency.
Q: Which type of hydraulic motor architecture offers the highest overall efficiency?
A: Piston motors, both axial and radial designs, generally offer the highest overall efficiency. Their tight manufacturing tolerances, hydrostatic balancing, and advanced porting minimize both internal leakage and mechanical friction, making them ideal for high-pressure, continuous-duty applications.
Q: What is a case drain, and how does it help measure volumetric efficiency?
A: A case drain is a dedicated line that routes internal leakage from the motor housing back to the reservoir. By measuring the flow rate of fluid passing through the case drain, technicians can directly monitor internal wear and diagnose dropping volumetric efficiency before failure occurs.
