Hydraulic hoses are essential components of hydraulic systems used across industries, from construction and manufacturing to automotive and marine equipment. Whether it’s a zero-turn lawn mower, a garbage truck, car brakes, or boat engine tilt systems, hydraulic hoses are everywhere, ensuring smooth operation of hydraulic machinery.
Hydraulic hoses transfer pressurized hydraulic fluid to mechanical components, converting fluid energy into mechanical work. Hydraulic fluid is usually oil- or water-based and incompressible, which allows efficient energy transfer from a hydraulic pump to a motor or cylinder. A simple example is a log splitter: the pump draws fluid from a reservoir, pressurizes it, and sends it through a hydraulic hose to the cylinder. The cylinder pushes a wedge against the log until it splits. As the piston retracts, fluid returns to the reservoir through a return hose to cool and prepare for the next cycle. This system—consisting of a reservoir, pump, cylinder, and hose—is a basic hydraulic system.
Selecting the right hydraulic hose requires understanding your system's specifications, including pressure, fluid type, and operating environment. Hydraulic hose selection might seem complicated due to multiple industry standards, but it’s straightforward once you understand the main types. There are three primary options for hydraulic hoses:
Rubber hydraulic hoses reinforced with metal wire
Thermoplastic hydraulic hoses reinforced with textile fibers
PTFE (Teflon) hoses with stainless steel braid reinforcement
Additional specialty hoses exist for extreme temperatures, chemical resistance, or high abrasion environments, but most industrial and mobile applications can be covered with these three options.
Hydraulic hoses are sized by inside diameter (I.D.) using 1/16 inch increments. For example, -04 represents ¼” I.D. (4/16 = ¼”), while -12 represents ¾” I.D. (12/16 = ¾”). Hoses are usually rated with a 4:1 safety factor, meaning a hose rated for 3,000 psi can withstand at least 12,000 psi. Some static applications, like jack hoses, use a 2:1 safety factor. Always consult hydraulic experts if you’re unsure about safety requirements.

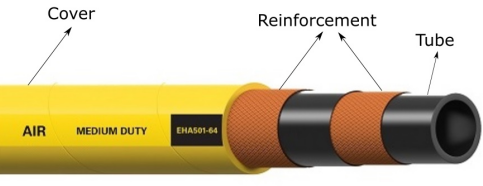

A typical hydraulic hose consists of three layers:
Tube: The inner core that carries hydraulic fluid.
Reinforcement: Metal wires or synthetic fibers that provide strength and maintain pressure.
Cover: Protects the reinforcement from abrasion, corrosion, and environmental damage.
Rubber hydraulic hoses are commonly made of nitrile rubber, compatible with most hydraulic fluids. They are reinforced either with textile braid for low-pressure applications (under 1,000 psi) or high-tensile steel wire for high-pressure applications (up to 7,000 psi or higher). Common constructions include:

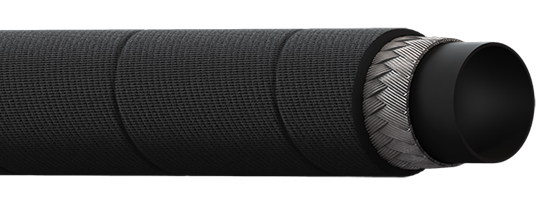

1-wire braid: Low-pressure systems, less common.

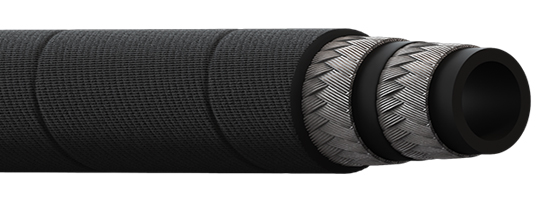

2-wire braid: Low-pressure systems, widely used.

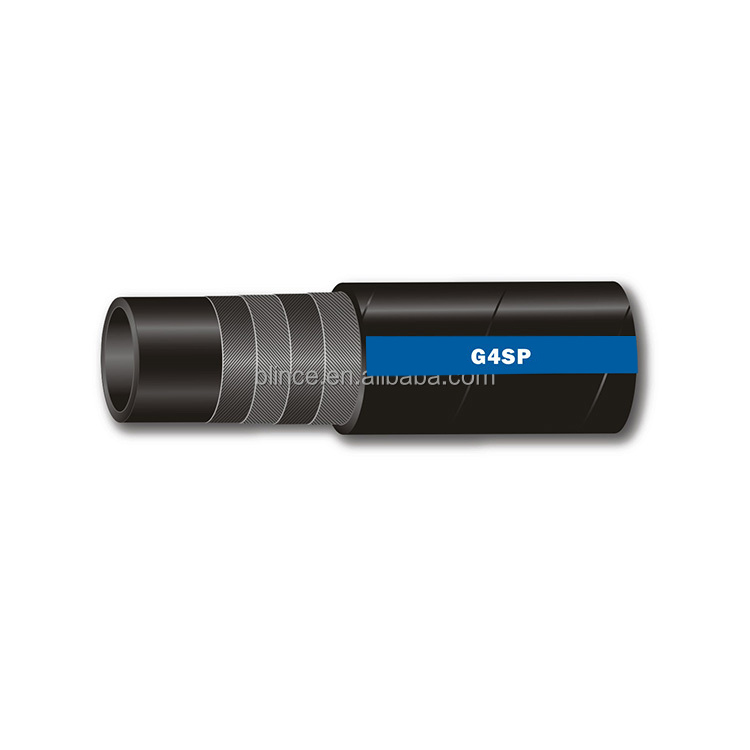

4-wire spiral: Heavy machinery requiring very high pressure (4,000–6,000 psi), excellent for impulse pressure.
6-wire spiral: Large diameter and ultra-high-pressure applications (up to 7,000 psi).
Rubber hose covers are engineered to resist environmental conditions and abrasion. Some hoses include ultra-high molecular weight (UHMW) coatings for extreme abrasion and impact resistance. Rubber hoses can also handle high-temperature (300°F+) or low-temperature (-70°F) environments.
Thermoplastic hoses are constructed with a nylon inner tube, synthetic fiber reinforcement, and polyurethane cover. They are ideal for general hydraulic systems, material handling, forklifts, and areas near electrical equipment. Thermoplastic hoses can withstand pressures similar to 1- and 2-wire rubber hoses, but they excel where metal wire reinforcement may be unsuitable. They are non-conductive, making them perfect for applications involving electricity.

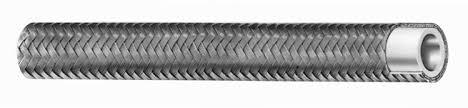

PTFE hoses feature a Teflon inner tube with stainless steel braid reinforcement. They typically do not require an additional cover because stainless steel resists corrosion under normal operating conditions. PTFE hoses are used where chemical resistance, high temperature (up to 450°F), or corrosion resistance is critical. Key considerations include:
Size: PTFE hoses are often 1/16” smaller than their nominal part number.
Bend radius: Avoid bending the hose too sharply to prevent kinking and creating weak spots.
Return hoses carry fluid back to the reservoir and must handle suction. They often feature rubber tubing with textile braid reinforcement and a helical wire for added suction support.
Truck hoses (SAE 100R5) are a special category, commonly used in highway vehicles. These hoses feature fabric covers and one-wire construction. Their actual inner diameter may vary 1/16”–1/8” smaller than standard hydraulic hoses.
Understanding hydraulic hose types, construction, and applications is essential for selecting the right hose for your hydraulic system. Choosing the correct high-pressure hydraulic hose, rubber hydraulic hose, thermoplastic hydraulic hose, or PTFE hose ensures system efficiency, safety, and durability. For complex or high-demand applications, consult hydraulic hose experts to guarantee proper selection.
