A fixed-flow power unit beside an operator gives a vane pump a reason to be on the shortlist: noise may affect the purchase, and cartridge service may suit the workshop. A compact spare that the site will exchange as a complete assembly gives an external gear pump a reason to be there. Choose between the actual configurations once delivered flow, pressure duty, inlet conditions and installation have been checked.

For this hydraulic vane pump vs gear pump review, BLINCE's VQ vane families and SGP external gear families provide the product routes. The comparison concerns fixed-displacement vane and external gear designs. An internal gear pump or a pressure-compensated variable vane unit would change the review's scope.

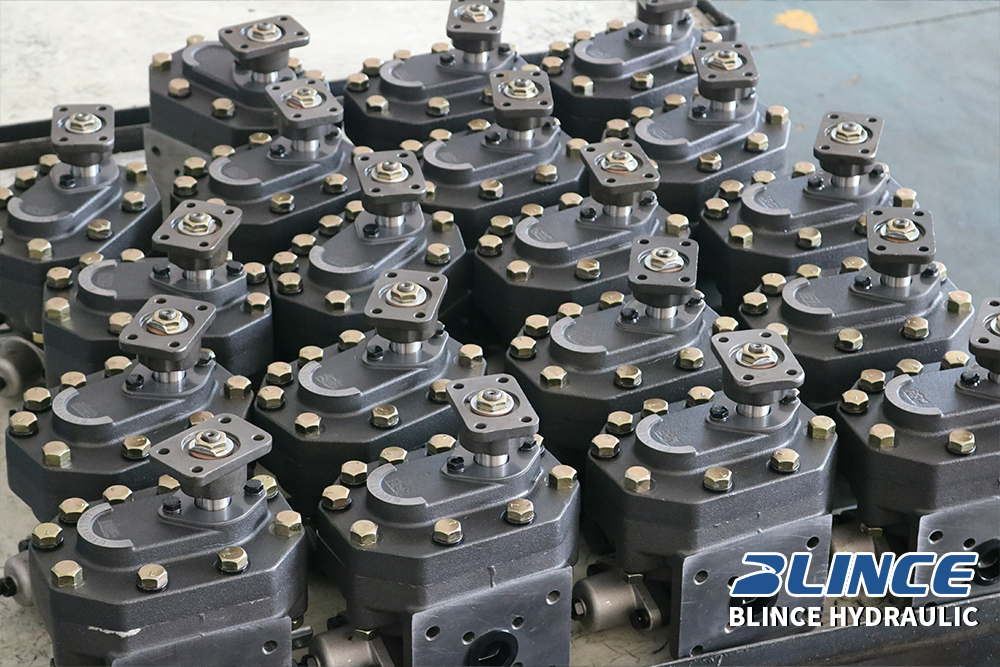

vane pump vs gear pump

Resolve what “48 litres a minute” means

“48 L/min” on an offer needs a basis. Calculated displacement flow, delivery measured at low pressure and delivery during the buyer's loaded movement are three possible meanings. Only the last of those answers a loaded-flow requirement directly.

Use the following invented enquiry throughout the calculations: the machine requires 48 L/min delivered at 1,500 rpm during its loaded movement. No BLINCE model has been selected for it. The eventual choice still needs a pressure cycle, fluid conditions and an interface drawing. The numbers illustrate how to review an offer; they are not a machine measurement or a product rating.

The 32 cm³/rev offer looks sufficient if its displacement is multiplied by 1,500 rpm: 48,000 cm³/min converts to 48 L/min. Internal leakage has yet to be allowed for. Use an assumed volumetric efficiency of 0.92, and the delivery falls to 44.16 L/min, leaving this example 3.84 L/min short.

For sizing, rearrange the same relationship:

Q = Vg × n × ηv / 1,000

Vg = 48 × 1,000 / (1,500 × 0.92) = 34.78 cm³/rev.

For reading these equations: Q denotes delivered L/min; Vg denotes cm³ per revolution; n is shaft rpm; and ηv is the decimal volumetric efficiency. The 1,000 is the cm³-to-litre conversion. Holding ηv at an invented 0.92 lets the table isolate displacement. An offered pump still needs its own performance data at the specified duty.

Displacement used for the calculation

Theoretical flow

Delivery with assumed ηv = 0.92

Result against the enquiry

32 cm³/rev

48.00 L/min

44.16 L/min

Short by 3.84 L/min

35 cm³/rev

52.50 L/min

48.30 L/min

0.30 L/min above the requirement

36 cm³/rev

54.00 L/min

49.68 L/min

1.68 L/min above the requirement

The 35 cm³/rev row is an arithmetic size, with no assertion that BLINCE sells that displacement. The table narrows the question to performance near the calculated size. It cannot approve a 36 cm³/rev catalogue option either. For that, the supplier needs to identify its actual delivered flow at the enquiry conditions and confirm that the circuit can accept the resulting flow.

The old pump's low-flow test result describes its present condition. It might differ from the flow originally needed for the actuator's intended movement. When the complaint is lost speed, retain that distinction in the enquiry: approved machine data establish the movement target, while the test describes the fault being investigated.

Read the pressure row for the proposed displacement

BLINCE's SGP table makes the displacement/pressure relationship visible in individual rows. Two examples are shown below. The entries are published values, with duty conditions still to be confirmed for an order.

Published SGP2 row

Rated pressure

Maximum pressure

SGP2-40

22.6 MPa

27.5 MPa

SGP2-52

17.2 MPa

20.6 MPa

The larger displacement in this pair has lower pressure entries. An enquiry for “an SGP2 at the family maximum” leaves the intended row unresolved. Units can also obscure the comparison: multiply MPa by ten to obtain bar, then retain the original rated/maximum labels beside the converted values.

VQ selection needs the same care. The public page separates displacement code from displacement in mL/rev and lists maximum pressure and speed. Some cells span several rows. Where the scope of a value is unclear, use a clarified current data sheet instead of extending a nearby value across the table. The offered code should have an identifiable duty limit, regardless of which technology is being priced.

Put duration beside the machine pressure. A clamp that briefly reaches its set pressure and then unloads gives a different pump duty from a function drawing flow under pressure for much of the shift. Continuous, intermittent and peak limits follow the definitions in the selected manufacturer's documentation. Their permitted times cannot be inferred from the column headings alone.

The measurement point belongs in the record too. A reading near the load leaves the pressure losses between pump and load unaccounted for. A slow gauge may miss a short transient. The pressure-gauge placement guide covers the locations; the machine procedure governs the measurement. Relief settings need the machine maker's requirements, because an increase can expose other components to excess pressure.

Give both suppliers the same operating sheet

The 48 L/min example has enough information for preliminary displacement arithmetic. It has too little information for a purchase order. The missing fields should be visible in both enquiries, so one supplier does not quote for an easier duty than the other.

Enquiry field

Information that makes the comparison usable

Flow and speed

Required delivered flow, working shaft speed and any speed range; distinguish design requirements from measurements

Pressure duty

Working pressure, cycle duration, peaks and test-point location

Oil and temperature

Exact fluid specification, operating viscosity and startup/hot conditions

Inlet arrangement

Reservoir position, suction route and measured condition where available

Interfaces

Pilot, bolt pattern, shaft, coupling engagement, rotation convention, port seals and orientation

Acceptance and service

A defined acoustic requirement if relevant; cartridge service or complete-unit replacement plan

An unknown can stay on the sheet. “Hot loaded flow not measured” is useful information for the person deciding the next check. Substituting a catalogue figure would conceal that gap. The supplier can respond with a candidate subject to measurement, explain a mismatch, or identify another pump arrangement. A preliminary answer should say which of those it is.

On a new build, designed load, movement and cycle take the place of field measurements and should be labelled as design values. On a replacement, keep the original specification alongside the machine-as-found record. If someone changed the relief setting or fitted another pump, identify that change before adopting it in the new enquiry.

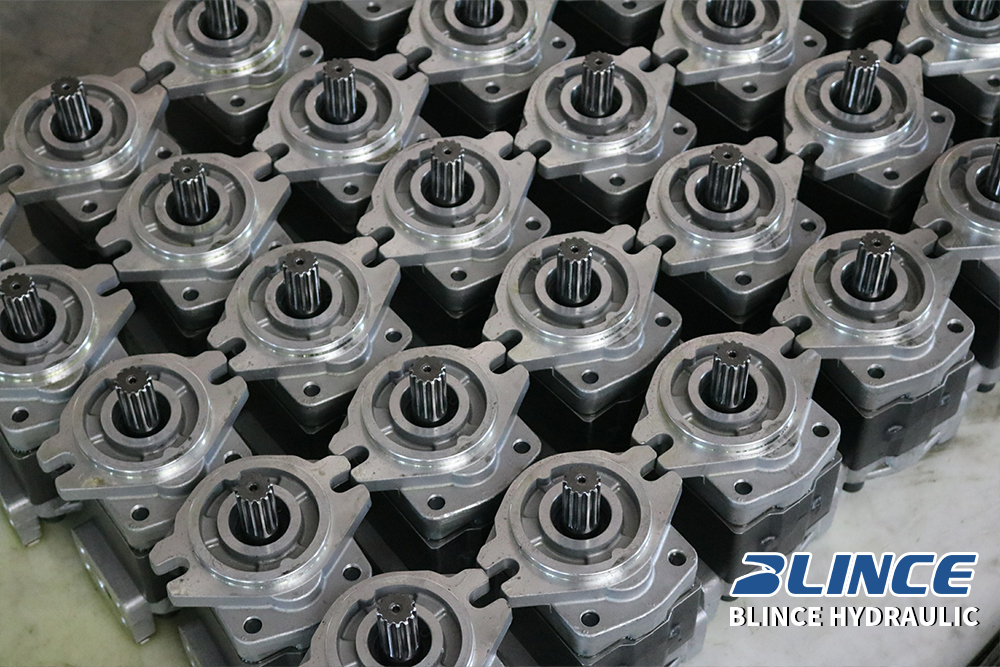

fixed displacement pump selection

Make the noise requirement testable

Inside the vane design, a rotor carries sliding vanes against a cam ring. In the external gear design, the tooth spaces carry oil around the gears within the housing. For procurement, the useful evidence concerns the resulting delivery, acoustic behaviour and service arrangement of the offered pump.

Danfoss's industrial vane overview presents quiet operation and serviceability as reasons to consider its vane families, including mobile and industrial versions. It supports the shortlist decision at the start of this guide. It does not supply a BLINCE sound rating or establish a match between manufacturers' parts.

“Quieter” needs an acceptance condition on a purchase enquiry. An operator beside an enclosed power unit hears the installed machine, including its motor, panels and pipework. A pump-only result obtained at another speed or pressure answers a narrower question. Record the operating point, measurement position and test method, and establish whether the supplied figure is sound pressure or sound power before comparing values.

Suppose the complaint changes when an access panel is removed or a pipe support is corrected. That observation gives the installation review a specific lead. It does not establish pump wear. Likewise, a new whine during a cold start belongs with the inlet and oil records, not automatically with a request for a quieter pumping mechanism.

BLINCE's pump coupling alignment guide is a separate route for checking the drive installation. Capture the observed condition before selecting corrective work. A vane pump can be a good acoustic candidate, while alignment or a vibrating structure remains part of the machine's noise problem.

Keep the cold-start and hot-flow checks together

For the example enquiry, 48 L/min must arrive when the machine is doing its loaded work. A warm performance curve addresses that point. Startup is another operating state, with its own fluid viscosity, speed and inlet condition. Both states belong in the offered pump's review.

Parker's PGP500 Quick Ship catalogue, HY13-PMD500QS_US gives a specific illustration. Its characteristics page pairs a 1,000–2,000 cSt cold-start range with pressure no higher than 10 bar and speed no higher than 1,500 rpm. These conditions apply to the documented Parker range. They are not operating instructions for a BLINCE SGP or VQ.

One acceptable viscosity number cannot be detached from the rest of that operating envelope. For the offered BLINCE build, obtain the relevant fluid, viscosity, temperature and inlet requirements together. The oil identity is needed to interpret a temperature record: “ISO VG 46” identifies a viscosity grade, not the viscosity at every temperature.

Cold inlet trouble and hot flow loss can coexist. Restricted filling at startup and leakage at the later, lower viscosity concern different conditions. Put the time, temperature and working state beside each symptom, so a supplier can see which condition its proposed replacement must address.

Include a photograph of the whole suction route with the inlet reading. It lets the reviewer place fittings, reduced bores and reservoir position against the measurement. Label pressure as gauge or absolute; an ambiguous limit needs clarification before comparison. Use the machine's isolation and test procedure, with instruments suited to the circuit. Never loosen a pressurised connection to obtain a reading.

Decide how the replacement will be serviced

Cartridge service can favour a vane arrangement when a site has clean facilities, the right inspection method and an available approved kit. Price that job with the workshop responsible for doing it, including inspection of the retained housing and drive parts. A cartridge quotation alone leaves those jobs uncosted.

A maintenance team that stocks complete coded pumps may prefer an exchange strategy. An external gear option can fit that strategy, provided it meets the duty and interfaces. Price the spare for that build and obtain its availability; the label “gear pump” does not establish what is on the shelf. The same availability check applies to a vane assembly and its cartridge.

For a failure replacement, attach the old unit's inspection findings to the repair plan. The scope may include debris removal, fluid work or drive correction. These remain repair tasks whichever pumping mechanism is purchased; changing the pump label cannot complete them.

The offered component needs a defined cleanliness requirement and a filtration arrangement capable of maintaining it. Review removal efficiency, bypass behaviour and the flow through the filter alongside its micron designation. A claim about gear-pump dirt tolerance supplies none of that information; neither does the presence of a suction strainer.

An hours-of-life claim needs its build, duty, fluid, cleanliness, temperature, installation and failure criterion. Without a stated test basis it cannot support a lifecycle cost estimate. The enquiry can still establish a service plan by identifying the spare, inspections and cleaning requirement that the site can actually support.

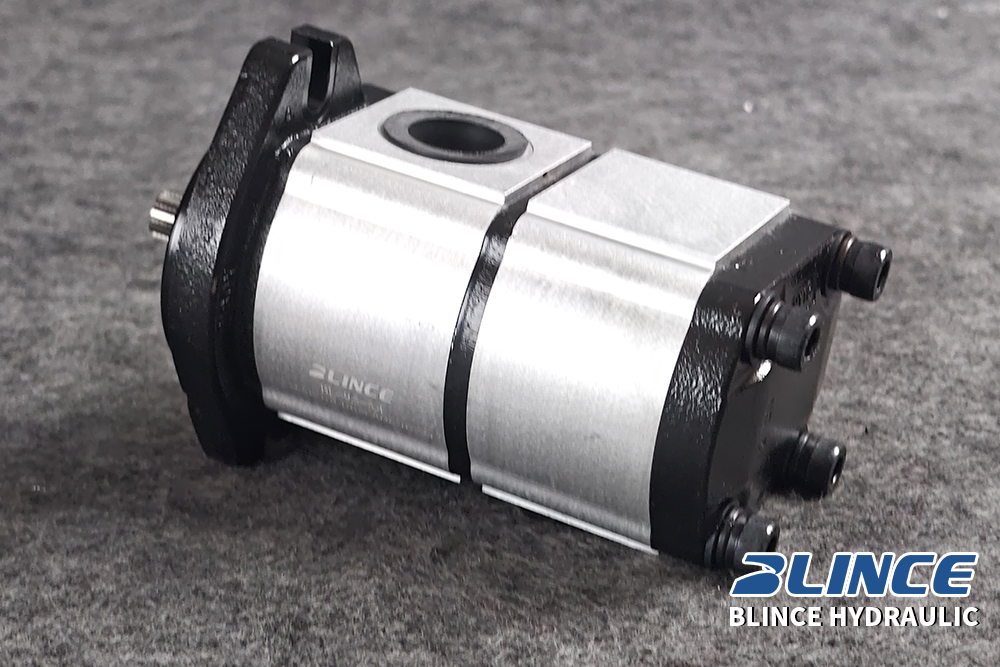

hydraulic pump flow calculation

Look at where the surplus flow goes

With the assumed efficiency, the 36 cm³/rev row supplies 49.68 L/min. Other stages of the cycle may need less. Put those stages on the circuit drawing and follow their excess-flow paths; that review applies to either of the fixed-displacement candidates.

Hydraulic power dissipated across a restriction can be estimated from pressure drop and flow:

P_loss = Δp × Q / 600.

Using bar for Δp and L/min for Q gives kW. Pressure difference multiplied by volume flow provides the power, and 600 converts these units to kW for the selected restriction.

The example below is hypothetical and holds pressure/flow constant while the throttling state is active.

Example input or result

Value

Flow through the throttling path

12 L/min

Upstream / downstream pressure

150 / 5 bar

Pressure drop

145 bar

Power dissipated during that state

145 × 12 / 600 = 2.90 kW

Share of the hour in that state

40%

Time-weighted contribution

2.90 × 0.40 = 1.16 kW

Other cycle states, pump losses and heat escaping elsewhere are excluded.

Follow the proposed pump's flow through this state, including any unloading path when motion stops. Added displacement may increase excess-flow losses. Resolving that path can change the pump decision before cooling capacity is considered.

The hydraulic oil-cooler sizing guide addresses the subsequent thermal duty and rating conditions. The example's 2.90 kW describes one assumed restriction; it supplies no measured whole-machine heat load and approves no cooler.

Long low-demand periods may justify another control arrangement or an appropriate variable-speed package. Parker's eReady brochure describes fixed-displacement pumps intended for such drives, with minimum speeds subject to model conditions. An existing pump needs evidence for its own lubrication, starting and low-speed delivery, together with the motor's cooling requirements, before a speed-control conversion can be approved.

Check the drive as well as the pump output

Return to the invented 48 L/min enquiry and add a 160 bar pressure rise for a power calculation:

P_h = 160 × 48 / 600 = 12.8 kW.

Assume overall pump efficiency of 0.85 for this separate example. Shaft input would be 12.8 / 0.85 = 15.06 kW. At 1,500 rpm that corresponds to about 95.9 N·m, using torque = 9,550 × input kW / rpm. The constant converts the chosen units. The result concerns one steady operating point, with no claim about startup, electrical motor losses or a BLINCE pump's efficiency.

The 0.92 volumetric assumption was used to estimate delivery. Here 0.85 overall efficiency is used to estimate shaft input. Keep those labels on the calculation sheet and on any performance information supplied with an offer; the two values have different jobs.

Drive suitability includes the shaft and coupling as well as the prime mover. Increasing displacement at the same pressure can increase required torque. Check the engine's available output at working rpm, or the electric drive's duty, starting and protection requirements, against the proposed build. A steady-state result of 15.06 kW leaves starting and the rest of that drive review unfinished.

For two pump sections on one drive, keep their pressure/flow states separate before adding their input requirements. BLINCE's PV2R double vane page describes a common inlet and separate outlets for the sections. Their simultaneous duty determines what the shaft must transmit. Adding only the two flows would omit the pressure conditions needed for a power calculation.

Match the offered code to the machine

BLINCE's public SGP listing covers SGP1 displacements of 19–36 mL/rev and SGP2 displacements of 20–52 mL/rev. Its VQ listing identifies 20VQ, 25VQ, 35VQ and 45VQ with displacement-code entries. These ranges establish product routes to investigate, while the offered complete code establishes what is actually being proposed.

Candidate route

Public evidence available

Information needed for the offered configuration

SGP1/SGP2 external gear

Series identities, displacement options, rated/maximum pressure table

Applicable duty, performance, inlet requirements and interface drawing

20VQ/25VQ/35VQ/45VQ vane

Family identities and code/displacement/maximum-pressure/speed table

Unambiguous row scope, permitted duty, delivered flow and complete drawing

PV2R double vane

Common inlet, separate circuit outlets and two sections

Each section's duty, combined input requirement and exact arrangement

For the example 48 L/min enquiry, a useful answer from either route identifies the code, flow at the specified conditions and any deviation from the drawing. It might also reject the enquiry for that family. That is a technically useful result when the required speed, inlet condition or interface cannot be met.

The hydraulic pump category supplies the wider product route if neither family fits. Preserve the machine requirement when investigating another family. Quietly changing required flow, pressure or cold-start conditions to fit an available code would leave the buyer with a different proposal.

Fit requires more than bolt centres. Compare the pilot and its tolerance, shaft profile, engagement length, coupling position, rotation view, port sealing and orientation. The relevant drawing should show the complete offered code and revision. A suffix that cannot be read on the old tag stays open for confirmation; a similar online photograph does not resolve it.

BLINCE's gear-pump rotation confirmation guide covers that specific ordering detail. For a technology conversion, review hoses, brackets, guards, coupling and service clearance alongside the circuit. Include those changes in the installation scope before comparing installed prices.

free get quote

Price two suitable packages on the same basis

Once both candidates meet the duty, compare pump price, conversion parts, labour, spare strategy, service work and energy. A quotation for a bare pump and one including a new coupling and installation hardware are different packages. Identify what is supplied and what the site must provide.

Energy can be priced without assigning an advantage to a pump type. For an illustrative comparison, assume two suitable packages differ by 1 kW of measured electrical input over the same production cycle. Using 3,000 hours/year and 0.12 currency units/kWh gives 1 × 3,000 × 0.12 = 360 currency units/year. Recovering an installed purchase premium of 720 units would take two years on this energy-only basis.

The example has no BLINCE price, measured gear/vane comparison or promised saving behind it. It assumes equal useful output, hours and tariff, with finance, downtime and maintenance excluded. Lower usage or a different tariff changes the result. A supplier's percentage-efficiency headline cannot fill the missing electrical-input measurement.

Service costs need comparable assumptions too. If the decision relies on cartridge replacement, identify the kit, approved procedure, inspections and availability. If it relies on exchanging the whole unit, identify the complete spare code. Keep the commercial offer tied to the accepted technical revision; a later “equivalent” substitution may change the interfaces or duty that made the price acceptable.

Obtain a reviewable reply before releasing the order

Send BLINCE the old tag and machine function for a replacement, or the design duty for a new build. Attach the relevant circuit and interface drawings. The operating sheet should carry required delivered flow, shaft speed, pressure cycle, fluid and temperatures, inlet arrangement and any acceptance or spares requirement. Identify designed, measured and still-missing values.

Request a reply naming the offered full code, current drawing, applicable flow/performance information, permitted pressure duty, input requirement and deviations from the enquiry. If the comparison involves noise or a particular service kit, the reply needs evidence for that requirement as well. Price, options, lead time and terms belong to the current quotation, with no guarantee inferred from the family page.

Before release, agree the commissioning checks with the qualified person responsible for the machine. The component instructions establish filling/priming where applicable and initial checks of rotation and inlet supply. The machine plan also needs unloaded behaviour and leaks, then the agreed loaded flow, pressure, temperature and any acoustic acceptance result. Isolation, guarding and stored-pressure release must follow the approved instructions; readings require suitable test equipment, never a loosened energised connection.

File the accepted drawing, settings and measured results together. In a BLINCE pump enquiry, that record allows the technical team to review a defined configuration, report a mismatch or name the missing input before an order proceeds.
