A pressure gauge can tell the truth and still lead the repair in the wrong direction.
The problem is easier to understand beside the machine. A mechanic watches the pump outlet gauge climb, waits for the needle to settle, and sees a number that looks acceptable. Then the awkward part remains: the cylinder creeps, the hydraulic motor loses speed, the valve chatters, or the oil temperature keeps rising after twenty minutes of work.
The discussion then turns into a parts argument. One person wants a new pump, another asks for a larger valve, and someone else points at the actuator. Because the gauge has a number on its face, it is too often treated as the final judge.
But a hydraulic pressure gauge only reports the pressure at its own connection. Useful actuator pressure may be lower, and the loss may be hiding across a valve, hose, filter, quick coupler, cooler, or return line. Without another measuring point, the same number could be a relief spike, a blocked path, or pressure that never reaches the work.
This is why pressure testing should begin with test point placement, not with the nearest threaded port.
A single gauge reading is useful because it gives the technician a starting point. At the pump outlet, it shows the pressure being built at the source. After the oil travels through a directional valve, flow control, manifold, small hose, quick coupler, filter, or long return line, the actuator may be working with a very different pressure.
In the field, the misleading cases are easy to miss:
the pump outlet gauge shows pressure, but a motor lacks torque because return pressure is high;
the main gauge reaches relief pressure, but the cylinder is slow because a hose or fitting is too restrictive;
pressure looks low at idle, but the real issue appears only when the oil is hot and leakage rises;
the gauge jumps during a stalled function, yet the pressure drop across the valve is never measured;
a filter indicator stays quiet, but the return side is still restricting flow during cold start;
the pressure gauge is installed too far from the fault, so it confirms the pump is alive but says little about the load.
The machine does not care where the convenient port is. It cares about pressure difference across the component doing the work.
A better diagnostic habit is to stop asking only, "What is the pressure?" and add the question most work orders forget:
Where is the pressure being measured, and what pressure is missing from the other side of the circuit?
Pressure, Flow, and Load Are Not the Same Reading
Pressure is created when flow meets resistance. That simple sentence gets repeated often because it saves parts, but it also gets abused. A hydraulic pump can supply flow. The load, restrictions, and relief settings determine how much pressure appears. If a gauge is installed at only one point, it may not separate load pressure from restriction pressure.
A cylinder lifting a heavy load should build pressure because the load demands force. A plugged fitting can also build pressure, but that pressure is not useful work. A motor may show normal inlet pressure while torque falls because outlet pressure rises and reduces the pressure differential across the motor. A steering circuit can feel weak even though the pump gauge looks normal, because priority flow, load-sensing pressure, or return restriction has changed.
Blince has already covered a related symptom in why hydraulic systems show normal pressure but lack power. This guide looks at the next practical step: where gauges and test points should be placed so the pressure reading becomes useful.
What a Hydraulic Pressure Gauge Actually Measures
A mechanical pressure gauge measures pressure at its connection. Most hydraulic gauges are gauge-pressure instruments, meaning the reading is relative to atmospheric pressure. In common machine service, that is normally what technicians need. For circuit diagnosis, the more important distinction is not gauge pressure versus absolute pressure. It is single-point pressure versus pressure difference.
Pressure difference is what drives useful force and motion across a component.
For example, a hydraulic motor does not only care about inlet pressure. It cares about the difference between inlet pressure and outlet pressure. A directional valve does not only need a maximum pressure rating; it must pass the required flow without losing too much pressure across its internal passages. A filter does not only need a port size; it must have acceptable pressure drop at real oil viscosity and flow.
That is why hydraulic pressure test points should be planned as pairs or groups in the parts of the circuit where pressure can be lost.
Start With the Failure Story
Before installing more gauges, write down what the machine is doing wrong.
Start with the conditions around the complaint. Note whether the oil was cold or hot, whether the machine was loaded, and whether one function failed or several changed together. Then look at the repair history: hose replacement, valve change, pump replacement, cylinder rebuild, cooler installation, and new attachments all change where a gauge should be connected. Low force, slow speed, overheating, noise, drift, chatter, or a function that stops when another function is used will not lead to the same test point.
Those details decide where the pressure gauge belongs.
A machine that lacks force needs pressure checks near the actuator and relief path. A machine that overheats after a valve change needs pressure drop checks across the valve and return side. A machine that slows only with a hydraulic motor attachment needs inlet, outlet, and case drain pressure checks near the motor, not only at the power unit. A cylinder that drifts needs load-holding and valve leakage checks, not just a pump outlet number.
Pressure testing works best when the gauge follows the symptom.
Where Hydraulic Test Points Should Be Placed
Hydraulic test points should earn their place. Extra ports add clutter and possible leak points, and they can confuse the next technician if nobody knows why they were installed. The useful positions are the ones where a pressure reading changes the repair decision.
The table below is a practical starting map.
Test Point Location
What It Tells You
Common Mistake It Prevents
Pump outlet
Whether the pump can build pressure at the source
Replacing a pump before checking downstream restriction
Pump inlet or suction condition
Whether inlet starvation or suction restriction may exist
Blaming pump noise on the pump only
Valve inlet
Pressure available before the control valve
Assuming the valve receives full pump pressure
Valve outlet / work port
Pressure leaving the valve toward the actuator
Missing pressure drop inside the valve or manifold
Cylinder cap and rod ports
Pressure on both sides of a double-acting cylinder
Misreading drift, load holding, or side-load symptoms
Motor inlet and outlet
Pressure differential across the motor
Treating outlet back pressure as useful motor torque
Case drain line
Internal leakage and housing pressure
Missing motor or pump wear, blocked drains, or seal risk
Filter inlet and outlet
Pressure drop across the element and housing
Installing a finer filter that creates bypass or heat
Cooler inlet and outlet
Cooler restriction and return-side pressure
Buying a larger cooler while ignoring back pressure
Return line near tank
Tank entry pressure and return restriction
Assuming all return flow is low pressure
Pilot line
Whether pilot-operated valves receive control pressure
Replacing the main valve when pilot pressure is missing
Accumulator port
Precharge-related pressure behavior
Misreading stored pressure as pump performance
This table is not a rule that every machine needs every port. It is a way to decide which measurement will answer the next question.
Pump Outlet Gauge: Useful, but Not Enough
The pump outlet is the most common pressure test location. It is also the easiest place to overtrust.
A pump outlet gauge can confirm that the pump is moving oil into a circuit and can build pressure when resistance exists. During a relief test, it can show whether the main relief valve reaches the expected setting. During startup, it can reveal a deadhead condition or a sudden pressure rise.
But it cannot prove the actuator receives the same pressure.
Between the pump and the work, oil may pass through a priority valve, pressure control valve, directional valve, flow control, manifold, quick coupler, hose, or filter. Each part can lose pressure. If the pump outlet is the only gauge, a technician may see pressure and still miss the point where useful pressure is being wasted.
For pump questions, use the pump outlet gauge together with downstream measurements. If pump condition is still uncertain, Blince's guide on how to test a hydraulic pump is a better match than replacing the pump based on one number.
Valve Inlet and Work Port Pressure
A hydraulic control valve is often blamed because it is the part the operator touches or hears. The lever feels stiff. The solenoid clicks. The cylinder does not move. The motor starts and then slows. The gauge at the power unit looks fine, so the valve becomes the suspect.
Sometimes that is correct.

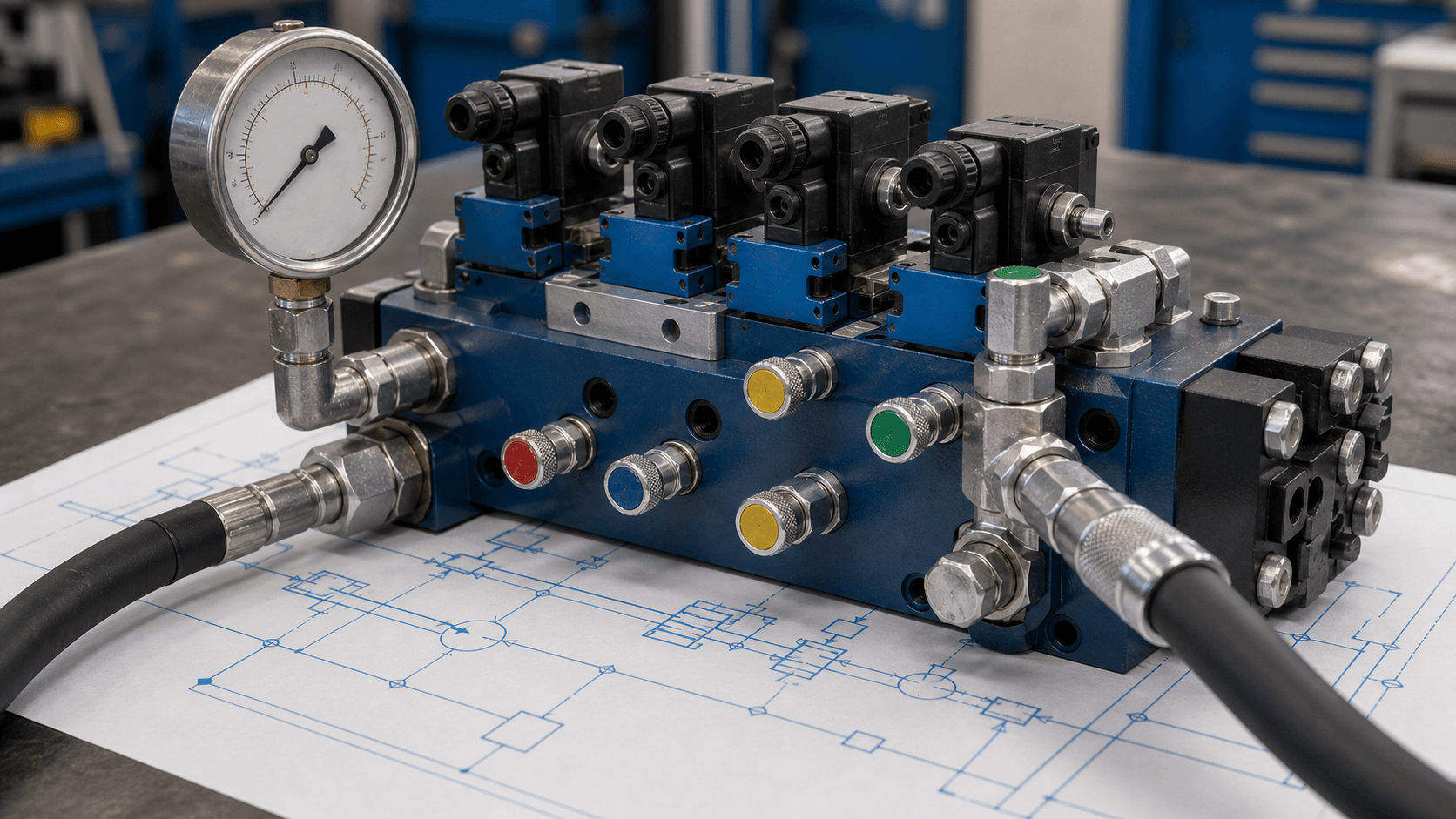

The more careful check is to measure pressure before and after the valve. A valve inlet test point shows whether the valve is being fed correctly. A work-port test point shows whether pressure leaves the valve and reaches the actuator. If inlet pressure is correct but work-port pressure is weak under load, the spool, internal leakage, relief section, pilot supply, or valve sizing deserves attention. If inlet pressure is already weak, the fault may be upstream.
When a hydraulic valve is being selected or replaced, port layout and nominal flow are only the start of the check. Pressure drop at real flow, spool center behavior, pilot pressure, voltage, and return path are often what decide whether the replacement works on the machine.

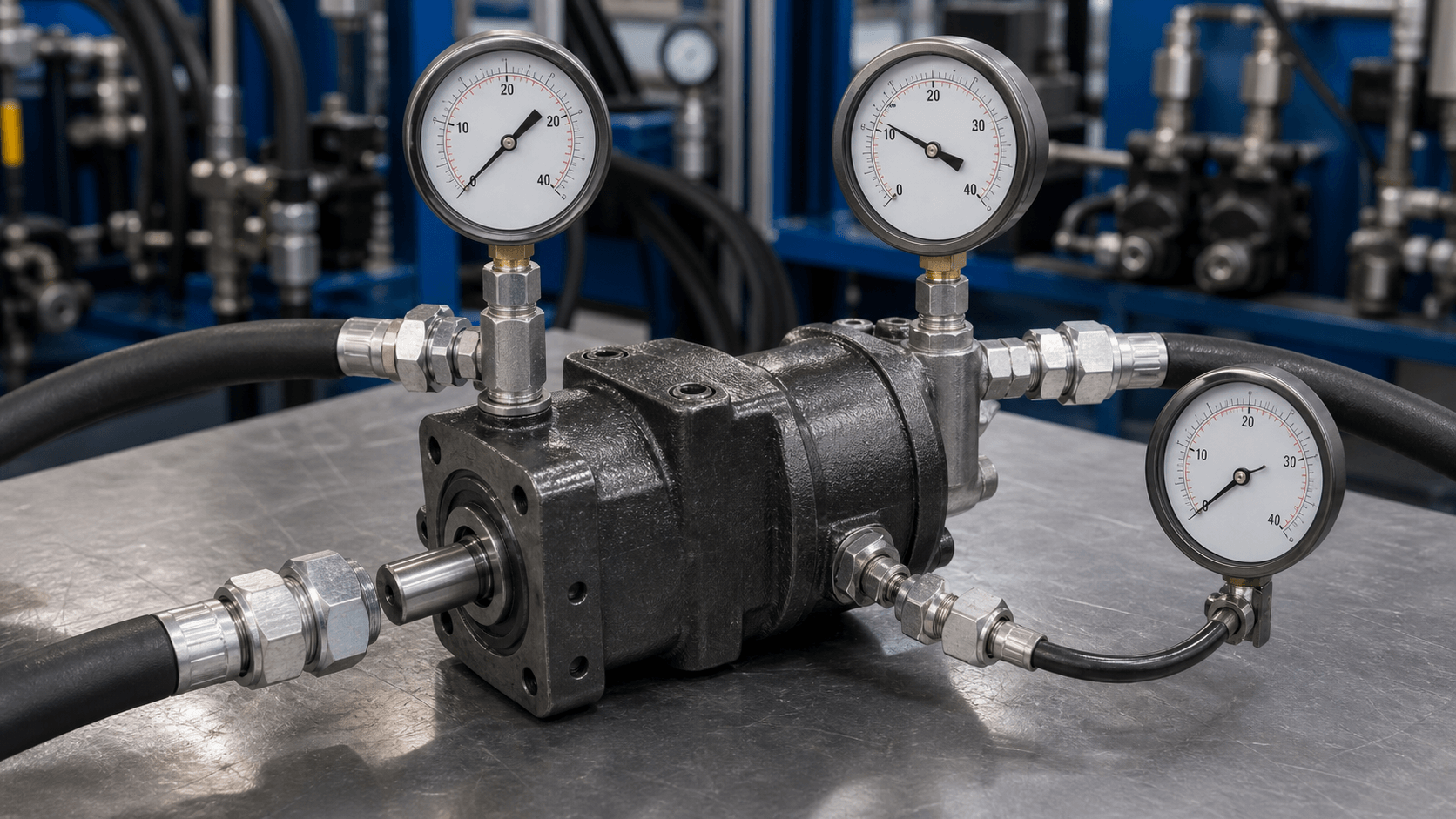

A hydraulic motor needs pressure difference, not just pressure.
Two motor circuits can both show 160 bar at the inlet and still behave differently. With 20 bar on the outlet side, the motor has far more useful pressure difference than it has with 80 bar on the outlet side. The inlet gauge alone may look the same, but the shaft will not.
That is why motor testing should include:
inlet pressure near the motor;
outlet pressure near the motor;
case drain pressure where applicable;
flow or speed under real load;
oil temperature during the test.
This is especially important with hydraulic motors used on attachments, conveyors, sweepers, augers, and wheel drives. A long hose, small quick coupler, restrictive return line, or undersized valve can make the motor feel weak while the pump outlet gauge looks acceptable.
If the complaint is motor speed or torque, do not let a remote gauge at the power unit make the decision alone.
Cylinder Port Pressure and Load Holding
A cylinder complaint often starts with plain words from the operator: it will not lift, it creeps down, it moves slowly, or oil appears around the rod. The pump gauge may still show pressure. For cylinder diagnosis, that number is only a starting clue unless pressure at both cylinder ports is checked.
In a double-acting cylinder, pressure on the rod side can work against the cap-side force. A blocked return line may slow retraction even while pump pressure looks normal. Once a load-holding valve is added, the reading gets harder to interpret because trapped pressure can imitate cylinder leakage. A worn piston seal adds another possibility, letting oil cross inside the barrel while the outside stays dry.

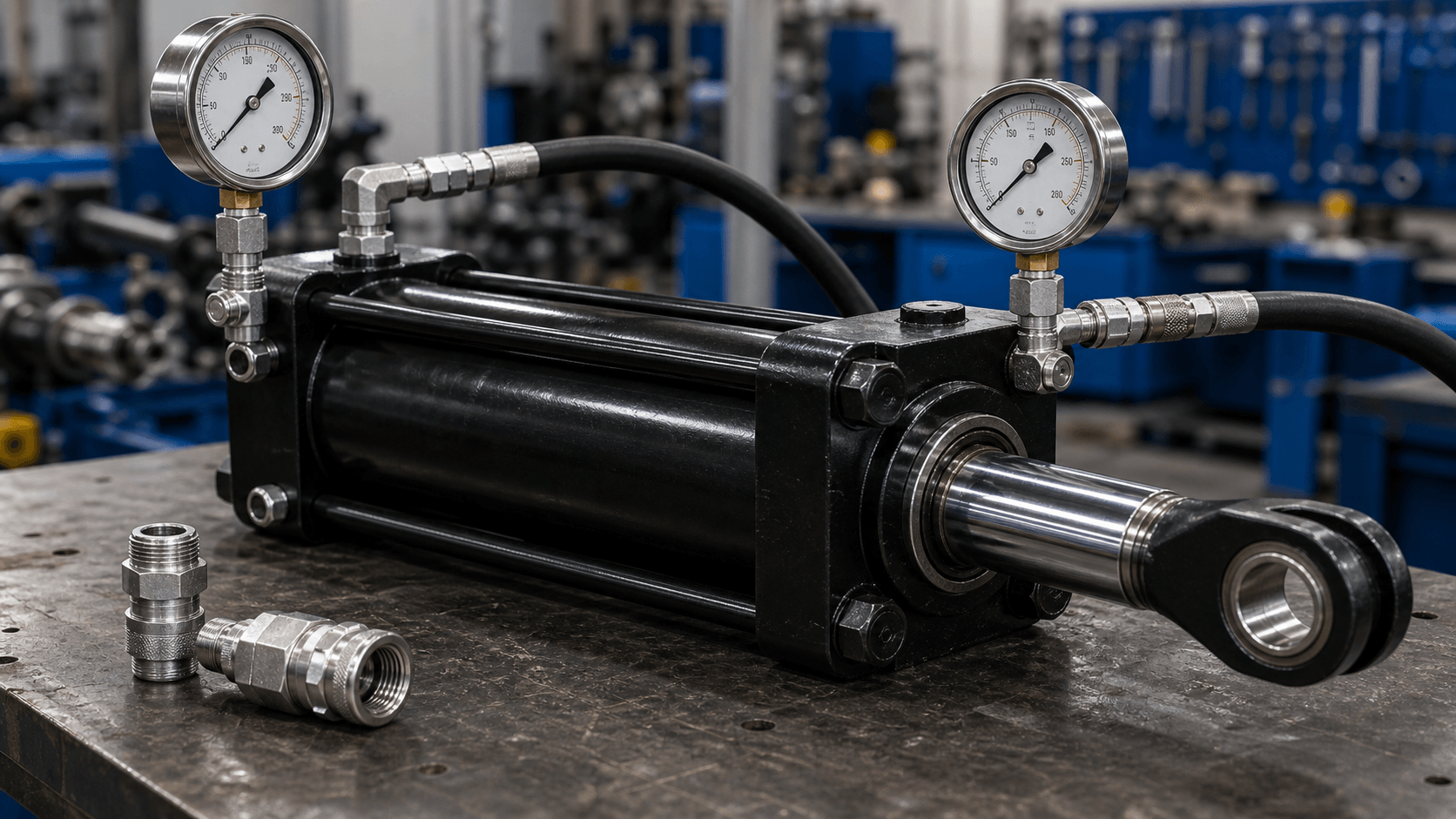

For hydraulic cylinders, cap-port and rod-port readings usually explain more than one main gauge. They help separate cylinder leakage from valve leakage, hose restriction, and load-holding valve behavior.
Many technicians call the return side "low pressure" and move on. In a healthy circuit that may be close enough. In a troubled circuit, it can be a costly assumption.
Return pressure can rise because of a small hose, blocked filter, restrictive cooler, long return path, quick coupler mismatch, undersized manifold passage, or tank entry problem. That pressure may not help the actuator. It may only create heat, reduce motor torque, slow cylinder movement, or stress seals.
This is where a return-side test point earns its place. Measure return pressure near the component and near the tank if possible. The difference can show whether the restriction is local or farther downstream.
Return pressure is especially important when a hydraulic oil cooler or return filter has been added to an older machine. The cooler may be correct, but the hose and fitting layout around it may still create pressure drop. The same warning applies to hydraulic hoses and fittings used on attachments where flow has increased over time.

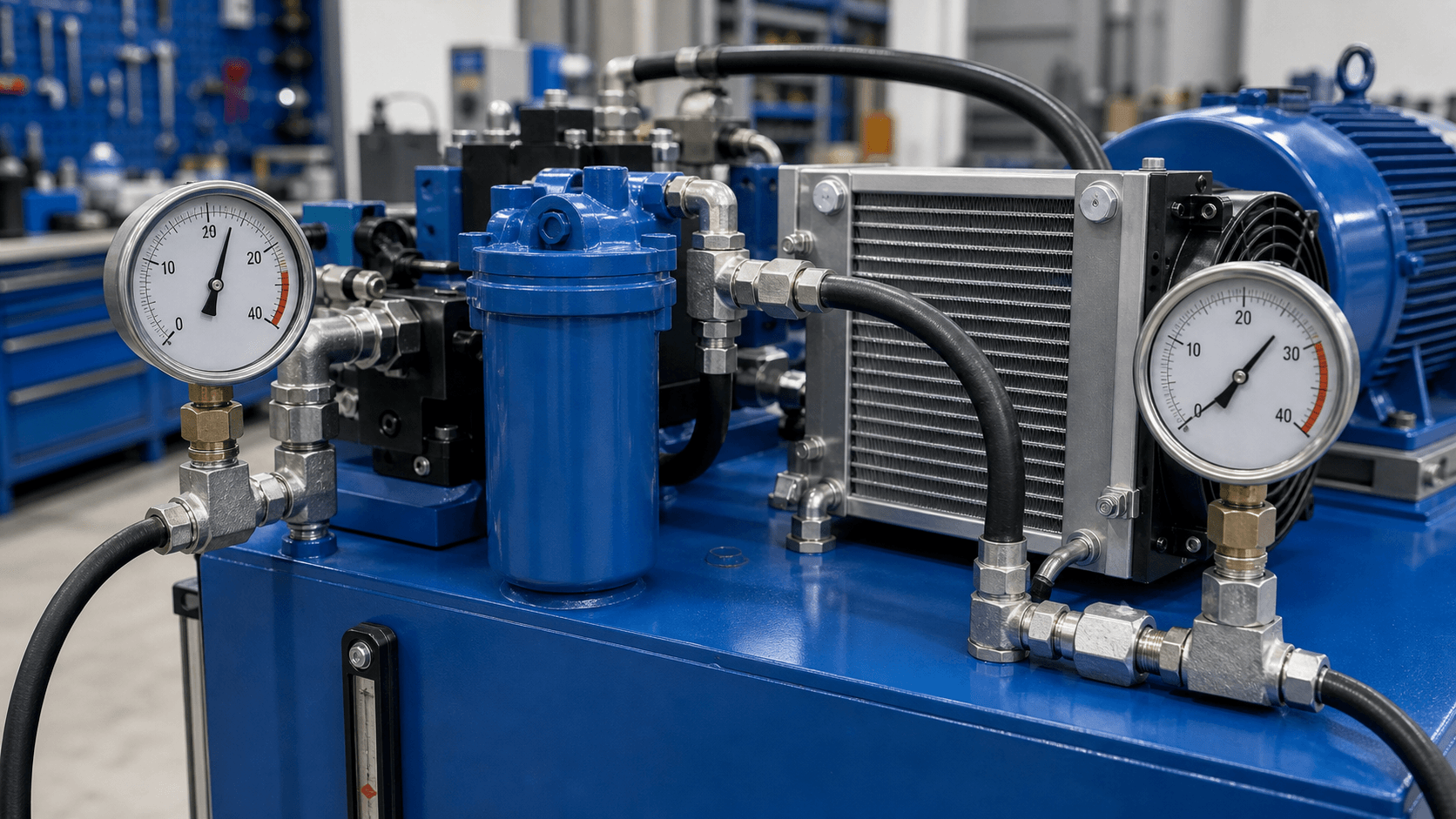

Filter and Cooler Pressure Drop
Filters and coolers are protective parts, but they can become restrictions when selection or installation is wrong.
A filter should be checked across the element or housing when the complaint involves cold-start bypass, heat, slow movement, or repeated element failure. One gauge before the filter and one gauge after the filter are more useful than a general pressure reading somewhere else in the circuit. A clogged element, wrong micron rating, high oil viscosity, or undersized housing can all create pressure drop.
A cooler should be checked the same way. Measure pressure before and after the cooler under real operating flow. If pressure drop is high, the system may be turning pump power into heat before the oil ever reaches the tank. In that case, buying a larger cooler core may not fix the real problem unless hose size, fittings, bypass behavior, and mounting are reviewed.
Case drain pressure is easy to ignore because the line looks like a small return. On piston pumps, piston motors, and some other hydraulic components, the case drain protects seals and carries internal leakage back to tank. If the line is blocked, undersized, routed upward without care, or connected into a pressurized return, housing pressure can rise.
That can create several problems:
shaft seals leak or fail early;
motor or pump temperature rises;
internal leakage appears worse than it is;
the component feels weak under load;
a new unit fails after installation and gets blamed too quickly.
A case drain test point should be close enough to the component to show real housing pressure. Testing only at the tank end of the line may miss a local restriction. When a new motor or pump fails after replacement, case drain pressure belongs on the inspection list before the second unit is ordered.
Pilot Pressure and Control Circuits
Pilot-operated valves need pilot pressure. That sounds obvious, but it is missed often because the main lines look more important.
A pilot-operated check valve may not open smoothly if pilot pressure is too low. A counterbalance valve may behave poorly if pilot ratio, back pressure, or trapped pressure is wrong. A pilot-operated directional valve may energize at the coil but fail to shift fully if pilot supply or drain conditions are not correct.
Small pilot lines are sensitive to dirt, trapped air, and wrong connection. When the valve body is expensive, one pilot-line test point can keep a service team from replacing the large valve before the control pressure is even known.
If the valve clicks but the actuator stays still, if a suspended load refuses to release, or if the function changes with temperature, measure pilot pressure before condemning the valve.
Choosing a Gauge for Rough Hydraulic Work
Gauge placement matters first. Gauge selection comes next.
A hydraulic pressure gauge should match the pressure range, expected pulsation, vibration, fluid, connection, accuracy requirement, and service environment. A gauge that is too low in range can be damaged by pressure spikes. A gauge that is too high in range may be hard to read during normal operation. A dry gauge on a vibrating machine may flutter so badly that the technician reads an average that is not really there.
On many hydraulic machines, a liquid filled pressure gauge is easier to read because the filling calms pointer movement during vibration or pulsation. The case, connection, and mounting position deserve the same attention as dial size. WIKA's pressure gauge guidance also notes that hydraulic applications often use a robust case with glycerine filling to damp the measuring system against vibration and support readability.
Blince's liquid filled pressure gauge manometer for hydraulic systems is relevant where a service team needs a readable mechanical gauge for hydraulic pressure checks. The product page lists a 0 to 500 bar pressure range and describes it for hydraulic system pressure measurement.
The gauge should be protected from conditions it was not designed to handle. Pulsation, pressure spikes, temperature, vibration, and dirty oil can shorten gauge life. In harsh circuits, a snubber, gauge isolator, remote hose, or test coupling may be needed. The exact choice depends on the machine and the kind of reading needed.
Test Hose and Coupling Details
The gauge is only one part of the measurement chain. The hose, coupling, adapter, and thread seal also matter.
The test hose has to be treated as a pressure component, including the spikes that may appear during a stall or relief test. Thread form, sealing method, adapter bore, and coupling condition all affect the reading and the safety of the job. A loose coupling can leak or pull air into the connection; a damaged hose belongs out of the toolbox, no matter how convenient its length may be.
For regular service work, test points should be clean, capped, labeled where possible, and located where a technician can connect a gauge without reaching into moving parts or hot surfaces. A test point that cannot be accessed safely during operation is less useful than it looks on a drawing.
When permanent test points are added to a machine, the installation should be treated as part of the hydraulic circuit. Thread depth, seal type, port wall thickness, and line stress all matter. This is also where good hydraulic fittings and correctly selected hydraulic hose support more than fluid transfer. They support accurate diagnosis.
Reading the Needle During Real Operation
A pressure reading taken with no load can be polite and useless.
Many faults appear only when the machine is warm, loaded, moving two functions, or running through a long cycle. If a gauge is connected for thirty seconds at idle, the reading may prove very little. A meaningful test usually records what the machine is doing at the same time as the pressure reading.
Useful notes include:
oil temperature;
engine or motor speed;
function being operated;
load condition;
pressure at the beginning of movement;
pressure while moving;
pressure at stall or relief;
pressure after warm-up;
pressure difference across suspected restrictions.
The highest number is not always the most useful one. A brief spike during relief may matter less than a steady pressure drop that lasts through the work cycle. A gauge that climbs slowly as oil warms tells a different story from a gauge that jumps only at stall. If the needle flutters, look for pulsation, air, valve instability, or a gauge that does not suit that location.
Pressure Drop Mapping
Pressure drop mapping is simply a habit of comparing several gauge readings while the same function is operating. The method is not complicated, but it has to be done under the same load, temperature, and valve position each time.
A weak cylinder may need readings at the pump outlet, valve inlet, valve work port, cylinder cap port, and return line. A slow hydraulic motor usually deserves a different map: pump outlet, valve inlet, motor inlet, motor outlet, case drain, and tank return. When overheating begins after a cooler installation, the useful readings often move to cooler inlet, cooler outlet, filter inlet, filter outlet, and return pressure near the tank.
The map often reveals what a single gauge hides.
High pump outlet pressure with low actuator inlet pressure points to a loss between those two locations. High motor outlet pressure reduces useful torque. A filter pressure drop that rises sharply in cold oil brings bypass behavior and viscosity into the discussion. When return pressure is high near the actuator but lower near the tank, the restriction is probably in that return path.
At that point, the complaint is no longer vague. It has a path the technician can follow.
Misdiagnoses That Start at the Wrong Port
Mistake 1: Letting the Main Gauge End the Conversation
The main gauge is worth reading, but its location limits what it proves. A healthy-looking pump outlet number can still leave the actuator short of pressure after oil has crossed valves, hoses, fittings, or couplers.
Mistake 2: Reading Only the Inlet Side
For motors, cylinders, filters, coolers, and valves, the useful clue usually comes from comparing two sides of the component. Heat, slow speed, and weak torque often make more sense after the outlet and return readings are written down beside the inlet number.
Mistake 3: Testing Cold and Repairing for Hot Work
Cold oil can hide leakage but exaggerate pressure drop. Hot oil can reveal leakage but reduce restriction in some parts of the circuit. A test that does not record oil temperature may point to the wrong part.
Mistake 4: Using the Wrong Gauge Range
A gauge with too much range may make small but important changes hard to see. A gauge with too little range may be damaged by spikes. For troubleshooting, readability in the working range matters.
Mistake 5: Treating Flutter as a Number
Pointer flutter is not a stable pressure reading. It may come from pulsation, vibration, air, rapid valve movement, or a gauge that needs damping. A liquid filled gauge, snubber, or better test location may be needed before the reading can be trusted.
Mistake 6: Leaving Test Points Out of New Builds
On a new power unit or machine, test points often look like optional extras. They become important the first time the machine fails in the field. Well-placed test points can reduce downtime, spare part guessing, and long phone calls built around one unclear gauge number.
Pressure Gauge Placement by Machine Type
Hydraulic Power Units
On a hydraulic system or power unit, useful test points often include pump outlet, main relief valve, pressure line after filtration, return line before the tank, and cooler or filter differential points. If the unit feeds several downstream functions, a test point at the power unit alone may not be enough.
Hydraulic power unit accessories should be selected with maintenance in mind. A pressure gauge, filler breather, oil level indicator, drain port, and return filter do not only help during commissioning. They also make later diagnosis faster.
Mobile Machinery
Mobile equipment adds vibration, long hoses, dust, quick couplers, and attachment changes. A gauge mounted permanently in a harsh location may be hard to read or easy to damage. Remote test points with capped couplings can be more useful than a gauge left in a place where it shakes all day.
For mobile attachments, check pressure before and after quick couplers if the complaint appears only with one tool. A coupler mismatch can create heat and pressure drop while the base machine still looks healthy.
Farm Equipment
Farm machines often sit through quiet months and then work long days in dust and heat. Before the busy season, pressure testing should include oil condition, breather condition, coupler cleanliness, and hose routing. It is also a good time to check whether test points are capped, reachable, and still readable.
Industrial Presses and Fixtures
Press circuits care about holding force, repeatability, and safety. A gauge near the pump may not show pressure at the cylinder during the hold phase. Press applications often need test points at the pump, valve, cylinder port, and any pressure reducing or holding valve that affects the work.
For users searching hydraulic press accessories, the correct gauge and test point layout can be more important than adding another generic accessory to the machine.
Buying Hydraulic Accessories for Diagnosis
Hydraulic accessories should not be selected as loose items in a box. The better approach is to match them to the circuit question.
If the problem is unclear pressure, start with a gauge range and connection that match the machine. If the problem is repeated contamination or tank breathing, review the breather and tank accessories. If the problem is attachment heat, include hose size, couplers, and return pressure in the review. If the problem is a new pump or motor failing early, include case drain and inlet checks in the test plan.

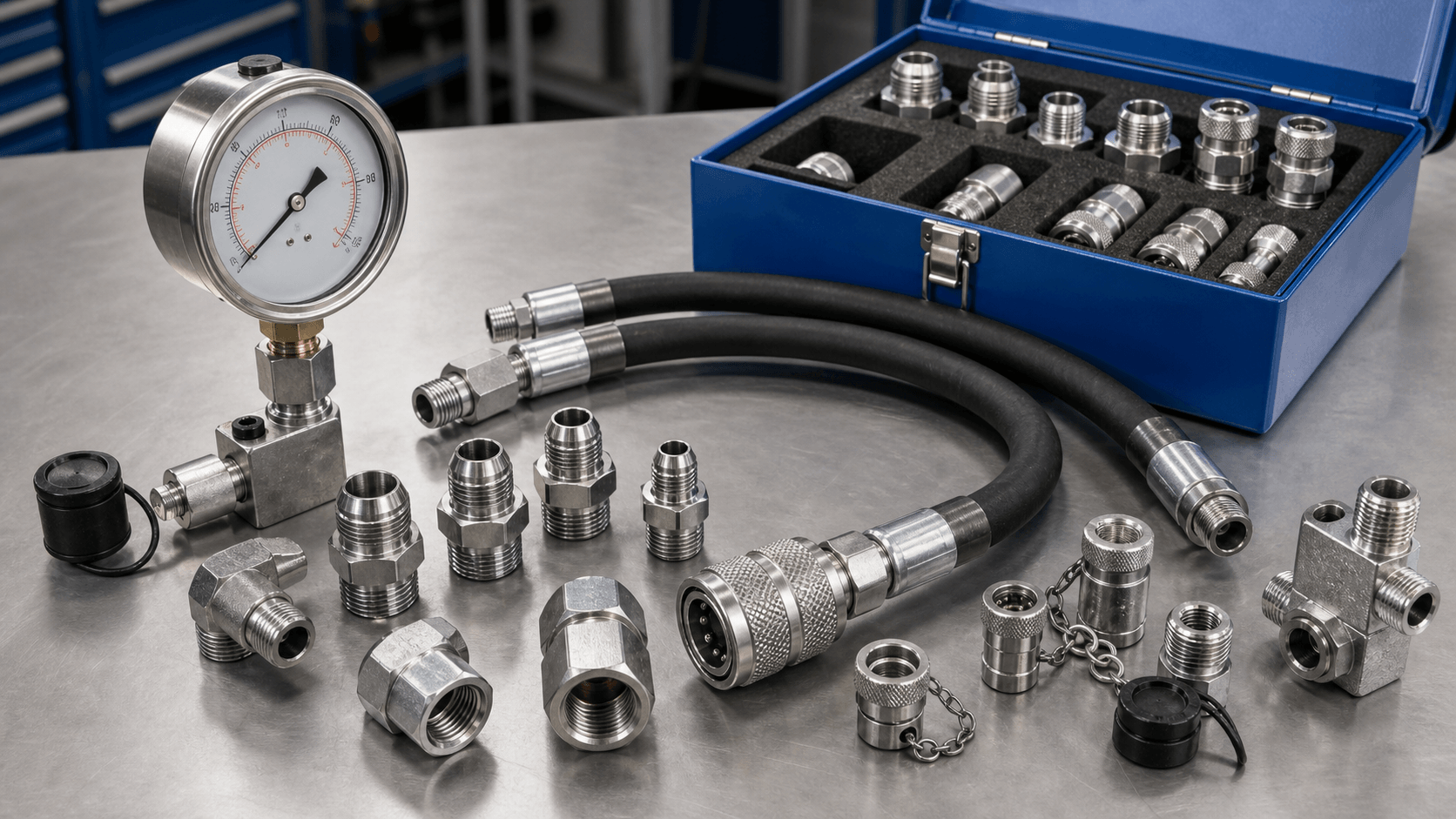

For a practical service kit, many repair teams keep:
a liquid filled hydraulic pressure gauge;
suitable gauge hoses;
common adapters and fittings;
clean caps and plugs;
a way to label test points;
spare tank breather or air filter where the machine environment is dirty;
a notebook or digital form for pressure, temperature, and function notes.
Blince can help match hydraulic accessories, hydraulic hoses and fittings, pressure gauges, and related system components to the actual machine problem. The key is to send the failure story, not only the failed part number.
Information to Send Before Asking for a Gauge or Test Kit
A supplier can give a better recommendation when the test goal is clear. Before asking for a pressure gauge, hydraulic test point, or accessory kit, collect the following:
Information
Why It Matters
Machine type and function
A press, conveyor, excavator, and power unit need different test points
Normal working pressure
Helps select gauge range and safety margin
Relief setting if known
Shows the maximum pressure expected during testing
Oil temperature during the complaint
Separates viscosity, leakage, and restriction behavior
Function that fails
Decides whether to test pump, valve, actuator, return, or pilot lines
Photos of existing ports
Helps identify thread, access, and safe connection points
Hose and coupler sizes
Useful when pressure drop or attachment problems are suspected
Whether the problem is cold, hot, loaded, or intermittent
Prevents a no-load test from being treated as final
Current gauge location
Shows what the existing reading can and cannot prove
Those details often change the recommendation. One buyer who asks for a gauge may need two test hoses with it. Another may need a pressure gauge and a breather, while a third should add a return-line test point before spending money on a valve.
A Simple Field Test Sequence
Use this sequence as a practical starting point. It is not a replacement for the machine manual or safety procedure, but it keeps the pressure reading tied to the symptom.
Confirm the complaint in plain language.
Record oil level, oil temperature, and visible leaks.
Identify the safest test points near the suspected circuit.
Check the existing main gauge, but do not stop there.
Measure pressure before the suspected component.
Measure pressure after the suspected component.
Repeat the test under the condition where the problem appears.
Record whether the reading changes between cold and hot oil.
Put inlet, outlet, return, and case drain readings side by side where they apply.
Choose the next step from the readings: adjustment, cleaning, hose or fitting correction, accessory replacement, or major component replacement.
The order matters less than the discipline: the gauge must follow the failure path.
Final Takeaway
A hydraulic pressure gauge is a simple accessory. It becomes useful when the port location, test condition, and question all match the failure.
One normal pressure reading should not close the diagnosis too early. First ask where the reading was taken. Then compare pressure before and after the valve, filter, cooler, hose, coupler, motor, cylinder, or return line. The last check is just as important: was the test done under the same load and temperature that created the complaint?
If you need help choosing a pressure gauge, test hose, adapter, or other hydraulic accessories, send Blince the machine type, current gauge location, port photos, expected pressure range, oil temperature, and the symptom that appears under load. The right measuring point can prevent another unnecessary replacement part.
FAQ
1. Where should a hydraulic pressure gauge be installed?
The best location depends on the symptom. A pump outlet gauge is useful, but many faults need additional test points at the valve inlet, valve work port, actuator port, motor outlet, filter inlet and outlet, cooler inlet and outlet, return line, pilot line, or case drain. The gauge should be close enough to the suspected component to answer the repair question.
2. Why does my hydraulic system show normal pressure but still feel weak?
The gauge may be reading pressure at the pump while useful pressure is lost before it reaches the actuator. High return pressure, valve pressure drop, hose restriction, quick coupler mismatch, internal leakage, or poor flow can make a machine feel weak even when the main gauge looks normal.
3. Is a liquid filled pressure gauge better for hydraulic systems?
A liquid filled pressure gauge is often better on hydraulic equipment with vibration or pulsation because the filling damps pointer movement and improves readability. It still needs the correct range, connection, pressure rating, and installation point.
4. What pressure range should I choose for a hydraulic gauge?
Choose a range that safely covers expected working pressure and relief pressure while still being readable during normal operation. A gauge that is too low can be damaged by spikes. A gauge that is too high may hide small but important changes. If the system pressure is uncertain, confirm the relief setting and machine specification before testing.
5. Why is return line pressure important?
Return pressure can reduce motor torque, slow actuator movement, add heat, and stress seals. It may come from small hoses, blocked filters, restrictive coolers, quick coupler mismatch, or poor tank return layout. Return pressure is still pressure, even if the line is called a low-pressure line.
6. Do I need two gauges for hydraulic troubleshooting?
Many tests become clearer with two gauges because pressure difference matters. For example, filter pressure drop needs inlet and outlet readings. Motor torque diagnosis needs inlet and outlet pressure. Valve restriction diagnosis often needs pressure before and after the valve.
7. What is the difference between a pressure gauge and a hydraulic test point?
A pressure gauge displays the pressure. A hydraulic test point is the connection location where a gauge or sensor can be attached. A good test point is safe, accessible, capped, clean, and placed where the reading helps diagnose the circuit.
8. Can a pressure gauge prove a hydraulic pump is good?
Not by itself. A pump outlet gauge can show whether pressure can build under resistance, but pump health also depends on flow, inlet condition, leakage, noise, temperature, and case drain behavior where applicable. A pressure reading should be part of the pump test, not the whole test.
9. Why does my gauge needle flutter?
Pointer flutter can come from vibration, pulsation, air in the oil, unstable valve movement, or a gauge that is not suited to the test point. A liquid filled gauge, snubber, remote hose, or different test location may improve readability.
10. What should I send before ordering hydraulic pressure testing accessories?
Send the machine type, expected pressure range, current gauge location, photos of the ports, oil temperature during the fault, function being operated, hose and coupler sizes, and whether the issue appears cold, hot, loaded, or intermittent. Those details help match the gauge, test hose, fittings, and accessories to the real circuit.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
Blince Hydraulic Team
Blince Hydraulic is an industry-leading company dedicated to precision-engineered fluid power manufacturing and custom hydraulic solutions. Backed by decades of deep field expertise in industrial machinery and thousands of successful global deployments, our engineering team focuses entirely on high-performance hydraulic component manufacturing, including specialized orbital motors, high-pressure travel drives motor, and robust directional control valves. Our production infrastructure utilizes state-of-the-art multi-axis CNC machining systems and is fully ISO 9001 certified to guarantee repeatable volumetric accuracy across every single manufacturing run.
We deliver fast, highly dependable, and cost-efficient hydraulic solutions to heavy industry distributors, machinery OEMs, and maintenance crews across more than 150 countries. Whether your active project calls for a small-volume batch of customized shaft profiles or a large-scale production run of severe-duty cast iron gear pump, we configure our flexible production schedules to meet your target lead times with total pricing predictability. Partnering with Blince means securing maximum system efficiency, elite material quality, and uncompromised fluid power professionalism.
To learn more about our complete product lineup, visit our official website: www.blince.com.
