Hydraulic Directional Control Valve Selection Guide: Flow, Spool Type, Pressure Drop, And Heat Control

A hydraulic directional control valve is not chosen by thread size and voltage alone. The valve must pass enough oil at the real working flow, shift fully under the available electrical or pilot signal, keep pressure drop within a workable range, and return oil without creating damaging back pressure.

The spool center is where many replacement jobs go wrong. Two valves can share the same port pattern, yet one lets a motor coast in neutral while the other stops it hard. One may unload a gear pump; another may hold pressure until the relief valve complains. Before a replacement is approved, match what the old valve did in neutral, not only where the hoses connected.

When oil starts running hotter after a valve change, I would first look for wasted pressure. The waste may be across a narrow spool passage, a quick coupler with a small bore, a relief setting that is too low for the work, or a return hose that was never sized for the new flow. A bigger cooler may buy time, but it will not turn an undersized valve into a good match.

For repair work, start with the story from the machine: what function is failing, what changed recently, whether the fault appears cold or hot, and what the operator expects the circuit to do. A model number is useful, but by itself it is not enough. Flow, pressure, voltage, spool function, and the valve's place in the circuit still have to be checked.

Why Valve Problems Get Diagnosed Too Early

On a working machine, the valve is often the first clue the operator notices. The lever feels heavier than usual, a solenoid clicks without much movement, a cylinder hesitates, or a motor starts nicely and then fades. From the cab or control panel, all of that looks like a valve problem.

Sometimes that is correct. A spool can stick. A coil can burn. A valve body can be cracked. Dirt can block a small passage. But many valve-related complaints begin before the valve is installed.

A replacement hydraulic directional control valve can look fine on the bench. The ports line up, the coil label looks right, the pressure rating seems generous, and the lever or manual override moves. Trouble often appears only after installation: the pump note changes, the tank line warms up, the actuator loses speed, or a second function quits whenever the new valve is used.

The reason is simple. A directional valve does not only send oil left or right. It also decides what happens to pump flow in neutral, how actuator ports are connected or blocked, how much pressure is lost through the spool, how the return oil gets back to tank, and whether a downstream function still receives oil.

That is why a hydraulic valve should be selected as part of a circuit, not as a loose metal block with matching threads.

What a Directional Control Valve Actually Has to Do

A directional control valve has one basic job: it routes oil. In practice, that job includes several smaller decisions.

It must connect pump flow to the correct actuator port. It must send return oil back to tank. It must survive the working pressure. It must pass the required flow without excessive pressure drop. It must shift when the operator, solenoid, pilot signal, or mechanical actuator tells it to shift. It must behave correctly in the center position.

That last point is where many replacements fail.

For example, a hydraulic motor circuit may need both actuator ports open to tank in neutral so the motor can coast down without pressure spikes. A lifting cylinder may need both ports blocked, or it may need a separate load-holding valve. A gear pump circuit may need the pump unloaded to tank when the operator is not using the function. From the outside, the valve bodies may look almost identical. Inside the circuit, they are doing different jobs.

That is why a short purchase description such as "4 way hydraulic valve" or "hydraulic solenoid valve 12v" can be risky. It names the general family, but it does not describe the neutral condition or circuit duty.

Start With the Circuit Role, Not the Catalog Picture

Start the selection note in plain language: this valve runs which function, under what load, and what must happen when the operator lets go. That small note catches problems that a catalog photo cannot show.

For instance, is the valve running one double-acting cylinder, a hydraulic motor, a winch, a clamp, a steering auxiliary, a dump bed, a press, or a conveyor? Should the load stay still when the handle returns to center? Does the pump need a free path back to tank in neutral? Is another valve fed after this one? Is the machine open center, closed center, or load-sensing?

Those questions change the selection.

For a simple agricultural cylinder, a manual spool valve may be enough. For a compact power unit, a direct acting solenoid valve may be suitable. For a larger mobile machine, a multi-way valve with relief, anti-shock, anti-cavitation, power-beyond, or proportional functions may be needed. For a motor circuit, a spool designed for cylinder control may not give the right neutral behavior.

If the valve sits in a larger circuit, read it together with the pump, actuator, return line, and protection valves. Blince's earlier article on series hydraulic valve circuits is useful when a downstream valve or auxiliary function is involved.

Flow Rating: The Number That Is Easy to Misread

Many valve failures are really flow selection failures. A valve may be rated for a certain flow, but that rating is not a promise that the machine will run well at that flow in every circuit.

The useful question is not only "What is the maximum flow?" Ask what the pressure drop will be at the flow the machine actually uses, after the oil has warmed up and viscosity has changed.

The gap can be bigger than it looks on paper. A valve that behaves well at 25 L/min may turn into a heater at 45 L/min. A compact solenoid valve that is fine on a small clamp may choke a fast cylinder. A multi-way valve may feel acceptable on one function and then struggle when two sections are used together.

Pressure drop is the difference in pressure between two points in a flowing system. For a deeper general definition, see pressure drop. In a hydraulic valve, that lost pressure does not help the actuator. It normally becomes heat.

In field terms, excessive valve pressure drop shows up as:

• a cylinder that moves slower than expected;

• a hydraulic motor that loses torque under load;

• a pump that becomes noisy;

• a relief valve that opens more often than it should;

• a tank line that runs hot;

• oil temperature that rises after a valve change.

This is why the valve flow rating must be checked together with hose size, fitting bore, return line capacity, filter condition, and actuator demand. If the oil cannot pass through the rest of the circuit, a larger valve alone will not solve the problem.

Spool Center Type: The Quiet Detail That Changes Everything

The spool center controls what happens when the valve is not being operated. It is quiet, easy to overlook, and often responsible for confusing replacement problems.

Different manufacturers may use different code systems, so the safest method is to confirm the actual port connections in neutral. Do not rely only on a single letter in a part number unless the series code is confirmed.

Many field complaints start after a neutral function changes. The operator says, "The new valve fits, but the cylinder drops," or "The motor stops too hard," or "The pump heats in neutral." These are not small details. They are signs that the replacement spool is not doing the same job as the old one.

If the circuit must hold a suspended load, do not depend on an ordinary directional spool alone. Internal spool leakage is normal in many valve designs. A pilot-operated check valve, counterbalance valve, or load-holding valve may be required depending on the machine and safety risk.

Solenoid Valve Selection: Voltage Is Only the First Check

A hydraulic solenoid valve often gets reduced to one number: 12V or 24V. That is only the start. The electrical side and the hydraulic side both need a closer look.

Check whether the coil is DC or AC, because 24 VDC and 24 VAC are not interchangeable labels. After that, look at the connector, duty cycle, insulation class, available current, sealing against water and dust, manual override, and whether the valve is direct acting or pilot operated.

Direct acting solenoid valves do not need external pilot pressure, which makes them useful in smaller circuits. The tradeoff is flow capacity. Pilot operated valves can handle more oil, but they rely on pilot pressure and a clean drain or return path. With weak pilot pressure, the coil can energize while the main spool only moves part of the way.

That is why a solenoid click is not proof of a successful shift. A technician may hear the coil pull, but the spool may still be blocked by contamination, low voltage under load, weak pilot pressure, sticky oil, or back pressure in the drain path.

For compact hydraulic power units and small control circuits, a product such as a 4 way hydraulic solenoid valve may be suitable when the flow and function match. For industrial directional control, series such as 4WE6J and 4WE6M hydraulic solenoid valves, 4WE6A and 4WE6E micro solenoid valves, or DSG 03 solenoid directional valves can be considered after the circuit data is checked.

The important point is not to choose by coil voltage alone.

Manual, Electric, Proportional, or Remote Control

The control method changes how the valve feels on the machine.

A manual valve gives the operator a feel for the circuit. On agricultural machinery, trailers, small presses, and auxiliary equipment, that simplicity is often a real advantage. A manually operated directional valve can also be easier to troubleshoot because a sticky spool or rough detent is felt at the lever.

An electric solenoid valve fits machines that need push-button, relay, PLC, or remote switching. It saves space and shifts quickly, but it gives less warning when voltage drops, a connector takes in water, the coil gets hot, or dirt reaches the spool.

A proportional valve can provide smoother acceleration and speed control, but it needs cleaner oil, better signal control, and more careful commissioning. It should not be treated as a more expensive on/off valve. It is a control component, not a shortcut.

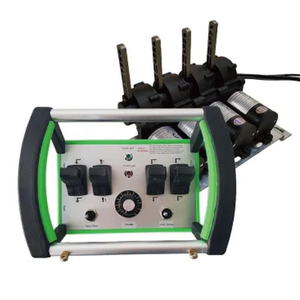

Remote control valves and wireless hydraulic controls can improve operator safety and machine convenience, especially where the operator needs to stand away from the equipment. But the same hydraulic questions remain: flow, pressure, return path, spool function, relief setting, and actuator safety.

The best control method is the one that matches the work cycle. A dump trailer, a forestry feed roller, a hydraulic press, a conveyor, and a lifting platform do not need the same valve behavior.

Pressure Rating Is Not the Same as Working Performance

A valve with a high pressure rating can still be the wrong valve.

Pressure rating tells you what the valve body is designed to withstand under specified conditions. It does not tell you whether the valve has low enough pressure drop at the required flow, whether the spool center is correct, whether the tank port can handle back pressure, or whether the control method suits the machine.

This is why "315 bar" on a catalog page does not solve every selection question. A valve can survive pressure and still make the machine slow, hot, or unstable.

When checking pressure, separate these values:

• maximum pressure rating of the valve body;

• normal working pressure of the circuit;

• relief valve setting;

• pressure drop across the valve at flow;

• return line pressure;

• pilot pressure, if the valve is pilot operated;

• pressure spikes when the actuator starts, stops, or reverses.

In some circuits, the return side is more important than people expect. A tank port may not be designed to carry high pressure continuously. If a downstream valve, small hose, plugged filter, or wrong power-beyond arrangement raises tank pressure, the valve may leak, shift poorly, or fail early.

Relief Valves and Directional Valves Must Agree

Many directional valves include a main relief valve, port relief valves, anti-shock valves, anti-cavitation checks, or pressure control functions. Other systems use a separate hydraulic pressure control valve near the actuator or pump.

Problems appear when these pressure settings fight each other.

Relief settings need to be read as a group, not one screw at a time. Set the valve relief too low and the actuator feels weak. Set it too high and the load moves, but hoses, seals, cylinders, motors, and the pump may be carrying more pressure than they should. With two relief valves in series, the lower one normally starts dumping first. Put a reducing valve before the directional valve without checking the downstream demand, and the actuator may never see the pressure the job needs.

Relief settings should be checked with gauges while the machine is under realistic load. A cold, unloaded workshop test can miss the problem. The article Why Hydraulic Systems Show Normal Pressure But Lack Power is relevant here because a pressure gauge can look acceptable while useful pressure is lost before the actuator.

Valve Block and Manifold Layout

A hydraulic valve block or manifold can reduce piping and make a system more compact. It can also make diagnosis harder if the internal passages are not understood.

A valve block is often more than a machined lump with ports. It may hide check valves, relief cartridges, shuttle valves, small orifices, plugs, and test points around the directional spool. During a section replacement, one missed cartridge or one moved plug can change timing, holding force, or pressure response.

For OEM and repair projects, the safest practice is to document the block before ordering:

• port labels and thread types;

• existing valve model numbers;

• coil voltage and connector style;

• relief valve settings, if marked;

• whether any plugs or orifices are installed;

• whether a power-beyond sleeve is used;

• which line is pressure, tank, actuator A, actuator B, pilot, or drain.

Do not assume every plugged port is unused. In some valve blocks, a plug may be part of the circuit logic.

Hose and Fitting Size Can Make the Valve Look Bad

When a new valve is installed and the machine still moves slowly, the valve is not always the cause. The restriction may be in the hose or fitting.

A hose can have the right pressure rating and still be too small for the required flow. A fitting can have the right thread and still reduce the internal passage. A quick coupler can look convenient and still create a large pressure drop if it is undersized or worn.

This is especially common when a larger pump or faster cylinder is added to an older machine. The new flow tries to pass through the old valve, old hose, old elbow fittings, and old return line. The result is heat.

Blince's hydraulic fitting and hose category is relevant when a valve change also requires line size review. The article on hydraulic tubing selection explains why tube and hose decisions affect pressure loss, heat, and service life.

Oil Temperature After a Valve Change

Oil temperature is a useful witness. It does not tell you the exact cause by itself, but it tells you that energy is being lost.

After a hydraulic directional valve replacement, rising oil temperature may come from:

• valve passages too small for flow;

• wrong spool center keeping the pump loaded in neutral;

• relief valve opening during normal work;

• return line back pressure;

• motor or cylinder circuit being throttled too heavily;

• contaminated oil causing spool drag;

• actuator internal leakage;

• cooler capacity that is no longer enough for the duty cycle.

If the machine was cool before the valve change and hot after the valve change, do not start by blaming the oil cooler. Measure pressure before and after the valve, check neutral pump unloading, confirm return pressure, and verify that the relief valve is not opening during normal operation.

After the pressure loss is corrected, cooling can be sized more honestly. For systems with long duty cycles, a hydraulic oil cooler or heat exchanger may still be required, but it should not be asked to compensate for a badly restricted circuit.

Diagnostic Tests Before Ordering a Replacement Valve

Before ordering a hydraulic valve, collect the information that decides the selection. Photos help, but readings help more.

If no hydraulic schematic is available, take clear photos of the pump, valve, hoses, cylinder or motor, filter, cooler, and tank. Mark which hose goes where before disassembly. Many selection errors are simply hose-routing errors that were discovered too late.

Common Selection Mistakes

Mistake 1: Choosing the Valve by Port Thread Only

Thread size matters for installation, but it is not the selection standard. Two valves with the same ports can have different spool centers, flow capacity, pressure drop, relief arrangements, and control methods.

If the old valve failed because it was undersized, buying another valve with the same thread may repeat the same failure.

Mistake 2: Ignoring the Neutral Position

The neutral position decides what the pump and actuator do when the operator is not using the function. A wrong neutral position can make the pump heat, make a cylinder drift, stop a motor too sharply, or prevent a downstream function from receiving oil.

Ask this before ordering: when the lever is released, should the pump unload, should the actuator hold, should the actuator float, or should a hydraulic motor coast?

Mistake 3: Treating a Solenoid Click as Full Valve Movement

A click only proves the coil moved something. It does not prove the spool shifted fully, the pilot valve opened, the main stage moved, or oil reached the actuator.

Check voltage under load, coil temperature, contamination, manual override, pilot pressure, and drain condition before deciding the valve is suitable.

Mistake 4: Oversizing the Pump and Leaving the Valve Alone

A larger pump may make the old valve become the restriction. The machine may move a little faster at first, but the extra flow can turn into heat across the valve and return line.

If pump flow changes, the hydraulic valve, hoses, fittings, filter, tank line, and cooler should be checked again.

Mistake 5: Using the Tank Port as a Pressure Feed

Some valves have a power-beyond option. Some do not. Feeding a downstream valve from a tank port can damage the valve or create excessive back pressure if the tank port is not rated for pressure.

When a second valve must be added, confirm the correct carry-over sleeve, power-beyond port, tank line, and relief arrangement.

Mistake 6: Expecting an On/Off Valve to Provide Smooth Speed Control

A standard directional valve is mainly for routing oil. It is not a precision speed controller. If smooth speed adjustment is required, the circuit may need a flow control valve, proportional valve, pressure compensation, or a different actuator control strategy.

For background, Blince's article on how a hydraulic flow control valve works is a useful companion to this topic.

Product Selection Paths by Application

Different machines need different valve choices. The following paths are not rigid rules, but they help narrow the conversation.

Compact Hydraulic Power Units

Compact power units often use small solenoid valves, cartridge valves, or modular valve blocks. The main checks are voltage, duty cycle, flow, pressure, manual override, and whether the pump unloads correctly when the function is idle.

If the power unit drives a lift table, dock leveler, dump body, or clamp, do not ignore load holding. The directional valve may not be enough by itself.

Agricultural and Trailer Hydraulics

Agricultural machinery and trailers often favor manual control valves and multi-way valves because they are simple and repairable. Dust, vibration, and outdoor work are normal. Lever feel, detent option, spring return, relief setting, and port protection matter.

A product such as a P80 series hydraulic multi-way control valve may fit simple mobile equipment when flow and function match. For more functions or different control layouts, a TR55 hydraulic multi-way control valve can be compared during selection.

Industrial Equipment

Industrial systems often use modular directional valves, pressure control valves, and flow control valves mounted on manifolds. Clean oil, repeatable shifting, electrical reliability, and documented schematics become more important.

For industrial equipment, a replacement should not be chosen from a photo only. Confirm the circuit symbol, spool type, voltage, connector, mounting pattern, pressure rating, and whether the existing manifold includes check or relief functions.

Hydraulic Motor Circuits

A motor circuit needs special attention because the motor may continue rotating after the valve returns to neutral. It may also generate pressure spikes when stopped suddenly. Some motor circuits need a motor spool, brake valve, cross-port relief, anti-cavitation check, or controlled deceleration.

If a conveyor, sweeper, auger, winch, or travel drive becomes noisy after a valve replacement, check neutral behavior and return path before blaming the hydraulic motor.

Cylinder Load-Holding Circuits

A directional spool may leak internally, and that leakage may be normal for its design. If a vertical cylinder must hold a load, use the right load-holding method. A spool alone is not a safety device.

In lifting, clamping, outrigger, and press applications, check whether pilot-operated check valves, counterbalance valves, or mechanical locks are required by the machine design and safety requirements.

Field Case: The Valve Was New, But the Machine Became Hotter

A repair shop replaced a manual directional valve on a small forestry attachment. The old valve leaked around the lever, so a new valve with similar port threads was ordered. The attachment worked after installation, but the feed roller became slower after twenty minutes. Oil temperature rose faster than before. The pump sounded loaded even when the operator was not moving the lever.

At first, the new valve was blamed. Then the circuit was checked more carefully.

The old valve had a neutral path that unloaded the gear pump. The replacement valve had a different center condition. In neutral, the pump was no longer returning oil freely to tank. The system was building pressure during idle time, and the relief valve was opening. That lost energy became heat. When the oil warmed up, leakage increased and the roller felt weak.

The fix was not a larger cooler and not a larger pump. The fix was selecting the correct open center valve behavior, confirming relief setting, and checking the return hose size. After that, oil temperature stabilized and the roller speed returned to a usable range.

This kind of case is common because the wrong valve can still "work" during a short test. The machine moves. The lever shifts. The operator thinks the repair is done. The real result appears only after the oil is warm and the duty cycle repeats.

A Practical Valve Replacement Checklist

Use this checklist before confirming a hydraulic directional control valve order.

If any line in this table is still unknown, it does not mean the project must stop. It means the quotation should be treated as preliminary, and the missing data should be collected before final installation.

Why Trust This Guide

Blince works with hydraulic motors, pumps, valves, cylinders, hoses, fittings, coolers, gauges, and other system components in the same supply chain. That wider view helps during valve selection because a slow cylinder is not always a valve fault. The real restriction may sit in the pump, hose, relief valve, cylinder seal, return filter, or tank line.

This guide stays close to replacement work and everyday selection. It focuses on the checks that save a second teardown: flow capacity, spool center, control method, pressure drop, heat, leakage, and how the valve behaves once it is bolted into the rest of the hydraulic system.

How Blince Can Help With Hydraulic Valve Selection

Blince can help compare hydraulic directional valves, hydraulic solenoid valves, hydraulic multi-way valves, hydraulic pressure control valves, hoses, fittings, motors, pumps, coolers, and accessories as part of a system.

For a faster and more useful valve recommendation, prepare the following information:

• existing valve model number and photos;

• machine type and working function;

• pump type and approximate flow;

• working pressure and relief setting;

• voltage and connector details for solenoid valves;

• required neutral behavior;

• actuator type, cylinder size, or motor model;

• hose size and port thread;

• whether another valve is downstream;

• failure symptom, such as slow action, heat, drift, noise, or no movement.

If the problem involves low force, slow speed, or heat, include pressure readings before and after the valve when possible. A liquid filled pressure gauge can make field diagnosis much clearer.

FAQ

What is a hydraulic directional control valve?

A hydraulic directional control valve routes oil from the pump to an actuator and sends return oil back to tank. It controls the direction of cylinder or motor movement. Depending on the design, it may be manual, solenoid operated, pilot operated, proportional, or part of a multi-way valve assembly.

How do I choose the right hydraulic directional control valve?

Start with the machine function, pump flow, working pressure, spool center, control method, voltage, port size, and return line condition. Then check whether the valve must unload the pump, hold a load, let a motor coast, or feed another valve downstream. Do not select by thread size alone.

What is the difference between a hydraulic directional valve and a hydraulic flow control valve?

A directional valve decides where oil goes. A flow control valve meters how much oil passes, which affects actuator speed. Some valve assemblies include both functions, but a standard directional valve should not be expected to provide precise speed control by itself.

Why does a new hydraulic solenoid valve click but the cylinder does not move?

The coil click may only prove that the electrical coil is energized. The spool may still be stuck, pilot pressure may be too low, voltage may drop under load, the manual override may be jammed, or pressure may be blocked elsewhere in the circuit. Check both electrical and hydraulic conditions.

Can I replace a manual hydraulic valve with a solenoid valve?

Sometimes, but the circuit must be checked. The solenoid valve must match flow, pressure, spool center, voltage, duty cycle, port layout, and required control behavior. If the manual valve provided fine metering through lever movement, a simple on/off solenoid valve may feel too abrupt.

Why does oil temperature rise after changing a hydraulic valve?

The new valve may create more pressure drop, block pump flow in neutral, cause the relief valve to open, or increase return pressure. Hoses and fittings may also be too small for the actual flow. Measure pressure drop and return pressure before choosing a larger cooler.

What is an open center hydraulic valve?

In a typical open center valve, pump flow can return to tank when the valve is in neutral. This is common with fixed displacement gear pumps because it allows the pump to unload when no function is being used. The exact neutral port connection must still be confirmed by the valve symbol.

What is a closed center hydraulic valve?

A closed center valve blocks pump flow in neutral or works in a circuit where pump flow is controlled differently, such as pressure-compensated or accumulator systems. Using a closed center valve in the wrong gear pump circuit can load the pump continuously and create heat.

What is a motor spool?

A motor spool is a directional spool intended for hydraulic motor circuits. It may allow motor ports to connect in a way that reduces shock or permits coast-down in neutral. It is not always interchangeable with a cylinder spool.

Can multiple hydraulic valves be used together?

Yes, but the connection method matters. A downstream valve may need power beyond, a proper tank line, correct relief settings, and enough remaining flow and pressure. Do not use a tank port as a pressure outlet unless the valve is designed for that purpose.

Is a higher pressure valve always better?

No. A higher pressure rating only means the valve is designed to withstand higher pressure under specified conditions. It does not guarantee low pressure drop, correct spool center, good speed control, or compatibility with the machine.

What information should I send for a hydraulic valve quote?

Send the old valve model, photos, machine function, pump flow, working pressure, coil voltage, port size, spool behavior, actuator type, hose layout, and fault symptom. If the old valve is missing or unreadable, send a short video of the machine and photos of the full hydraulic circuit.

Conclusion

Hydraulic directional control valve selection is not just a catalog match. The valve has to fit the real circuit: flow, pressure, neutral behavior, electrical control, return line capacity, actuator safety, and heat balance.

If a machine moves slowly, heats up, drifts, or loses force after a valve change, the new valve may be wrong, but the cause may also be a hose, fitting, relief setting, pump condition, actuator leakage, or return pressure problem. The fastest repair is usually not the fastest purchase. It is the clearest diagnosis.

For valve replacement or new hydraulic system design, send Blince the valve photos, machine function, pump data, actuator information, pressure readings, and any available schematic. Blince can help review the valve type, spool function, pressure control, hoses, fittings, and related hydraulic components before you commit to a final selection.

Contact Blince for hydraulic valve selection support: share your machine photos, old valve model, flow, pressure, voltage, and working symptoms so the selection can be checked against the full hydraulic circuit.

Tel: +86 185 6675 9667

✉️ Email: info@blince.com

Website: https://blince.com/

Disclaimer

This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.

Blince Hydraulic Team

Blince Hydraulic is an industry-leading company dedicated to precision-engineered fluid power manufacturing and custom hydraulic solutions. Backed by decades of deep field expertise in industrial machinery and thousands of successful global deployments, our engineering team focuses entirely on high-performance hydraulic component manufacturing, including specialized orbital motors, high-pressure travel drives motor, and robust directional control valves. Our production infrastructure utilizes state-of-the-art multi-axis CNC machining systems and is fully ISO 9001 certified to guarantee repeatable volumetric accuracy across every single manufacturing run.

We deliver fast, highly dependable, and cost-efficient hydraulic solutions to heavy industry distributors, machinery OEMs, and maintenance crews across more than 150 countries. Whether your active project calls for a small-volume batch of customized shaft profiles or a large-scale production run of severe-duty cast iron gear pump, we configure our flexible production schedules to meet your target lead times with total pricing predictability. Partnering with Blince means securing maximum system efficiency, elite material quality, and uncompromised fluid power professionalism.

To learn more about our complete product lineup, visit our official website: www.blince.com.
