A hydraulic oil line is not the most expensive part of a machine, but it can decide whether the whole hydraulic system runs smoothly or keeps giving problems.
In actual maintenance work, many failures are first blamed on the pump, valve, cylinder, or hydraulic motor. After checking the machine, the real cause sometimes comes back to a much simpler point: the hydraulic tube or hose was not selected correctly.
The tube may be too small. The hose may be bent too tightly. The suction line may restrict pump inlet flow. The return line may create too much back pressure. A case drain line may look harmless, but if it is restricted, it can damage a hydraulic motor seal.
These problems are common in construction machinery, agricultural equipment, hydraulic power units, and mobile hydraulic systems. That is why hydraulic tubing selection should not start with price or outside diameter. It should start with the machine itself: pressure, flow rate, movement, vibration, oil type, temperature, installation space, and working environment.
Hydraulic tubing is generally rigid and used where fixed routing and clean installation matter, while hydraulic hose is flexible and better suited to movement, vibration, articulation, or tight routing. Flowfit makes the same distinction in its explanation of hydraulic tubing versus hydraulic hose.
Tube or Hose: First Look at Movement
The first question is not “which one is cheaper?” The first question is: does this line need to move?
If the line is fixed on a machine frame, inside a hydraulic power unit, or around a valve block, hydraulic steel tubing is often the better choice. It gives a cleaner layout, better support, and more stable routing after installation.
If the line connects to a cylinder, hydraulic motor, steering system, moving arm, or articulated frame, hydraulic hose is usually safer. The hose can absorb movement and vibration that a rigid tube cannot handle.
On a loader or excavator, using rigid tube all the way to a moving actuator is risky. The tube may crack, or the fitting may loosen because the machine movement keeps pulling on it. But using hose everywhere is not always correct either. Long hose runs can rub, sag, expand under pressure, and make maintenance harder.
A practical rule is this: use tube where the line should stay fixed. Use hose where the line needs to move.
Do Not Select Hydraulic Tube Size by OD Only
Many buyers ask for hydraulic tubing by outside diameter only, such as “12 mm tube” or “18 mm tube.” That is not enough.
For hydraulic tubing, three dimensions matter. The outside diameter affects fitting matching, clamp size, and installation space. The inside diameter affects flow rate, oil velocity, pressure loss, and heat generation. Wall thickness affects pressure capacity, strength, and safety margin.
A tube can look correct from the outside but still be wrong for the circuit. If the inside diameter is too small, oil velocity becomes too high. The machine may become noisy, hot, slow, or unstable. In suction lines, a small ID can make the pump work under poor inlet conditions.
IH Service’s tube selection chart warns that a tube that is too small can cause high fluid velocity, cavitation in suction lines, friction loss, pressure drop, heat generation, and reduced component life. It also points out that correct selection involves material, tube size, outside diameter, and wall thickness.
Before choosing hydraulic tube size, confirm the line function first. A pressure line, return line, suction line, case drain line, and pilot line should not be treated the same way.
Pressure, Return, Suction, and Drain Lines Are Not the Same
A pressure line carries oil under working pressure. It must handle normal pressure and pressure spikes. Construction machinery and agricultural machines often face sudden load changes, so the tube or hose should not be selected only by average working pressure.
A return line usually has lower pressure, but it still matters. If the return line is too small or restricted, back pressure rises. That can affect coolers, filters, seals, and actuator movement.
A suction line is more sensitive than many people think. It feeds oil to the hydraulic pump. If the suction line is too small, too long, or poorly routed, the pump may become noisy, respond poorly, or suffer cavitation.
A case drain line also needs attention. Many hydraulic motors and piston pumps need a low-pressure drain path. If the case drain line is restricted, internal pressure can rise and damage seals or internal parts.
The same tube size may be acceptable for one circuit and wrong for another. This is why copying the old line by appearance alone is not always safe.
Hydraulic Hose Selection: Flexibility Still Has Rules
Hydraulic hose is flexible, but it cannot be installed casually.
The most common hose failures are not always caused by pressure alone. Many are caused by poor routing. The hose is twisted, bent too sharply, pulled too tight, or rubbing against metal. Sometimes the hose is installed too close to heat. Sometimes the fitting angle is wrong, so the hose is already under stress before the machine starts working.
When selecting hydraulic hose, check working pressure, hose ID, hydraulic oil compatibility, temperature range, minimum bend radius, fitting type, thread standard, movement range, abrasion risk, and impulse requirement.
Fluid Power World explains that minimum bend radius is used to prevent restriction and hose damage, and that bends should not begin immediately after the hose end fitting. It also warns that twisting is a serious stress that can lead to hose failure.
One point should not be ignored: do not select hose by burst pressure.
Burst pressure is not normal working pressure. HOS explains that working pressure is the pressure a hose is designed to operate under continuously, while burst pressure is the pressure at which the hose fails. It also warns that burst pressure should not be used as the selection guide.
Also remember that a hose assembly is only as reliable as its weakest part. A high-pressure hose with a lower-rated fitting should not be treated as a high-pressure assembly.
Common Hydraulic Hose Types
Different hoses are built for different jobs. A hose used on a low-pressure return line should not be treated the same as a hose used on a high-pressure boom circuit.

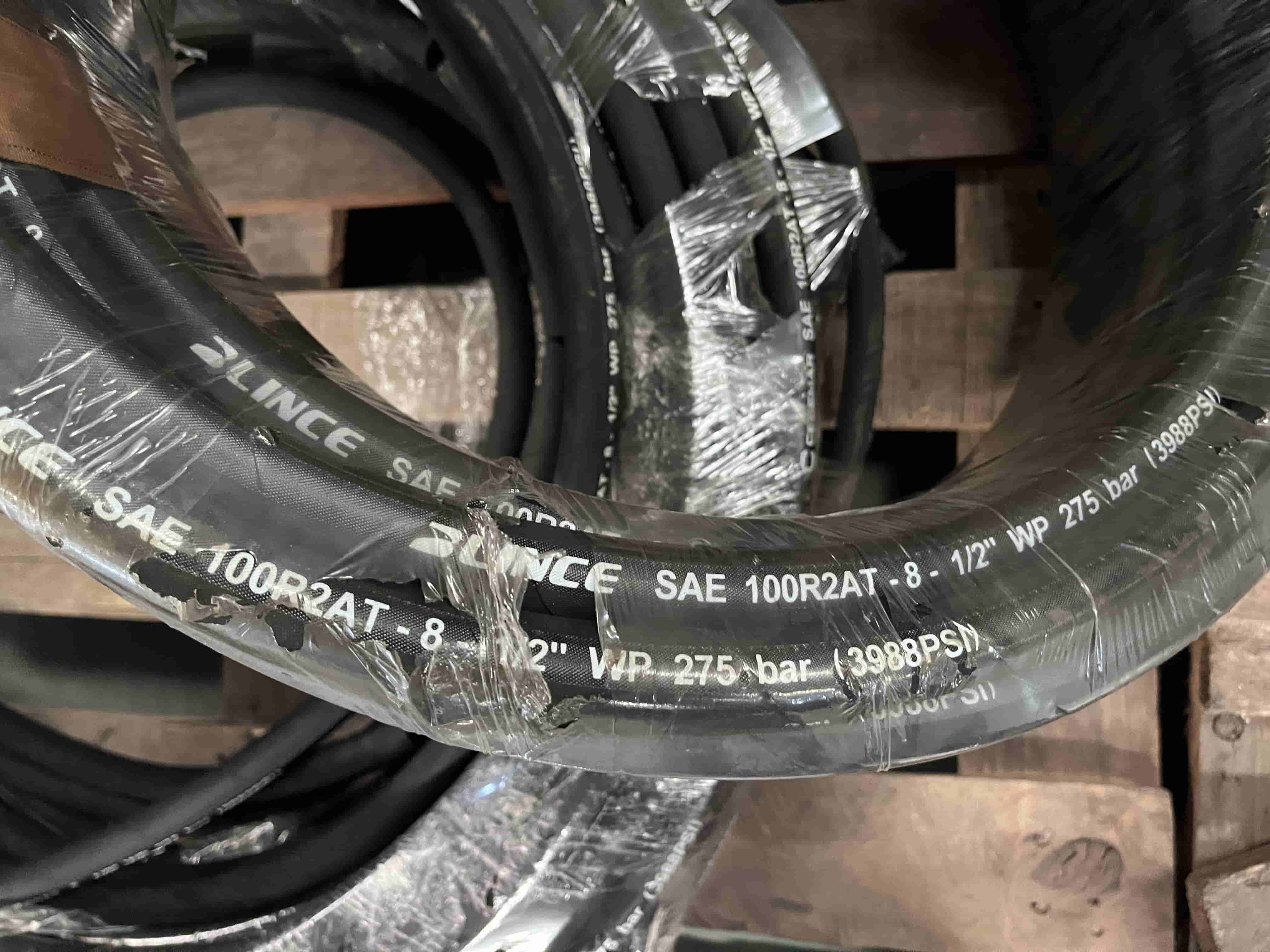

Braided hydraulic hose is common in medium-pressure mobile and industrial systems. It is flexible, easy to route, and suitable for many general hydraulic circuits.
Spiral hydraulic hose is used where pressure and impulse are more demanding. Heavy construction machinery, drilling rigs, mining equipment, and high-pressure boom circuits often use spiral reinforced hose.
Marshall Equipment describes spiral hydraulic hoses as wire-reinforced hoses with strong resistance to high pressure, commonly used in oil drilling equipment, heavy construction machinery, and high-pressure hydraulic systems. It also notes that thermoplastic hoses are lightweight and resistant to chemicals and UV radiation.
Thermoplastic hose can be useful in compact routing, lightweight equipment, chemical exposure, or applications where flexibility and outer cover resistance matter.
PTFE hose is often selected for special chemical or high-temperature requirements.
Suction hose is a separate case. It may not carry high pressure, but it must not collapse under suction. A wrong suction hose can starve the pump, and pump damage is much more expensive than the hose.
Return line hose also needs attention. Some people think return lines are not important because the pressure is low. But if the return line is too small or restricted, back pressure rises. That can affect coolers, filters, seals, and actuator performance.
Hose Type
Typical Use
Field Comment
Braided Hydraulic Hose
Medium-pressure mobile and industrial systems
Flexible and widely used
Spiral Hydraulic Hose
High-pressure and heavy-duty machinery
Better for pressure shock and impulse
Thermoplastic Hose
Compact routing, chemical exposure, lightweight systems
Useful where weight and flexibility matter
PTFE Hose
Chemical or high-temperature circuits
Good for special fluid or heat conditions
Return Line Hose
Tank return circuits
Must keep back pressure low
Suction Hose
Pump inlet line
Must avoid collapse and flow restriction
Temperature and Working Environment Must Be Checked
Temperature changes the behavior of hydraulic oil and hose material.
In cold weather, hydraulic oil becomes thicker. The machine may respond slowly at startup. Hose flexibility can also become worse. If the hose material is not suitable for low temperature, cracking may appear earlier.
In hot conditions, oil becomes thinner, leakage may increase, and rubber materials age faster. Long-term heat also affects seals, covers, and fittings.
RYCO Hydraulics notes that extreme temperatures are often overlooked when selecting hydraulic products and can reduce system efficiency and reliability.
The working environment matters as much as temperature. A hose on a clean indoor hydraulic power unit lives a different life from a hose on a forestry machine, loader, drilling rig, or fertilizer spreader.
Before final selection, check whether the line will face outdoor UV exposure, mud, sand, stone impact, salt spray, fertilizer, chemicals, welding sparks, engine vibration, sharp metal edges, or repeated movement.
Sometimes the solution is not only changing the hose. A protective sleeve, clamp, guard, coating, or better routing path may solve the real problem.
Installation Quality Decides Service Life
A good hydraulic line can fail early if it is installed badly.
For hydraulic tubing, avoid long unsupported spans, sharp bends, poor alignment, and direct vibration contact. Tube clamps should support the tube firmly without crushing it. If the tube has to be forced into position, the routing should be checked again.
For hydraulic hose, avoid twisting, kinking, pulling, and bending immediately after the fitting. The hose should have enough length to move naturally, but not so much that it rubs everywhere.
After installation, the line should be checked through the full movement of the machine. A hose may look fine when the arm is lowered, but become tight when the arm rises.
A good hydraulic line layout should not look forced. The hose should follow the movement naturally. The tube should be supported. The fitting should seal without excessive tightening. Nothing should rub, twist, or pull.
Common Selection Mistakes in Real Machines
Many hydraulic line failures come from repeated mistakes.
Choosing tube size only by outside diameter
Ignoring pressure spikes
Using burst pressure as working pressure
Installing hose below the minimum bend radius
Twisting the hose during assembly
Using a suction line that is too small
Creating high case drain back pressure
Using carbon steel tube in corrosive conditions without protection
Replacing the old line without checking why it failed
The last point is important. If an old hose failed because of heat, installing the same hose again will not solve the problem. If a tube cracked because of vibration, replacing only the tube may lead to the same failure later.
Cost and Risk: The Cheapest Line May Become Expensive
A hydraulic tube or hose is usually cheaper than a pump, motor, valve, or cylinder. But a wrong line can damage those expensive components.
A restricted suction line may damage the pump. A blocked drain line may damage the motor seal. A small return line may increase heat. A rubbed hose may burst and stop the machine. A wrong fitting may leak repeatedly.
For OEM buyers and distributors, the lowest unit price is not always the lowest total cost. A reliable hydraulic line should match the whole hydraulic circuit, not just the drawing size.
When checking a hydraulic tube or hose, the useful information is not only tube size or hose length. Working pressure, peak pressure, flow rate, oil type, line function, fitting standard, temperature range, movement, and installation photos are all useful.

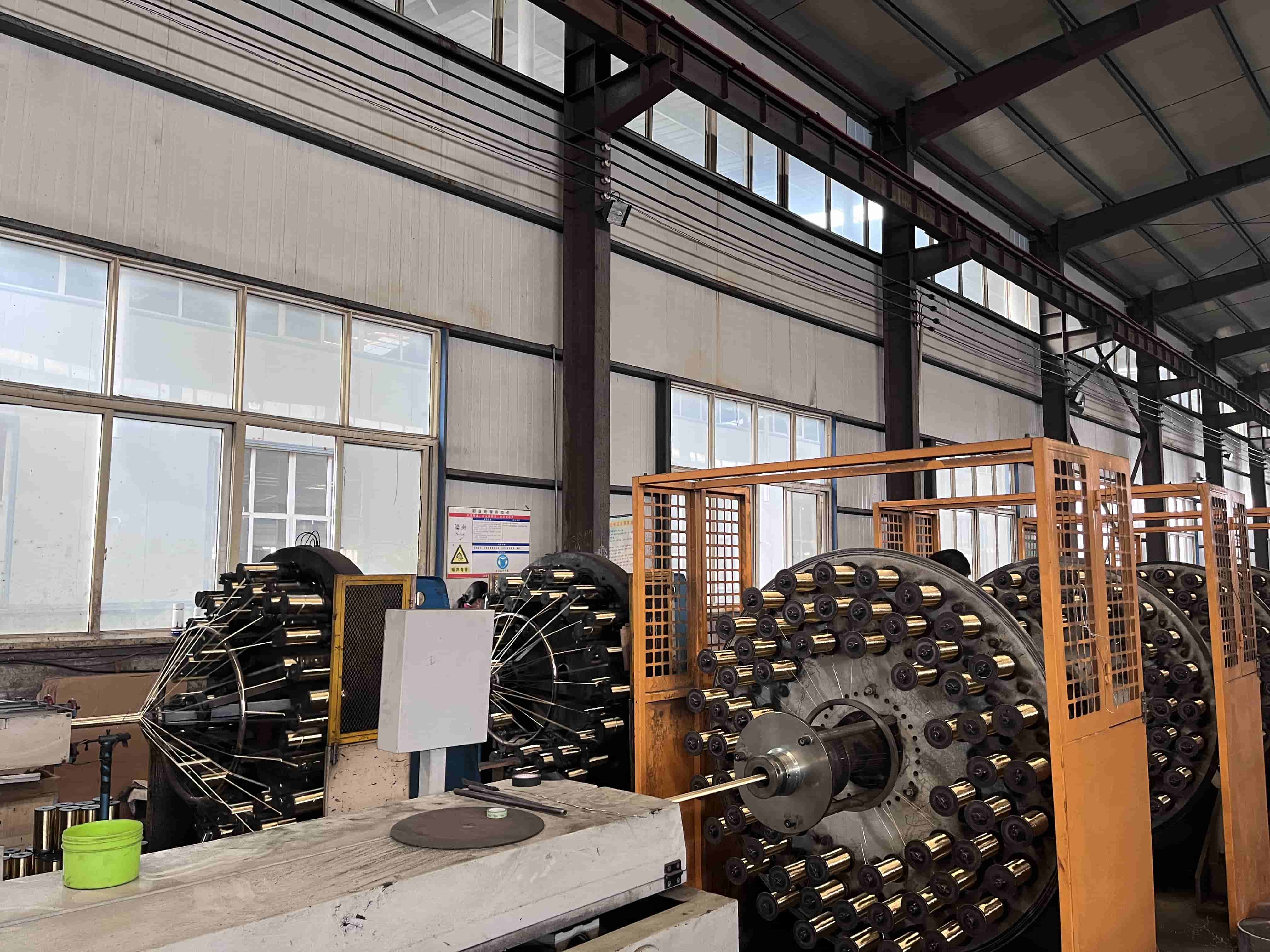

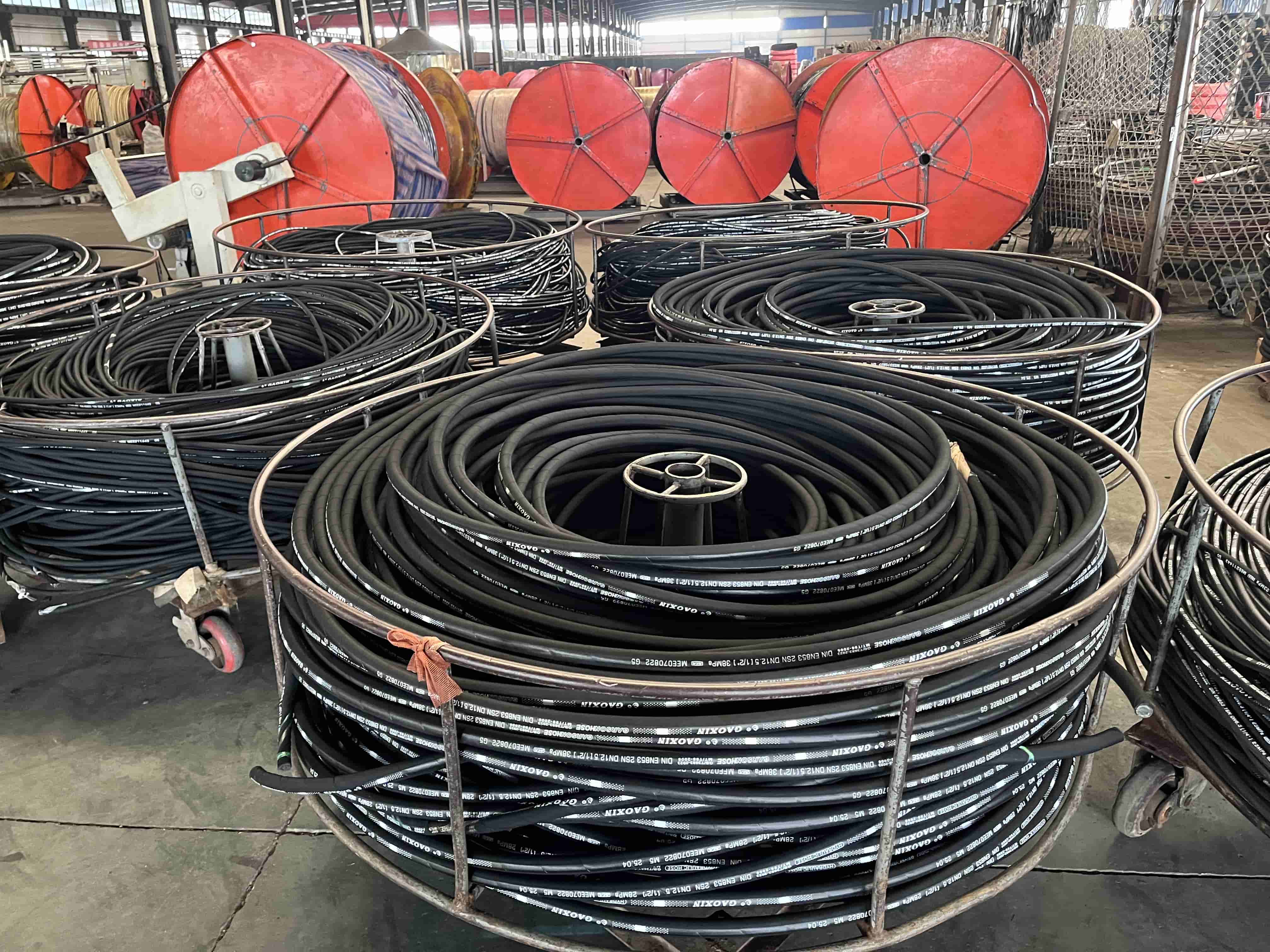

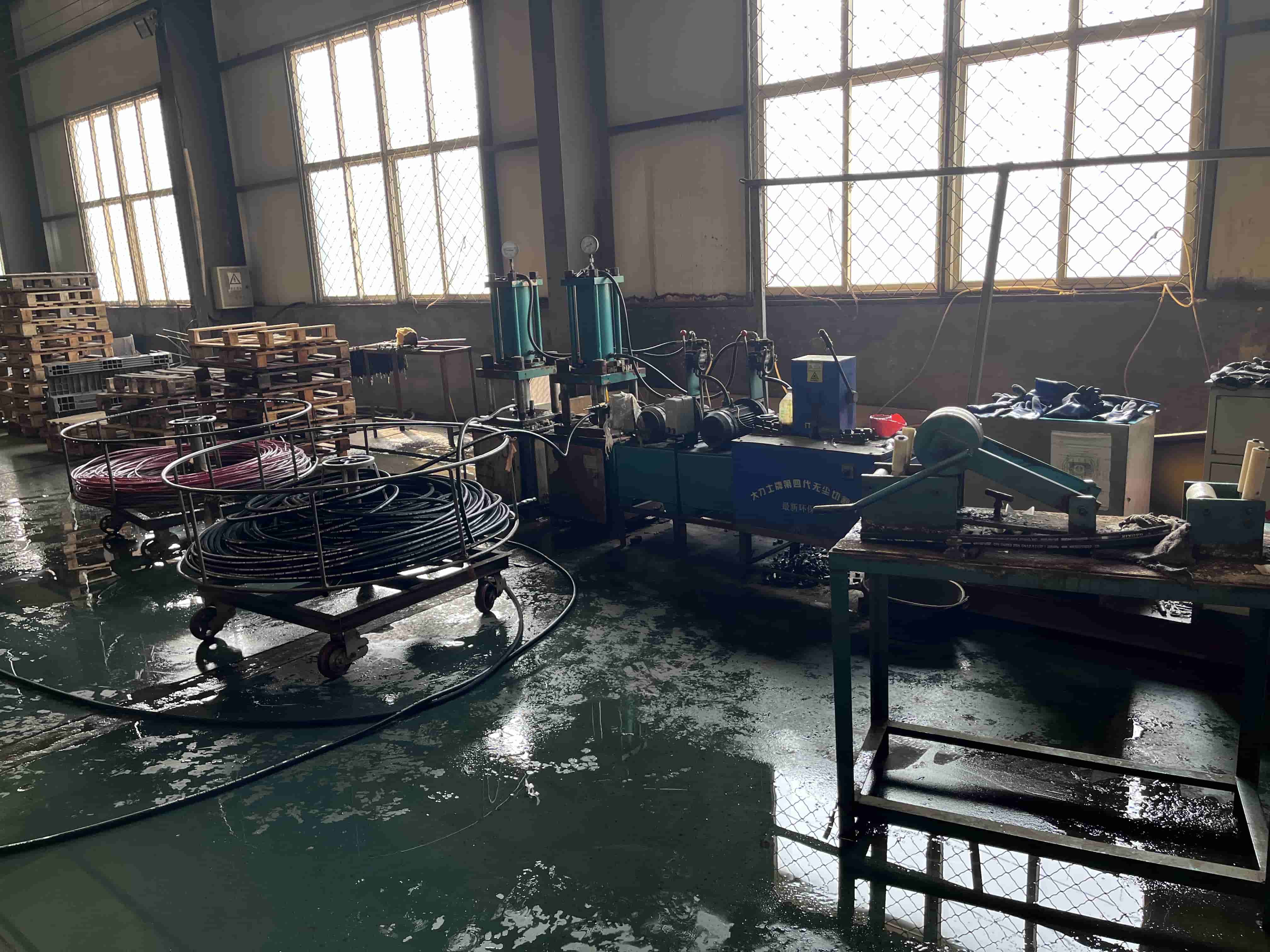

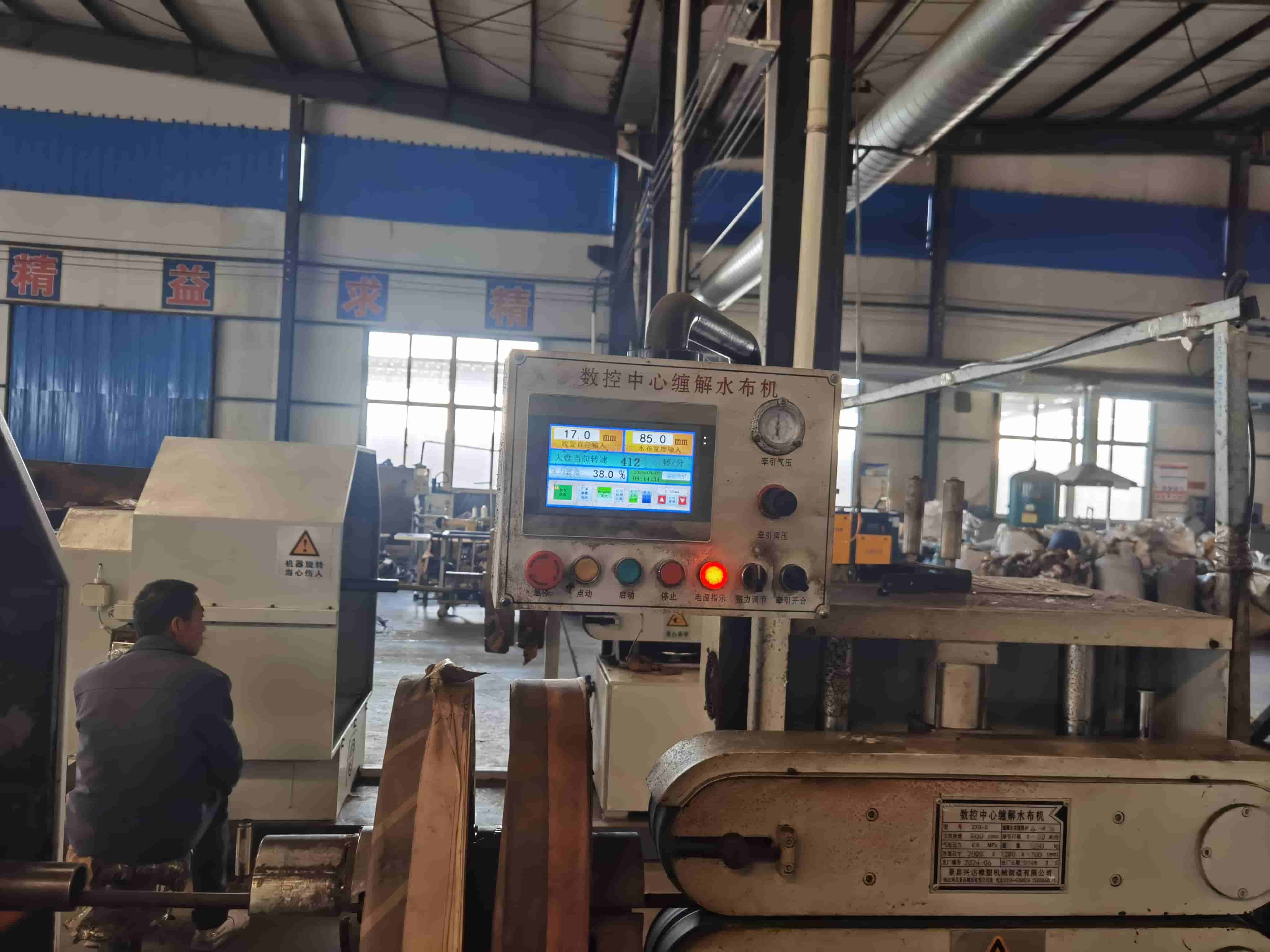

Blince Hydraulic Support for Tubing,
Hose, and System Matching
Blince works with hydraulic components used in construction machinery, agricultural machinery, industrial equipment, hydraulic power units, and mobile hydraulic systems.
For tubing and hose selection, the main value is not simply supplying one line. The important part is matching the tube, hose, fitting, pump, valve, motor, and cylinder correctly.
For a new OEM project, the whole circuit should be checked before confirming the line. For replacement work, the failure reason should be checked before copying the old tube or hose.
Before asking for quotation, it is better to prepare the machine type, working pressure, peak pressure if known, flow rate, hydraulic oil type, line function, tube or hose size, fitting thread and sealing type, temperature range, and photos or drawings of the installation area.
This information helps reduce wrong selection, repeated samples, and field failure risk. For more hydraulic product knowledge, you can also visit the Blince Product News section or contact Blince Team.
Conclusion
Hydraulic tubing selection is not just a catalog job. The right choice depends on pressure, flow rate, line function, material, temperature, movement, fittings, and installation.
Use hydraulic tubing where the route is fixed and stable. Use hydraulic hose where movement, vibration, or flexible routing is required.
Check the inside diameter for flow, wall thickness for pressure, material for environment, and hose construction for movement and temperature.
A good hydraulic line does more than prevent leakage. It protects the hydraulic pump, motor, valve, cylinder, seals, oil temperature, and the reliability of the whole machine.
FAQ: Hydraulic Tubing and Hose Selection
1. What is the difference between hydraulic tubing and hydraulic hose?
Hydraulic tubing is rigid and usually used for fixed routing. Hydraulic hose is flexible and used where movement, vibration, or bending is required.
2. How do I choose the right hydraulic tube size?
Check the line function, flow rate, working pressure, outside diameter, inside diameter, and wall thickness. Do not choose hydraulic tubing only by outside diameter.
3. Is seamless hydraulic tubing better than welded tubing?
For high-pressure or critical circuits, seamless hydraulic tubing is usually preferred. Welded tubing can be used in lower-pressure circuits when the specification is suitable.
4. Can hydraulic hose replace hydraulic steel tubing?
Sometimes yes, but it depends on pressure, flow rate, bend radius, temperature, fittings, and routing. A hose should not replace a tube without checking the working conditions.
5. Why does undersized hydraulic tubing cause heat?
A small inner diameter increases oil velocity and friction. This creates pressure loss, heat, noise, and lower system efficiency.
6. What type of hose is used for high-pressure hydraulic systems?
Spiral reinforced hydraulic hose is commonly used for high-pressure and heavy-duty systems. The final choice depends on pressure, impulse, temperature, oil type, and fitting rating.
7. Why is hose bend radius important?
If the hose is bent too tightly, the reinforcement layer can be damaged. This can shorten hose life and cause leakage or failure.
8. What tubing material is suitable for marine hydraulic systems?
Stainless steel hydraulic tubing or well-protected carbon steel tubing is usually preferred for marine or corrosive environments.
9. Should I select hose by burst pressure?
No. Hydraulic hose should be selected by maximum working pressure, not burst pressure.
10. What information should I provide before ordering hydraulic tubing or hose?
Provide pressure, flow rate, oil type, temperature, line function, size, fitting standard, machine application, and installation photos or drawings.
