Hydraulic Oil Cooler Sizing Guide: Stop Overheating Without Back Pressure

Most cooler problems arrive as a short field note, not as a clean calculation. "Runs fine cold, gets hot after twenty minutes." That is often all the buyer has at the start. The motor speed drops a little. A cylinder that felt normal in the morning feels lazy after lunch. The tank is uncomfortable to touch. Someone has blown dust out of the core, someone else has tried a fan, and now the purchasing team is looking at a bigger hydraulic oil cooler.

That bigger cooler may be needed. I would not rule it out. Machines really do outgrow the original cooler after a pump upgrade, a new attachment, a longer shift, or summer outdoor work. The trap is assuming the cooler is guilty just because the oil is hot. Relief flow, a pinched return path, a valve with too much pressure loss, or a core packed with dirt can all leave the same complaint on the operator's side.

That is why hydraulic oil cooler sizing should start with the circuit, not the catalog picture.

The article below walks through the checks I would want before recommending a cooler: heat load, flow, return pressure, fan power, mounting, and the way the machine is actually used. It is meant for repair shops, buyers, maintenance teams, and small equipment builders who need a decision path they can use with imperfect field data.

The First Question Is Not Cooler Size

Start with the failure story. Not the part number yet. Does the oil climb only when a hydraulic motor runs without stopping? Did the complaint begin after a directional valve was changed? Does heat appear faster when two levers are used together? Is the fan already running when the oil begins to climb, or does it wake up too late?

Those answers decide where to look first. The cooler only removes heat after the circuit has made it.

Think about the oil path before thinking about the cooler face size. Oil may leave the pump, cross a valve block, drive a motor or cylinder, pass through a filter, squeeze through hoses and fittings, and only then enter the cooler. One undersized passage in that route can spend horsepower as heat before the cooler ever sees the oil.

For this reason, a practical hydraulic oil cooler selection should answer five questions before any model number is chosen:

• How much heat is being generated during the real work cycle?

• How much oil must pass through the cooler?

• How much pressure drop can the return line tolerate?

• Can the fan receive clean air and correct voltage?

• What changed first: pump, motor, valve, hose, attachment, operator habit, or shift length?

Skip that short interview and the replacement can be physically larger while the same heat problem stays in the machine.

Why Hydraulic Oil Gets Hot

Hydraulic oil temperature rises when input power does not become useful mechanical work. The pump may push oil across a restriction. A relief valve may open during normal operation. A valve spool may be too small for the flow. A hydraulic motor may leak internally after oil warms up. A return hose may carry more flow than it was sized for. A filter may be partially blocked. Each small loss adds heat.

Cold oil can hide the problem. At startup, viscosity is higher and internal leakage is lower. The machine may sound normal for the first few minutes. After half an hour, the oil gets thinner, leakage increases, pressure drop becomes more obvious, and the operator begins to notice weak force or slow speed.

That is why one short workshop test is not enough. A hydraulic oil cooler should be selected from temperature trend, flow, and pressure readings taken while the machine is doing real work.

If the system shows normal pressure but still lacks power, the issue may not be the cooler at all. The article Why Hydraulic Systems Show Normal Pressure But Lack Power is useful background because a gauge can show pressure while usable power is being lost before the actuator.

What a Hydraulic Oil Cooler Actually Does

In simple terms, the cooler gives heat a place to leave the oil. With an air cooled unit, oil passes through the core and air carries heat away from the fins. With a water cooled exchanger, oil and water stay separated inside the body while heat moves across the metal between them.

The hard part is everything around that simple heat transfer. The cooler still has to pass the oil without choking the return line. It has to fit the available space, handle thick oil at startup, see enough clean air, and stay alive around vibration and dirt. If a mechanic cannot clean it in the place where it is mounted, its capacity will slowly disappear.

For Blince applications, the hydraulic heat exchanger range should be treated as one part of the system review, not as an isolated replacement item. The cooler choice needs to match pump flow, return line layout, fan voltage, ambient temperature, and the machine's work cycle.

A More Human Selection Flow

The selection process below follows the order a technician would normally diagnose the machine. It begins with symptoms, then checks heat source, then checks cooler capacity.

This table appears after the problem has been introduced because it is a working tool, not the opening argument. A buyer who is not yet sure whether the cooler is the problem needs context first.

Heat Load: The Number Most Buyers Do Not Have

In a new hydraulic power unit, heat load can be estimated from power loss, pump efficiency, valve losses, expected duty cycle, and ambient temperature. In repair work, that full calculation is often unavailable. The machine may be old. The pump plate may be damaged. The operator may only know the oil gets hot after a certain job.

That does not make cooler selection impossible. It means field evidence becomes important.

Take readings in the order the problem appears. Note the oil temperature at startup, ten minutes, thirty minutes, and once the machine has settled into its normal job. Write down which function was being used at each reading. When test points are available, add pump pressure, return pressure, cooler inlet temperature, cooler outlet temperature, and fan voltage at the same time. A few rough notes like that are far more useful than one tank reading after the machine is already parked.

If temperature rises quickly and keeps climbing during one continuous motor function, the heat load is probably continuous. If temperature spikes only when a cylinder reaches end of stroke, relief flow may be involved. If the machine heats after a valve change, the valve may be creating pressure drop. If oil temperature rises faster after a new attachment is added, the old cooler may no longer match the duty cycle.

Flow Through the Cooler

Many hydraulic oil coolers are installed in the return line. That location is convenient because return pressure is usually lower than pressure-line pressure. But return flow can still be high, and in some circuits it can change depending on actuator direction.

In a cylinder circuit, oil leaving the rod side and cap side may not match pump flow exactly because the areas are different. In a hydraulic motor circuit, return flow may be close to motor flow, but case drain flow and flushing flow can matter. In a multi-function machine, several return flows may combine before reaching the tank.

A cooler that cannot handle the flow creates back pressure. Back pressure can reduce motor torque, affect valve shifting, heat the oil further, and shorten seal life. This is why a high flow hydraulic oil cooler is not simply a large core. It needs the correct internal passage area, port size, hose size, and pressure drop curve.

Look at the return plumbing while the cooler is being discussed. I have seen a correctly selected cooler blamed for heat when the real restriction was a small elbow, a reduced-bore fitting, or a quick coupler that nobody measured. On older equipment, check the hydraulic hoses and fittings around the cooler, filter, tank, and valve block before treating the cooler as the only suspect.

Pressure Drop Can Turn a Cooling Fix Into a New Problem

A hydraulic fluid cooler removes heat, but oil still needs to pass through the core. The oil passage, fins, ports, hoses, filter, and fittings all create some resistance. If that resistance is too high, the cooler becomes another source of wasted pressure.

This problem is easy to miss because the tank may run slightly cooler after a new cooler is installed. The operator then notices another symptom: the motor feels weaker, the actuator speed changes, or a return seal starts leaking. The cooler helped the temperature but harmed the return path.

Measure pressure before and after likely restrictions. A liquid filled pressure gauge with proper test points can show whether the cooler, filter, valve, hose, or fitting is adding too much restriction. Without pressure readings, the diagnosis becomes guesswork.

Do not rely only on pump outlet pressure. A pump gauge may look normal while useful pressure is being lost across the valve or return line. The actuator only sees the pressure difference available to do work. If return pressure is high, usable force or torque drops even when pump pressure looks acceptable.

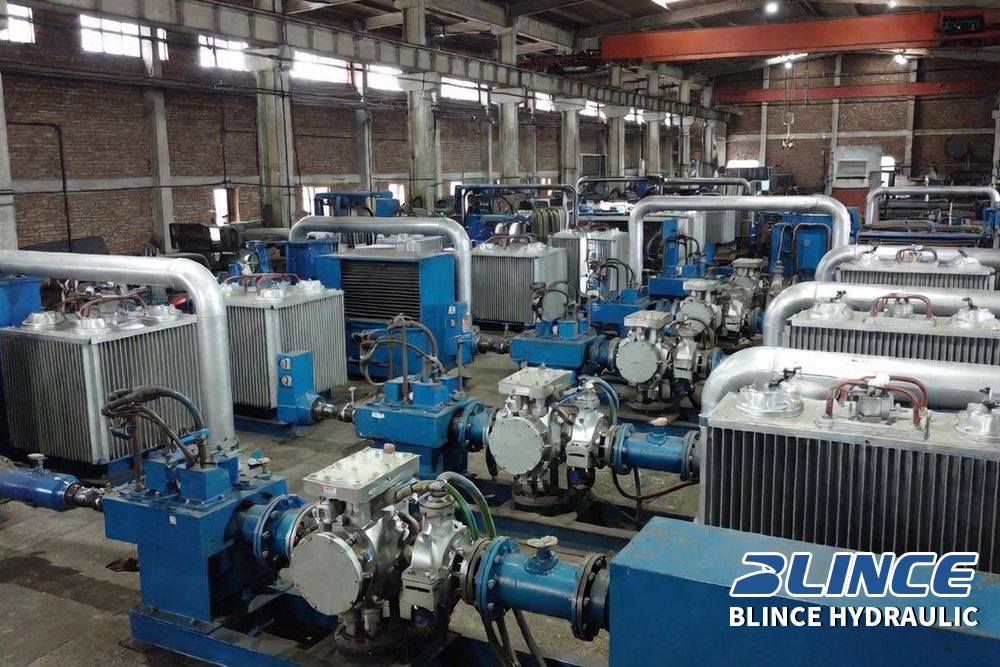

Choosing Between Air-Cooled and Water-Cooled Oil Cooling

On mobile equipment, air cooling is usually the practical route. There is no water line to manage, the unit can be mounted near the machine frame, and a fan can pull air through the core when travel speed is low. That is why this style is so common on sweepers, small construction machines, agricultural equipment, forestry attachments, mobile power packs, and compact hydraulic stations.

Water cooled units make more sense where the water supply is predictable and maintenance is controlled. They can remove a lot of heat in a small space, but the water side brings its own questions: scale, corrosion, water temperature, flow stability, and material compatibility.

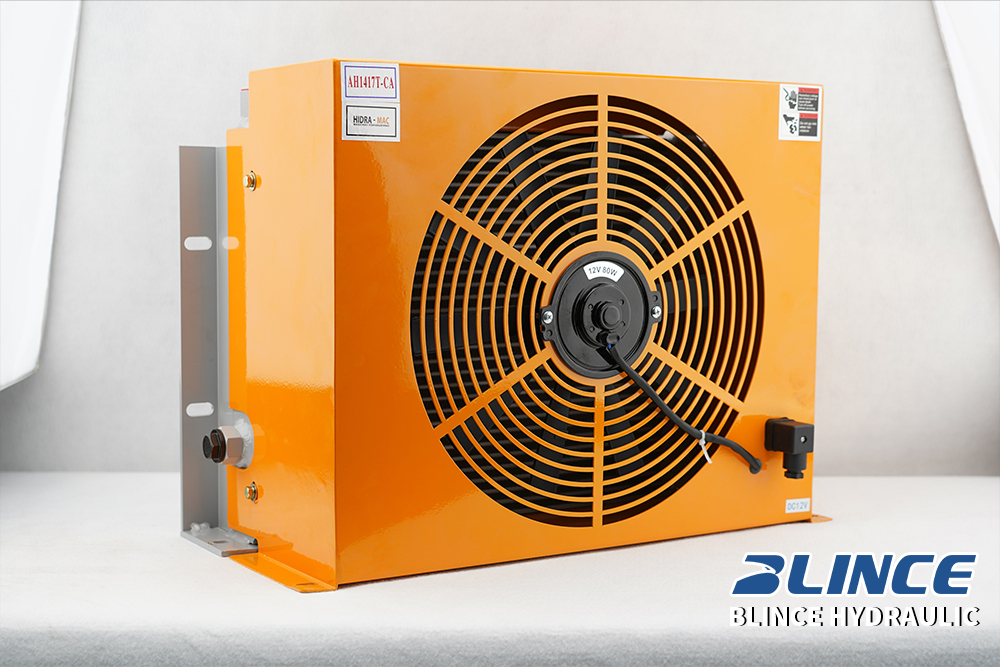

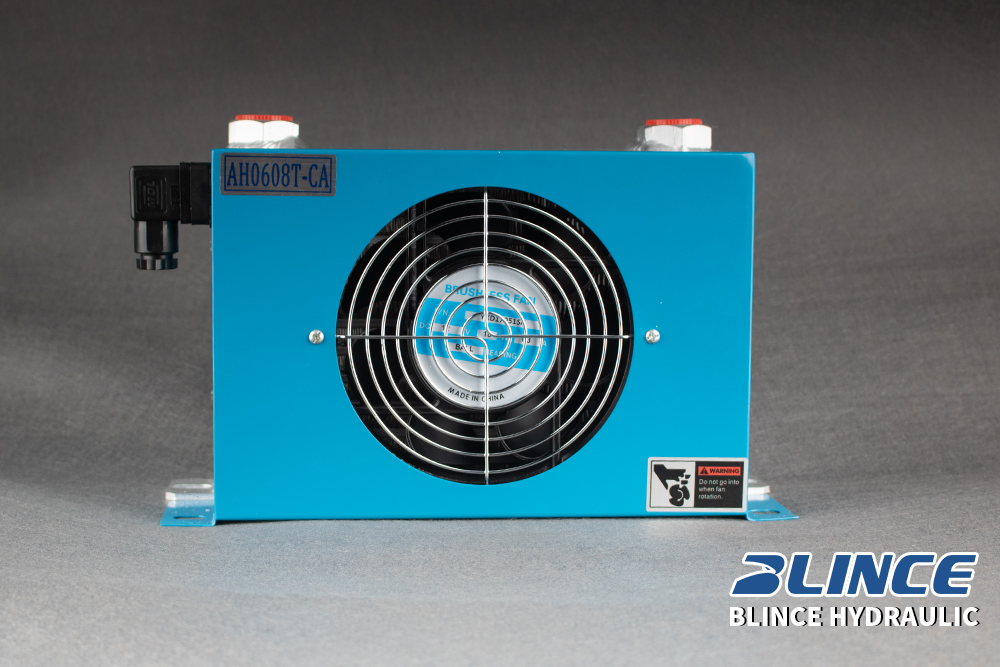

For compact mobile equipment, a unit such as the Blince AD Series hydraulic oil cooler may be considered when the selection requires fan cooling in limited space. For longer-duty industrial or power unit work, the Blince AH Series hydraulic oil cooler should be compared by heat rejection, flow range, fan specification, and installation space. For applications where mounting format and airflow path are different, the Blince DXB Series hydraulic oil cooler may fit better. The product name is only the starting point; the operating data decides the final choice.

Fan Voltage and Airflow Are Part of Sizing

For a hydraulic oil cooler with fan, the useful value is not the voltage printed on the label. A 12v hydraulic oil cooler can still underperform if the fan only sees weak voltage at the end of a long harness. The same applies to 24V systems. Check the voltage and current where the fan actually connects, with the machine running.

Bad grounds, tired relays, dirty plugs, and thin wiring do not always stop a fan completely. They often make it spin just well enough to fool a quick inspection. If the fan sounds lazy or the air volume feels weak, electrical checks belong in the cooler diagnosis before a new core is ordered.

Airflow path is just as important. A cooler mounted near engine exhaust may pull hot air through the fins. A cooler mounted behind another radiator may receive air that is already warm. A cooler mounted too low may pack with mud, grass, cotton fiber, or sawdust. A cooler mounted in a tight box may recirculate its own hot discharge air.

Check these details before blaming cooler capacity:

• fan direction;

• air inlet temperature;

• exit path for hot air;

• distance from engine radiator and exhaust;

• dust and debris exposure;

• impact protection;

• cleaning access;

• vibration at the mounting points.

An air cooled hydraulic oil cooler cannot reject heat into air that is already too hot or not moving.

Oil Viscosity Changes the Pressure Drop

Hydraulic oil is not the same at cold start and after one hour of work. Cold oil is thicker and creates more pressure drop through a cooler. Hot oil is thinner and leaks more easily through pump, motor, valve, and cylinder clearances.

This creates two different selection problems.

Cold-start behavior deserves its own check. Thick oil may not pass through the cooler and return line as easily as warm oil. In some layouts, a bypass or thermostatic valve is needed so cold oil does not shove return pressure too high. Once the oil is hot, the job changes: the cooler has to hold temperature low enough that the oil does not become too thin for the pump, motor, valves, and seals.

Climate changes the result. A machine that passes a test inside a cool shop may fail in July dust with the hood closed. A power unit that is comfortable during short lift cycles may run away thermally when it drives the same hydraulic motor for an hour.

When an operator says the machine is "fine at first," treat that as a clue. It often means leakage, viscosity, and pressure drop change as oil warms up.

When the Cooler Is Not the Main Fault

Overheating complaints often point to the cooler because it is visible. The root cause may be elsewhere.

Relief Valve Opening During Normal Work

Relief flow is one of the fastest ways to heat oil. Listen for it during the real work cycle, not only at the end of a bench test. A lever held after a cylinder bottoms out, a low relief setting, an overloaded actuator, or a restriction downstream can all make oil dump across the relief and return to tank as heat.

Directional Valve Pressure Drop

A directional control valve that is too small for the required flow can create heat every time oil passes through it. A valve center can also change pump unloading behavior in neutral. If overheating began after a valve replacement, compare valve flow capacity, spool center, port size, and circuit role. The article how does a hydraulic flow control valve work gives useful context for how flow restriction changes actuator behavior.

Valve Blocks and Series Circuits

In multi-valve circuits, one valve can affect another. A function downstream may never receive enough useful pressure if an upstream valve, relief setting, or return path is wrong. For circuits with several valve sections, Can Multiple Hydraulic Valves Be Used in Series is relevant because heat and pressure loss often appear only when functions interact.

Worn Pumps and Motors

Internal leakage increases with oil temperature. A worn pump or motor may seem acceptable when oil is cold, then lose efficiency after warming up. A larger cooler may delay the symptom, but it will not restore lost volumetric efficiency. If weak force, slow speed, and heat appear together, do not treat the cooler as the only suspect.

Dirty Cooler Fins

Air cooled coolers lose capacity when fins are blocked. Dust, grass, fiber, sawdust, oil mist, and mud reduce airflow. A cooler that was properly sized when clean can fail after weeks of field work if it is hard to clean or mounted in a dirty location.

Application Examples

Skid Steer Attachment Circuits

Skid steer problems often show up after an attachment changes the duty cycle. A loader that stayed cool with bucket work may struggle when a brush cutter, sweeper, trencher, auger, or forestry head keeps the auxiliary motor loaded for long periods.

When only one attachment causes heat, inspect that loop first. Flow demand, motor case drain, quick couplers, hose size, and return routing can all change the result. An auxiliary hydraulic cooler can help, but it needs real return-flow data and a mounting place where the fan is not breathing hot or dirty air.

Agricultural and Forestry Machines

Field machines collect the kind of dirt a shop test never shows: grass seed, bark, dust, chaff, mud, and oil mist. The cooler needs a mounting position that can be cleaned without removing half the machine. Even a fan guard should be checked, because a fine guard can protect the fins and still become the first screen that blocks airflow.

In these machines, the duty cycle is often underestimated. A short no-load shop test does not represent mowing, feeding, cutting, pressing, or hauling in the field.

Mini Excavators and Compact Construction Machines

Compact machines leave little empty space around the cooling stack. The hydraulic cooler may sit in the same airflow path as the engine radiator, condenser, or charge air cooler. One blocked layer can make every cooler behind it look undersized.

A replacement cooler should be checked for airflow path, fan condition, oil contamination, vibration, and the surrounding radiator pack. Do not assume the hydraulic cooler is wrong before the full cooling stack is inspected.

Industrial Hydraulic Power Units

Industrial power units may run long shifts with repeated cycles. Tank size, room temperature, pump efficiency, valve loss, filter condition, and cooler fan control all affect oil temperature.

For these systems, a temperature switch or thermostat can help control fan operation. The setpoint should match oil viscosity, seal requirements, and machine duty. Cooling too late lets oil thin out; cooling without control may increase cold-start pressure drop or unnecessary fan use in some layouts.

Field Case: The Cooler Was New, But the Return Line Was Still Wrong

A small power unit used for a continuous-feed attachment overheated after thirty to forty minutes. The owner installed a new hydraulic oil cooler with fan. The tank temperature improved slightly, but the motor still slowed down near the end of the shift.

The first guess was that the new cooler was too small.

Pressure checks showed a different problem. Return pressure before the cooler was high. One fitting near the cooler had a smaller bore than the hose. The directional valve was also working near its practical flow limit, and the relief valve opened briefly whenever material load increased. The cooler was receiving heat from several restrictions.

The final repair used the same cooler. The return hose was upsized, the restrictive fitting was changed, the relief setting was checked under realistic load, and the cooler was moved to a cleaner airflow position. After that, oil temperature stabilized much better.

The lesson is simple: a larger cooler can hide a pressure loss problem for a while. Removing the pressure loss often makes the cooler perform as expected.

Ordering Checklist for the Cooler Quote

Before a replacement hydraulic oil cooler, hydraulic oil cooler radiator, or external hydraulic oil cooler kit is quoted, collect the points below. A photo is useful, but these details are what keep the new part from repeating the old problem.

If some items are missing, the conversation can still start. Just treat the first model choice as provisional. Each confirmed reading removes one guess from the cooler selection.

Mistakes I Would Check First

1. Changing the Cooler Before Tracing the Heat

If the system is heating because oil is passing over a relief valve, through a restrictive valve, or through an undersized return path, the cooler becomes a patch. It may reduce temperature, but it does not fix the wasted power.

Mistake 2: Choosing Only by Core Dimensions

Two coolers with similar outside dimensions can have different fin density, oil passage size, port size, fan output, heat rejection, and pressure drop. Core size is useful, but it is not a complete specification.

Mistake 3: Ignoring Return Pressure

A return-line cooler must not create excessive back pressure. High return pressure can affect hydraulic motors, valve shifting, seals, and system efficiency.

Mistake 4: Mounting the Cooler in Bad Air

A cooler mounted in hot recirculated air cannot perform well. A cooler packed with dust or grass cannot perform well either. Mounting and maintenance access are part of selection.

Mistake 5: Treating Fan Voltage as a Label

A hydraulic oil cooler with 12V fan needs actual 12V performance at the fan during operation. A weak ground or connector can reduce airflow enough to make the cooler look undersized.

Mistake 6: Copying the Old Model After the Machine Changed

The old cooler may have been correct for the original machine. It may not be correct after a larger pump, a new valve, a bigger motor, or a continuous-duty attachment is added.

How Blince Can Help

Blince can review the cooler together with the pump, motor, valve, hose, fitting, gauge, and surrounding hydraulic parts. That system view matters because the part that gets hot is not always the part that made the heat.

For a useful recommendation, send:

• current cooler photos and model information;

• machine type and working function;

• pump model, speed, or estimated flow;

• normal working pressure and relief setting;

• oil temperature trend during real work;

• fan voltage and mounting position;

• hose size, fitting size, and port size;

• whether a pump, motor, valve, hose, or attachment was changed;

• photos showing the oil path around pump, valve, filter, cooler, and tank.

If the machine is also slow or weak, include pressure readings. This helps separate a cooling problem from a pressure loss problem before the cooler is selected.

FAQ

What does a hydraulic oil cooler do?

A hydraulic oil cooler removes heat from hydraulic oil and transfers it to air or water. It helps keep oil viscosity, seal life, pump efficiency, and actuator performance within a useful range.

How do I size a hydraulic oil cooler?

Start with heat load, oil flow, ambient temperature, allowable oil temperature, duty cycle, and pressure drop. If exact heat load is not available, record oil temperature over time and check pressure losses before choosing cooler capacity.

Is a larger hydraulic oil cooler always better?

No. A larger cooler may remove more heat, but it can also create space problems, fan power demand, cost, and pressure drop if selected poorly. First remove unnecessary heat sources, then size the cooler.

Can a hydraulic oil cooler cause back pressure?

Yes. A cooler, hose, fitting, filter, or quick coupler can add restriction. In a return line, too much restriction becomes back pressure and may reduce actuator performance or create more heat.

Where should a hydraulic oil cooler be installed?

Many coolers are installed in the return line, but the location depends on pressure rating, flow, circuit design, and machine layout. The cooler must not be exposed to pressure or flow conditions beyond its design.

What is the difference between an air cooled hydraulic oil cooler and a water cooled heat exchanger?

An air cooled cooler uses airflow across fins to remove heat. A water cooled heat exchanger transfers heat from oil to water. Air cooled coolers are common on mobile equipment; water cooled units are more common where water supply and maintenance are controlled.

Why does hydraulic oil overheat after a valve replacement?

The new valve may have a different spool center, pressure drop, port size, or return path. If flow is forced through a restriction or the pump no longer unloads correctly, the system can create more heat.

How do I know whether the cooler fan is strong enough?

Measure voltage and current at the fan while the machine is running. Also check fan direction, airflow path, blocked fins, hot air recirculation, and dust exposure.

Can dirty oil affect hydraulic cooling?

Yes. Dirty oil can block filters, damage pumps and motors, increase leakage, and reduce heat transfer. Contamination can also clog cooler passages or coat surfaces, reducing cooling performance.

What information should I send for a hydraulic cooler quote?

Send cooler photos, machine model, pump flow, working pressure, oil temperature trend, fan voltage, mounting space, hose size, port size, and recent component changes. Photos of the full oil path are often more useful than the cooler photo alone.

Conclusion

A cooler photo is useful, but it should not lead the whole decision. The heat pattern should. Temperature trend, flow, return pressure, fan behavior, mounting space, and duty cycle tell whether the cooler can actually solve the complaint.

When relief flow, valve loss, small hoses, or high return pressure are still in the circuit, extra cooling only hides part of the waste. Remove the avoidable losses first, and the cooler selection becomes smaller, clearer, and more reliable.

For a hydraulic oil cooler replacement or a new hydraulic cooling system, send Blince the cooler photos, machine function, pump flow, pressure readings, oil temperature trend, fan voltage, hose size, and mounting space. With that information, the cooler can be checked against the rest of the circuit instead of chosen from dimensions alone.
