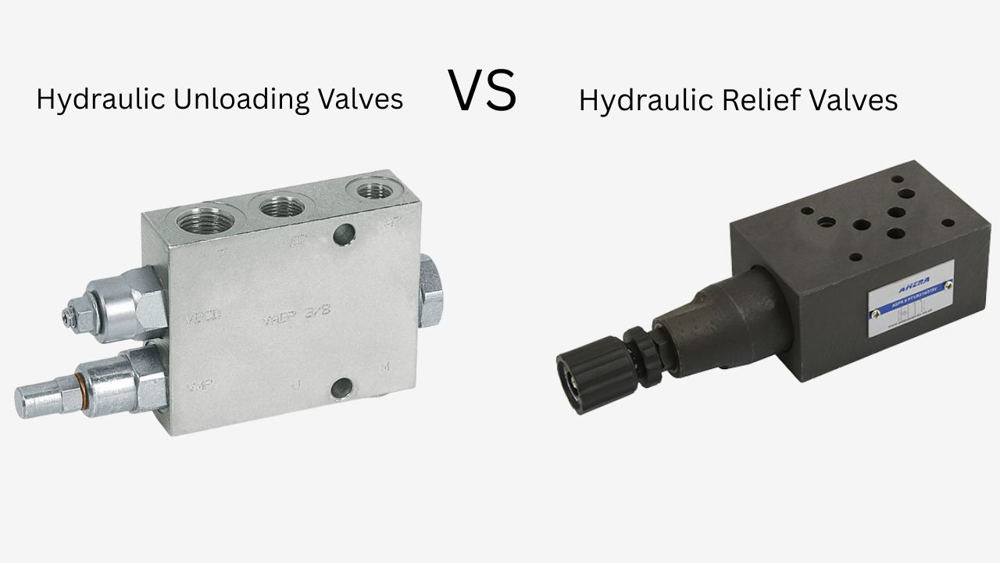

Hydraulic systems use pressure-control valves for efficiency and safety. An unloading valve and a relief valve may look similar, but their roles differ. An unloading valve automatically diverts the pump’s flow back to the reservoir during idle or low-demand phases, significantly saving energy and reducing heat generation. In contrast, a relief valve stays closed under normal operation and only opens to relieve excess pressure, protecting the system from overpressure. Both are critical hydraulic valves in industries like mining, agriculture, and manufacturing across Belt and Road countries (e.g. Uzbekistan, Kazakhstan, Chile).
How Hydraulic Unloading Valves Work
An unloading valve is a pressure-control valve designed to improve hydraulic system efficiency. When system pressure reaches a preset value, the valve opens fully, sending the pump’s flow to the tank at low pressure. In practice, a spring-loaded spool or pilot-operated mechanism shifts when hydraulic force exceeds spring force. As one guide explains, an unloading valve “diverts pump flow back to [the] tank at low pressure once a preset system pressure is reached,” allowing the system to hold pressure without driving the pump at high load.
This unloading action means the pump runs almost unloaded (idling) instead of maintaining unnecessary pressure. The result is much less heat generation and wear: energy is saved and component life is extended. For example, in an industrial CNC machine tool, once a clamp is set and flow demand drops, the unloading valve opens so the pump idles rather than continuously pushing fluid at high pressure. Unloading valves often include a check (one-way) valve to isolate the high-pressure circuit and maintain actuator pressure during unloading.
How Hydraulic Relief Valves Work
A relief valve is primarily a safety device that limits maximum pressure in the circuit. It normally remains closed under working pressure, with a spring holding a poppet or spool on its seat. If pressure rises above the relief setting, hydraulic force overcomes the spring and the valve opens, dumping the excess fluid back to the tank. Once pressure falls below the set point, the spring reseats the poppet and closes the valve.
This simple principle – “when system pressure exceeds the spring force, the hydraulic pressure pushes the poppet off its seat,” as one source notes – ensures overpressure protection. Relief valves can be direct-acting (spring vs. spool) or pilot-operated for large flows, but all share this core safety function. Unlike an unloading valve, a relief valve regulates pressure continuously: it modulates its opening to bleed off only the excess flow needed to maintain the set pressure, rather than dumping the full pump output.
Key Differences in Function and Design
Purpose: An unloading valve’s main goal is energy saving and system efficiency. It completely bypasses the pump when full pressure is not required, reducing energy consumption. A relief valve’s main purpose is pressure safety. It maintains system stability by relieving only the pressure above the set threshold, protecting components from overpressure.
Flow Direction and Pump Load: When an unloading valve opens, all pump flow is rerouted to tank at low pressure. The pump goes into a nearly no-load state and actuators hold pressure via the accumulator or load. By contrast, a relief valve normally passes all flow to the working circuit and only spills the excess flow to the tank when pressure is too high. Thus, the pump stays loaded in relief-valve systems, whereas unloading valves allow true pump unloading.
Operation Pattern: Unloading valves have a switching behavior: they snap open fully once the set pressure is reached, and stay open until pressure drops below a reset level. This on/off action means no intermediate positions. Relief valves have a regulating behavior: they open progressively more as pressure rises, continuously balancing to keep pressure within range.
Suitable Conditions: Unloading valves are typically used in circuits with intermittent or standby operation. For example, in dual-pump setups or accumulator circuits when one pump can unload while another maintains pressure. Relief valves are used for normal, continuous pressure control under all working conditions; they compensate for pressure spikes during steady operations.
Structural Elements: Unloading valves usually include a pilot-operated spool and may integrate a one-way check valve to isolate circuits during unloading. Relief valves typically use a simple spring and poppet or spool without the extra pilot spool. (In fact, a pilot-operated unloading valve “would function the same as any pilot-operated relief valve” if not for the extra unloading spool.) Some advanced relief valves add electronic control: for instance, Blince’s BSG series is an electromagnetic relief valve (an “overflow solenoid valve”) that combines a pilot mechanism with a solenoid for remote pressure control.
Manufacturers’ Spec Examples: For context, Blince’s BUCG series unloading valves are cast-iron units rated up to 210 bar and 250 L/min, used in heavy machinery like forklifts and machine tools. In comparison, Blince’s BSG/BST series relief valves are also cast iron, rated up to ~315 bar, and designed as pilot-operated solenoid valves for remote relief control.
Applications in Mining, Agriculture and Manufacturing
Both types of valves are widespread in Belt and Road Initiative industries:
Mining & Construction (Chile, Kazakhstan, etc.): Heavy equipment like excavators, loaders, and tunnel-boring machines use relief valves to prevent catastrophic overpressure failures. In mining presses or cranes, relief valves act as critical safety devices. Meanwhile, unloading valves find use in multi-pump hydraulic circuits of mining machinery to switch between high-flow and high-pressure pumps efficiently.
Agricultural Machinery (Uzbekistan, Central Asia): Tractors, harvesters and irrigation systems benefit from unloading valves that reduce engine load during idle periods. For example, once a harvester’s cutter is raised, the unloading valve opens so the pump flow bypasses the motor, cutting fuel use. Relief valves on agricultural lifts and sprayers protect hydraulic lines from pressure spikes during operation.
Industrial Manufacturing (Belt and Road manufacturing hubs): CNC machines, presses, and material handling equipment often operate intermittently. Unloading valves allow pumps to idle when workpieces are clamped or conveyor lifts are stationary, improving hydraulic system efficiency. Relief valves are essential on injection-molding machines and presses to limit pressure and protect molds and cylinders.
Hydraulic Power Units & Material Handling: In any region, hydraulic power units supplying fluid to various systems incorporate relief valves for overall safety. Warehouse stackers and forklifts (common in logistics across Latin America and Asia) use unloading valves to hold forks at height without burdening the pump, while using relief valves to safeguard the circuit.
No matter the country (Uzbekistan, Chile, Kazakhstan, or elsewhere along the BRI), choosing the right valve depends on the need: unloading valves for energy saving and efficiency, relief valves for pressure safety.
Summary
Both unloading and relief valves are indispensable hydraulic valves, but they serve different goals. Unloading valves improve system efficiency by diverting flow to tank during idle conditions. Relief valves protect the system by limiting maximum pressure. Using a relief valve in place of an unloading valve is inefficient – it would keep the pump under high pressure and waste energy. In modern hydraulic designs, some composite valves even offer both functions, opening fully for unloading when idle and then regulating pressure during active phases. Understanding these differences helps engineers and procurement specialists across Belt and Road projects select the right hydraulic valve for mining, agricultural, and industrial applications.
FAQ
Q: What is the main difference between an unloading valve and a relief valve? A: An unloading valve is designed to dump the full pump flow to tank at a preset pressure to save energy, while a relief valve only bleeds off excess fluid above its set pressure to protect the system. In simple terms, unloading valves manage efficiency and energy usage, whereas relief valves handle system safety by limiting pressure.
Q: Why not just use a relief valve for pump unloading? A: Relief valves are meant to stay closed during normal operation. Using a relief valve to divert full pump flow would keep the pump under high pressure continuously, generating heat and wasting energy. Unloading valves are specifically intended to open frequently during idle phases to reduce energy consumption and component wear.
Q: How does an unloading valve improve hydraulic system efficiency? A: By shifting to an unloaded state whenever full pressure isn’t needed, the unloading valve allows the pump to idle. This cuts fuel/electric power usage and prevents excessive heat build-up. For example, in a hydraulic press or CNC machine, the valve opens during static periods, so the pump only maintains pressure without pumping flow, saving energy.
Q: How do relief valves protect a hydraulic system? A: A relief valve protects against overpressure. It acts like a safety valve: it stays shut during normal operation, but if pressure rises above the set limit (due to jammed actuators or sudden load), it instantly opens a passage to tank. This prevents hoses, valves, and cylinders from bursting. The relief valve then reseats when pressure drops.
Q: Can a single valve provide both unloading and pressure relief? A: Yes. Some unloading-relief valves combine both functions. In standby mode they open fully to unload the pump, and in active mode they operate like a relief valve to regulate pressure. Such composite valves are useful in systems with frequent stop-start cycles (e.g. injection molds).
Q: Are unloading valves and relief valves used in specific industries or regions? A: They are used everywhere hydraulics are found. For Belt and Road regions: Uzbekistan and other Central Asian countries with large farming sectors use unloading valves in tractors and pumps for efficiency. Latin American mining (Chile, Peru) and industrial sites use relief valves extensively to ensure safe pressure control on heavy machinery. In all cases, understanding the difference helps in selecting the right hydraulic valve for mining, agriculture, construction, or manufacturing applications.
