A maintenance technician removes a leaking hose from an imported machine. The old female swivel looks like JIC. A replacement male end has roughly the same outside diameter. The nut turns once, perhaps twice, before resistance increases. With downtime accumulating, it is tempting to tighten harder and see whether the leak stops.
Stop there.
JIC 37° and JIS 30° hydraulic fittings are not interchangeable just because their threads look close or begin to engage. A fitting identity depends on the thread form and diameter, pitch, sealing method, and seat geometry. If any one of those is wrong, extra torque can damage the seat, stretch threads, hide the original evidence, and leave a connection that fails under pressure or impulse.
Identify the connection before ordering. Measure the thread, determine its pitch, locate the actual seal, inspect the seat, and verify the application data. If the original part number or drawing is available, use it to confirm the measurement rather than relying on appearance alone.
The Short Answer: JIC Is 37°; JIS Flare Connections Use 30°

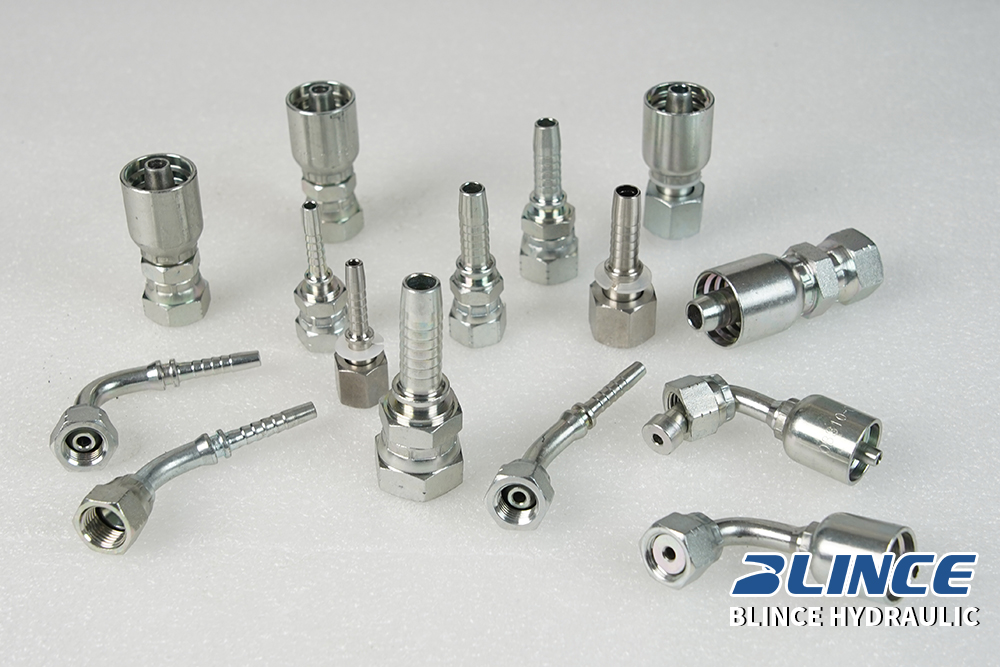

JIC hydraulic fittings use a 37° flare sealing interface. The thread pulls the two flare surfaces together; it is not normally the primary fluid seal. The current scope page for SAE J514/1 covers 37-degree flared fittings for fluid-power and general use. It also makes an important boundary clear: working-pressure values in a fitting standard are not a guarantee for every application, and testing may still be required.

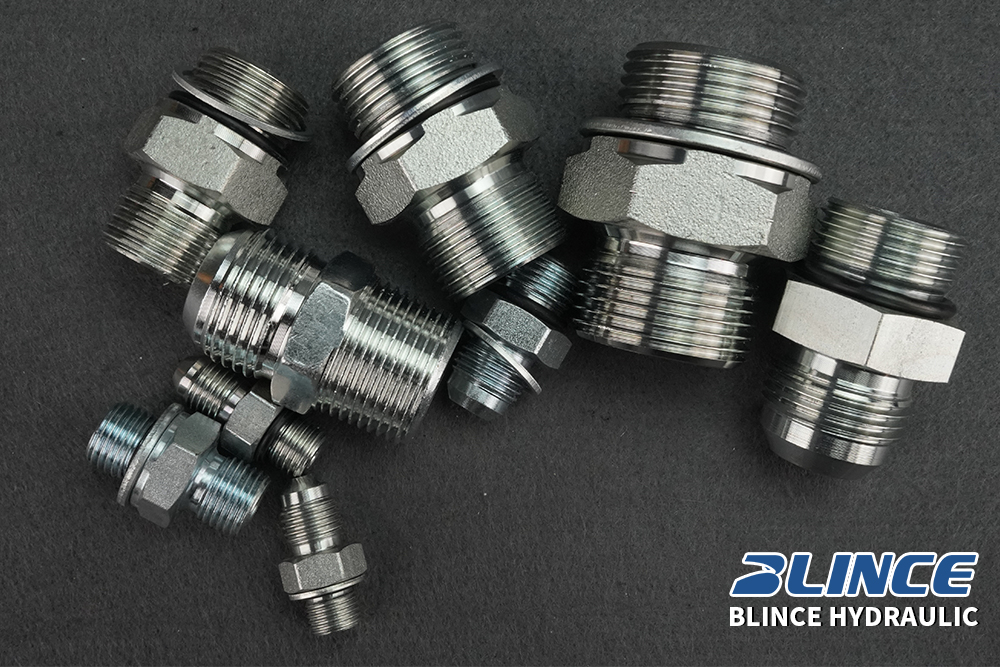

JIS 30° flare connections use a different seat angle. Depending on the particular JIS family and component, the associated thread may be BSPP or metric. That is why “JIS” cannot be identified from the cone angle alone, and “parallel thread” does not automatically mean JIC. Parker’s hydraulic hose, fitting, and equipment handbook lists female JIC 37° swivel and female metric 30° flare/JIS types separately.
Not every JIC and JIS pair will begin to screw together. Many will not. The warning is broader: visual similarity, an approximate diameter, or partial engagement is never enough evidence that two hydraulic ends belong together.
Why a False Match Can Survive a Bench Check
On a clean bench, an incorrect fitting may look convincing. Both parts can be metal, straight-threaded, and close in nominal size. The swivel nut can cover the sealing interface, making the 30° versus 37° difference difficult to see. A worn sample also loses the sharp profile shown in a catalog drawing.
The first few turns are especially misleading. Thread clearance, wear, plating thickness, burrs, or a near pitch can allow partial engagement. That sensation does not prove that the thread flanks are sharing load correctly. If the seat reaches first, the nut may feel tight even though contact exists only on a narrow ring.
The machine may also pass a low-pressure idle check. Static pressure at idle is not the same as the pressure spikes, hose movement, temperature cycles, and vibration seen during digging, lifting, steering, braking, attachment changes, or transport. A connection that merely stays dry for five minutes has not been validated for the duty cycle.
The cost of the shortcut is rarely limited to one fitting. A damaged port can require valve-block replacement. A leaking hose can contaminate soil, damage nearby wiring, or stop a machine away from the workshop. Emergency freight and a second service visit often exceed the price difference between a correctly identified direct replacement and a proper adapter.
Identify Four Things Before You Name the Fitting
Use four independent identity fields. Treat a connection as unknown until all four agree.
1. Thread form and diameter
Determine whether the thread is Unified, BSPP, BSPT, metric, NPT, or another family. Measure the male major diameter or female opening consistently, but do not convert one caliper reading directly into a nominal size. Nominal pipe sizes are not literal outside diameters.
Check whether the thread is parallel or tapered. A short worn sample can make this hard to judge with calipers, so use a known thread gauge, reference fitting, or manufacturer drawing where possible. The BLINCE guide to identifying hydraulic threads provides a broader overview of BSPP, metric, and other families.
2. Pitch or threads per inch
Match the measured diameter with pitch. For Unified and BSP threads, pitch is often recorded as threads per inch. Metric threads are normally described by the distance in millimetres between crests.
Use a clean gauge and check more than one crest. Dirt, flattened threads, and a one-thread sample can create an attractive but wrong reading. If two gauges look plausible, do not choose the one that “almost” sits down. Clean the part, improve the lighting, and compare with the standard table.
3. Seal location and seal type
Ask where the fluid is supposed to stop:
at a 37° metal flare;
at a 30° flare;
at an O-ring face;
at a bonded seal or port washer;
at a cone-and-O-ring interface;
or within a tapered pipe thread.
This question prevents a common mistake: treating every visible thread as the seal. On a JIC flare, the threads supply clamping force and the flare faces make the seal. PTFE tape on those straight threads does not correct an incorrect seat angle, a scratch, or misalignment. Loose tape can also enter the hydraulic circuit. Use thread sealant only where the applicable connection standard and component manufacturer specify it.
4. Seat angle and profile
Check both angle and shape. Record whether you are viewing a male cone, a female flare, a nose, or an inverted seat. A simple angle gauge can help, but the tool must touch the intended surface rather than a chamfer or damaged edge.
A 37° label and a 30° label describe a 7° difference in included working geometry as used by the connection families. The angle is only one identity field; the thread and seal arrangement still need to agree. Gates’ Hydraulics 201 guide likewise separates JIS 30° flare identification from other coupling styles.
JIC 37° vs JIS 30° vs BSPP: A Decision Table
Check
JIC 37° flare
JIS 30° flare
BSPP connection in general
Primary sealing surface
37° metal flare
30° flare
Depends on the design: bonded seal, O-ring, cone, or a JIS 30° arrangement may be used
Common thread association
Unified straight thread
BSPP or metric, depending on the JIS type
British Standard Pipe Parallel thread
Does the thread itself seal?
Normally no
Normally no at a flare connection
Not by thread interference; sealing method must be identified
Safe identification
Diameter + pitch + thread family + 37° seat
Diameter + pitch + exact JIS type + 30° seat
Diameter + 55° thread form/pitch plus the component’s seal design
Common field error
Calling any straight-thread flare “JIC”
Calling any 30° cone “BSP” without defining the type
Assuming BSPP names the complete sealing interface
Replacement rule
Match all identity fields and application limits
Match all identity fields and application limits
Specify the exact end style, not merely “BSPP”
The last row matters when requesting a quote. “One 1/2-inch BSP fitting” is not a complete specification. The supplier still needs male/female orientation, exact pitch, sealing face, hose or port end, shape, pressure, material, and quantity.
A Worked 37°/30° Geometry Example
The following calculation is a way to visualize the angle mismatch. It is not a manufacturing tolerance, a leakage prediction, or a go/no-go acceptance test.
Imagine two ideal straight cone surfaces that share a theoretical apex. Compare their radial positions 2.0 mm from that point:
At only 2.0 mm of axial distance, the simplified surfaces differ radially by about 0.35 mm. Real fittings have nose radii, wall thickness, elastic deformation, manufacturing tolerances, surface finishes, and specific male/female profiles. Those details determine actual contact. The calculation shows why a 7° angle difference should not be “fixed” with more torque.
If an incorrect pair makes contact, it may touch along a narrow line instead of over the intended sealing band. Tightening can emboss one surface into the other. That can temporarily change the leak, but it also makes the old part harder to identify and can ruin a reusable port.
A Six-Stage Field Workflow for JIC Hydraulic Fittings
Stage 1: Make the machine safe and preserve evidence
Park and secure the machine according to its service procedure. Lower supported loads, isolate energy, stop the power source, and release stored hydraulic pressure before loosening a connection. Wear the required PPE and keep the work area clean.
Never use a hand or another body part to search for a pressurized pinhole leak. An OSHA accident report documents a worker hospitalized after hydraulic fluid at 3,000 psi pierced the skin at a failed coupling. If injection is suspected, treat it as a medical emergency even when the entry wound looks small.
Before cleaning away all marks, photograph the assembly in place. Capture hose routing, bend direction, orientation, wrench flats, labels, and any paint marks. Record where the leak appeared, but remember that oil can travel along a hose or thread before dripping.
Stage 2: Look for the original identity
Search for a part number on the hose layline, ferrule, adapter, valve block, or machine parts list. A reliable drawing is usually more definitive than a field measurement, but verify that the installed part was not modified during an earlier repair.
If the machine uses a mixed regional supply chain, do not infer the connection standard from the machine’s country of origin. A Japanese machine can contain SAE, BSP, metric, and proprietary interfaces. An American attachment can be adapted to a BSPP valve. Identify the actual connection.
Stage 3: Clean, separate, and inspect
Cap open lines immediately with clean protective caps. Wash the removed ends with a compatible method and inspect them under strong light.
Look for a bright narrow contact ring, asymmetric polishing, galling, radial scratches, cracks, flattened threads, and evidence of bottoming. An off-centre ring suggests misalignment or side load. A continuous scratch across a metal seat can provide a leak path even when the fitting family is correct.
Do not file, lap, or “dress” a safety-critical seat merely to make it look smoother. Follow the manufacturer’s repair limits. Replace a damaged fitting when the sealing surface or load-bearing threads are outside those limits.
Stage 4: Measure and record
Record measurements rather than relying on memory:
male or female;
thread outside diameter or female reference diameter;
pitch or threads per inch;
parallel or tapered form;
seat angle and whether the surface is internal or external;
seal type and location;
hose inside diameter or dash size;
fitting shape: straight, 45°, 90°, tee, bulkhead, or adapter;
clocking and available envelope.
Take a photo with the caliper display visible, then a separate square-on photo of the threads and seat. A ruler alone is useful for scale but not for resolving close thread pitches.
Stage 5: Cross-check the complete connection
Compare the measurements with a reputable identification chart and the machine documentation. Do not stop when one row has a similar outside diameter. All identity fields must agree.
For a hose end, verify the stem, ferrule, hose construction, and crimp data as a compatible assembly. The SAE J516 hose-fitting scope includes multiple end styles; it does not mean that any compliant-looking stem can be crimped onto any hose. Use the hose and fitting manufacturer’s validated combination and crimp specification.
Stage 6: Confirm the application before release
Confirm continuous pressure, possible pressure spikes, temperature, fluid, impulse duty, vibration, motion, corrosion exposure, and applicable safety factors. Check routing, minimum bend radius, abrasion, twist, clamp position, and whether an adapter changes the load on the port.
After assembly by qualified personnel, follow the machine and component manufacturers’ torque and test procedures. Do not borrow a torque value from a different size, material, plating, or fitting family. Inspect from a safe position during controlled commissioning, then recheck after the defined service interval.
Direct Replacement or Adapter? Two Valid Paths with Different Costs
Once the original connection is known, there are usually two legitimate paths.
Direct matched replacement
A direct replacement preserves the intended interface and normally keeps the joint count, envelope, and hose routing close to the original design. It avoids adding another leak interface and reduces the chance that extra length will create a bending moment at the port.
The limitation is availability. A precise JIS 30° replacement may not be stocked locally, and a custom hose end can increase lead time or minimum order quantity. The part still needs verification; “same as the old one” is not a controlled specification.
Purpose-designed adapter
A correctly specified adapter can preserve an existing valve port while allowing a locally supported hose end. This can simplify future service and prevent field technicians from forcing incompatible parts.
The tradeoff is another component, two additional sealing interfaces in many arrangements, more installed length, and possible loss of wrench clearance. The adapter may increase the lever arm on a port or make the hose bend too close to the fitting. Its pressure, material, temperature, and fatigue capability must suit the circuit; the assembly is limited by its weakest component.
Do not build a chain of adapters simply because each adjacent pair can be connected. If more than one adapter is needed, reconsider the hose-end choice or procure the correct direct fitting.
JIC Metal-to-Metal Flare or a Soft-Seal Alternative?
JIC remains useful because it is compact, widely supported, and inspectable. A correct undamaged 37° flare can be disconnected and reassembled within the component manufacturer’s limits. Field service teams often have gauges and tooling for the family.
Metal-to-metal sealing also makes surface condition and alignment important. Scratches, tube-flare errors, side load, and repeated overtightening can create problems. On circuits where vibration and external leakage control dominate, an O-ring face seal design may be considered during an engineered redesign.
An O-ring face seal offers a different sealing mechanism and can perform well in high-vibration service when designed and assembled correctly. It is not a universal upgrade. The correct elastomer must be compatible with the fluid and temperature. The face and O-ring need protection during handling, and the required parts, tooling, envelope, and regional availability may cost more.
The choice is not “metal bad, O-ring good.” It is a system tradeoff involving leakage sensitivity, impulse, temperature, fluid chemistry, maintenance capability, parts availability, space, and validation.

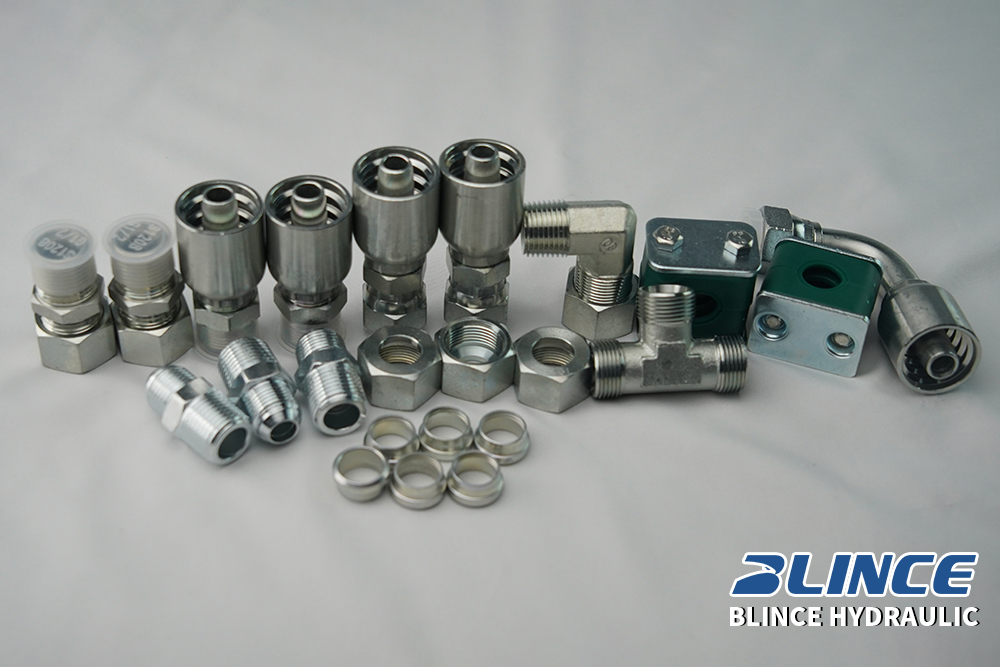

Match the Hose, Fitting, Ferrule, and Crimp as One Assembly
Buying the correct JIC thread does not finish a hose specification. The hose inside diameter, reinforcement, cover, temperature range, fluid compatibility, bend radius, and pressure class must also match the duty.
BLINCE lists multiple hydraulic hoses and fittings, including wire-braid and thermoplastic hose families. Its SAE 100 R1AT / DIN EN 853 1SN hose page lists one high-tensile steel-wire braid and a product temperature range of −40°C to +100°C. Those are page-specific values, not a blanket rating for every hose or finished assembly.
The end connection must be part of the validated hose system. Confirm the hose series, dash size, fitting stem, ferrule, insertion depth, crimp diameter, crimper calibration, and inspection criteria. Mixing a hose from one system with an unvalidated stem and a convenient ferrule can produce acceptable dimensions on the bench yet fail under impulse.

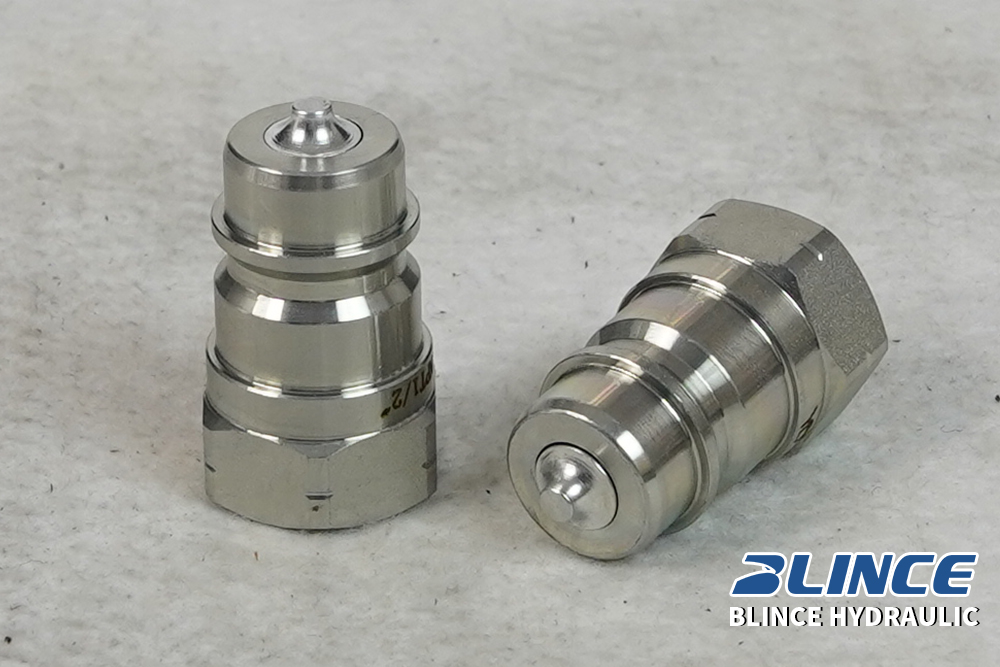

A Quick-Coupler Example: Body Standard Is Not End-Thread Identity
Quick couplers add another naming layer. A buyer may specify “ISO 7241 coupler” and assume the attached thread is therefore fixed. It is not.
The BLINCE ISO 7241 quick-disconnect coupler page lists a pressure rating up to 5,800 psi and end-thread options including BSP, NPT, JIC, ORFS, and metric. The body/interface description and the port or hose-end description must both appear on the purchase order.
The listed 5,800 psi value applies to the product configuration represented on that page. The allowable pressure of a delivered circuit may be lower because of size, end connection, hose, adapter, temperature, impulse duty, or another component. Confirm the exact ordered configuration and technical data before use.
Common Mistakes That Create Repeat Leaks
Ordering by nominal size alone
“Half-inch” may refer to hose ID, tube OD, nominal pipe size, or a dash convention. None of those independently defines the connection. Attach the actual diameter, pitch, seat, sex, and end-style data to the inquiry.
Using the nut shape as the identifier
Hex size and swivel appearance vary by manufacturer and series. They help find a catalog family after the functional geometry is known; they do not establish the standard.
Adding seal tape to a flare leak
Tape on JIC straight threads does not repair the 37° sealing faces. Find the damaged or mismatched seat, alignment problem, contamination, or assembly error.
Tightening until the leak changes
More torque can distort a flare and damage the port. Use the specified assembly method and torque for the exact fitting, then investigate if the connection still leaks.
Reusing a visibly damaged sealing surface
A minor mark in a non-sealing area may be harmless; a scratch crossing the contact band may not be. Use the component manufacturer’s acceptance limits, not a general visual guess.
Treating low-pressure dryness as validation
Idle testing can miss impulse, vibration, thermal cycling, and hose motion. Commission according to the machine and assembly requirements.
Ignoring the hose-side system
A correct 37° nose on an incompatible hose stem is still an unsafe assembly. Validate the hose, stem, ferrule, and crimp data together.
Who Should Not Buy or Install a “Close Enough” Replacement
Do not proceed from a visual match or partial thread engagement if any of these conditions applies:
the circuit controls steering, braking, lifting, load holding, personnel access, or another safety-critical function;
the machine documentation, thread family, or sealing method is unknown;
the old seat is damaged enough to hide its original profile;
working pressure, pressure spikes, temperature, or fluid are not known;
the proposed assembly mixes hose, fitting, or ferrule components without validated crimp data;
an adapter would interfere with wrench access, bend radius, guarding, or hose movement;
the port has cracked, galled, or stretched threads;
qualification testing or regulatory approval is required but unavailable.
In those cases, isolate the machine and involve the OEM, a qualified hydraulic engineer, or an authorized hose-assembly specialist. A fast answer is not useful if the input data cannot support it.
What to Send for a Faster, More Accurate Quote
A complete inquiry reduces back-and-forth and makes incorrect assumptions visible. Send:
machine make, model, attachment, and circuit function;
original part number, drawing, or parts-list reference;
clear photos of the complete fitting, thread, and sealing face;
male/female orientation at both ends;
measured thread diameter and pitch/TPI;
thread family if already confirmed;
seat angle, seal type, and seal location;
hose standard, series, inside diameter/dash size, and required length;
straight, 45°, or 90° body style plus clocking;
continuous pressure and known maximum spike pressure;
fluid, minimum and maximum temperature, and duty cycle;
vibration, motion, bend-radius, abrasion, and installation-space constraints;
required material, plating, and corrosion environment;
quantity, delivery country, and applicable inspection or documentation requirements.
If the thread is still unknown, say so. Label caliper and gauge readings as measurements rather than conclusions. A supplier can work with uncertainty when it is visible; hidden uncertainty is more likely to produce a confident wrong part.
You can review BLINCE’s hydraulic fitting category to define the product family. For a configuration review and quotation, use the BLINCE contact form and attach the measurement set above. Ask the team to confirm the connection standard, hose/fitting compatibility, pressure boundary, and adapter implications before production.
Final Decision Rule
Do not approve a hydraulic connection because the threads begin to engage. Approve it only when the thread diameter and form, pitch, seal location, and seat profile all match a documented connection—and when the completed hose, fitting, adapter, and machine duty have been checked as one system.
For JIC hydraulic fittings, the 37° seat is not a minor visual detail. For a JIS 30° connection, the 30° seat and exact associated thread family are equally important. The 7° difference is enough to change the contact geometry, while pressure and vibration can turn a bench-top compromise into a field failure.
Measure first. Preserve the old part. State what is known and unknown. Then buy the fitting that belongs in the circuit.
FAQ
Are JIC 37° and JIS 30° fittings interchangeable?
No. Their flare angles differ, and their associated thread families may also differ. Identify thread form and diameter, pitch, sealing method, and seat profile before selecting a replacement. Some pairs will not engage at all; partial engagement is not proof of compatibility.
How can I tell whether a fitting is JIC?
Confirm a Unified straight thread together with the correct diameter/pitch and a 37° flare sealing surface. Do not identify JIC from hex shape or outside diameter alone. Cross-check the measurement with the original drawing or a reliable identification chart.
Can PTFE tape stop a leaking JIC fitting?
PTFE tape on JIC straight threads does not repair the 37° flare seal. Inspect the sealing faces, alignment, contamination, thread damage, and assembly method. Use sealant only when the relevant connection standard and manufacturer call for it.
Why does the wrong fitting sometimes feel tight?
The seat may contact on a narrow ring, the thread may bind, or a component may bottom before the intended sealing band is loaded. That feeling can result from interference rather than a correct match.
Is an adapter safer than forcing a near match?
A purpose-designed, correctly rated adapter is the legitimate option when two known standards must be joined. It adds length, interfaces, and possible side load, so its rating, material, envelope, and effect on hose routing must be evaluated.
What measurements does a supplier need for JIC hydraulic fittings?
Provide male/female orientation, thread diameter, pitch/TPI, parallel/tapered form, 37° seat details, hose or tube size, body shape, pressure, temperature, fluid, quantity, and clear photos. Include the original part number or drawing when available.
Does an ISO 7241 quick coupler always have a JIC thread?
No. The coupling interface standard and the end thread are separate selections. For example, the verified BLINCE product page lists BSP, NPT, JIC, ORFS, and metric thread options for its ISO 7241 coupler series.
Is a 5,800 psi coupler suitable for every 5,800 psi circuit?
Not automatically. A page rating applies to the represented product configuration, while the circuit is limited by its lowest-rated component and actual conditions. Confirm size, end connection, hose, adapters, temperature, impulse, and manufacturer data for the ordered assembly.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
