A 400 bar gauge is not automatically safer than a 250 bar gauge. It may survive more pressure, yet make a 120 bar control setting harder to read. A 160 bar gauge may make that setting easy to see, yet spend every relief event too close to full scale. The correct choice is the range that preserves readable resolution during normal work and enough headroom for the real pressure pattern—not merely the pressure written on the pump nameplate.
That distinction matters on mobile equipment, presses, power units, test stands, steering circuits, and hydraulic attachments. The gauge sees the pressure at one connection. It may see steady pressure, repeated pulsation, cold-start restriction, a relief-valve plateau, or a millisecond spike that the pointer does not fully display. Selecting the dial without defining that service is one of the fastest ways to buy an instrument that looks correct but produces poor decisions.
This guide explains how to choose a liquid-filled hydraulic pressure gauge by scale range, accuracy class, fill fluid, connection, materials, vibration, pulsation, temperature, and installation point. It also shows why a liquid-filled case is useful but cannot replace correct range selection or spike control.
Short Answer: What Range Should a Hydraulic Pressure Gauge Have?
Start with three pressures: normal operating pressure, the highest sustained or repeatedly fluctuating pressure, and the credible short-duration peak. A practical first-pass target is to place the normal reading around the middle of the dial while keeping repeated fluctuations within the gauge manufacturer's stated working-pressure limit.
For many Bourdon-tube gauges designed to EN 837-1 or ASME B40.100, a common product limit is about 75% of full scale for steady pressure and about two-thirds of full scale for fluctuating pressure. These are not universal limits for every gauge. The exact datasheet for the ordered model takes priority.
If the system normally runs at 140 bar and repeatedly reaches 180 bar, a 0–250 bar gauge is usually a more defensible starting point than 0–160 bar. If the system normally runs at 70 bar and only has a protected relief setting of 100 bar, a 0–160 bar gauge may provide better readability than 0–250 bar. If the application produces severe spikes, do not simply buy an oversized dial and declare the problem solved; investigate a snubber, restrictor, remote line, better test point, or a pressure transducer with suitable dynamic response.
The Five Numbers to Record Before Selecting the Dial
Do not begin with the catalog range. Begin with the circuit.
Required input
What it means
Why it changes the selection
Normal working pressure
Pressure during the main productive cycle at warm oil temperature
Determines useful pointer position and readability
Highest sustained pressure
Highest value held for more than a brief transient
Must remain within the model's steady working limit
Repeated fluctuating pressure
Cycling band during pump ripple, valve modulation, clamping, pressing, or steering
Repeated cycling may require more scale headroom and damping
Relief setting
Pressure where the relief valve begins or completes opening under the stated flow
Helps define a credible upper operating event, but is not always the true spike limit
Peak or surge pressure
Short transient measured with suitable instrumentation
Decides whether a snubber, different gauge design, or higher range is necessary
Add oil temperature, ambient temperature, vibration severity, connection thread, mounting orientation, wetted material, required accuracy, dial diameter, and whether the reading is for indication, adjustment, acceptance testing, or safety-related control.
A Range-Selection Method That Works in the Field
Step 1: Separate normal pressure from maximum pressure
“The machine is a 210 bar system” is not enough. That number may be the pump rating, the relief setting, the actuator demand, or a value copied from an old gauge. Ask what pressure is present during the normal cycle and how long it remains there.
For example, a clamping circuit might spend most of its time at 90–110 bar, briefly rise to 150 bar, and have a relief setting near 180 bar. A 0–250 bar gauge keeps normal work near the central portion of the dial and provides more room for the relief event than a 0–160 bar gauge.
Step 2: Identify whether pressure is steady or fluctuating
Steady pressure is relatively stable after the system reaches its operating point. Fluctuating pressure repeatedly moves through a band. Pump pulsation, rapid directional-valve shifts, unloader cycling, pressure-compensator hunting, and machine shock can all create dynamic service.
One representative WIKA liquid-filled gauge specification permits steady pressure at three-quarters of full scale and fluctuating pressure at two-thirds of full scale for certain 63 mm and 80 mm versions. This is a useful engineering reference, not a blanket rating for another supplier's gauge. Confirm the ordered model's limits.
Step 3: Choose the next standard range that preserves both readability and headroom
Suppose the warm normal pressure is 145 bar, repeated fluctuation reaches 170 bar, and a protected short event reaches 190 bar.
On a 0–160 bar gauge, normal pressure is 90.6% of full scale and the repeated high value is beyond scale. Reject it.
On a 0–250 bar gauge, normal pressure is 58% of full scale, the repeated high value is 68%, and 190 bar is 76%. This may be suitable only if the specific gauge's fluctuating and short-time limits allow it.
On a 0–400 bar gauge, normal pressure is 36.3% of full scale. Headroom improves, but resolution and adjustment readability worsen.
The 250 bar option is the stronger starting point, followed by a datasheet check and a spike review. The calculation does not approve the gauge by itself.
Step 4: Check accuracy as an absolute error, not just a class number
Accuracy class is normally expressed as a percentage of full scale. A class 1.6 gauge with a 0–250 bar range can have a permissible indication deviation of approximately:
250 bar × 1.6% = ±4.0 bar
The same class on a 0–400 bar gauge gives:
400 bar × 1.6% = ±6.4 bar
At a 100 bar reading, the 400 bar gauge may therefore be less useful for a tight adjustment even though its percentage class is identical. If a valve must be set to 100 bar within ±2 bar, neither example proves adequate. Use a more accurate gauge or calibrated reference instrument and include the full measurement chain.
Step 5: Confirm overload, temperature, and dynamic protection
Check the manufacturer's steady, fluctuating, and short-time limits; operating temperature; ingress protection; fill-fluid temperature range; connection material; and any warning about mounting orientation. If measured spikes exceed the gauge limit, add protection or redesign the measurement arrangement rather than relying on the pointer to hide the event.
Worked Selection Table: 100, 160, 250, or 400 Bar?
The table below is a screening example. It assumes no unusual vacuum, chemical compatibility problem, or safety-code requirement.
Circuit observation
0–100 bar
0–160 bar
0–250 bar
0–400 bar
First-pass judgment
Normal 55 bar, repeated high 75 bar
55% / 75% FS
34% / 47% FS
22% / 30% FS
14% / 19% FS
100 or 160 bar after dynamic-limit check
Normal 90 bar, repeated high 120 bar
Over range
56% / 75% FS
36% / 48% FS
23% / 30% FS
160 may be too close for repeated fluctuation; 250 is safer
Normal 145 bar, repeated high 170 bar
Over range
Over range
58% / 68% FS
36% / 43% FS
250 is the better starting point
Normal 210 bar, repeated high 260 bar
Over range
Over range
Over range
53% / 65% FS
400 is the natural starting point
Do not use this table as a product rating. It shows the logic: compare each observed pressure with full scale, then apply the actual gauge datasheet.
Liquid-Filled vs Dry Gauge: What the Fill Actually Does
A liquid-filled case surrounds the movement with glycerin, silicone, or another approved fill. The liquid dampens pointer movement, improves readability under vibration or pulsation, and reduces wear in the movement. That makes it a sensible option near pumps, mobile machinery, presses, and vibrating power units.
Liquid fill does not reduce process pressure before it reaches the Bourdon tube. It does not guarantee that a severe spike is safe, correct an undersized range, or make a local gauge suitable for calibration. For strong pulsation, a snubber, restrictor, capillary, or remote mounting arrangement may still be required.
Liquid-filled gauge advantages
A steadier pointer is easier to read on vibrating equipment.
Damping can reduce movement wear caused by repeated pointer oscillation.
The case is often better protected against condensation and environmental contamination, depending on construction.
It provides a practical local indication without electrical power.
Liquid-filled gauge disadvantages
Glycerin viscosity increases at low temperature, which can slow pointer response or affect tolerance.
Fill expansion and case pressure can create a zero shift if the case is not vented or compensated as instructed.
A damped pointer may conceal fast spikes rather than quantify them.
Leakage, window discoloration, or incompatible fill fluid can create maintenance and safety issues.
Glycerin, Silicone, or Another Fill Fluid?
Glycerin is widely used because its viscosity provides strong damping at ordinary industrial temperatures. Ashcroft notes that glycerin can become problematic below about 20°F (-6.7°C) and may discolor above about 150°F (65.6°C); the actual ordered gauge temperature rating remains controlling.
Silicone is commonly selected for a wider temperature window and remains useful where cold starts make glycerin response too slow. It is generally less viscous, so the damping behavior is not identical. Halocarbon and other special fills are used only when process compatibility and safety justify them.
Never choose case fill by habit alone. Record the lowest ambient temperature during transport and startup, the highest case temperature in service, and the process medium. Case fill and diaphragm-seal system fill are different design questions.
Range Is Only One Part of Gauge Accuracy
WIKA explains that accuracy class is the permissible indication deviation as a percentage of full-scale value. A class 1.0 gauge over 0–100 bar therefore has a 1 bar permissible deviation under its specified reference conditions. Temperature departure, mounting position, vibration, hysteresis, wear, and the quality of the test point can add uncertainty.
This is why a gauge used to see whether a circuit is “around 150 bar” may be perfectly adequate while the same gauge is inadequate for factory acceptance criteria of 150 ±1 bar. Define what decision the reading must support.
For routine machine indication, a robust 63 mm liquid-filled gauge may be appropriate. For relief-valve setting, use a suitable calibrated reference gauge. For high-speed pressure analysis, use a transducer and acquisition system with enough bandwidth. One instrument should not be forced into all three roles.
Connection, Seal, and Mounting Checks Before Ordering
A pressure range can be correct while the physical connection is wrong. Confirm:
Item
Questions to answer
Thread
BSPP, BSPT, NPT, metric, SAE straight thread, or another standard?
Sealing method
Tapered thread, bonded seal, O-ring, cone seat, or test coupling?
Connection location
Bottom, center-back, lower-back, panel, or remote hose?
Dial size
Can the operator read 63 mm at the actual distance and angle?
Wetted materials
Are copper alloy, stainless steel, elastomers, and seals compatible with the oil and environment?
Orientation
Is the gauge approved for the intended upright, horizontal, or inverted position?
Environment
Vibration, washdown, dust, salt, UV, impact, and ambient temperature?
Do not force a BSP fitting into an NPT port because the first threads seem to engage. Do not add a stack of adapters without considering trapped volume, leakage points, vibration leverage, and the reduced bore through the smallest fitting. Use the hydraulic hoses and fittings category only after thread and seal identification are complete.
Where the Gauge Is Installed Changes What It Needs to Survive
A pump outlet gauge may see ripple and relief events. A cylinder port gauge may see load-induced spikes. A return-line gauge may use a low range and be damaged instantly if connected to a high-pressure point. A filter differential check needs two coordinated readings or a differential instrument, not a single high-range gauge moved between unknown ports.
The existing hydraulic pressure gauge placement guide explains why one normal reading can still hide a loss across a valve, hose, filter, cooler, or actuator. Range selection and test-point selection must be done together.
If you are choosing a gauge to check a hydraulic pressure switch, the gauge accuracy and response must be sufficient to distinguish switch setpoint from reset point. A broad, heavily damped dial may show average pressure but hide the event that causes a false trip.
Data Case: Why the Cheapest 400 Bar Gauge Can Cost More
Consider a compact press that normally clamps at 105 bar. The purchasing team selects a 0–400 bar, class 1.6 gauge because the pump is rated for 250 bar and the 400 bar dial appears safer.
The gauge's permissible class error is ±6.4 bar. A technician attempts to set the clamp at 105 bar, but the small dial spacing and pointer movement make the practical reading uncertain. The process later rejects parts because clamp force varies.
A 0–160 bar gauge would offer much better resolution, but repeated 145 bar pressure and a 160 bar relief event leave insufficient margin for the model's dynamic limits. A 0–250 bar class 1.0 reference gauge gives a permissible class error of ±2.5 bar and keeps 105 bar at 42% of full scale. If the process truly needs ±1 bar, even that is inadequate; a calibrated higher-accuracy instrument is required.
The buying lesson is not “always choose 250 bar.” It is “translate the process tolerance into instrument error before comparing price.”
Common Buying and Installation Mistakes
Mistake 1: Matching the gauge to pump maximum pressure
The pump rating does not tell you the normal reading or dynamic pattern at the test point. Select from measured circuit conditions.
Mistake 2: Treating relief pressure as a harmless spike
Relief flow can last long enough to heat the oil and load the gauge. Record duration and repetition, not only the peak number.
Mistake 3: Using burst pressure as working pressure
Burst or proof values are not normal operating limits. Use the manufacturer's steady and fluctuating ratings.
Mistake 4: Assuming liquid fill absorbs pressure spikes
Fill dampens movement; it does not reduce the pressure applied to the sensing element.
Mistake 5: Buying the widest scale for “safety”
An oversized scale reduces reading resolution and increases absolute error for the same accuracy class.
Mistake 6: Ignoring low-temperature response
Cold glycerin can make the pointer sluggish. Confirm the fill and gauge temperature limits for winter startup.
Mistake 7: Confusing bar, MPa, and psi
Remember: 1 MPa = 10 bar, while 1 bar is approximately 14.5 psi. A unit mistake can produce a tenfold error.
Mistake 8: Sealing every connection with tape
Different connections use different sealing principles. Loose tape can enter a small gauge orifice and change response.
Mistake 9: Leaving the case plug incorrectly configured
Some liquid-filled gauges require venting after installation. Follow the manufacturer's instructions; uncontrolled case pressure can shift zero.
Mistake 10: Using a local gauge to prove fast spike pressure
The pointer and damping may not reproduce a millisecond transient. Use an appropriate transducer and recorder.
Who Should Use a Liquid-Filled Hydraulic Pressure Gauge?
A liquid-filled gauge is a good fit for operators and maintenance teams that need local, power-free pressure indication on equipment with moderate vibration or pulsation. It is especially practical on hydraulic power units, mobile machinery, presses, pump outlets, valve manifolds, and service test kits when the range and protection match the point.

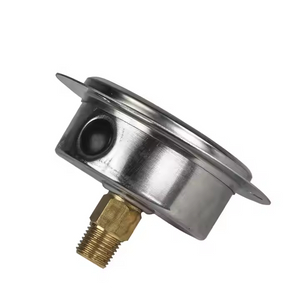

The BLINCE liquid-filled pressure gauge product page describes a 63 mm glycerin-filled hydraulic gauge family with coverage up to 500 bar. Treat that as a product-family indication: confirm the exact ordered scale, accuracy, thread, mounting position, materials, fill, temperature rating, and pressure limits before purchase.
Buyers who also need filters, level indicators, or reservoir accessories can review the hydraulic accessories category, but each accessory still needs its own circuit data.
Who Should Not Use One as the Only Instrument?
Do not rely on a basic liquid-filled local gauge as the only instrument when the job requires high-speed transient capture, calibration-laboratory accuracy, remote alarm or PLC feedback, hazardous-media isolation, certified safety protection, or a measurement that controls a legal acceptance criterion.
Do not buy a new gauge yet if the existing reading problem may come from a blocked test coupling, trapped pressure, wrong test point, undersized adapter, case zero shift, or a gauge installed on the wrong side of a valve. Diagnose the measurement path first.
For contaminated oil or repeated component failure, read the hydraulic contamination control guide before installing a clean instrument into a dirty test line.
Procurement Checklist for a Useful Quotation
Send the supplier:
Normal, repeated-high, relief, and measured peak pressure.
Whether pressure is steady, pulsating, or shock-loaded.
Required scale and units, including dual scale if needed.
Required accuracy and the decision the reading supports.
Dial diameter and connection position.
Thread standard, size, and sealing method.
Process fluid and required wetted materials.
Minimum and maximum ambient and oil temperature.
Vibration, washdown, outdoor, corrosion, and impact conditions.
Need for glycerin, silicone, dry damped movement, snubber, restrictor, or remote mounting.
Required quantity, packaging, calibration certificate, and inspection documents.
Photos of the old gauge, port, dial, and installation space.
A useful request might read: “We need 40 pieces for a mobile power unit. Warm normal pressure is 145 bar, repeated peaks reach 170 bar, and a transducer recorded occasional 190 bar events. Oil is ISO VG 46; ambient range is -15 to 45°C. Please propose a 63 mm bottom-connection gauge, bar/psi dual scale, 1/4-inch BSPP with bonded seal, accuracy class 1.6 or better, and suitable liquid fill. State steady, fluctuating, and short-time pressure limits, temperature rating, IP rating, materials, and whether a snubber is recommended.”
FAQ
What is the best pressure gauge range for a 210 bar hydraulic system?
There is no automatic answer from “210 bar” alone. If 210 bar is a repeated working value, a 0–250 bar gauge may be too close to full scale for fluctuating service and 0–400 bar may be more appropriate. If 210 bar is only the pump rating while the circuit normally operates at 100 bar, a lower range may give better resolution. Record normal, repeated-high, relief, and peak pressures first.
Should normal pressure be at the middle of the gauge?
Near the middle is a useful practical target because it balances readability and headroom. It is not a substitute for the model's steady and fluctuating pressure limits.
Is a 400 bar gauge more accurate than a 250 bar gauge?
Not necessarily. With the same accuracy class, the 400 bar gauge has a larger absolute permissible error because accuracy is based on full scale.
What does accuracy class 1.6 mean?
It generally means permissible indication deviation up to 1.6% of full scale under specified reference conditions. On 0–250 bar, that is ±4 bar.
Why use glycerin in a hydraulic pressure gauge?
Glycerin dampens pointer motion and lubricates the movement, improving readability and wear resistance under vibration or pulsation.
Can a liquid-filled gauge stop pressure spikes?
No. It dampens indication. A snubber, restrictor, remote line, different gauge design, or suitable transducer may be needed to manage or measure spikes.
Why does a glycerin-filled gauge not return to zero?
Possible causes include case pressure from temperature change, incorrect vent-plug configuration, overpressure, mechanical damage, or calibration shift. Isolate and depressurize safely, then follow the manufacturer's instructions.
Is silicone fill better than glycerin?
Silicone often suits a wider temperature range, while glycerin commonly provides stronger damping. “Better” depends on temperature, vibration, compatibility, and model specifications.
Can I install a 500 bar gauge on a 100 bar circuit?
It may withstand the pressure, but normal readings occupy only 20% of full scale and resolution is poor. A lower range with adequate headroom is usually more useful.
Do I need a snubber with a liquid-filled gauge?
Possibly. Liquid fill protects the movement, while a snubber or restrictor reduces the pressure pulsation reaching the sensing element. Severe or high-frequency pulsation may need both.
Can one gauge be moved around the whole machine?
Only if its range, connection, cleanliness, and pressure rating suit every point. A low-pressure return gauge can be destroyed at a pump outlet, and a high-range pump gauge may be useless for case-drain pressure.
Is the gauge connection material important with hydraulic oil?
Yes. Confirm compatibility with the oil, additives, temperature, corrosion exposure, and cleaning agents. Also confirm the case and window suit the environment.
What information should I send for a BLINCE gauge quotation?
Send pressure data, units, accuracy, dial size, thread and seal, connection position, fill preference, temperatures, oil, environment, quantity, and photos. If pressure fluctuates, state the frequency and amplitude or provide a recorded trace.
Final Buying Rule
Choose a hydraulic gauge for the pressure pattern and the decision, not for the biggest number in the catalog. Place normal pressure where the dial is readable, keep repeated pressure within the ordered model's dynamic limit, convert accuracy class into absolute error, and use damping or spike protection where the circuit requires it.
For selection support, send BLINCE the four pressure values, temperature range, thread and seal, mounting position, oil, vibration conditions, desired accuracy, dial size, and quantity. That information allows a useful comparison instead of a guess based on “one 400 bar gauge.”
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
