1. What Is a Gear Pump? (And Why Should You Care?)

If you’ve ever worked with hydraulic systems, chances are you’ve encountered a gear pump—even if you didn’t realize it at the time. So, what exactly is it?

At its core, a gear pump is one of the most commonly used types of hydraulic pumps. It’s compact, efficient, and surprisingly simple in design. The basic idea? It moves fluid by using the intermeshing of gears to trap and transport fluid from the inlet to the outlet. Like gears in a clock, these teeth rotate, pull in oil or another fluid, and push it out with force. That’s the beauty of it—no pistons, no diaphragms, just gears doing their thing.

External vs. Internal Gear Pumps

There are two primary types of gear pumps:

  • External Gear Pumps – These are the most common. They consist of two identical gears that rotate in opposite directions.

  • Internal Gear Pumps – These use one external and one internal gear, which makes them more compact and better suited for high-viscosity fluids.

Most hydraulic systems rely on external gear pumps because of their simplicity and ability to handle a wide range of fluids at moderate pressures.

Imagine this: two gears spinning together inside a casing, creating tiny pockets between the gear teeth and the pump casing. Fluid flows into these pockets at the suction side and gets carried around the outside of the gears until it’s squeezed out on the discharge side.

Why Are Gear Pumps So Popular?

There are plenty of reasons why gear pumps are found everywhere—from agricultural machines and construction equipment to chemical processing systems and even aircraft:

  • Simple design = fewer things that can go wrong

  • Compact and lightweight

  • Strong self-priming capabilities

  • Consistent flow, even at high pressures

  • Resistant to contamination

In short, gear pumps are the dependable workhorses of the hydraulic world.

gear pump

2. How Does a Gear Pump Work?

Alright, now that we know what a gear pump is, let’s take a peek under the hood and see how it actually works.

Here’s the simple version:
A gear pump works by trapping fluid between the teeth of two rotating gears and pushing it from the inlet side to the outlet side.

But let’s break that down with a real-world metaphor.

Think of It Like a Conveyor Belt for Oil

Imagine two gears meshing together inside a sealed housing. As these gears turn, fluid is pulled into the inlet port, travels around the outer edges of the gears, and is then pushed out through the outlet port. The gear teeth form sealed cavities that carry the liquid around, kind of like buckets on a conveyor belt.

  • As the gear teeth unmesh on the suction side, a void is created.

  • This void creates low pressure, and fluid from the tank rushes in to fill the gap.

  • The fluid then gets trapped between the gear teeth and the casing wall.

  • As the gears rotate, this trapped fluid is transported to the discharge side.

  • Finally, as the teeth mesh together again, they force the fluid out under pressure.

No Valves, No Pistons—Just Rotation

Unlike piston pumps or vane pumps, gear pumps don’t rely on complicated mechanisms. Instead, their reliability comes from tight tolerances and precise gear meshing.

The key components in a standard gear pump include:

  • Drive gear (connected to the motor)

  • Driven gear (rotates in sync with the drive gear)

  • Pump housing

  • Inlet and outlet ports

  • Bearings and end covers for alignment and support

Seal Gaps Matter!

In a well-designed gear pump, the tiny clearances between the gears and the casing are crucial:

  • If the clearance is too big → leakage increases → efficiency drops.

  • If it’s too tight → friction increases → wear and heat build up.

This is why high-quality gear pumps are engineered with just the right tolerances to balance leakage control, efficiency, and longevity.


3. Types of Gear Pumps and Their Key Design Features

Gear pumps might look simple on the outside, but they come in a variety of configurations depending on the application, fluid type, and performance needs.

Let’s break down the different ways gear pumps can be categorized.

1. Based on Gear Arrangement: External vs. Internal Gear Pumps

  • External Gear Pumps
    These pumps use two identical external gears. One is powered (drive gear), and the other rotates freely (driven gear). The fluid is carried around the outside of the gears, between the teeth and the housing wall.
    Common in: hydraulic systems, lubricating systems, general fluid transfer

  • Internal Gear Pumps
    These have an internal gear (with teeth on the inside) meshed with a smaller external gear. A crescent-shaped spacer separates the gears and creates chambers for fluid movement.
    Best for: high-viscosity fluids like chocolate, syrups, or gear oil

2. Based on Tooth Profile: Involute vs. Cycloidal

  • Involute Tooth Gears
    These are the most widely used due to their ease of manufacturing and stable performance.

  • Cycloidal Gears
    Known for high-efficiency fluid transfer and smoother operation, but more complex to produce.

3. Based on Gear Shape: Straight, Helical, and Herringbone

  • Straight (Spur) Teeth
    Simple, cheap, but noisy and with more pulsation.

  • Helical Teeth
    Quieter and smoother due to angled teeth that gradually engage.

  • Herringbone Teeth (Double Helical)
    Combines the benefits of helical gears but eliminates axial thrust. Think of it as a high-end solution for noise-sensitive or high-pressure systems.

4. Based on Number of Gear Sets

  • Two-Gear Pumps – Most common; one drive, one driven.

  • Multi-Gear Pumps – Used when you need higher flow rates or special functions like dual output lines.

5. Based on Staging: Single-Stage vs. Multi-Stage Gear Pumps

  • Single-Stage Gear Pump – One set of gears, one suction and one discharge.

  • Multi-Stage Gear Pump – Multiple sets of gears to increase flow or pressure. Used when more power is needed without increasing motor size.

So, Why Choose a Gear Pump Anyway?

Despite being one of the oldest types of hydraulic pumps, gear pumps continue to dominate because of:

  • Simple and compact construction

  • Low cost

  • High reliability

  • Ability to work in dirty environments

  • Minimal maintenance

However, they also come with some downsides:

  • Fixed displacement (can’t adjust flow rate on the fly)

  • Limited pressure capabilities

  • Not suitable for abrasive or particle-filled fluids

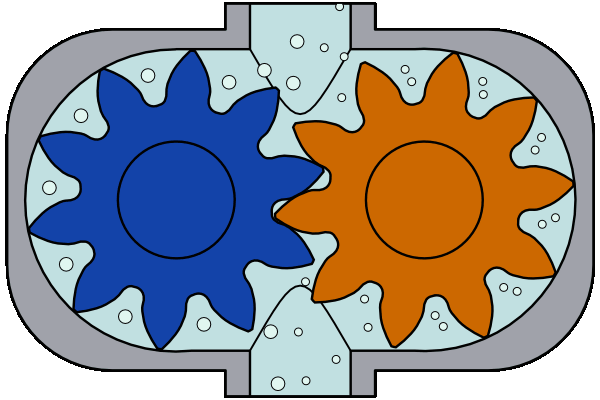

Gear-Pump-Animation


4. Where Are Gear Pumps Used? (And Why Are They So Popular?)

You might be wondering—where do gear pumps actually get used in real life? The short answer? Pretty much everywhere fluid needs to move in a controlled, pressurized way.

Let’s unpack some of the most common application scenarios.

Ⅰ.Hydraulic Systems in Machinery

Gear pumps are a favorite in hydraulic power units used in:

  • Excavators

  • Tractors

  • Forklifts

  • Loaders

  • Press machines

Why? Because they offer consistent flow, are easy to maintain, and are rugged enough to handle tough environments.

Ⅱ.Automotive and Transportation

From power steering systems to automatic transmissions, gear pumps are essential in:

  • Lubrication systems

  • Fuel transfer

  • Coolant circulation

In vehicles and aircraft, where space and weight are critical, gear pumps provide compact power without taking up much room.

Ⅲ.Oil & Gas and Petrochemical Industries

In these sectors, gear pumps are used to handle viscous fluids like:

  • Crude oil

  • Lubricants

  • Diesel and fuel oils

  • Bitumen and asphalt

The internal gear pump is especially popular here due to its ability to handle thick and sticky fluids without clogging.

Ⅳ.Food and Beverage Processing

Yes, even in food plants!

Food-grade gear pumps are made from stainless steel and used to transport:

  • Syrups

  • Chocolate

  • Cooking oils

  • Creams

  • Honey

Their non-pulsating flow makes them ideal for accurate metering and delicate fluid handling.

Ⅴ.Chemical and Pharmaceutical Industries

In this space, gear pumps provide precision dosing and clean operation, essential for transferring:

  • Acids and solvents

  • Alcohols

  • Perfumes

  • Pharmaceutical pastes and suspensions

Special corrosion-resistant materials like PTFE-lined housings are often used.

Ⅵ.Marine and Aerospace

In marine equipment and even some aerospace systems, gear pumps are responsible for:

  • Fuel supply

  • Hydraulic actuation

  • Lubrication of gearboxes and turbines

Their robustness, simplicity, and low maintenance make them ideal for applications where downtime is not an option.

Why Are Gear Pumps So Versatile?

Let’s sum it up:

  • They can handle a wide range of fluids, from water-thin to molasses-thick.

  • They’re unaffected by contamination, meaning they work in tough conditions.

  • They deliver a constant flow rate, which is critical for predictable system behavior.

  • They are cost-effective, reliable, and have a long operational life with minimal servicing.


5. How to Choose the Right Gear Pump (Without Getting Overwhelmed)

Choosing a gear pump isn’t just about picking the first model you find online. Get it wrong, and your system might suffer from inefficiency, cavitation, leaks—or worse—total failure. But don’t worry, we’re going to break it down into simple, logical steps.

Step 1: Understand Your Application Requirements

Before you even look at a catalog, ask yourself:

  • What type of fluid am I pumping? (Is it thick? Abrasive? Corrosive?)

  • What flow rate (L/min or GPM) do I need?

  • What’s the system pressure?

  • What’s the fluid temperature?

  • Is continuous operation needed?

Knowing these specs will already narrow your choices significantly.

Step 2: Horizontal or Vertical Mounting?

Gear pumps come in horizontal and vertical orientations. Your system layout and available space will determine which is best. Vertical designs are great for limited floor space, but horizontal is usually easier for maintenance and inspection.

Step 3: Fluid Compatibility

Not all gear pumps can handle all fluids. For example:

  • Petroleum oils → standard gear materials

  • Acids and solvents → stainless steel or coated internals

  • Food products → FDA-approved materials like stainless steel and Teflon

Pro tip: Always check the chemical compatibility chart before selecting pump materials.

Step 4: Flow Rate and Pressure Calculations

Flow rate is often calculated using this formula:

Qt = 7 × Z × m² × B × n × 10⁻⁶  (for high-pressure gear pumps)

Where:

  • Z = number of teeth

  • m = module (gear size)

  • B = gear width

  • n = RPM

If you're not a math geek—no worries. Most pump manufacturers provide performance curves or software to help you plug and play your requirements.

Step 5: Choose Single-Stage or Multi-Stage

  • Use single-stage gear pumps for standard pressure and flow.

  • Use multi-stage when you need higher pressures or variable flow rates.

Step 6: Don’t Forget Self-Priming and Suction Height

If your fluid source is below pump level, make sure the pump has strong self-priming ability. Gear pumps are good at this, but keep suction heights below 500 mm to avoid cavitation and air pockets.

Step 7: Special Conditions

You may also need to account for:

  • Explosive environments (use explosion-proof motors)

  • Continuous 24/7 operation (ensure high reliability + low maintenance design)

  • Redundancy (use dual pumps or backup units for critical systems)

Step 8: Always Check Manufacturer Data Sheets

After shortlisting, double-check:

  • Efficiency ratings

  • Noise levels

  • Vibration tolerance

  • Available accessories (valves, filters, pressure relief)

If you're unsure, contact the manufacturer and provide your system specs. Most will recommend a model or customize one for you.

Bonus Tip: One Large Pump vs. Multiple Small Ones

Sometimes, using two small gear pumps in parallel is better than one large unit. Why?

  • Improved redundancy

  • Easier replacement

  • Flexibility in operation (switch one off during low demand)

gear pump

6. Trapped Oil (Hydraulic Headache): What It Is and Why It Matters

Okay, let’s get real—gear pumps are amazing, but they’re not perfect. One of the most common issues that can sneak up on your system is something called “trapped oil” or oil entrapment. It sounds harmless, but it can seriously mess things up if you don’t handle it properly.

Let’s dive in.

What Is Trapped Oil (Also Called "Oil Compression")?

As the gears rotate and mesh together, they create small enclosed spaces between the gear teeth and the pump casing. Normally, fluid flows through these pockets from the inlet to the outlet. But here’s the problem:

When gear teeth mesh and trap a small volume of oil in a sealed cavity with nowhere to go, that fluid gets compressed—and pressure rises quickly.


This creates pressure spikes in tiny pockets, like mini explosions, causing:

  • Increased noise

  • Vibration

  • Heat buildup

  • Premature wear on seals and bearings

  • Loss of efficiency

Why Does This Happen?

Trapped oil happens when:

  • The gear mesh doesn’t allow an escape path for fluid.

  • There’s no proper pressure relief or “unloading” zone.

  • The pump design lacks a proper relief groove or slot.

It’s particularly common when the meshing overlap ratio (ε) is less than 1.4. Anything below that, and fluid has nowhere to go during meshing.

What Problems Can It Cause?

Here’s a quick list of real-life effects:

  • Bearing overload – more force is placed on one side of the shaft

  • Seal blowout – when pressure spikes rip seals open

  • Cavitation-like damage – fluid compression can cause air bubbles to implode

  • Noise and vibration – that irritating rattle you can’t ignore

  • Reduced pump life – because everything wears out faster

How Do We Fix or Prevent It?

Good news: trapped oil isn’t inevitable. There are several proven solutions.

1. Use a Relief Groove (Unloading Slot)

This is the most widely used method. By machining a groove into the end cover, oil has an escape route before pressure builds up. Think of it like a tiny pressure-release valve built right into the pump.

2. Pressure Balancing Holes

Some manufacturers drill tiny holes into the gear face or shaft to allow excess oil to bleed off and balance pressure forces.

3. Tooth Profile Optimization

Changing the gear tooth shape to reduce the size and duration of enclosed spaces can help limit trapped volumes.

4. Expand the High-Pressure Zone

By enlarging the discharge zone slightly, fluid can start to exit before being fully compressed.

5. Reduce Operating Pressure

If your system allows, slightly reducing working pressure can lower the compression effects caused by trapped oil.

Dealing With Radial Forces

Oil entrapment often leads to unbalanced radial forces. Here’s how to reduce them:

  • Add hydraulic balancing grooves

  • Use double support bearings

  • Keep discharge pressure evenly distributed

So, trapped oil isn’t something to ignore. But with the right design choices, materials, and pressure balancing techniques, you can run your gear pump smoothly and silently.


7. What Affects Flow Rate and Efficiency in a Gear Pump?

Let’s face it—when you install a pump, your top concerns are probably:

  • Is the flow rate enough?

  • Is it efficient, or is energy being wasted?

  • Will it stay consistent over time?

If the answer to any of those is “I’m not sure,” don’t worry—we’re about to cover exactly what impacts gear pump performance, and how to keep it in top shape.

Let’s Start with the Basics: The Flow Rate Formula

For high-pressure gear pumps, the theoretical flow rate can be calculated with:

Qt = 7 × Z × m² × B × n × 10⁻⁶  (L/min)

Where:

  • Z = number of teeth

  • m = gear module (size of each tooth)

  • B = gear width

  • n = RPM (rotations per minute)

If you're using a low-pressure or mid-range gear pump, the constant might change slightly (e.g., 6.66 instead of 7), but the structure stays the same.


But Real Life Isn’t Perfect…

Even if your math is spot on, you might notice the actual output is lower than expected. That’s where volumetric efficiency comes in.

Volumetric Efficiency (ηv) = (Actual Flow Output / Theoretical Flow Output) × 100%

A perfect world would mean ηv = 100%. But in the real world, it usually ranges from 85–95% for new pumps, and drops as the pump wears.


Main Factors That Hurt Flow and Efficiency

Let’s go through the usual suspects:

1. Internal Leakage

The biggest enemy of efficiency. This happens in three places:

  • Tooth clearance

  • End face clearance (between gear and housing covers)

  • Sidewall gaps (between gear teeth and casing)

Even tiny leaks add up, especially under high pressure.

2. Suction Pressure Too Low

Low suction pressure = cavitation risk = loss of flow.

If the vacuum in the inlet is too strong, you might pull air out of the oil (yes, that happens!), which leads to air bubbles, noise, and pump damage.

3. Discharge Pressure Too High

The higher the back pressure, the more likely oil will leak backwards through tiny internal gaps. That’s energy you’ll never see again.

4. Oil Temperature and Viscosity

  • If oil is too hot, viscosity drops → easier for it to leak internally

  • If oil is too cold or too thick, it won’t flow well into the gears

Always stay within your pump’s recommended temperature-viscosity range.

5. Pump Speed Too Low or Too High

Too low? Oil can’t fill the gear cavities fast enough → drops in flow.
Too high? Air gets sucked in → cavitation risk.
Stay between 200–3000 RPM, depending on your pump’s rating.

6. Altitude (Yes, Really)

At high altitudes, air pressure drops, making it harder for oil to flow into the suction side. This reduces flow and can create vibration and noise.

Quick Tips to Maximize Flow and Efficiency

✅ Keep your end-face clearances within spec
✅ Use clean, properly filtered hydraulic oil
✅ Avoid long or narrow suction lines
✅ Maintain oil temperature between 20–60°C
✅ Install pressure relief valves and anti-cavitation measures


8. Self-Priming Ability & Usage Tips: What You Must Know

What Is Self-Priming?

Self-priming means the pump can pull fluid into itself even if it's located above the fluid level. Gear pumps are generally good at this—if installed correctly.

But self-priming isn’t magic. It depends on:

  • Vacuum pressure

  • Seal integrity

  • Oil viscosity

Most gear pumps can lift oil up to 0.5 meters. Go beyond that, and you risk cavitation (tiny vapor bubbles that damage components).

Top Usage Tips (To Avoid Costly Mistakes)

  • Always pre-fill the pump with oil before startup

  • Double-check rotation direction—wrong wiring = reverse flow

  • Avoid dry run—gear contact without lubrication causes instant damage

  • Use flexible couplings to absorb shaft misalignment

  • Install filters to prevent contamination

  • Monitor oil temperature and viscosity (ideal: 20–60°C)

  • Don’t exceed pressure ratings—this stresses seals and bearings

  • Minimize suction line length and elbows to reduce losses


9. Maintenance Tips: How to Keep Your Gear Pump Alive and Kicking

Want your gear pump to last years instead of months? Here’s your checklist.

Regular Maintenance = Long Life

  1. Lubricate the bearings regularly

  2. Store in a dry, clean place when not in use

  3. Inspect wiring, switches, and terminals for wear

  4. Check insulation resistance for electric pumps

  5. Replace damaged parts with exact-matching components

Final Thoughts: Why Gear Pumps Still Matter

Gear pumps may be old-school, but they’re reliable, affordable, and versatile. When chosen and maintained correctly, they provide steady flow, good suction, and excellent durability—all while being easy to operate and repair.

Whether you're in construction, food processing, automotive, or agriculture, gear pumps are still a solid choice when performance and simplicity matter most.


FAQ – Common Questions About Gear Pumps

1. Can gear pumps handle dirty or abrasive fluids?
Not recommended. They work best with clean, lubricating fluids. Abrasives will wear the gears and housing.

2. Can I reverse the flow direction by reversing the motor?
Yes—but only if the pump is symmetrical and designed for bidirectional flow. Always confirm with the manufacturer.

3. Why is my gear pump noisy?
Most likely causes: trapped air, cavitation, excessive pressure, or misalignment.

4. What's the typical lifespan of a gear pump?
With good maintenance, 3–5 years is common—even more in low-duty applications.

5. What’s better: gear pump or piston pump?
Gear pumps are simpler and cheaper, but piston pumps handle higher pressure and variable flow. Choose based on your needs.


Why Trust Blince Hydraulic?


Since 2004 Blince Hydraulic has been a leading provider of high-performance hydraulic systems and professional support.

Our extensive inventory includes a wide range of hydraulic components, such as hydraulic cylinders,hydraulic motors,hydraulic pumps,hydraulic hoses, and hydraulic fittings—available off-the-shelf or fully customized to meet your specific requirements.

Contact us Beyond sales, we also offer cost-effective repair and maintenance services tailored to your operational needs.

Whether you're in mining, automotive, mold manufacturing, or marine engineering, Blince Hydraulic is your trusted partner for power and precision in hydraulic solutions.



Tel

+86-769 8515 6586

Phone

+86 180 3845 8522
Address
No 35, Jinda Road, Humen Town, Dongguan City, Guangdong Province, China

Copyright© 2025 Dongguan BLINCE Mechanical & Electrical Co., Ltd. All Rights Reserved.

QUICK LINKS

PRODUCT CATEGORY

CONTACT US NOW!

E-MAIL SUBSCRIPTIONS

Please subscribe to our email and stay in touch with you anytime。
