Wireless Hydraulic Remote Control Valve Selection: 12V Vs 24V, Flow, Spools, And Safe Failure

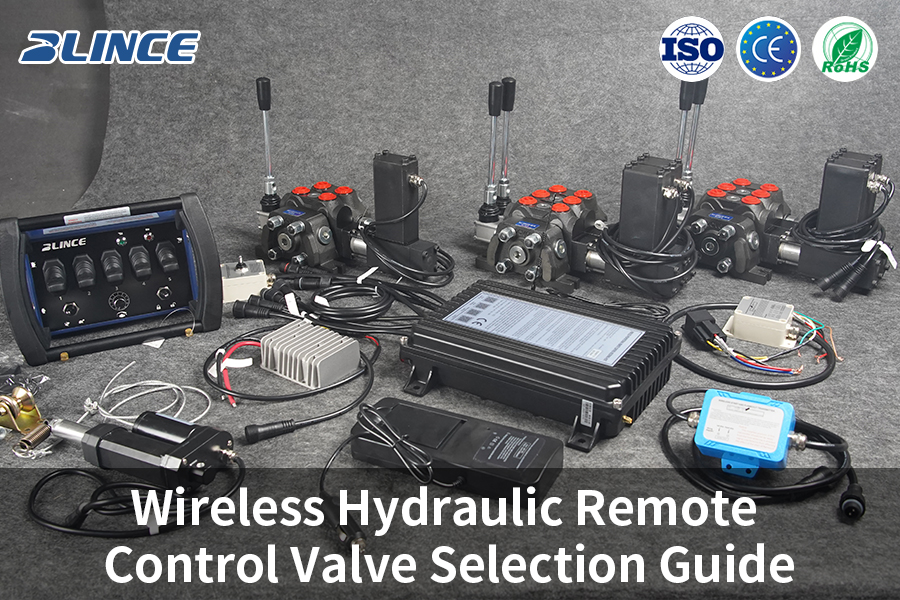

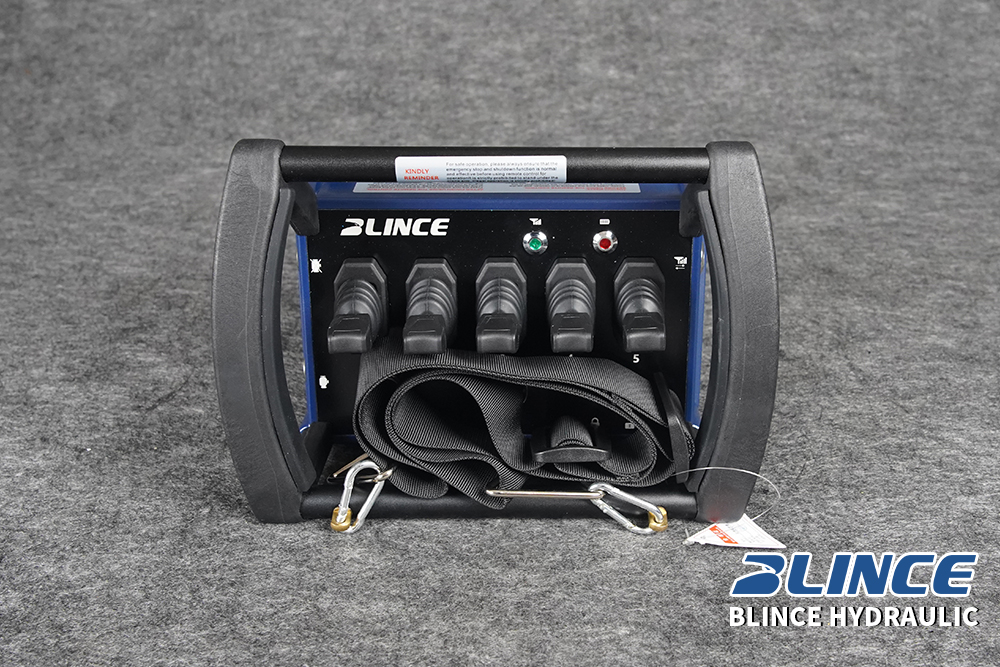

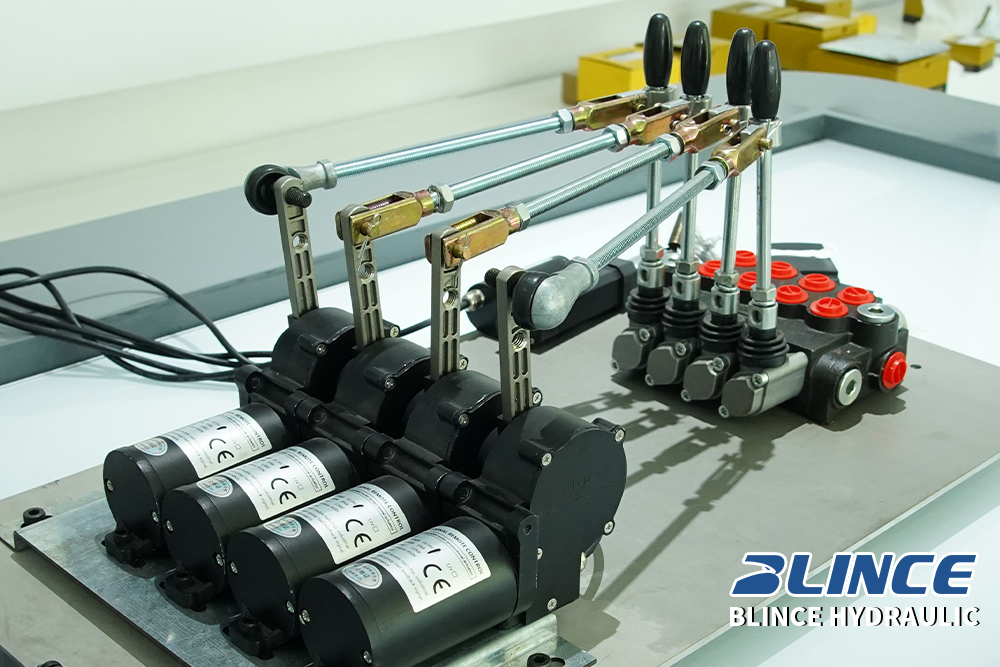

A wireless hydraulic remote control valve is worth buying when it lets an operator see the load from a safer position, removes an awkward mechanical linkage, or adds practical control to a mobile machine. It is not worth buying merely because “wireless” sounds modern. The valve still has to pass the real oil flow, survive pressure, put every actuator in the right neutral state, receive stable electrical power, and respond safely if the radio link disappears.

The short buying answer is this: choose the hydraulic circuit first, then the control system. Record pump flow, normal pressure, relief setting, actuator type, number of functions, required neutral behavior, simultaneous movements, supply voltage, operating environment, and the machine’s risk assessment. Only then compare transmitter range, enclosure claims, display features, or price.

BLINCE lists a wireless hydraulic remote control valve family with configuration-dependent options including 12 or 24 VDC, 1–6 or 1–12 sections, working pressure up to 250 bar, and product-family flow figures from 40–120 L/min or up to 400 L/min for a different high-flow unit. Those figures are useful for initial screening, not permission to assume that every spool, port path, enclosure, or radio module has every maximum simultaneously.

The Eight Decisions That Determine Whether the Valve Will Work

If a supplier cannot complete this table, the quote is not yet technically complete.

1. Start With the Hydraulic Circuit, Not the Handset

The transmitter is visible, so buyers naturally start there. The hard engineering is inside the valve bank. A radio receiver normally commands solenoids, proportional actuators, or a hydraulic pilot stage. That actuation method does not change the basic duty of the directional valve: route pump flow, return oil, control the work ports, and create the correct neutral paths.

First identify the pump circuit. A fixed-displacement gear pump in an open-center machine normally needs a low-restriction path to tank when no function is commanded. Install a closed-center bank without the intended unloading arrangement and the pump may operate against the relief valve in neutral. The machine may still move, but heat, noise, fuel consumption, and pump wear rise.

A closed-center or load-sensing system asks different questions. The valve must communicate the load signal correctly, maintain the required margin, and avoid upsetting other functions. Adding a wireless section to an existing bank can change more than the operator interface. It can change neutral leakage, pressure compensation, power-beyond behavior, and priority between actuators.

BLINCE’s broader directional control valve selection guide explains open, closed, tandem, float, and motor center behavior. For a wireless conversion, preserve the original circuit logic unless a competent designer has intentionally changed it.

A five-line circuit description is more useful than ten photos

Write the requirement in this format:

1. The machine uses a fixed 35 cc/rev gear pump at 1,800 rpm.

2. Measured warm delivery is 58 L/min at the valve inlet.

3. Normal work is 160 bar; main relief is 190 bar.

4. Two double-acting cylinders must move separately; one motor must coast in neutral.

5. The pump must unload when every command is released.

That description gives a valve engineer enough information to challenge a wrong configuration. “Three-spool wireless valve, 1/2-inch ports” does not.

2. Calculate Flow Before Comparing P40, P80, P120, or High-Flow Claims

Valve names often suggest a nominal flow class, but a family label is not a pressure-drop curve. The useful value is pressure loss through the exact flow path at the oil viscosity and temperature expected in service. Pressure drop differs between P-to-A, P-to-B, A-to-T, B-to-T, neutral P-to-T, and combined functions.

For a pump, theoretical flow is:

Q_theoretical (L/min) = displacement (cc/rev) × speed (rpm) ÷ 1,000

For a 35 cc/rev pump at 1,800 rpm:

Q_theoretical = 35 × 1,800 ÷ 1,000 = 63 L/min

If volumetric efficiency at the working condition is estimated at 92%:

Q_actual ≈ 63 × 0.92 = 58.0 L/min

The valve should therefore be assessed around 58 L/min, not at the machine’s idle flow and not from the hose thread alone. Return flow may be higher than pump flow when a cylinder retracts from the cap end, so calculate the cylinder area ratio too.

Pressure loss becomes heat

Hydraulic power lost across a restriction can be estimated by:

Power loss (kW) = pressure drop (bar) × flow (L/min) ÷ 600

At 80 L/min, a combined 6 bar loss through the active supply and return paths wastes:

6 × 80 ÷ 600 = 0.80 kW

If a poorly matched spool and return path create 15 bar:

15 × 80 ÷ 600 = 2.00 kW

The extra 1.20 kW does no useful actuator work. It warms the oil. During a 40-minute operating hour, that difference represents about 0.8 kWh of heat input. A larger cooler may hide the symptom, but it does not recover the lost pressure at the actuator.

Published valve curves from established manufacturers show why a single “maximum flow” number is incomplete: curves are tied to a spool, flow path, fluid viscosity, and test temperature. Ask the supplier for the same context. If no curve is available, measure pressure at the valve inlet, work port, and tank line during commissioning.

3. Treat Maximum Pressure and Maximum Flow as Separate Limits

A valve advertised for 250 bar and 120 L/min should not automatically be specified at both limits continuously. Maximum body pressure, recommended continuous flow, permissible tank pressure, spool force, solenoid capability, thermal duty, and pressure drop may each have different conditions.

Record at least six pressures:

• normal working pressure;

• main relief setting;

• highest expected transient;

• valve inlet-to-work-port loss;

• work-port-to-tank loss;

• tank or return back pressure.

For lifting and overrunning loads, also record the pressure at the load-control valve. A wireless directional valve does not replace a correctly selected counterbalance valve, overcenter valve, pilot-operated check, brake valve, or mechanical holding device.

If the project needs the BLINCE high-flow configuration listed at up to 400 L/min, request an exact model drawing and test condition. The same public page also shows a “20 gpm” entry for that unit, which is about 75.7 L/min. Those values describe different fields or configurations and should not be merged into one assumption. Put the required flow path, pressure drop, and exact unit code on the approved order sheet.

4. 12V vs 24V: Voltage Is a System Decision

A 12V hydraulic remote control valve is convenient on many trailers, pickups, compact power units, and agricultural machines. A 24V unit is common on larger mobile equipment. Neither voltage makes a valve hydraulically stronger. Voltage changes the electrical current required for a given power, the effect of cable loss, and compatibility with the machine.

For a 60 W receiver-and-actuator load:

Current at 12 V = 60 ÷ 12 = 5 A

Current at 24 V = 60 ÷ 24 = 2.5 A

Ignoring start-up peaks, a 24V circuit carries half the current for the same power. Lower current can reduce voltage drop and connector heating, but only if the complete system—receiver, coils, relays, suppression devices, charger, alternator, and protection—is designed for 24V.

Suppose the total out-and-back copper length is 10 m, conductor area is 2.5 mm², and copper resistivity is approximated as 0.0175 Ω·mm²/m:

R = 0.0175 × 10 ÷ 2.5 = 0.07 Ω

At 5 A, the cable drop is about:

V_drop = 5 × 0.07 = 0.35 V

At 2.5 A, it is about 0.175 V. Real connectors, fuses, grounds, corrosion, temperature, and simultaneous coils add more resistance. Measure voltage at the receiver and energized coil while the machine is operating. A healthy battery reading does not prove that the valve receives healthy voltage.

Electrical items to put on the purchase order

Do not connect a 12V receiver to a nominal 24V machine through an improvised resistor. Use the correct configuration or an engineered converter sized for surge, temperature, and simultaneous outputs.

5. On/Off and Proportional Are Different Purchases

An on/off wireless valve commands a function to shift or return. It suits outriggers, clamps, simple dump bodies, gates, and actuators where controlled acceleration is not critical. It is simpler to commission and easier to diagnose.

On/off advantages

• simpler wiring and lower commissioning effort;

• clear commanded state;

• often lower component cost;

• easier field replacement.

On/off disadvantages

• abrupt start and stop if the hydraulic circuit has no metering;

• limited speed control;

• greater risk of load shock in poorly designed circuits;

• not suitable when the operator must feather motion precisely.

A proportional wireless hydraulic valve varies current or command so the spool can meter flow. It suits cranes, aerial equipment, forestry functions, winches, and positioning tasks where gradual motion matters. The transmitter, receiver, driver, solenoid, spool geometry, pump control, and load-compensation strategy must work as a system.

Proportional advantages

• smoother acceleration and deceleration;

• adjustable speed and ramp times;

• better positioning when the circuit is designed for it;

• potential to tune different functions independently.

Proportional disadvantages

• higher configuration and commissioning burden;

• more sensitivity to voltage, calibration, contamination, and temperature;

• “joystick percentage” is not automatically proportional actuator speed;

• troubleshooting requires both electrical and hydraulic measurements.

A proportional remote on an uncompensated open-center bank may not give stable speed when load or another function changes. The word “proportional” describes the command architecture, not guaranteed machine behavior.

6. Match Every Spool to the Actuator and Neutral State

Count functions, not hoses. One double-acting cylinder normally needs one four-way section. A reversible motor also uses two work ports, but it may need a motor spool, anti-cavitation checks, cross-port relief, brake release sequencing, or a freewheel path. A single-acting cylinder may need a different spool and return arrangement.

For each section, define:

• actuator type and bore/displacement;

• desired direction for each transmitter command;

• center connections among P, T, A, and B;

• spring return, detent, or maintained command;

• maximum section flow;

• port relief or anti-shock requirement;

• anti-cavitation requirement;

• load-holding device;

• manual override and emergency recovery;

• behavior after transmitter release, radio loss, power loss, and broken wire.

Do not assume that spring-centering the directional spool holds a suspended load. Many spools have normal internal leakage. Load holding must be engineered for the hazard and actuator.

Simultaneous functions change the valve-bank decision

If a six-button transmitter can command two functions at once, decide what the hydraulic system should do. In a simple open-center series circuit, the first section may consume most of the flow. In a parallel bank, the lower-pressure load may move first. A compensated flow-sharing valve can behave differently again.

State whether simultaneous commands are prohibited, prioritized, or required. If prohibited, enforce that logic in the receiver rather than relying only on operator training. If required, provide target flow for each simultaneous function and test at representative loads.

7. Radio Range Is Not the Same as Safe Operating Distance

Catalog range is normally measured under specified conditions. Real machines introduce steel structures, cabs, engines, electrical noise, buildings, foliage, body shielding, antenna orientation, weak batteries, and other transmitters. A remote that works at 100 m in an open field may be unreliable behind a loaded truck body at 20 m.

Define the required operating envelope: line-of-sight distance, expected obstructions, indoor or outdoor use, number of machines nearby, transmitter handover, and prohibited zones. Commission the radio at the worst intended operator positions with the engine, alternator, work lights, and other radios operating.

The BLINCE product page currently writes “433Hz.” A hydraulic remote control would conventionally use a radio frequency expressed in MHz, and ETSI material identifies 433.05–434.79 MHz as a recognized band in relevant Region 1 contexts. Therefore, do not copy “433Hz” into a purchase specification. Ask BLINCE to confirm the exact transmitter/receiver frequency—potentially 433.92 MHz—the output power, market-specific approval, antenna, pairing method, and label for the destination country.

A frequency that is permitted in one market is not automatic authorization in another. The machine builder or importer should confirm the applicable radio rules and documentation for the country of use.

8. IP68 Does Not Mean “Safe Everywhere Forever”

IEC 60529 defines the IP classification system for enclosure protection against access, solid objects, and harmful water ingress. An IP code does not by itself certify salt-spray resistance, hydraulic-oil compatibility, UV life, connector sealing after repeated service, pressure washing at any distance, or radio performance under water.

For IP68, obtain the actual immersion depth, duration, enclosure condition, cable and connector configuration, and test report. Check whether the claim applies to the handheld transmitter, receiver, valve connectors, or only one module. A receiver enclosure can pass an ingress test while an incorrectly installed cable gland allows water into the harness.

For outdoor mobile machines, specify mounting orientation, drainage, connector backshells, strain relief, corrosion protection, wash-down method, temperature range, vibration, and shock. Put the receiver where it can communicate and stay protected, not wherever the cable happens to reach.

9. Safe Failure Must Be Designed, Not Assumed

Wireless control can improve the operator’s view, but it also creates loss-of-link, dead-battery, stuck-button, unintended-command, and receiver-power failure modes. The required response depends on the machine hazard. “All outputs off” may be appropriate for one function and unsafe for another if it releases a brake, removes steering assist, or lets a suspended load move.

ISO 4413 addresses general rules and safety requirements for hydraulic systems and their components. ISO 13850 defines principles for the emergency-stop function. These standards are broader than a product feature list. A red button on a radio handset is not enough evidence that the complete machine emergency-stop function is compliant.

The risk assessment should answer:

1. What happens to every output when the operator releases the control?

2. What happens when radio communication is lost?

3. What happens when receiver power is lost?

4. What happens if one output wire shorts to supply?

5. How is a suspended or overrunning load restrained?

6. Can a second transmitter take control unintentionally?

7. How does the operator recover the machine if the transmitter fails?

8. Is a separate hardwired emergency stop, local control, or isolation device required?

For cranes, aerial platforms, winches, personnel-lifting equipment, steering, braking, and other safety-related functions, do not select from a web product page alone. Use the machine’s required performance level or safety integrity process, applicable regulations, and a qualified control-system designer.

10. A Worked Buying Case: Three-Function Forestry Attachment

Consider a forestry attachment with one clamp cylinder, one rotate motor, and one feed cylinder. The carrier provides 72 L/min at 180 bar, with a 210 bar relief setting and a 24V electrical system. The operator wants wireless control from 25 m away.

The first quote proposes a three-spool 120 L/min wireless valve. On headline numbers, it appears suitable. The engineering review adds the missing decisions:

• clamp section: double-acting cylinder spool, spring return, external load holding;

• rotate section: motor spool, cross-port protection, anti-cavitation path, brake logic if fitted;

• feed section: proportional metering desired, but simultaneous rotation and feed required;

• pump circuit: carrier auxiliary circuit behavior and return pressure must be confirmed;

• electrical: 24V at the battery, but 18 m of installed harness and existing connector losses;

• radio: 25 m required behind the carrier boom, not line-of-sight on an empty yard;

• environment: rain, mud, wash-down, vibration, and winter start;

• failure state: all motion stops controllably, clamp load remains mechanically/hydraulically secure.

Assume measured active pressure loss across supply and return valve paths is 9 bar at 72 L/min:

Loss = 9 × 72 ÷ 600 = 1.08 kW

If a revised spool and larger return path reduce that to 5 bar:

Loss = 5 × 72 ÷ 600 = 0.60 kW

The difference is 0.48 kW whenever that function runs. More importantly, 4 bar is returned to the actuator’s pressure budget. The better quote may cost more but give faster motion, less heat, and fewer nuisance shutdowns.

The review also finds 22.8 V at the receiver during two simultaneous commands. That may be within the receiver’s allowed range—or it may not. The supplier must state the minimum operating voltage. Adding heavier wiring without first measuring current and connector losses would be guesswork.

11. Common Buying and Installation Mistakes

12. Who Should Use a Wireless Hydraulic Remote Control Valve?

It is a strong candidate for truck cranes, small cranes, loaders, agricultural attachments, wood grabs, crawler carriers, special vehicles, mobile power units, dump and tipper functions, and industrial equipment where the operator needs a better view of the load.

The best-fit buyer already understands the hydraulic circuit and wants to improve control location. The machine has a defined safe state, adequate load holding, stable electrical supply, and a commissioning process. The buyer can provide flow, pressure, spool, voltage, environmental, and radio requirements.

Who Should Not Buy or Use One Yet?

Do not buy yet if the only available specification is “wireless, 12V, three spool.” Do not use a generic kit as the only safety control for personnel lifting, braking, steering, or suspended loads without a documented safety design. Do not convert a manual valve when its lever feel is the operator’s only feedback and the hazards of losing that feedback have not been assessed.

It is also a poor fit where radio operation is prohibited, reliable communication cannot be demonstrated, the destination approval is unknown, or nobody can define what each actuator must do after lost link. A wired pendant, local valve, hydraulic pilot control, or a purpose-designed safety-rated remote system may be more appropriate.

13. Purchase Specification You Can Send to a Supplier

Copy and complete this list:

• Machine and application:

• Destination country:

• Pump type and circuit: open center / closed center / load sensing:

• Pump flow at operating speed:

• Normal working pressure:

• Relief setting and expected transients:

• Maximum tank-line pressure:

• Number of valve sections:

• Actuator served by each section:

• Spool symbol and neutral behavior for each section:

• On/off or proportional command:

• Required simultaneous functions and priority:

• Port thread, sealing method, and hose size:

• 12VDC or 24VDC supply:

• Minimum/maximum voltage at receiver:

• Maximum current and fuse:

• Connector and cable requirements:

• Exact radio frequency and destination approval:

• Required operating distance and obstacles:

• Receiver/transmitter ingress protection and test conditions:

• Ambient temperature, vibration, corrosion, and wash-down:

• Lost-link and power-loss response:

• Load-holding and brake arrangement:

• Manual override and recovery procedure:

• Required drawings, curves, test report, labels, manuals, and spare parts:

For comparison, the BLINCE P80 multi-way valve can help buyers understand the base valve-bank family behind some mobile control configurations. Do not assume that a manual P80 code cross-references directly to a wireless version; confirm the inlet, outlet, relief, spool, actuation, and power-beyond codes.

14. Commissioning Test Before the Machine Returns to Work

Perform commissioning in a controlled area with the load restrained and qualified personnel present. Use the machine manufacturer’s safety procedure.

1. Verify model codes, port labels, spool symbols, voltage, fuse, and hose routing.

2. Confirm oil cleanliness and fill/bleed instructions.

3. Test local override and isolation before relying on the radio.

4. Pair only the authorized transmitter and record its identifier.

5. Test each command at idle, then at operating speed and representative load.

6. Measure receiver voltage during the highest simultaneous electrical demand.

7. Measure valve inlet, work-port, and tank pressures at working flow.

8. Record oil temperature before and after a repeatable duty cycle.

9. Check neutral behavior, load holding, motor coast, and brake sequence.

10. Test prohibited and permitted simultaneous commands.

11. Test lost link at safe positions and confirm every output response.

12. Test transmitter low-battery warning and receiver restart behavior.

13. Walk the intended operating envelope and test behind real obstructions.

14. Inspect connectors, glands, antenna, hoses, fittings, and mounting after the hot test.

15. Document baseline readings for later troubleshooting.

Do not create a lost-link test while a person is exposed to the load. Simulate and validate failure under a controlled commissioning plan.

15. Maintenance and Troubleshooting Baseline

Wireless valve faults cross three domains: radio, electrical, and hydraulic. Separate them.

If no function responds, check receiver power, fuse, ground, pairing, link indication, emergency-stop chain, and common hydraulic supply. If one function fails, compare its output current, connector, coil resistance, manual override, spool movement, and port pressure with a working section.

If motion is slow, measure flow and pressure drop. Do not start by increasing the relief setting. If motion is jerky, distinguish radio dropouts from proportional calibration, spool stiction, aeration, load changes, and pump-flow instability.

Record a healthy-machine baseline: battery and receiver voltage, current for each command, warm inlet pressure, active work-port pressure, tank pressure, oil temperature, radio range at defined locations, and the response to transmitter release. Baselines turn “it feels weaker” into a measurable diagnosis.

FAQ

Is 12V or 24V better for a wireless hydraulic remote control valve?

Neither is universally better. Match the machine supply and the complete receiver/coil configuration. For equal electrical power, 24V draws about half the current of 12V, which can reduce cable loss, but only a correctly designed 24V system gains that benefit.

How do I size the valve flow?

Calculate or measure warm pump flow at the valve, calculate possible cylinder return-flow multiplication, list simultaneous functions, and review pressure-drop curves for each active path. Do not select only from the maximum flow headline.

Can a 120 L/min valve be used continuously at 120 L/min?

Not automatically. Ask for recommended continuous flow, pressure loss, fluid viscosity, test temperature, spool path, tank-pressure limit, and duty. A maximum number may describe a boundary, not the preferred operating point.

Does IP68 mean I can pressure-wash the whole remote system?

No. Confirm which components carry the rating and the stated test depth, time, connector, and cable conditions. IP classification does not automatically cover arbitrary high-pressure washing, corrosion, chemicals, damaged seals, or incorrect glands.

Is a 433 MHz remote legal everywhere?

No universal assumption is safe. Confirm the exact frequency, output, radio approval, labeling, and documentation for the destination country. The product-page shorthand must not replace market-specific compliance review.

What happens when the remote signal is lost?

That must be specified and tested. Outputs may de-energize, ramp down, hold, or follow another designed state. The correct response depends on the actuator and hazard; load-holding and emergency functions may require separate components.

Can the wireless valve hold a suspended cylinder?

Do not rely on ordinary directional-spool sealing. Use an engineered load-holding solution such as an appropriate counterbalance valve, pilot-operated check, mechanical lock, or other safety architecture selected for the machine.

What information produces an accurate quote?

Send the circuit type, pump flow, working and relief pressures, every spool symbol, actuators, simultaneous movements, ports, voltage/current, radio destination and range, environment, safe failure response, drawings, quantity, and required documentation.

Is wireless control suitable for proportional speed control?

Yes, if the transmitter, receiver, output driver, proportional solenoid, spool, hydraulic compensation, pump, and commissioning settings are compatible. A proportional joystick alone does not guarantee proportional machine speed.

Technical Fact-Check Notes

• BLINCE product-family figures in this article were checked against the live product page on 2026-07-29. Exact configuration remains subject to an approved model code and data sheet.

• The public “433Hz” wording is treated as an unresolved unit issue. ETSI documentation uses MHz for the 433.05–434.79 MHz band; the exact module and destination compliance must be confirmed.

• The heat-loss calculation uses the standard hydraulic approximation kW = bar × L/min ÷ 600.

• IEC 60529 defines the IP code classification framework; it does not replace component-level test evidence and installation requirements.

• ISO 4413:2010 covers general hydraulic-system safety requirements. ISO 13850:2015 covers emergency-stop design principles; neither is satisfied merely by a handset button.

Sources for engineering review: BLINCE wireless valve listing and Parker directional valve catalog context.

For enclosure and hydraulic-system safety context, see IEC 60529 and ISO 4413.

For emergency-stop and radio-band context, see ISO 13850 and the ETSI 433 MHz band reference.

Ask for a Configuration Review, Not Just a Price

If you are comparing a wireless hydraulic remote control valve, send BLINCE the circuit diagram, pump flow, normal and relief pressures, section-by-section spool requirements, 12V or 24V supply data, simultaneous functions, destination country, working distance, environment, and safe failure requirement. Ask for the exact model code, hydraulic diagram, pressure/flow evidence, electrical limits, radio documentation, and commissioning instructions.

That package lets both sides decide whether a standard wireless directional valve, a proportional multi-way valve, or a different control method is the responsible choice. A useful inquiry should reduce engineering uncertainty before it reduces price.

Tel: +86 132 4232 1601

✉️ Email: sales16@blince.com

Website: https://blince.com/

Disclaimer

This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.

Blince Hydraulic Team

Blince Hydraulic is an industry-leading company dedicated to precision-engineered fluid power manufacturing and custom hydraulic solutions. Backed by decades of deep field expertise in industrial machinery and thousands of successful global deployments, our engineering team focuses entirely on high-performance hydraulic component manufacturing, including specialized orbital motors, high-pressure travel drives motor, and robust directional control valves. Our production infrastructure utilizes state-of-the-art multi-axis CNC machining systems and is fully ISO 9001 certified to guarantee repeatable volumetric accuracy across every single manufacturing run.

We deliver fast, highly dependable, and cost-efficient hydraulic solutions to heavy industry distributors, machinery OEMs, and maintenance crews across more than 150 countries. Whether your active project calls for a small-volume batch of customized shaft profiles or a large-scale production run of severe-duty cast iron gear pump, we configure our flexible production schedules to meet your target lead times with total pricing predictability. Partnering with Blince means securing maximum system efficiency, elite material quality, and uncompromised fluid power professionalism.

To learn more about our complete product lineup, visit our official website: www.blince.com.
