The replacement valve bolts into place. Its connector looks right, and the coil clicks when the operator presses the switch. The cylinder still hesitates. It may work while the engine is charging, fail at idle, or stop shifting after the oil warms up. In another machine, the new coil gets hot and opens the fuse within minutes.
Calling either fault “a bad solenoid” skips the useful part of the diagnosis. A 24V coil may have been fitted to a 12V circuit. A nominal 24V supply may be falling below the coil's operating range under load. The connector may contain a suppression diode that conflicts with the controller. Even with the electrical side correct, the valve may have the wrong spool or insufficient pilot pressure.
The purchase decision therefore has two gates. The coil must match the machine's electrical system, and the valve must match the hydraulic circuit. Passing one gate does not compensate for failing the other.
Short Answer
A 24V label becomes useful only after one measurement: the voltage across the connected coil while the machine is commanding the valve. If that reading and the control circuit match a 24V coil, continue with the coil's current, duty, connector, and suppression checks. A verified 12V machine calls for the corresponding 12V coil. In either case, the valve still has to match the spool function, flow, pressure, mounting, pilot and tank-port conditions, seals, and fluid.
Current is the practical wiring difference. A 30 W example draws 2.50 A at 12V and 1.25 A at 24V, so the higher-voltage circuit can lose less energy in a long harness. Hydraulic capability still comes from the valve design, not the number printed on the coil.
Before ordering, measure voltage at the connected coil while the command is active. A battery label or an open-circuit connector reading is not enough.
Evidence Boundaries for This Selection

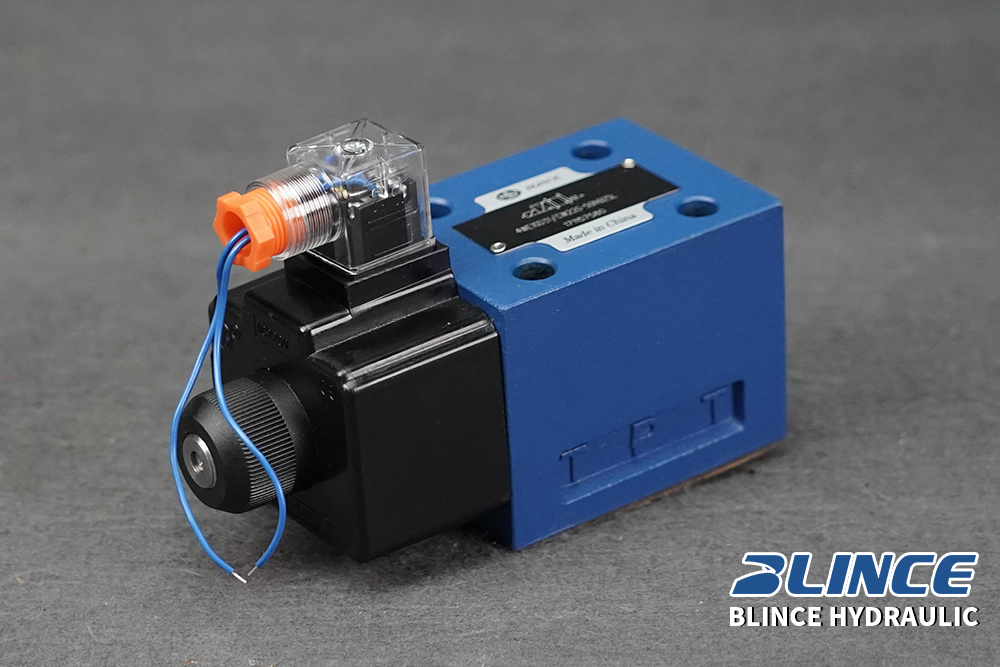

On its current DSG-03 hydraulic solenoid valve product page, BLINCE lists 24V DC in the title and power field. The page also gives 45 L/min as flow, 60 L/min as maximum flow, 31.5 MPa as maximum pressure, and cast iron as the body material. Treat these entries as Published data for that page. They do not establish the rating of another size or configuration.
The page also contains a documentation conflict. Its title, description, specification table, and power field say 24V DC, while a later sentence says the valve uses an AC power supply. Those statements cannot describe the same coil without additional conversion hardware. Until the current model-specific datasheet is available, hold the order and compare the complete model code, coil marking, and wiring diagram.
Cross-checking official component information shows the same ordering pattern. Parker, Danfoss, and Bosch Rexroth list 12V DC and 24V DC as distinct options; their tolerances, current values, duty ratings, connectors, and suppression choices are tied to individual models. A tolerance published for one Danfoss or Parker coil is evidence for that part, not a universal allowance for every hydraulic solenoid.
This article uses four evidence labels:
Published: shown on a linked manufacturer or BLINCE page.
Calculated: derived from stated inputs and equations.
Example: illustrates a method without promising product performance.
Confirm by datasheet: depends on the exact coil or valve configuration.

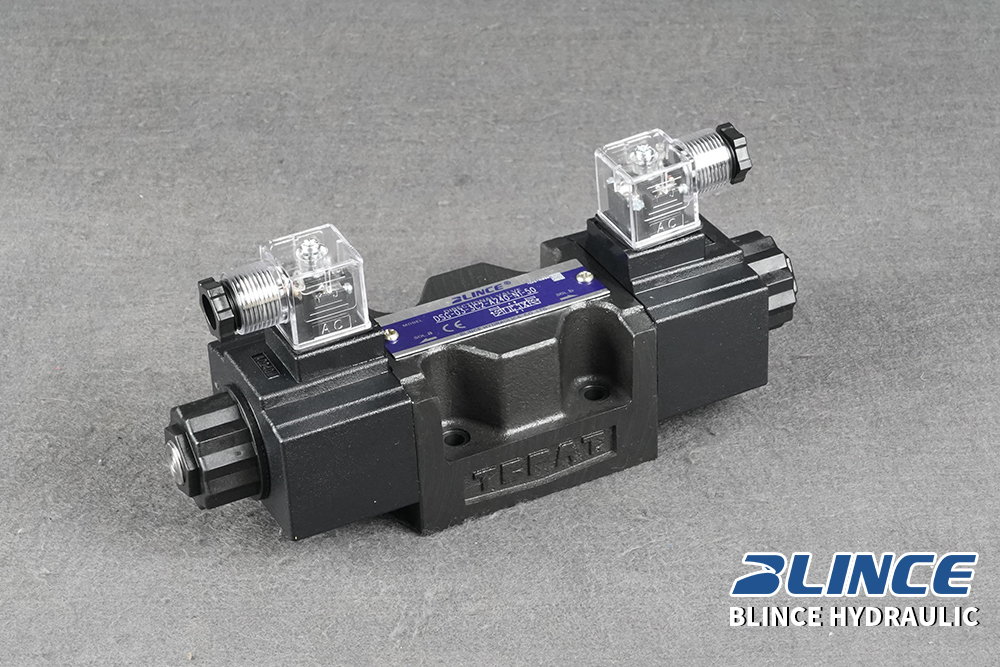

Read the Coil Label and Hydraulic Symbol Separately
Electrical input energizes the winding and produces the magnetic field that moves the armature. Depending on the valve, the armature then acts on a poppet, pilot element, or spool. Oil changes path only after that mechanical movement is completed.
Voltage belongs to the coil design. It does not define the valve's number of ways, normal position, pressure capacity, flow path, port pattern, or seal material. Two products marked 24V may perform unrelated functions. One could be a direct-operated directional valve; another might operate only the pilot stage of a larger valve.
This distinction matters during replacement. A coil can click while the spool remains stuck. A spool can shift while the hydraulic circuit still lacks pump flow, pilot pressure, or an open return path. The BLINCE directional control valve range provides a commercial starting point, but the series and spool code still have to match the machine.
Measure Voltage While the Valve Is Commanded
The nominal system label is not necessarily the voltage that reaches the coil. Charging can raise the bus above the battery label, while cable resistance, long harnesses, corroded terminals, relay contacts, weak grounds, and controller output stages pull the loaded reading down.
Measure across the coil terminals with the connector attached and the command active. Do not stop at one idle reading. Reproduce the fault and watch the meter during cranking, hot operation, simultaneous functions, or repeated cycles. Because an unplugged connector carries almost no current, it can show normal voltage even when a corroded contact or weak ground fails under load.
Use the exact coil datasheet to decide whether the loaded reading is acceptable. Danfoss, for example, publishes one 12V DC coil as continuous duty at nominal voltage ±10%. That tolerance belongs to part 02-172718. It should not be copied into a purchase specification for an unidentified coil.

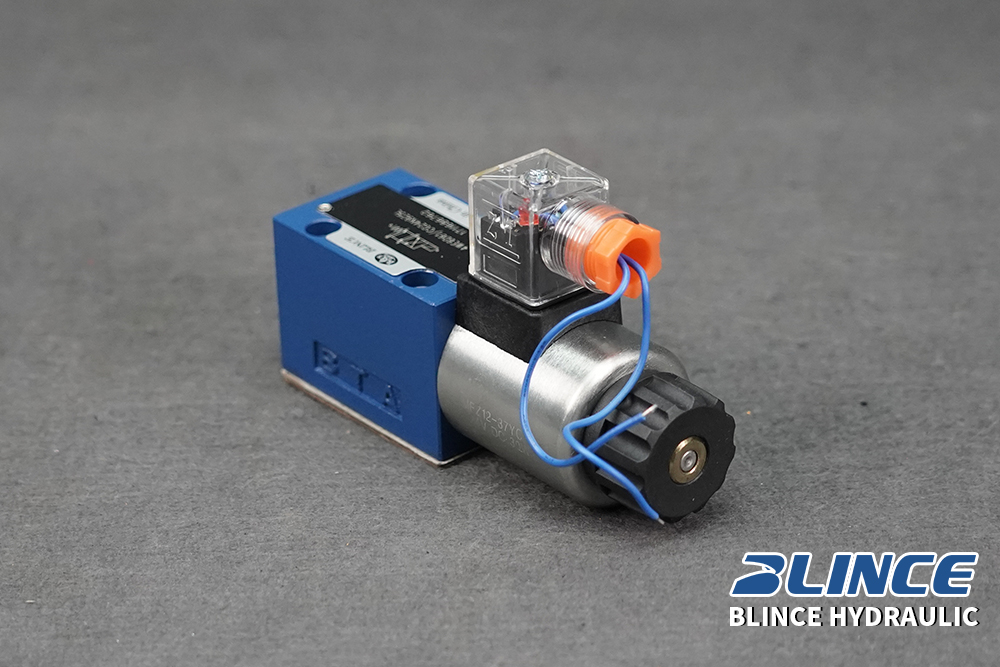

Worked Example: 12V and 24V on the Same Harness
The following Calculated Example isolates cable loss. It does not represent a tested BLINCE coil.
Assume a coil power of 30 W, a 20 m total copper loop, and conductor area of 1.5 mm². The 20 m loop includes both the supply and return conductors. For this illustration, copper resistivity is taken as 0.0175 Ω·mm²/m.
1. Estimate current
Electrical power is:
P = V × I
Therefore:
For the 12V option, 30 W ÷ 12 V gives 2.50 A. At 24V, 30 W ÷ 24 V gives 1.25 A. Both figures come from a 30 W input; a coil with different wattage changes the comparison.
2. Estimate loop resistance
R = ρ × L ÷ A
R = 0.0175 Ω·mm²/m × 20 m ÷ 1.5 mm² = 0.233 Ω
3. Calculate voltage drop
Vdrop = I × R
With the 0.233 Ω loop, the 12V calculation produces a 0.58 V drop at 2.50 A. The 24V calculation produces 0.29 V at 1.25 A. That leaves an estimated 11.42V at the first coil and 23.71V at the second, equivalent to roughly 4.9% and 1.2% of their nominal supplies.
4. Calculate heat in the harness
Ploss = I⊃2; × R
12V circuit: 2.50⊃2; × 0.233 = 1.46 W
24V circuit: 1.25⊃2; × 0.233 = 0.36 W
The 24V example loses one quarter as much power in the same loop because current is halved and cable loss follows current squared. This is a wiring advantage, not proof of better valve performance. The calculation excludes connector resistance, temperature rise, power-supply regulation, PWM control, pull-in behavior, and coil resistance change as it heats.
12V or 24V: Use This Decision Table
The table is a screening tool. Enter measured machine data before selecting the right-hand action.
Field condition
12V is the closer starting point
24V is the closer starting point
Required verification
Native control supply
Vehicle or machine controls are designed for nominal 12V DC
PLC, mobile controller, or machine controls are designed for nominal 24V DC
Voltage across the energized coil in the failing duty cycle
Harness
Short run with conductor and contacts rated for the coil current
Long run where lower current can reduce drop and heat
Loop length, conductor area, connector condition, and coil current
Output device
Relay or driver can carry the 12V coil's current and switching load
Output is designed around the selected 24V coil
Continuous current, transient behavior, PWM limits, and suppression
Fleet standard
Spares, connectors, fuses, and test procedures are standardized on 12V
Plant or fleet uses 24V controls
Full coil and connector part numbers, not voltage alone
Hydraulic function
Valve body and spool suit the circuit
Valve body and spool suit the circuit
Spool symbol, ways/positions, flow, pressure, pilot, drain, and mounting
Read the last row carefully. Neither voltage option can correct an undersized flow path, a wrong center condition, a blocked tank line, or a missing pilot supply.
Diagnose a Voltage Mismatch Before It Damages the Circuit
When a 24V coil receives 12V
At 12V, a coil wound for 24V receives only half its intended voltage. Current falls, and the available electrical power falls much further. Magnetic force may then be too low to complete the stroke. The operator might hear a click, yet the valve shifts only with warm oil, low pressure, or little resistance at the armature.
Do not treat intermittent movement as compatibility. Temperature, contamination, vibration, or a partly discharged battery can turn that marginal shift into a no-shift fault.
When a 12V coil receives 24V
This mismatch can heat the coil very quickly. In a first-pass calculation that treats resistance as constant, P = V⊃2;/R; raising the applied voltage from 12V to 24V raises calculated power by a factor of four. Coil resistance changes as it heats and circuit protection may open, but neither effect makes the connection suitable.
Possible results include rapid temperature rise, a blown fuse, damaged insulation, a failed controller output, or a short coil life. Do not use 24V as a quick test for a 12V coil.
24V AC and 24V DC
The number alone is incomplete. AC and DC coils may differ in winding, inrush behavior, magnetic construction, frequency requirements, rectification, and suppression. Confirm both voltage magnitude and type. For AC, confirm frequency as well.
Five Electrical Details That Commonly Change the Order Code
Coil power and current
The driver or relay must carry the exact coil's current. Higher wattage does not automatically mean a compatible or stronger replacement; magnetic design, armature geometry, stroke, and valve construction also matter. Use the manufacturer's coil intended for the valve tube or a documented cross-reference.
Duty rating
A coil that survives a short bench test may not suit continuous energization. Confirm continuous, intermittent, or percentage duty along with the stated cycle and ambient conditions. “Continuous duty” permits operation under specified conditions; it does not mean the surface stays cool.
Connector and pin assignment
DIN-style housings can look alike while using different sizes, keys, gasket arrangements, cable entries, or pin assignments. Physical fit is only the first check. Outdoor and washdown machines also need the correct assembled environmental protection, not merely a coil with an isolated IP claim.
Polarity and suppression
A bare DC winding may work in either polarity. A connector containing a diode or LED may not. A reversed diode can block current or fail, while the wrong suppression device can affect controller protection and spool release time. Bosch Rexroth's WE6 configuration information illustrates how voltage, electrical connection, grounding, and suppressor options belong to a complete configuration.
PWM or electronic control
Some mobile controllers use pulse-width modulation, current control, diagnostic pulses, or open-load detection. Check the coil's resistance and inductance, the controller's current limit and switching frequency, and the suppression circuit. A coil that works from a battery jumper may still be unsuitable for an electronic output.
The Hydraulic Match Comes Next
Once electrical compatibility is established, identify what the valve must do in its de-energized and energized states. The spool symbol carries more useful information than the connector shape.
Determines which ports connect when the coil is off or on
Circuit symbol and required machine action in each state
Center condition
Changes pump unloading, actuator holding, and return paths
Existing spool code and schematic
Working and relief pressure
Affects structural rating and available shifting margin
Pressure measured at defined ports during the real cycle
Flow and pressure drop
Excessive restriction creates heat and reduces actuator speed
Maximum required flow, oil viscosity, and acceptable pressure loss
Direct or pilot operation
Pilot-operated valves need adequate pilot supply and drain conditions
Pilot source, drain path, minimum differential, and tank back pressure
Mounting and ports
A matching footprint can still hide different port functions
Interface drawing, bolt pattern, port labels, thread standard, and photos
Seals and fluid
Fluid chemistry and temperature affect seal compatibility
Fluid type, temperature range, contamination condition, and seal requirement
A catalog maximum is not the same as a recommended operating point. Pressure-drop curves, duty, oil viscosity, tank-port limits, and model-specific derating can change a selection even when headline flow and pressure appear sufficient.

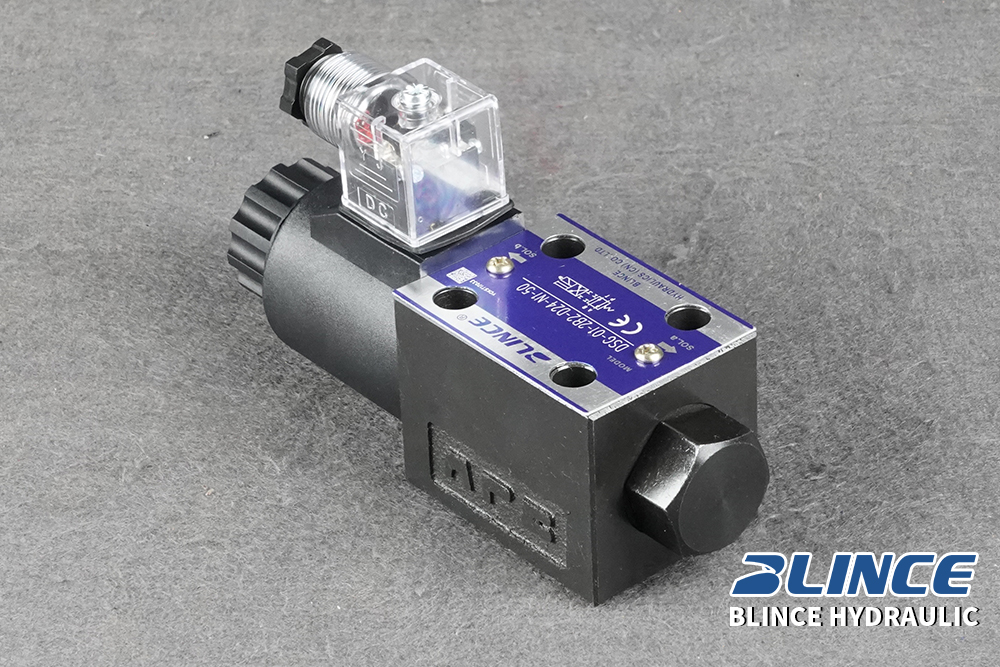

Diagnose Before Replacing the Valve
The order below keeps electrical and hydraulic evidence separate. Depressurize and de-energize the machine before removing components, and mechanically support stored-energy loads.
Record the fault under load. Note oil temperature, engine speed, commanded function, cycle time, other functions operating, and whether the fault is intermittent.
Read the complete markings. Photograph the valve model, coil code, voltage type, wattage or current, connector, and hydraulic symbol.
Measure at the connected coil. Check loaded voltage and, where the service procedure permits, current. Compare cold and hot operation.
Separate coil movement from hydraulic movement. Use the permitted manual override or manufacturer test method. A click alone is not a flow test.
Measure hydraulic conditions at named ports. Record pump outlet pressure, work-port pressure, tank back pressure, and pilot or drain pressure where applicable.
Inspect oil and mechanical conditions. Look for contamination, sticking, damaged seals, blocked passages, abnormal load, and incorrect assembly.
Gauge position changes the meaning of a pressure reading. The BLINCE pressure gauge placement guide can help define test points before readings are used for a valve decision.
Symptom-to-Action Map
Symptom
Plausible causes
Next evidence, not a parts guess
Coil is silent
No command, open circuit, failed driver, wrong pin assignment, damaged coil
Loaded voltage, continuity test per service procedure, command status
Coil clicks but actuator does not move
Partial armature travel, stuck spool, missing pilot pressure, blocked return, no pump flow
Coil voltage under load, manual-override result, pressure at P/A/B/T and pilot ports
Works at high engine speed only
Charging voltage rises, pilot supply improves, pump flow changes, leakage is speed-dependent
Compare voltage, flow, and pressure at idle and working speed
Undersized valve, restrictive path, partial spool travel, high viscosity or back pressure
Flow and pressure drop across the active path at operating temperature
If contamination is suspected, replacing the coil will not remove particles from the spool or pilot orifice. Review filtration, oil condition, and flushing work before installation; the BLINCE contamination control guide provides a separate system-level checklist.
Where 12V and 24V Each Make Sense
12V can be practical when
The machine already uses a 12V battery and control system, the harness is short, and the relay or controller can carry the required current. Service vehicles, compact trailers, small mobile power packs, and some agricultural equipment often favor compatibility with existing 12V spares.
The tradeoff is current. For comparable coil power, 12V requires more current than 24V. Cable size, connector quality, ground resistance, and fuse selection become less forgiving as the run length grows.
24V can be practical when
The machine or plant already uses 24V controls, or a long harness makes lower current useful. Larger mobile equipment and industrial power units may also standardize on 24V relays, supplies, connectors, and service stock.
That electrical advantage disappears if a converter is added only to accommodate one valve. A DC-DC converter introduces its own current limit, heat, wiring, protection, and failure mode. A native-voltage coil is usually the cleaner starting point when the correct configuration is available.
Equipment-Specific Checks
Dump trailers and compact power units
Measure coil voltage while the pump motor is running. The motor can pull battery voltage down at the exact moment the valve is commanded. Shared grounds and undersized cables often matter as much as the nominal coil label.
Construction and agricultural machines
Harness length, vibration, water exposure, jump-start events, and mixed attachments can complicate replacement. Compare connector keying and suppression, then verify whether the attachment changes the required spool or flow path.
Industrial hydraulic power units
Confirm whether the valve is controlled directly by a relay, a PLC output, or an interposing module. Check output current, cabinet power supply, grounding, suppression, and the machine's safe state after power loss. A 24V DC control cabinet may still include valves with rectified connectors or other voltage options.
Marine and washdown equipment
Environmental protection applies to the assembled coil, connector, seal, cable gland, and installation. Corrosion at the ground or connector can create a voltage drop that looks like a weak coil.
Buying Errors That Cost More Than the Coil
Ordering from “24V” alone. The replacement arrives with the wrong current, connector, suppression, duty, or mechanical fit. Use the complete coil and valve codes.
Treating a connector shape as identification. Similar housings do not prove the same pinout, diode polarity, gasket, or environmental rating. Photograph markings and the internal connector circuit.
Measuring with the coil unplugged. Open-circuit voltage can look normal because almost no current flows. Repeat the test at the connected coil during the failing command.
Changing fuse size to stop nuisance openings. A larger fuse can expose the harness or driver to current it was not designed to carry. Find the electrical cause and use the machine's approved protection value.
Replacing the coil after repeated burnout without checking movement. An armature that cannot seat, overvoltage, excessive ambient temperature, or incompatible PWM control may damage the next coil as well.
Matching the coil while ignoring the spool. The valve may energize correctly and still reverse the actuator, unload the pump incorrectly, or block a required tank path.
Using a web-page headline as the final specification. The BLINCE DSG-03 page currently demonstrates why model code and datasheet confirmation matter: its DC identification conflicts with one AC sentence.
Who Should Not Order a Replacement Yet?
Do not order from this article alone when any of the following remains unknown:
the old valve or coil cannot be identified and the machine schematic is unavailable;
the voltage has not been measured at the energized coil;
the spool symbol or safe de-energized state is unclear;
the circuit holds a suspended or overrunning load without a separately verified load-holding strategy;
flow, working pressure, relief setting, tank back pressure, or pilot arrangement is unknown;
the failure is likely caused by wiring, contamination, blocked return flow, missing pilot pressure, or mechanical load;
the application involves a fluid, temperature, explosive atmosphere, certification, or functional-safety requirement not covered by the exact datasheet.
In these cases, collect evidence first. A parts swap may hide the original fault or introduce a new one.
Quote Request Format for a 12V or 24V Solenoid Valve
A useful inquiry should let the supplier reconstruct both sides of the decision. Send the following in one message where possible.
Machine and function
machine type, model, operating location, and hydraulic function;
what the actuator must do when the coil is off and when it is energized;
failure symptoms, oil temperature, cycle time, and duty pattern;
required safe state after electrical power is removed.
Existing valve and coil
clear photos of every label, spool symbol, connector, ports, and mounting face;
complete valve and coil model codes;
voltage type, voltage rating, wattage or current, duty, and connector markings;
suppression device, polarity, LED, or rectifier information.
Electrical measurements
voltage at the energized coil during a normal cycle and during the fault;
controller, PLC, relay, or power-supply output rating;
cable loop length, conductor size, fuse rating, and ground arrangement;
known PWM frequency or current-control setting.
Hydraulic data
maximum required flow in L/min;
working pressure and relief setting in bar or MPa;
pressure readings with exact test-point locations;
spool function, ways and positions, pilot supply, drain path, and tank back pressure;
fluid type, viscosity grade, operating temperature, and cleanliness information;
mounting standard, port threads, dimensional drawing, and seal requirement.
BLINCE can use this information to compare the electrical configuration, valve function, preliminary flow and pressure fit, interface, and missing data. Final approval still depends on the exact model datasheet and the machine designer's safety requirements.
FAQ
Can I run a 24V hydraulic solenoid valve on 12V?
A 24V coil supplied with 12V may not develop enough magnetic force for reliable pull-in or full spool travel. It can click yet fail under pressure, cold oil, contamination, or vibration. Use a verified 12V coil or correct the supply after confirming the complete valve configuration.
Can I connect a 12V hydraulic solenoid valve to 24V?
No. Applying 24V to a 12V coil can create excessive current and rapid heating, which may damage the coil, fuse, wiring, or control output. Confirm the marking before energizing the replacement.
Is a 24V solenoid valve stronger than a 12V valve?
Not by voltage alone. Coil design determines magnetic behavior, while the valve body, spool, pressure differential, flow path, and pilot arrangement determine hydraulic performance.
Why does the solenoid click but the cylinder not move?
The armature may move without completing spool travel, or the main stage may lack pilot pressure. Other causes include a stuck spool, blocked return, wrong center condition, no pump flow, high back pressure, contamination, or a mechanical load problem.
Can I replace only the coil?
Sometimes, but physical fit is insufficient. Match voltage type, power, magnetic design, armature-tube dimensions, duty, connector, polarity, suppression, temperature, and environmental rating through a documented cross-reference or exact datasheet.
How much voltage drop is acceptable at the coil?
The drop is acceptable only when the energized coil remains inside the operating range published for that exact part under real temperature and load conditions. Measure at the connected coil and do not apply one manufacturer's tolerance to an unidentified product.
Are 24V AC and 24V DC coils interchangeable?
No. Their winding, magnetic, inrush, frequency, and rectification requirements may differ. Confirm the complete voltage marking and wiring diagram.
What information is needed for a BLINCE quotation?
Send the model codes, photos, spool symbol, loaded coil voltage, connector and suppression details, flow, working and relief pressure, pilot and drain arrangement, duty, oil temperature, mounting interface, and fault history.
Prepare the Evidence Before the Purchase Order
A 24V hydraulic solenoid valve is the correct electrical choice only when the machine delivers the required 24V supply at the working coil and the control hardware is compatible. The purchasing decision is not finished until the hydraulic function, flow, pressure, pilot and drain paths, mounting, seals, fluid, and duty have also been checked.
Send BLINCE the quote-request data above rather than a request for “one 24V valve.” The result should be a configuration review: what matches, what does not, and which datasheet or machine measurements are still needed before a responsible quotation.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
Blince Hydraulic Team
Blince Hydraulic is an industry-leading company dedicated to precision-engineered fluid power manufacturing and custom hydraulic solutions. Backed by decades of deep field expertise in industrial machinery and thousands of successful global deployments, our engineering team focuses entirely on high-performance hydraulic component manufacturing, including specialized orbital motors, high-pressure travel drives motor, and robust directional control valves. Our production infrastructure utilizes state-of-the-art multi-axis CNC machining systems and is fully ISO 9001 certified to guarantee repeatable volumetric accuracy across every single manufacturing run.
We deliver fast, highly dependable, and cost-efficient hydraulic solutions to heavy industry distributors, machinery OEMs, and maintenance crews across more than 150 countries. Whether your active project calls for a small-volume batch of customized shaft profiles or a large-scale production run of severe-duty cast iron gear pump, we configure our flexible production schedules to meet your target lead times with total pricing predictability. Partnering with Blince means securing maximum system efficiency, elite material quality, and uncompromised fluid power professionalism.
To learn more about our complete product lineup, visit our official website: www.blince.com.
