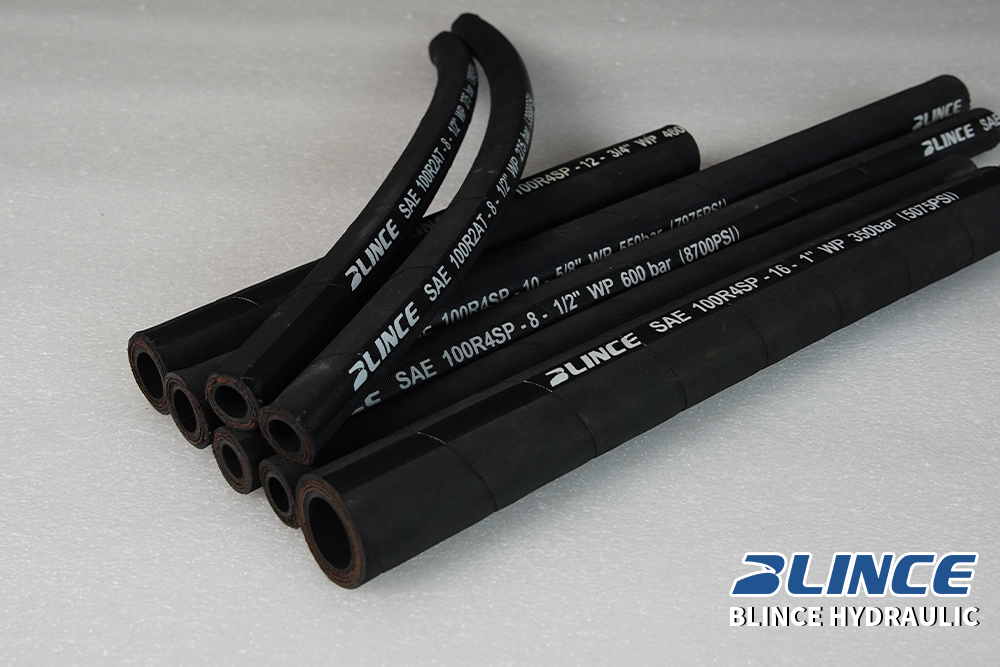

The replacement hose arrives with the right thread at both ends, yet it still cannot be installed. One elbow points into the machine frame, the hose pulls tight at full cylinder extension, and its inside diameter is smaller than the failed assembly. The purchase order said “same as sample,” but the sample did not describe pressure spikes, flow, oil temperature, routing, or how the overall length was measured.
Short answer: a quote-ready custom hydraulic hose specification must define the line duty, maximum working and surge pressure, flow, fluid, temperature, hose inside diameter, both end connections and sealing faces, overall length, elbow orientation, routing and bend limits, cleanliness, test requirement, marking, and quantity. A model number or photo helps, but it does not replace those operating conditions. The hose, fittings, seals, and crimp must also be a qualified combination whose assembly rating meets the machine requirement.
This guide turns that answer into a practical RFQ. It does not authorize anyone to build or pressure-test an assembly without the correct manufacturer data, equipment, and safety controls.
Why a Custom Hose RFQ Is an Assembly Specification, Not a Hose Request
A hydraulic hose assembly is a system of components: hose, two end fittings, ferrules or sockets, seals where applicable, and the crimped or otherwise qualified interfaces that hold them together. Its job is also defined by the machine. A pressure line feeding a boom cylinder, a motor return line, a pump suction line, and a case drain may all use flexible hose, but they do not share the same pressure, velocity, back-pressure, vacuum, temperature, or routing boundary.
SAE J1273 covers selection, routing, fabrication, installation, replacement, maintenance, and storage of hydraulic hose assemblies. ISO 17165-1:2007, confirmed by ISO in 2025, addresses dimensions and requirements for assemblies made from specified hose and fitting families. These sources support a system-level specification; neither turns a thread description into proof of compatibility.
When the first decision is whether the machine should use rigid tube or flexible hose, settle that before issuing an assembly RFQ. BLINCE's tube-versus-hose decision guide covers movement, routing, line duty, and installation at that earlier stage.
Start With the Machine Function and Line Duty
Write one sentence that says what the line does. “Hydraulic hose for excavator” is too broad. “Pressure line from the valve section to the boom-cylinder cap end, moving with the boom through its full travel” gives the supplier something to evaluate.
Line duty changes the checks:
A pump suction hose must tolerate vacuum without collapse and must not create excessive inlet restriction.
A pressure line must withstand the actual working pressure, transients, temperature, and impulse duty.
A return line may operate at lower nominal pressure but still see back-pressure, heat, and surges.
A motor or pump case drain often requires very low allowable back-pressure; copying a smaller convenient hose can threaten a shaft seal.
A pilot, brake, steering, or accumulator circuit may carry modest flow but has control or safety consequences that demand the exact machine specification.
Hose color, outside diameter, and the failed part alone do not reveal line duty. Include a circuit mark-up or photo showing the two ports and the moving components around the route.
Use STAMPED, Then Add Assembly Geometry
Gates and Parker use the STAMPED framework: Size, Temperature, Application, Media, Pressure, Ends, and Delivery. It is a useful minimum because it forces a buyer to describe the duty before choosing a catalog family. A custom assembly RFQ should then add geometry and verification fields that affect whether the part can be installed and accepted.
RFQ field
What to state
Why the supplier needs it
Evidence label
Line function
Pressure, return, suction, case drain, pilot, brake, steering, or other
Sets the pressure, velocity, vacuum, and safety boundary
Buyer measured / machine manual
Flow
Normal and maximum L/min or US gpm
Used to check actual hose ID and velocity
Measured or pump/circuit data
Pressure
Normal, maximum working, surge/spike if known, test requirement
Assembly rating must cover the real duty under defined conditions
Machine manual / measured
Temperature
Fluid and ambient minimum/maximum
Tube, cover, seals, and pressure derating may change
Measured / environmental spec
Media
Exact fluid name, grade, concentration, and additives where relevant
Tube, cover, fitting, and seal compatibility must be checked
Fluid data sheet
Hose construction
Required standard/family or supplier selection against the duty
Controls reinforcement, flexibility, pressure, temperature, and compatibility
Quantity, batch, labels, packaging, destination, required date
Changes production and documentation planning
Purchase requirement
The Gates 2026 hydraulic catalog describes STAMPED as the accepted hose-selection process and notes that hose ID affects fluid velocity. Use the table above as an RFQ gate, not as permission to substitute one product family for another.
Pressure: Quote the Whole Assembly, Not the Strongest Component
The safe working boundary is not the largest pressure number visible on any one page. The assembly includes the hose, both fittings, seals, and attachment method. Parker's technical guidance states that the working pressure of an assembly is controlled by its lowest-rated component. Compatibility and qualification of the hose/fitting combination still have to be demonstrated.
For example, the BLINCE SAE 100 R7 / EN 855 R7 product page publishes a nylon tube, braided reinforcement, polyurethane cover, a -40 to +100 °C temperature range, and size-dependent pressure bands of 10–21 MPa or 12–35 MPa for two listed constructions. Those are Published product-page values. They do not prove that every size, fitting, crimp, fluid, temperature, impulse duty, or finished assembly carries the top value.
The page's exact size table, bend radius, compatible fitting series, crimp diameter, insertion depth, impulse class, and acceptance test remain Unknown / confirm by datasheet for an RFQ. If the machine requires 28 MPa continuous service, it is not enough to point at “35 MPa” on a page. The supplier must identify the exact size and construction, qualify the ends, consider temperature and impulse duty, and state the rated assembly boundary.
Pressure information to submit:
normal pressure while the function is moving;
maximum working pressure under the highest intended load;
relief setting and where it was measured;
known transient or spike data, including test method and instrument location;
required proof, burst, impulse, or certification rule, if the project specifies one.
A burst value is not an allowable working pressure. One gauge at the pump also cannot describe what happens at both hose ends during every fast transient. If the data is missing, mark it missing and agree on a conservative verification route rather than filling the RFQ with a guess.
Hose ID: Check Flow Velocity Before Copying the Outside Diameter

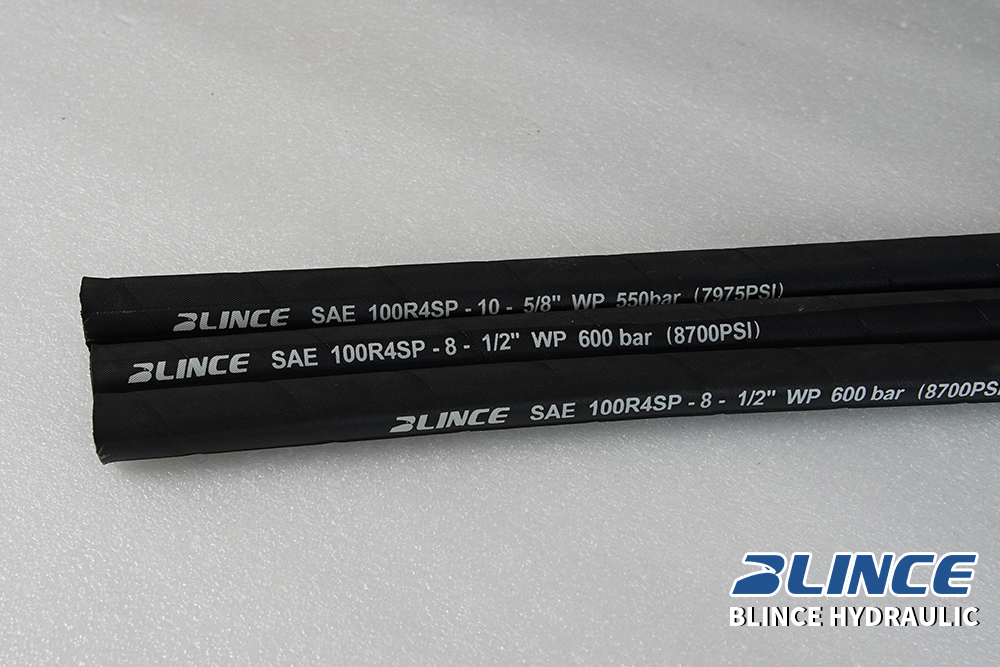

Two hoses can look similar outside and have different usable bores. Reinforcement, tube thickness, and fitting inserts affect the flow path. The dash number and nominal ID must be checked against the exact product table; the smallest bore in an elbow, adapter, fitting insert, or quick coupler can also dominate local loss.
A first-pass velocity calculation uses:
v = Q / A
where:
v = average fluid velocity in m/s;
Q = volumetric flow in m³/s;
A = internal flow area in m²;
for a circular bore, A = πd⊃2;/4.
Worked example: 40 L/min through three candidate hose IDs
This is a Calculated example, not a BLINCE product guarantee.
Q = 40 L/min ÷ 60,000 = 0.0006667 m³/s
Assumed actual bore
Calculated area
Calculated average velocity
Initial reading
9.5 mm (about 3/8 in)
0.00007088 m²
9.41 m/s (30.9 ft/s)
High for the Parker pressure-line example range; investigate a larger bore
12.7 mm (1/2 in)
0.00012668 m²
5.26 m/s (17.3 ft/s)
Below 20 ft/s; still requires pressure-drop and duty checks
15.9 mm (about 5/8 in)
0.00019856 m²
3.36 m/s (11.0 ft/s)
Lower velocity, but larger, heavier, less flexible, and usually more costly
Parker's Catalog 4400 technical nomograph uses 20 ft/s as the maximum pressure-line velocity in its worked sizing example. That is a manufacturer selection aid, not a universal legal limit. Suction, return, case-drain, cold-oil, long-line, high-frequency, and noise-sensitive circuits need their own boundaries.
This calculation also does not predict pressure drop. A quote review may need hose length, oil viscosity at cold and hot conditions, fitting bore, adapter count, bends, couplers, and permissible loss. BLINCE's quick-coupler pressure-drop guide explains why several individually small restrictions can add up in an attachment circuit.
The real tradeoff
A larger hose lowers velocity and usually reduces straight-line friction, but it costs more, occupies more space, increases moving mass, and may have a larger minimum bend radius. A smaller hose is easier to route and may reduce purchase cost, yet high velocity and fitting restrictions can waste pressure, create heat, or change actuator response. Choose with the measured flow and permitted loss, not by “bigger is safer” or “same outside diameter.”

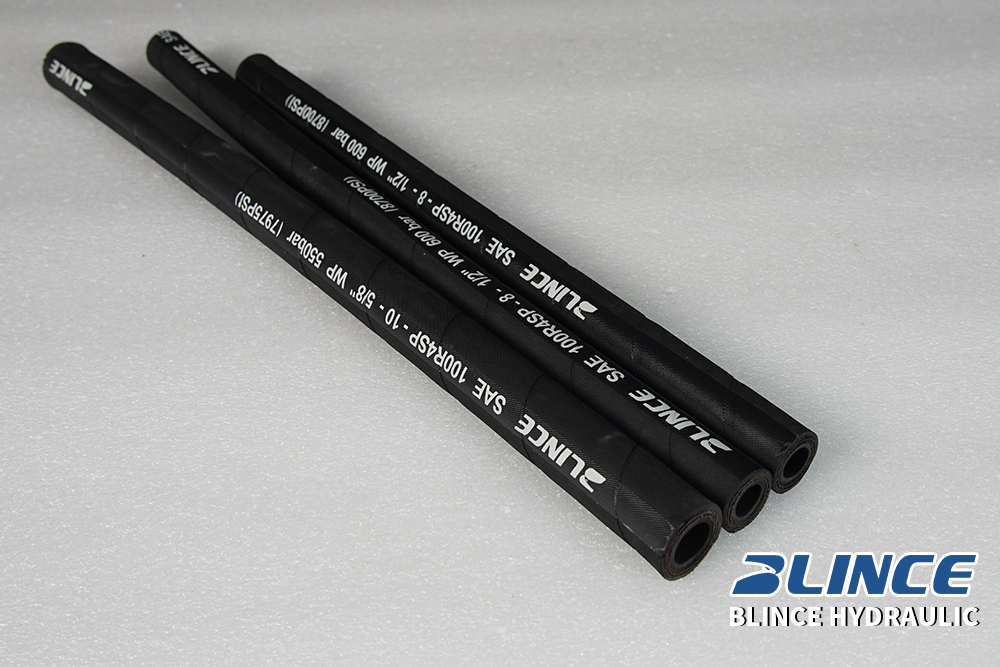

Select the Hose Construction Against the Duty
The BLINCE hydraulic hose and fitting range includes thermoplastic and rubber hose families. A product family is a starting point; the quote still needs an exact size and data sheet.
For a lightweight or compact route, a thermoplastic construction such as SAE 100 R8 / EN 855 R8 may be worth reviewing. BLINCE publishes a nylon tube, aramid-fiber reinforcement, polyurethane cover, and -40 to +100 °C range on that page.
For conventional steel-wire braided circuits, the 1SN hose page and 2SN hose page are relevant product references.
These pages do not make the families interchangeable. Review at least working and spike pressure, actual ID, compatible fluid, fluid and ambient temperature, impulse duty, bend radius, abrasion, ozone/weather exposure, electrical conductivity requirement, and compatible fitting/crimp system. For a broader construction comparison, use BLINCE's hose and fitting selection guide, then return to the assembly RFQ with one defined duty.
Define Both Ends by Sealing Method, Not Thread Name Alone
“1/2-inch fitting” is not a complete description. State thread family and pitch, size, gender, straight or elbow body, and the sealing interface. A 37° flare, 30° seat, 24° cone, 60° cone, bonded washer, O-ring face seal, O-ring boss, tapered thread, and flange do not seal in the same way.
For each end, record:
equipment-port standard or verified interface;
thread outside/inside diameter and pitch where identification is uncertain;
male/female and swivel/fixed construction;
straight, 45°, 90°, or another defined geometry;
sealing face and seal material;
fitting material and corrosion protection;
port or mating-part model, drawing, or clear gauge/photo evidence.
Mixed ends are normal; mixed systems require control
A custom assembly may legitimately use different ends, such as a metric swivel on the valve and an ORFS elbow at the cylinder. The risk is not “two standards” by itself. The risk comes from an unidentified interface, an unqualified hose/fitting mix, a seal material that does not match the fluid or temperature, or adapters added without checking bore, pressure, length, and collision.
Using an adapter can simplify replacement inventory and protect an expensive port. It also adds another joint, potential restriction, possible leak point, and installation length. A direct fitting reduces joints but can make the custom assembly less reusable across machines. Put that tradeoff in the drawing instead of leaving it to the assembly bench.
Overall Length and Elbow Clocking Need a Drawing Convention
“900 mm long” can still produce the wrong part if one person measures to a nut end, another to a sealing face, and a third measures only exposed hose. Specify both measurement points on a sketch.
Assume a required overall assembly length of 900 mm. If the exact selected couplings have supplier-published allowances of C1 = 35.1 mm and C2 = 36.1 mm:
Cut length = 900 − (35.1 + 36.1) = 828.8 mm
This is an Example of the method. The two C dimensions, measurement points, crimp growth, tolerance, and final inspection method are supplier-specific. A buyer normally orders the finished overall length; the qualified assembler controls the cut value.
For two elbow fittings, add a clocking diagram. Define End 1 as the reference, state the viewing direction, and give End 2's rotation in degrees. “Both elbows up” is ambiguous once the assembly is turned over. A usable note might read: “View from End 1 toward End 2; End 1 at 0°; End 2 at 90° clockwise; tolerance to be confirmed.”
Clocking is not cosmetic. Forcing an elbow into position twists the hose, changes its moving path, loads the fitting, and can consume the slack needed at full articulation.
Route the Assembly Through the Full Machine Envelope
Measure the route with the cylinder, motor, steering joint, boom, mast, or attachment at every relevant position. One static photo cannot show the shortest distance, longest distance, pinch zone, or twist introduced during movement.
Check the following before freezing overall length:
minimum and maximum port separation;
where bending starts relative to the fitting;
minimum bend radius for the exact hose size;
clamp positions and whether the hose can slide as intended;
abrasion against frames, guards, tires, other hoses, or cable carriers;
exposure to exhausts, hot surfaces, welding spatter, UV, chemicals, sharp debris, or electrical conductors;
motion that creates torsion rather than a simple bend;
hose whip or falling-load exposure if a component fails.
Too short is not the only failure. Excess length can rub, snag, kink, or move into a hot zone. More slack may help articulation, but uncontrolled slack increases mass and abrasion. A compact route protects the hose only when it preserves bend radius and movement.
Temperature and Media Must Name Real Conditions
State both fluid and ambient temperature. A hose passing 70 °C oil may run beside an exhaust or through a cold-start environment well outside that one number. Temperature can change material life, pressure capability, flexibility, viscosity, pressure drop, and seal compatibility.
Name the actual medium: for example, the product name and grade of a mineral hydraulic oil, a water-glycol fluid, a biodegradable ester, phosphate ester, or another specified fluid. “Hydraulic oil” is not enough when the tube, cover, seals, cleaning fluid, or external splash exposure may react differently.
If concentration or additive package matters, attach the fluid data sheet. If the machine is washed with a chemical cleaner, state external exposure as well as the internal medium.
Decide Cleanliness, Testing, Marking, and Documentation Before the Quote
A clean-looking exterior says nothing about rubber dust, wire particles, cutting debris, preservative, or moisture inside the assembly. The RFQ should define whether the assembly is air-cleaned, flushed, projectile-cleaned, sampled, capped, bagged, or prepared to another controlled method. State a numeric cleanliness target only when the machine or project provides one.
A request for “100% pressure tested” is incomplete without a governing procedure. A useful test request identifies test medium, pressure, hold time, temperature, acceptance criteria, safe test setup, and required record. Proof pressure is not a substitute for impulse qualification or correct component selection.
High-pressure testing needs controlled equipment and exclusion measures. The UK Health and Safety Executive warns that a fine high-pressure jet can penetrate skin and that suspected hydraulic injection injury requires immediate professional treatment. Never search for a leak with a bare hand; depressurize and secure the machine according to its manual before inspection or replacement.
Marking and documents may include:
assembly part number and revision;
manufacturing date or batch/lot;
hose and fitting traceability;
maximum permissible working pressure if required by the governing standard or project;
end labels, orientation marks, or machine-location tags;
dimensional inspection report;
material, test, or conformity documents specified by the buyer.
Extra documentation increases cost and lead time, but missing traceability can make repeat orders and field investigations much slower. Decide what the risk justifies.
Decision Table: What Type of Order Are You Actually Placing?
Order situation
Most useful starting evidence
Main advantage
Main risk / tradeoff
Minimum verification before release
Exact repeat from controlled drawing
Approved drawing and prior part revision
Fastest repeatability
Old design may preserve a routing or sizing defect
Confirm revision, machine duty, and whether conditions changed
Replacement from sample
Intact sample plus machine measurements
Captures unusual ends and orientation
Failed or stretched sample may not represent original dimensions
Can optimize ID, routing, serviceability, and traceability
More engineering work before price is firm
Prototype/sample approval and project verification plan
Emergency field replacement
Old assembly, photos, port data, measured duty
Reduces downtime
Highest chance of copying an unknown or damaged design
Use only within authorized machine/OEM procedure; plan controlled replacement
Standard hose plus adapters
Standard stocked assembly and verified adapters
Easier inventory and service
More joints, length, restriction, and leak paths
Rate the full stack and check clearance/bore
Direct custom ends
Purpose-built assembly
Fewer joints and compact installation
Less interchangeable and may need longer lead time
Control both end specifications, clocking, and reordering data
The table should change the purchase route. If none of the starting evidence is reliable, the correct next step is measurement and engineering review, not an optimistic part number.
Equipment-Specific Checks That Change the Specification
Construction and agricultural machines
Cycle the boom, bucket, steering joint, header, or attachment through full movement. Mud, stone, crop residue, UV, washdown, and boom articulation often matter as much as nominal pressure. Guarding and clamps must not create a tight bend at the fitting.
Hydraulic motors and rotating attachments
Separate supply, return, case-drain, brake-release, and flushing lines. They may sit together but have different allowable pressure and flow. A small case-drain hose cannot be justified by the low measured flow alone if the manufacturer sets a strict back-pressure limit.
Hydraulic power units and industrial presses
Check pressure pulsation, vibration, nearby hot surfaces, maintenance access, and whether the hose carries stored energy after the pump stops. If the line supports a load-holding function, the machine's safety architecture and manual govern the replacement.
Marine, offshore, mining, or electrically exposed equipment
The RFQ may need environmental, flame, conductivity, abrasion, corrosion, fire-resistance, certification, or special test requirements beyond a general industrial hose page. State the governing project rules; do not assume a catalog construction meets them.
Common RFQ Mistakes and the Corrective Check
Mistake 1: “Same as the old hose”
The old assembly may be stretched, shortened by a repair, fitted with an adapter, or already wrong for the circuit. Use it to identify geometry, then verify duty and route on the machine.
Mistake 2: Supplying only maximum pressure
Pressure without temperature, impulse duty, fluid, size, and fitting combination cannot define a qualified assembly. Submit normal and maximum conditions and identify unknown spikes.
Mistake 3: Ordering by outside diameter
OD does not establish flow area. Record the actual hose ID or dash/DN from a verified product and check velocity using measured maximum flow.
Mistake 4: Writing “JIC,” “BSP,” or “metric” without the seal
These labels cover multiple sizes or sealing arrangements. Add gender, pitch, seat/cone/face, swivel/fixed form, and mating-port evidence.
Mistake 5: Omitting elbow orientation
An assembler cannot infer clocking from two loose fitting photos. Add one reference end, viewing direction, degree value, and tolerance.
Mistake 6: Measuring rubber length instead of assembly length
Specify the two measurement faces and finished OAL. Let the qualified assembler calculate cut length from exact coupling dimensions.
Mistake 7: Asking for the highest available pressure rating
Higher pressure construction may be larger, stiffer, heavier, more expensive, and harder to route. Select the needed assembly boundary with appropriate project margin, not the biggest catalog number.
Mistake 8: Treating cleaning and testing as free add-ons
Undefined “clean” and “tested” wording creates inconsistent quotations. State the method, acceptance requirement, record, and packaging you actually need.
Who Should Not Buy or Use a Custom Hose From This Guide Alone
This article is not sufficient authority to release an assembly used on aircraft, life-support equipment, certified lifting or personnel-carrying equipment, safety-critical braking or steering, hazardous chemical service, fire-protection service, subsea equipment, or another regulated application. Use the equipment maker's approved parts, the governing standard, and qualified engineering review.
A failed sample is a poor manufacturing master when its source, pressure rating, reinforcement damage, heat exposure, chemical attack, or fitting identity is unknown. Damaged fittings should not be reused unless an authorized manufacturer procedure explicitly permits that exact practice.
Fabrication, installation, or pressure testing should stop if the team lacks the correct hose/fitting data, calibrated tooling, guards, test procedure, and training. Stored loads and accumulators can keep a circuit hazardous after the pump stops.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
