Hydraulic Quick Coupler Pressure Drop Guide: Flow Loss, Heat, And Slow Attachments

An attachment that runs slowly after a hose or coupler change rarely introduces itself as a coupler problem.

The operator may say the brush cutter lost blade speed. A sweeper may turn well in the yard and then stall in warm oil. A skid steer attachment may connect with a click, but one function moves late, jerks, or heats the auxiliary circuit. On a farm machine, the cylinder may extend normally until the oil warms, then the return hose starts to jump. Someone looks at the pump outlet gauge. The number appears normal. The next guess is usually a larger pump, a stronger hydraulic motor, or a new control valve.

Any of those parts may be involved. The quick coupler still deserves a closer look.

A hydraulic quick coupler is small enough to be treated as hardware, but it sits at a painful location in the circuit. It is often the narrowest passage between the base machine and the attachment. It is exposed to dirt during every connection. It may hold residual pressure. It may be installed in pairs that do not quite match. It may be rated by thread size or nominal body size, while the actual machine cares about flow, pressure drop, temperature, oil viscosity, and return pressure.

That is why hydraulic quick coupler selection should not begin with the thread alone. It should begin with the complaint: what changed, which function slowed, how hot the oil became, and where pressure was measured.

This guide is written for buyers, repair shops, maintenance teams, and equipment builders who need a practical way to choose or troubleshoot a hydraulic quick coupler without replacing good parts around it. It also explains when the next step should be a hose correction, valve check, pressure test, oil cleanliness check, or wider hydraulic system review.

Why Trust This Guide

Blince sees these complaints from several sides of the machine: the hydraulic motor that slows down, the pump that is blamed too early, the valve bank that gets hot, the hose set that was changed last week, and the pressure gauge reading that seems to prove everything and nothing at the same time. That wider view is useful here. A quick coupler can be the restriction, but the same symptom can also come from a pump losing flow, a spool that does not open fully, a hose with less bore than the old one, a dirty poppet, a cooler or filter in the return path, or a line that was never sized for continuous motor flow.

This article takes the same practical view used in recent Blince diagnostic guides. The article on hydraulic pressure gauge placement explains why one pump outlet reading can be misleading. The article on hydraulic contamination control is also relevant here because couplers are one of the places where dirt enters a mobile circuit. This guide narrows the question to couplers, attachment hoses, and the pressure loss that can hide between the machine and the work.

Start With the Complaint, Not the Coupler Body Size

Before choosing a hydraulic quick coupler, describe how the machine behaves in plain field language.

Start with the awkward little details. Maybe the attachment is slow only after the oil warms. Maybe the hydraulic motor loses speed when the operator lifts the boom at the same time. Maybe the coupler will not seat after the attachment has sat in the sun, then connects easily in the morning. A cylinder that jumps when the lever is moved tells a different story from a coupler half that becomes hotter than the hose beside it. If the trouble began after a hose replacement, a new attachment, a valve change, a pump replacement, or a switch from old agricultural couplers to flat face couplers, write that down before anyone orders parts.

Those notes decide the direction of the test. One machine needs a connection-pressure check. Another needs a flow and pressure-drop check. A third may need the coupler cleaned, capped, and treated as a contamination entry point.

In service, the first description is often an outside description: half-inch coupler, 3/4 thread, ISO style, flat face, male and female set. Keep it, but do not stop there. The thread may be right while the flow path is small. The coupler may snap together cleanly and still waste pressure at high flow. A part that behaves well on a short cylinder cycle may become a poor choice when a hydraulic motor runs for twenty minutes without a break.

The field question is simple enough to write on a work order:

Where is oil being lost as useful flow, and what part is being asked to carry it?

That question keeps the diagnosis from turning into a thread-matching exercise too early.

What the Hydraulic Quick Coupler Changes in the Circuit

A quick coupler gives the mechanic a clean break point in the hydraulic line. Instead of loosening threaded fittings, the operator can connect a brush cutter, cylinder, test hose, jig, or agricultural implement in a few seconds. That convenience is exactly why the part is easy to underestimate.

The coupler is not just a removable joint. It adds moving parts, sealing edges, springs, poppets or balls, internal shoulders, and sometimes a check mechanism. Oil has to pass through that shape. When flow rises, the pressure loss through the coupler rises too.

That pressure loss may not be noticed on a small cylinder that moves for three seconds. It becomes harder to ignore on continuous-flow attachments: brush cutters, sweepers, trenchers, augers, forestry heads, spreaders, winches, conveyors, and hydraulic fans. In those circuits, the coupler is not touched once and forgotten. It carries oil for the whole work cycle.

For buyers selecting hydraulic hoses and fittings, the coupler should be considered part of the same flow path. Hose size, fitting bore, elbow count, adapter stack, coupler body size, and return routing all decide how much useful pressure reaches the attachment.

Flow Capacity, Pressure Drop, and Heat

Flow capacity is often misunderstood because couplers are sold by body size, thread, and nominal rating. A larger-looking coupler may not always have a much larger internal opening. A compact coupler may have a good published flow rating, but the real machine still needs to be checked at operating oil temperature.

Pressure drop is the difference in pressure between two points in a circuit. In a coupler, some pressure is lost as oil passes through the internal passage. That lost pressure becomes heat and leaves less useful pressure for the hydraulic motor or cylinder.

At low flow, the loss may be small enough that nobody notices it. Raise the flow and the same coupler can become a hot spot. A set that behaves at 20 L/min may be a bad match at 60 L/min, especially when the attachment runs continuously. Do not ignore the return half either. If return pressure climbs, a hydraulic motor loses useful pressure difference, a cylinder may slow on one stroke, and some seals spend the shift working against pressure they were not meant to see.

The useful test is not "does oil pass?" It is "how much pressure is lost at the flow and temperature that created the complaint?"

If heat is already part of the complaint, the Blince guide on hydraulic oil cooler sizing may help separate true cooling demand from heat created by restriction. A larger cooler can reduce oil temperature for a while, but it does not fix a coupler or return line that is wasting power every minute.

Body Size, Thread Size, and Internal Bore Are Different Things

A common mistake is to treat thread size as flow capacity. Thread size only tells you how the coupler connects to a hose end, adapter, or manifold. It does not prove that the internal passage, poppet travel, spring design, and mating half can carry the required flow with acceptable pressure drop.

This is especially easy to miss when an older machine has been repaired several times. One adapter is added to match a thread. Another adapter is added because the new hose assembly has a different end. Then a quick coupler is installed because the attachment must be removed frequently. The outside looks acceptable. Inside, the oil sees a sequence of small bores, shoulders, and direction changes.

When choosing a hydraulic hose quick coupler, keep these dimensions separate:

The safest selection path is boring, but it works: identify pump flow, attachment flow demand, working pressure, return pressure limit, hose internal diameter, oil temperature, and the duty cycle. Then choose the coupler and hose assembly together.

Coupler Style: Ball, Poppet, Flat Face, and Connect-Under-Pressure

Two couplers can share a thread and still behave differently once oil starts moving. The difference is inside: shutoff shape, spring force, poppet travel, sealing face, and how much room the oil has after the halves are locked together.

Ball-style and poppet-style couplers are common on many agricultural and general hydraulic circuits. They are familiar, serviceable, and cost-effective. Depending on design, they may spill some oil during connection and may be more sensitive to dirt around the nose and sealing area.

Flat face hydraulic couplers are widely used where oil spillage and dirt entry must be reduced. The flat face is easier to wipe before connection, which helps in construction, road maintenance, and outdoor equipment. It does not mean dirt can be ignored. A flat face that is wiped with a dirty rag can still carry abrasive particles into a valve or motor.

Connect-under-pressure couplers are useful where residual pressure is common. They can reduce the daily fight of pushing couplers together after a machine sits in sun or after an attachment cylinder settles. They do not remove the need to understand why pressure is trapped. If load holding, thermal expansion, or a blocked return path keeps pressure high, the coupler may connect more easily while the circuit problem remains.

Blince supplies hydraulic accessories, hydraulic fittings, and related hose products for different service conditions. The right choice depends on the actual machine, not only the coupler style printed in a catalog.

Residual Pressure: When the Coupler Looks Like the Whole Problem

A coupler that refuses to connect can ruin a workday, but the coupler is sometimes only the messenger.

Residual pressure can stay in an attachment line long after the engine is off. Sunlight warms a trapped hose. A cylinder load creeps against one side of the circuit. A check valve, counterbalance valve, pilot-operated check valve, or directional spool may leave pressure in a place the operator is not thinking about. The face of the coupler looks clean. The sleeve moves. Still, the halves refuse to seat.

That is not the moment to beat the coupler or crack a fitting without a plan. First find which side is holding pressure. Then find out whether the pressure came from load, heat, valve position, or a blocked path back to tank.

If the machine has load-holding valves, the earlier Blince article on hydraulic cylinder drift troubleshooting is relevant. Load holding is useful, but trapped pressure can confuse both coupler connection and cylinder diagnosis.

For a recurring connection problem, record these details:

Residual pressure and pressure drop are different problems. A coupler can connect easily and still restrict flow. It can also be hard to connect while having enough flow capacity once seated.

Return-Side Back Pressure and Hydraulic Motors

A hydraulic motor attachment cares about both inlet pressure and outlet pressure. Usable torque depends on pressure difference across the motor, not pump outlet pressure alone.

If a brush cutter motor receives 170 bar at the inlet and sees 20 bar at the outlet, it has a different working condition from the same motor seeing 170 bar at the inlet and 75 bar at the outlet. The pump gauge may not make that difference obvious. The motor will.

A small return-side coupler can raise outlet pressure. So can a small hose, a tight elbow, a long return line, a blocked filter, or a restrictive valve passage. The motor may slow, the oil may heat, and the operator may blame the motor. In severe cases, high case or return pressure may shorten seal life.

If the attachment uses a hydraulic motor, test the return path before replacing the motor. The Blince article on hydraulic motor weakness under load has the same lesson: a motor complaint often starts with flow, pressure drop, heat, and drain conditions outside the motor body.

For continuous attachments, record at least four pressures where possible:

If the return pressure rises sharply when the attachment is at full speed, the coupler and hose set should be reviewed together.

Cylinder Circuits Need a Different Coupler Question

A cylinder circuit does not behave like a continuous hydraulic motor circuit. The flow demand may be short and intermittent. Pressure may spike at end of stroke. One side of a double-acting cylinder may see different return flow than the other because rod volume changes the flow balance.

This matters when a coupler set is reused across different attachments. A coupler that works on a small top-link cylinder may be undersized for a dump trailer cylinder or a larger double-acting cylinder. A coupler that looks fine during extension may restrict retraction because the return flow on one side is higher than expected.

If a cylinder moves slowly through a quick coupler, check both ports, not just the pressure line that is easiest to reach. A load-holding valve may be involved. So may a pilot line, a long hose, a small fitting insert, or a coupler sleeve that looks locked but has not opened the poppet fully.

When the repair turns into a replacement discussion, the hydraulic cylinder data still matters: bore, rod diameter, stroke, mounting, speed, load, and valve behavior. Without those numbers, a coupler can be blamed for a cylinder circuit that was never checked properly.

Hose Size, Fitting Bore, and Coupler Stack-Ups

Many quick coupler complaints are really stack-up complaints.

One small restriction may not ruin a machine. Several small restrictions in series can. A hose with a smaller inside diameter, two adapters, a 90-degree elbow, a compact quick coupler, and a return filter may create enough pressure drop to slow the attachment and heat the oil.

This is why the hose assembly should be checked as a system. The printed pressure rating on a hose does not tell you the internal bore. A high-pressure hose can still be too small for the flow. A fitting may have the correct thread and still have a small drilled passage. A quick coupler may match the outside shape and still be the wrong flow family.

If the complaint began after a hose replacement, compare the old and new assembly:

For broader hose selection, Blince's hydraulic tubing and hose selection guide is a useful companion. For parts sourcing, the hydraulic hose and fitting pages can help buyers compare assembly options after the flow path is known.

Contamination at the Connection Point

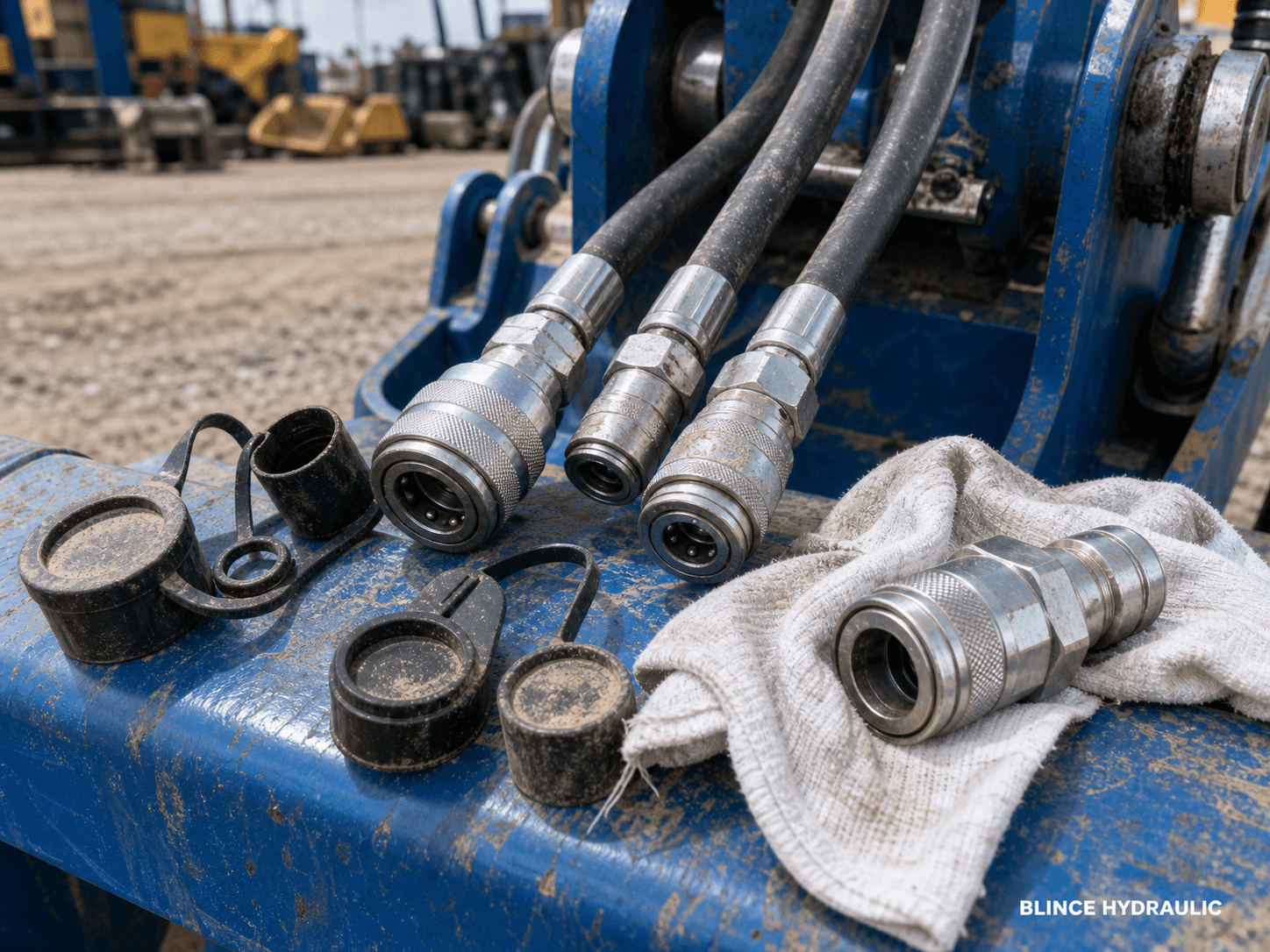

Quick couplers live where dirt waits.

They are opened outdoors. They are handled with gloves. They hang near buckets, frames, tires, soil, crop residue, and road dust. A cap may be missing. A flat face may be wiped, but the rag may not be clean. A ball or poppet may hold a small particle that keeps the valve from seating. The attachment may be stored for months and then connected to a clean base machine.

The first symptom may not look like contamination. It may look like a sticky valve, a weak motor, a drifting cylinder, or a pump that wears too soon. Oil carries the particles away from the coupler and into the rest of the circuit.

When a coupler has been changed because it leaked or would not seat, do not stop with the new part. Clean the connection area, inspect caps, check the oil condition, and review filters. A coupler can be the entry point, but the damage may appear later in a valve spool, pump control, motor surface, or cylinder seal.

For machines already showing repeated failures, review hydraulic contamination control before treating the next failed part as an isolated defect.

Pressure Testing Around a Quick Coupler

A single gauge at the pump is not enough for coupler diagnosis.

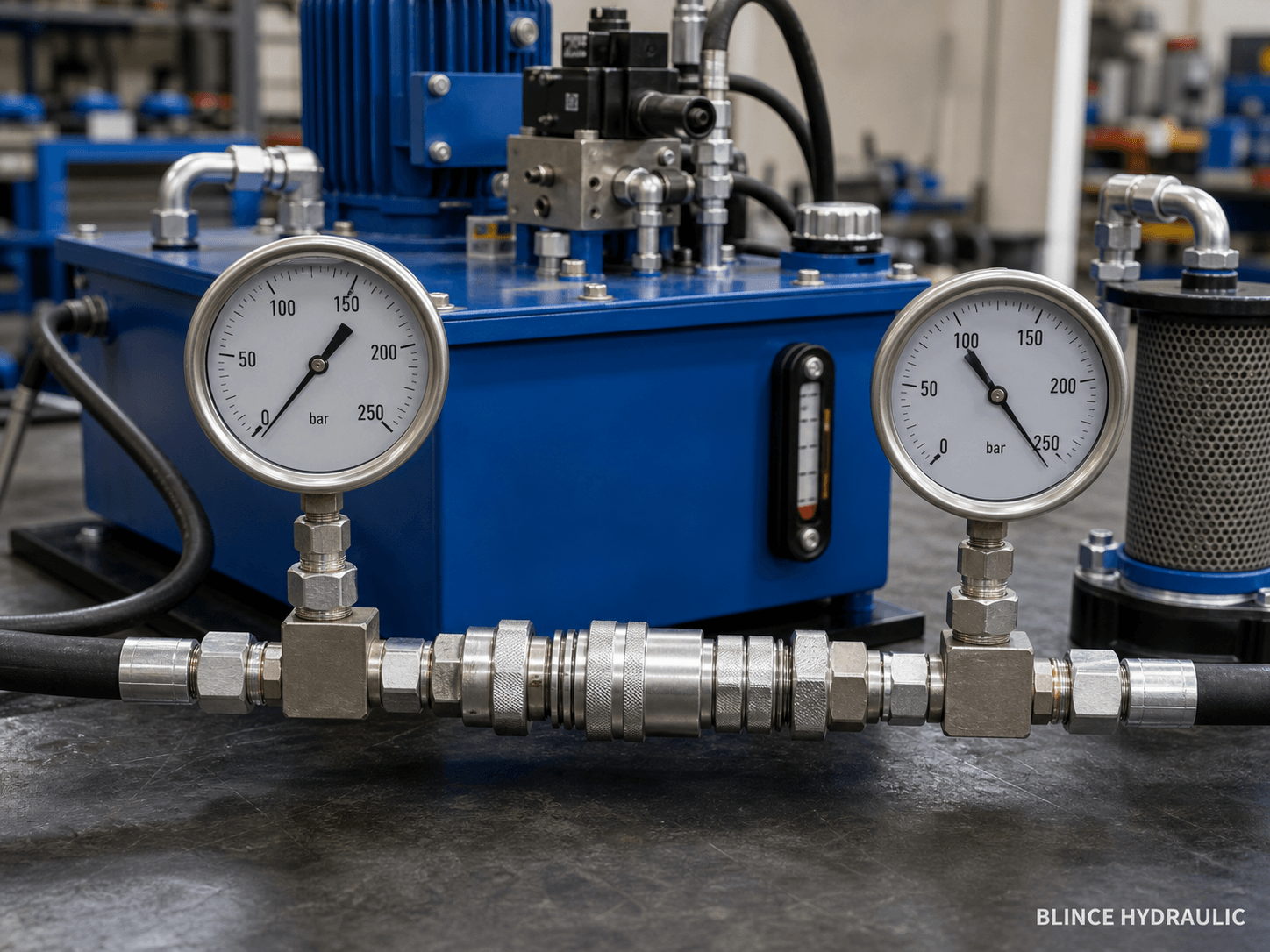

The useful approach is to measure pressure before and after the suspected restriction while the same function is operating. The numbers do not need to be beautiful. They need to be taken under the same load, with oil at a similar temperature, and at the flow condition that caused the complaint.

For example, if a skid steer brush cutter slows after twenty minutes, test it after it has warmed, not only at idle in the yard. If a cylinder retracts slowly only with a load, measure during retraction under that load. If the return hose is hot, measure return pressure near the attachment and near the tank.

Use a gauge with a suitable pressure range and enough protection for vibration. Blince's liquid filled pressure gauge is one example of the kind of accessory used for field pressure checks, but the gauge still has to be placed at the right point. The pressure-gauge article mentioned earlier explains why the location matters.

When the pressure drop across the coupler is small, keep moving along the circuit. When it is large, inspect coupler size, type, mating condition, contamination, poppet travel, and whether the two halves are fully compatible.

When the Coupler Is Not the Culprit

The coupler is convenient to blame because it is visible and easy to replace. A good diagnosis still checks the rest of the hydraulic circuit.

A weak hydraulic pump may pass a quick no-load test and fail at working pressure. A hydraulic valve may drop pressure before oil reaches the attachment. A relief valve may open too early. A flow control may be set for an older attachment. A filter may be plugged. A cooler may be installed on a return line that was already too small. A hydraulic system problem can make a new coupler look guilty.

The order matters:

If several symptoms appear together, the coupler may be one restriction in a larger pattern.

Checks by Equipment Type

Skid Steer Attachments

Skid steer auxiliary circuits are rough on couplers because many attachments ask for steady flow, not a short push of oil. Brush cutters, sweepers, trenchers, cold planers, mulchers, and augers keep the oil moving long enough for a small restriction to show itself as heat or lost speed.

If one attachment runs hot while the base machine behaves normally with others, compare the attachment flow demand with the coupler set that is actually installed. Then look at hose length, case drain routing, return path, and whether both coupler halves belong to the same style and flow class. A high-flow machine can feel acceptable in a quick yard check and still lose speed once the attachment is buried in real work.

Agricultural Implements

Agricultural implements may sit through the off-season and then run long days in dust, heat, and plant material. Couplers see fertilizer residue, rain, mud, careless storage, and quick changes in the field. The failure is often plain when someone finally looks closely: the cap is missing, the nose is dented, the poppet sticks, or the replacement coupler has the right thread but less internal flow area than the old one.

Before the season starts, clean the coupler faces, inspect caps, check for damaged balls or poppets, and compare hose sizes on high-flow implements. If a tractor remote works with one implement but not another, the implement hose set and coupler pair deserve inspection before the tractor pump is blamed.

Construction and Road Maintenance Machines

Construction and road-maintenance machines put couplers close to dust, vibration, impact, and frequent attachment changes. Flat face couplers help with spillage and are easier to wipe, but they still need clean handling. A damaged face can leak or carry dirt. A coupler mounted where debris strikes it may appear connected while the internal valve is not opening cleanly.

For machines working with hydraulic breakers, sweepers, brooms, and compactors, pressure drop and return pressure need attention. A breaker circuit may need different return routing than a simple cylinder tool. A return-side restriction can create heat and poor tool response that looks like an attachment problem.

Industrial Hydraulic Power Units and Test Stands

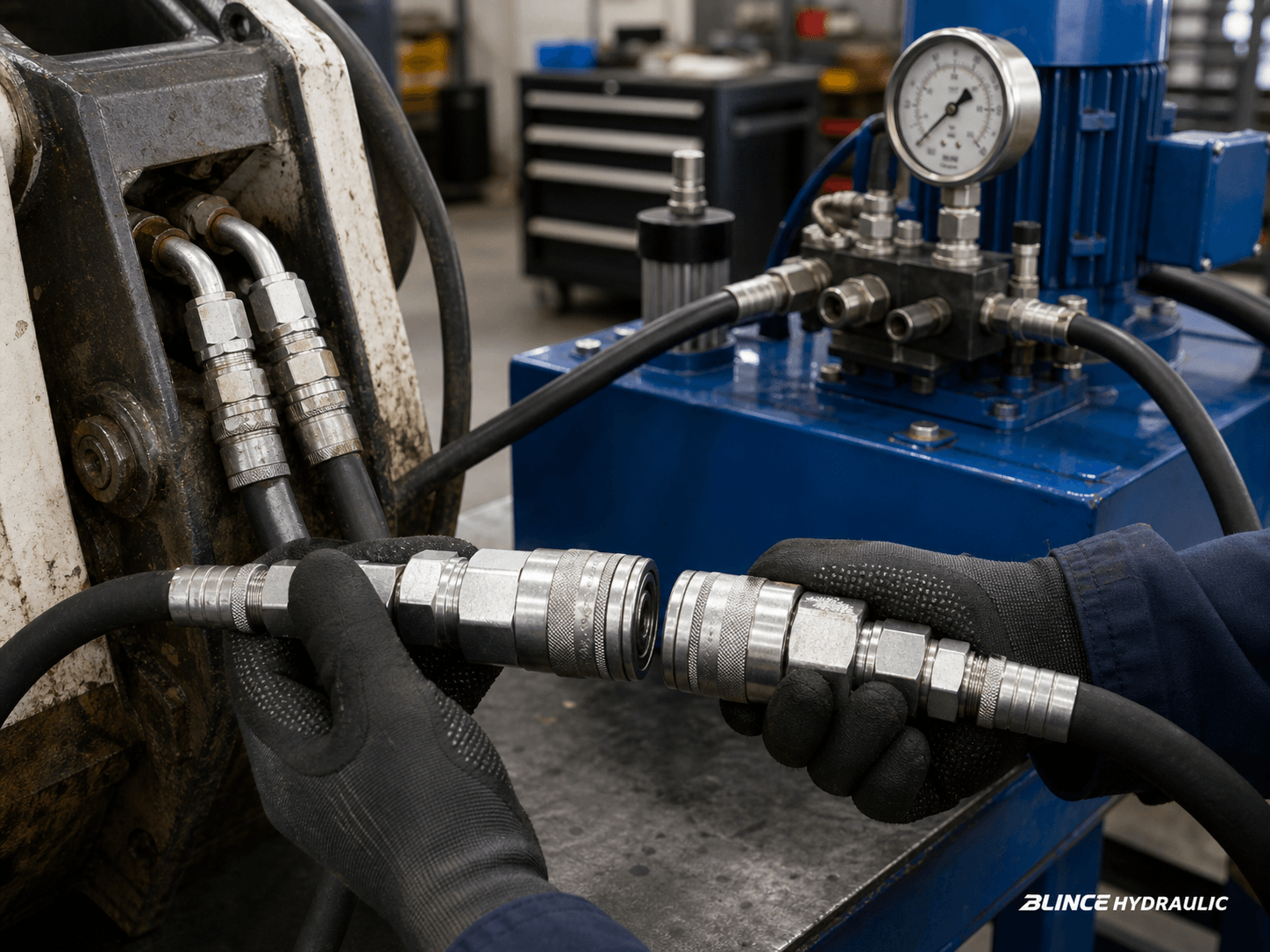

Industrial power units may use quick couplers for test hoses, temporary tooling, maintenance fixtures, or cylinder benches. The environment may be cleaner than mobile equipment, but pressure spikes and repeated connection cycles still matter.

For test stands, document the coupler style used on each circuit. Mixing similar-looking couplers can create intermittent problems that are hard to reproduce. Where precision valves or sensitive pumps are used, keep caps clean and consider whether the coupler location allows contamination to enter during every setup change.

Practical Checklist Before Ordering

Use this checklist before ordering a replacement hydraulic quick coupler, hydraulic hose quick coupler, flat face coupler, or attachment coupler set.

If several answers are unknown, selection can still begin, but call it preliminary. The fewer unknowns, the lower the chance of buying a coupler that fits the port but misses the machine.

Common Mistakes

Mistake 1: Choosing by Thread Size Only

Thread size only proves that the coupler can be installed on the port or hose end. It says very little about the passage inside. When the replacement has the same thread but less internal flow area, the operator gets a machine that connects correctly and then runs hot or slow.

Mistake 2: Replacing the Pump Because the Attachment Is Slow

A pump may be weak, but the coupler and return path should be checked first when the problem began after an attachment, hose, or coupler change. A larger pump can make a restrictive coupler create even more heat.

Mistake 3: Ignoring the Return Coupler

Many buyers look only at the pressure line. The return coupler can be the real heat source, especially with hydraulic motors. High return pressure reduces useful pressure difference and can shorten component life.

Mistake 4: Mixing Coupler Halves That Almost Match

Two halves may connect but not open fully. The locking sleeve may appear seated while the poppet travel is restricted. If a problem starts after replacing only one half, compare the full set and confirm compatibility.

Mistake 5: Treating Connect-Under-Pressure as a Cure for Every Hard Connection

Connect-under-pressure couplers can help daily operation. They do not explain why pressure is trapped. If a load, check valve, heat expansion, or blocked return path creates the pressure, the circuit still needs attention.

Mistake 6: Forgetting Clean Caps and Storage

A good coupler with a missing cap becomes a dirt funnel. The machine may not fail that day. The particles may first show up as a sticky valve, scored pump, leaking cylinder, or noisy motor later.

FAQ

What causes hydraulic quick coupler pressure drop?

Hydraulic quick coupler pressure drop is caused by oil losing pressure as it passes through the coupler's internal passage, poppet or ball mechanism, shoulders, and sealing geometry. The loss becomes larger as flow rises. A small body size, mismatched halves, damaged poppet, contamination, or undersized hose and fitting stack can make the pressure drop worse.

Can a hydraulic quick coupler make an attachment run slow?

Yes. A restrictive coupler can reduce flow to the attachment or raise return pressure. The result may be a slow hydraulic motor, weak cylinder movement, heat, noise, or poor response. The coupler should be tested with pressure readings before and after it under the same working load.

Why does the pump gauge look normal while the attachment is weak?

The pump gauge reports pressure where it is installed. It does not show how much pressure is lost through the valve, hose, fitting, quick coupler, filter, cooler, or return path. The attachment may receive less useful pressure even while the pump outlet number looks acceptable.

Are flat face hydraulic couplers always better?

Flat face hydraulic couplers are useful where cleanliness and reduced oil spillage matter. They are common on construction and mobile attachments. They are not automatically better for every circuit. Flow capacity, pressure drop, compatibility, residual pressure, and service environment still need to be checked.

Why is my hydraulic coupler hard to connect?

A coupler may be hard to connect because residual pressure is trapped in one line, oil expanded with heat, a load is pushing a cylinder, the coupler is damaged, or the two halves are not fully compatible. Do not assume the coupler body size is wrong before checking trapped pressure.

Should the pressure and return couplers be the same size?

Many machines use matched coupler sizes, but the return side must be checked for actual flow and allowable back pressure. Some motor circuits need a low-restriction return path or a separate case drain. The correct answer depends on flow, attachment type, hose size, and component limits.

How do I know if the coupler or hose is the restriction?

Measure pressure at several points while the same function is operating. Compare pressure before and after the coupler, then compare readings along the hose and return path. If pressure changes sharply across one component, that component or its connection may be restrictive.

Can a quick coupler damage a hydraulic motor?

Indirectly, yes. A restrictive supply coupler can reduce performance and create heat. A restrictive return coupler can raise outlet or case pressure, which may damage seals or reduce motor efficiency depending on motor design. Motor circuits should be checked with inlet, outlet, and case drain pressure where relevant.

Do I need a larger quick coupler if the oil gets hot?

Maybe, but heat is not proof by itself. Heat can come from relief flow, valve pressure drop, undersized hoses, return restriction, contamination, or a cooler problem. A larger coupler helps only if the coupler is a meaningful pressure-loss point in the circuit.

What information should I send before ordering a replacement quick coupler?

Send the machine model, attachment type, current coupler photos, thread or port details, hose internal diameter and length, pump flow, working pressure, return pressure if available, oil temperature trend, and whether the problem started after a hose, valve, pump, or attachment change.

Final Takeaway

Hydraulic quick coupler selection should begin with flow path behavior, not the outside thread. The coupler must connect safely, seal reliably, stay clean, and carry the required flow without turning useful hydraulic power into heat.

If a machine slows, heats, chatters, or refuses to connect after an attachment change, do not let one normal pump pressure reading close the diagnosis. Ask where the pressure was measured. Ask what pressure exists before and after the coupler. Ask whether the return path is carrying more back pressure than the motor, cylinder, hose, or valve can tolerate. Ask whether dirt entered at the connection point.

For hydraulic quick coupler selection, hydraulic hose and fitting checks, pressure testing, or attachment circuit troubleshooting, send Blince the machine model, attachment type, coupler photos, hose size, pump flow, pressure readings, oil temperature trend, and the symptom that appeared first. Blince can help review the quick coupler together with the hydraulic pump, valve, motor, cylinder, hoses, fittings, pressure gauges, oil cooler, and wider hydraulic system before you order another part.
